DRIVE CONNECTORS –MK2023GAS (HDD2187)
Interface Connector
Drive Side Connector
Recommended Host Side Connector
Board
Cable
Recommended Cable Characteristics
Standard diameter
Characteristics impedance
Max Length
Capacitance
* cable is not included with drive
8

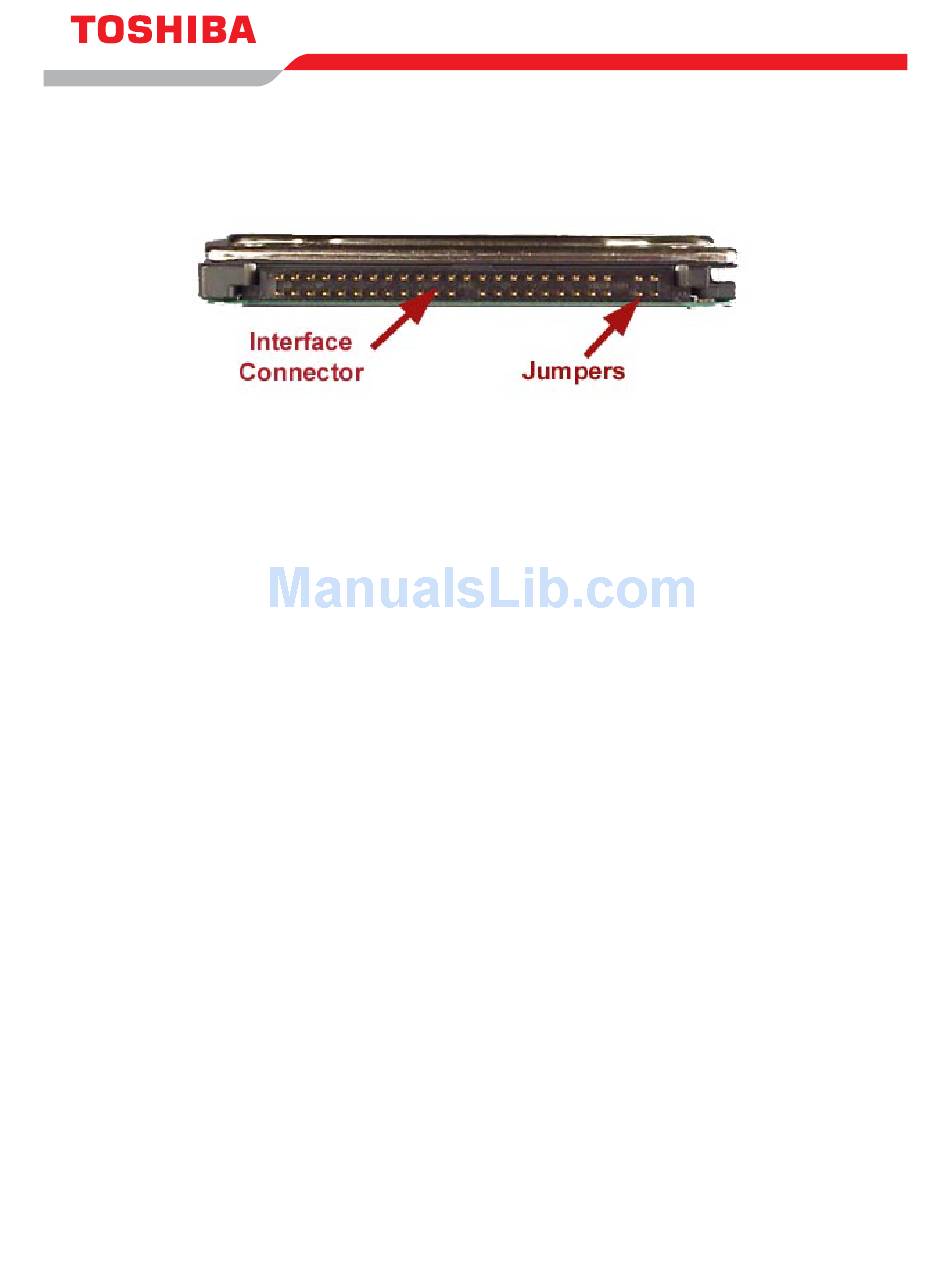

Figure 1.MK2023GAS HDD Rear View - Connectors
Yamaichi GAP050K11617 or equivalent
Straight type: Berg 86455-044 86456-044 or equivalent
Berg 89361-044 or equivalent
0.32mm (28AWG)
100 - 132ohm
0.46mm (max)
35pF (max)
