Coleman 2000012456 Setup Instructions

Before you begin
• Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or
sharp objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning
strikes or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent property
damage or personal injury.
• For best results in windy conditions, position narrow end of tent
into the wind.
• Do not drop tent.
• Do not bounce tent bag on its end to remove tent, as these
actions may damage the frame.
• THIS RECREATIONAL PRODUCT REQUIRES A MINIMUM OF TWO
PEOPLE TO ASSEMBLE.
• Under no circumstances should this product be used to cover
automobiles, marine products or similar items.
CAUTION: Avoid pinch points when opening and closing the
tent frame.
1

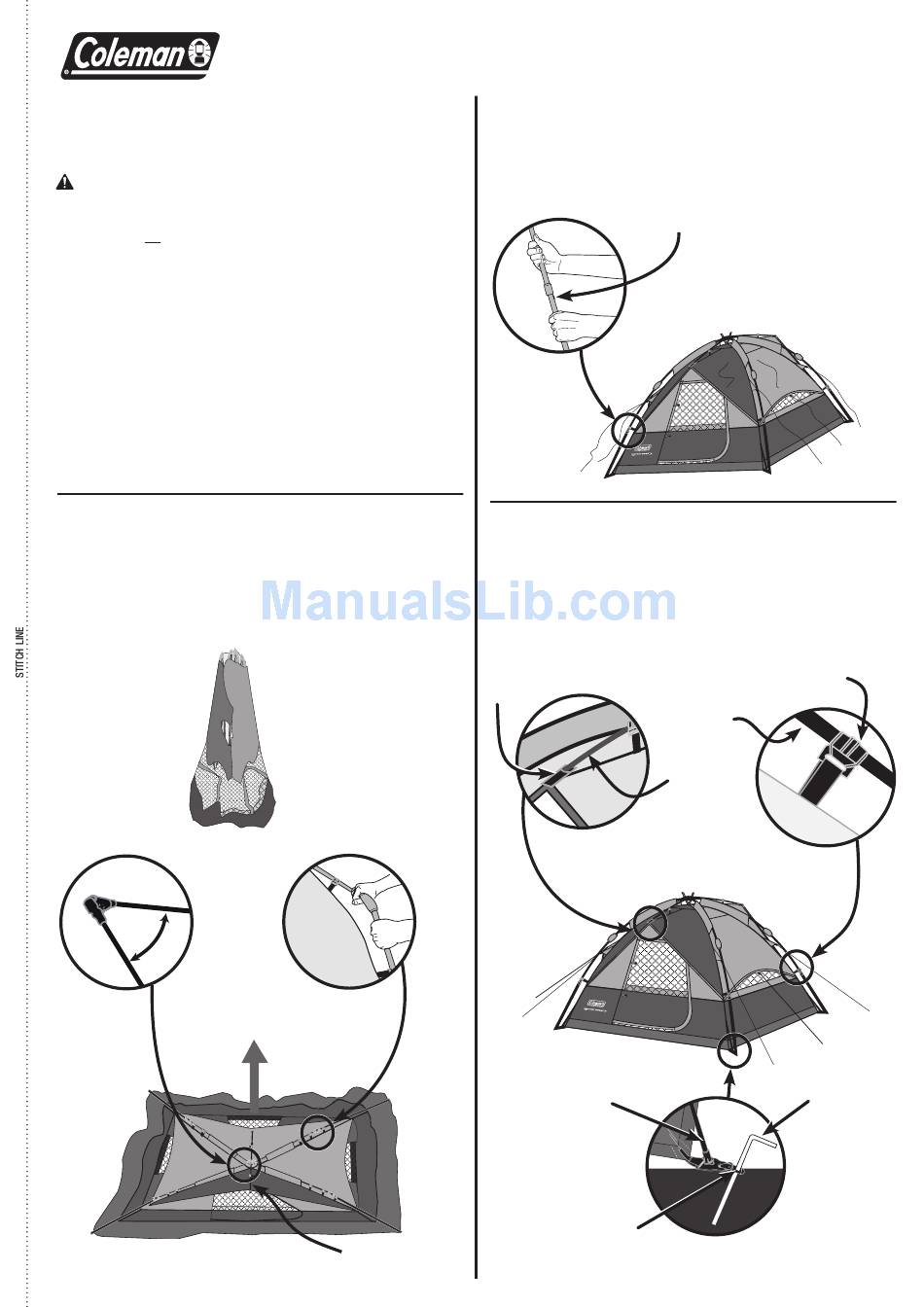

Extend the Tent Frame
• Stand the tent upright with the hub assembly at the
bottom. (Fig. 1)
• Unfold the arms of the tent downward from the center until
they lay flat on the ground. (Fig. 2)
• Unfold the ridge pole. (Fig. 3)
Fig. 1
Fig. 3
Fig. 2
tEnt sEtup instructiOns
2
3
Pocket
Fig. 4
Ridge Pole
MODEL 2000012456
Raise the Tent
• Extend each of the telescoping leg poles until they snap
into place. The tent will raise as the leg poles are extended.
(Fig. 5)
Lock Button
Fig. 5
Verify Connections and
Stake the Tent
• Verify the clips along the edges of the tent are properly
attached to the frame poles. (Fig. 6)
• Insert the tips of ridge pole into pockets. (Fig. 7)
• Secure the tent by driving stakes through the webbing
loops sewn to the tent base. (Fig. 8)
Ridge
Pole
Fig. 7
Tent Pole
Webbing
Loop
Clip
Pole
Fig. 6
Stake
Fig. 8
(continued on other side)
