4 Button Remote Security System
with Dual Stage Shock Sensor
IMPORTANT ! In order to provide the highest possible level of security to your vehicle, this
system is equipped with selectable manual override circuitry. It is possible that you will need
to manually override your security system if the transmitter becomes lost, or inoperative due
to battery failure. Reading the sections on "MANUALLY OVERRIDING YOUR SYSTEM" is
necessary to fully understand the procedure required to enable your vehicle in such
situations. In addition, the chart on the last page of this manual has a section for the particular
features and options installed in your vehicle as well as the override method selected.
Valet Switch manual override is pre-selected from the factory, however, the system
can be configured for "Custom Code" operation. Confirm the override mode selected on the
last page of this manual, and familiarize yourself with the selection on it's operation.
FEATURES :
2 Four Button Programmable RF Transmitters (capable of accepting 4 transmitters)
Five Channel Receiver
Code Hopping Technology
Selectable Manual Override Mode
Remote Panic in all modes
Protected Valet
User Programmable Manual Override Code
7 Function LED (Light Emitting Diode) - Arm / Disarm / Zone 1, 2, 3 / Valet / Arming
Intrusion Alert with Memory
Audible Arm / Disarm / Defective Zone / Tamper Confirmation
Instant Siren Activation
Starter Disable
Additional Engine Immobilizer Output (optional relay required)
True Last Door Arming (hardwire only)
Defective Zone By-Pass
Hardwire or Voltage Sense Selectable
Active or Passive Arming Selectable
Programmable Auto Lock On / Off
Programmable Auto Unlock On / Off
Programmable Door Lock Pulse Duration 1 Second / 3.5 Seconds/1 Sec L/ Dbl. U/L
Programmable Active or Passive Door Locks
User Programmable Permanent Chirp Delete
On Command RF Chirp Delete from Transmitter
6 Tone Multi Tone Siren
RF Inhibit with ignition on
Parking Light Flasher
Plug In Dual Stage Shock Sensor
OPTIONS:
Remote Trunk Release ( must have electronic trunk release )
Remote Keyless Entry ( must have power door locks )
Multiple Vehicle Capable
Remote Starter
Remote Power Window Roll Up
Remote Garage Door Interface
Two Step Unlock Configurable
Headlight Illumination During Arming, Disarming, Or Both
Interior Illumination Upon Disarm
Model CSI-300
Owner's Manual
1 OF 12
128-

Advertisement

Table of Contents
loading

Related Manuals for Code Alarm CSI-300

Summary of Contents for Code Alarm CSI-300

  • Page 1 Model CSI-300 Owner’s Manual 4 Button Remote Security System with Dual Stage Shock Sensor IMPORTANT ! In order to provide the highest possible level of security to your vehicle, this system is equipped with selectable manual override circuitry. It is possible that you will need to manually override your security system if the transmitter becomes lost, or inoperative due to battery failure.

  • Page 2: Arming The System - Active

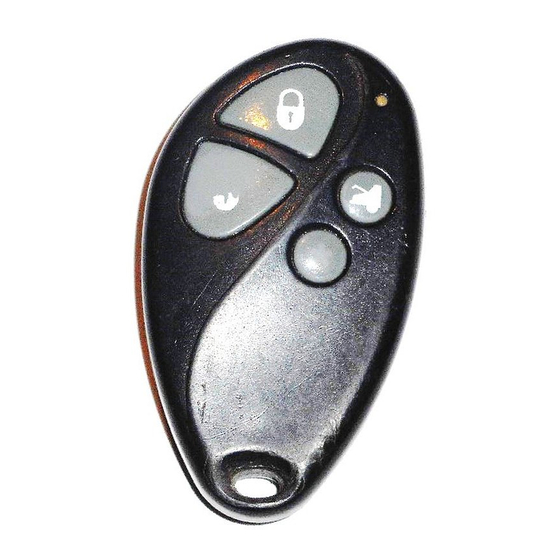

    YOUR “ Code Hopping “ TRANSMITTERS The transmitters included with your new security system use the most advanced and secure form of radio frequency transmission available on any current automotive security system. Some of today’s sophisticated auto thieves use a device known as a code grabber, which will receive and store the signal from your keychain transmitter, and retransmit at a later time to disarm your system.

  • Page 3: Arming The System - Passive ( Automatic )

    SILENT ARMING - ACTIVE 1. Turn off the engine, exit the vehicle, and close all doors, hood lid, and trunk lid. 2. Press and hold the Lock button on the keychain transmitter for 2 seconds. Dash mounted LED begins to flash slowly. Parking Lights flash two times.

  • Page 4: Disarming The System

    Whenever the system is armed, the dash mounted LED indicator will slowly flash. This serves as a visual deterrent to the potential thief. The LED is a very low current bulb and will not cause the vehicle’s battery to drain, even when left unattended for extended periods. Whenever the system is triggered, the vehicle’s parking lights will flash for the full 30 second alarm cycle, attracting visual attention to the vehicle.

  • Page 5: Silent Disarming

    SILENT DISARMING 1. As you approach the vehicle, press and hold the Unlock button on the keychain transmitter for 2 seconds. Dash mounted LED turns off. If passive arming was selected during the installation, then the LED will start flashing rapidly, indicating that the system is rearming automatically. Open any door to suspend the automatic arming.

  • Page 6: Valet Switch

    If the LED is flashing three times...pause...three times...pause...etc., then an intrusion attempt was made through one of the vehicle’s doors. These intrusion warning indicators are stored in the system’s memory and will only be erased when the ignition key is turned on. VALET SWITCH The valet switch allows you to temporarily bypass all alarm functions, eliminating the need to hand your transmitter to parking attendants or garage mechanics.
  • Page 7 1. Disarm the system by use of the transmitter, or by use of the emergency override sequence. Turn the ignition switch to the on position. 2. Within 10 seconds, press and release the valet/override switch, 3 times. 3. Within 10 seconds turn the ignition switch off, on, off, on, off, on. (The siren or horn will beep and the lights will flash one time.) 4.

  • Page 8: Eliminating The Normal Arm / Disarm Chirps

    NOTE: If after step 8, the LED flashes a code other than what was just entered, this indicates that the code has not been changed. You will have to repeat steps 1 through 7 above being certain to note the following: Acceptable digits 10ths or units are 1 through 9.

  • Page 9: Additional Remote Function ( Channel 3 )

    during the Panic sounding period. 3. During the panic mode, the Lock and Unlock buttons can be used to lock and unlock the doors, (if the option is installed), however once the unlock/disarm button is pressed, the vehicle's starter inhibit device, (where installed) will be disabled allowing the vehicle to start.

  • Page 10: Telematic Upgrade

    Check with your installation center for more information on the optional accessory that may have been installed and how it is accessed, as the transmitter buttons must be programmed to access this option if installed. IGNITION CONTROLLED LOCK UNLOCK: (Unlock Drivers Only, or Unlock All Doors) Your security system has a selectable safety feature that allows the vehicle doors to lock when the ignition switch is turned on, (Providing all doors are closed), and to unlock the doors when the ignition switch is turned off.
  • Page 11 CSI-300 SYSTEM FUNCTIONS AT A GLANCE DASH LED INDICATORS RAPID FLASHING PASSIVE ARMING SLOW FLASHING = ARMED DISARMED ON SOLID VALET MODE 3 FLASH...PAUSE = INTRUSION ZONE 3 2 FLASH...PAUSE = INTRUSION ZONE 2 1 FLASH...PAUSE = INTRUSION ZONE 1...
  • Page 12 © 2003 Audiovox Electronic Corporation, 150 Marcus Blvd., Hauppauge, N.Y. 11788 128-6802 Page 12 128- 12 OF 12...
