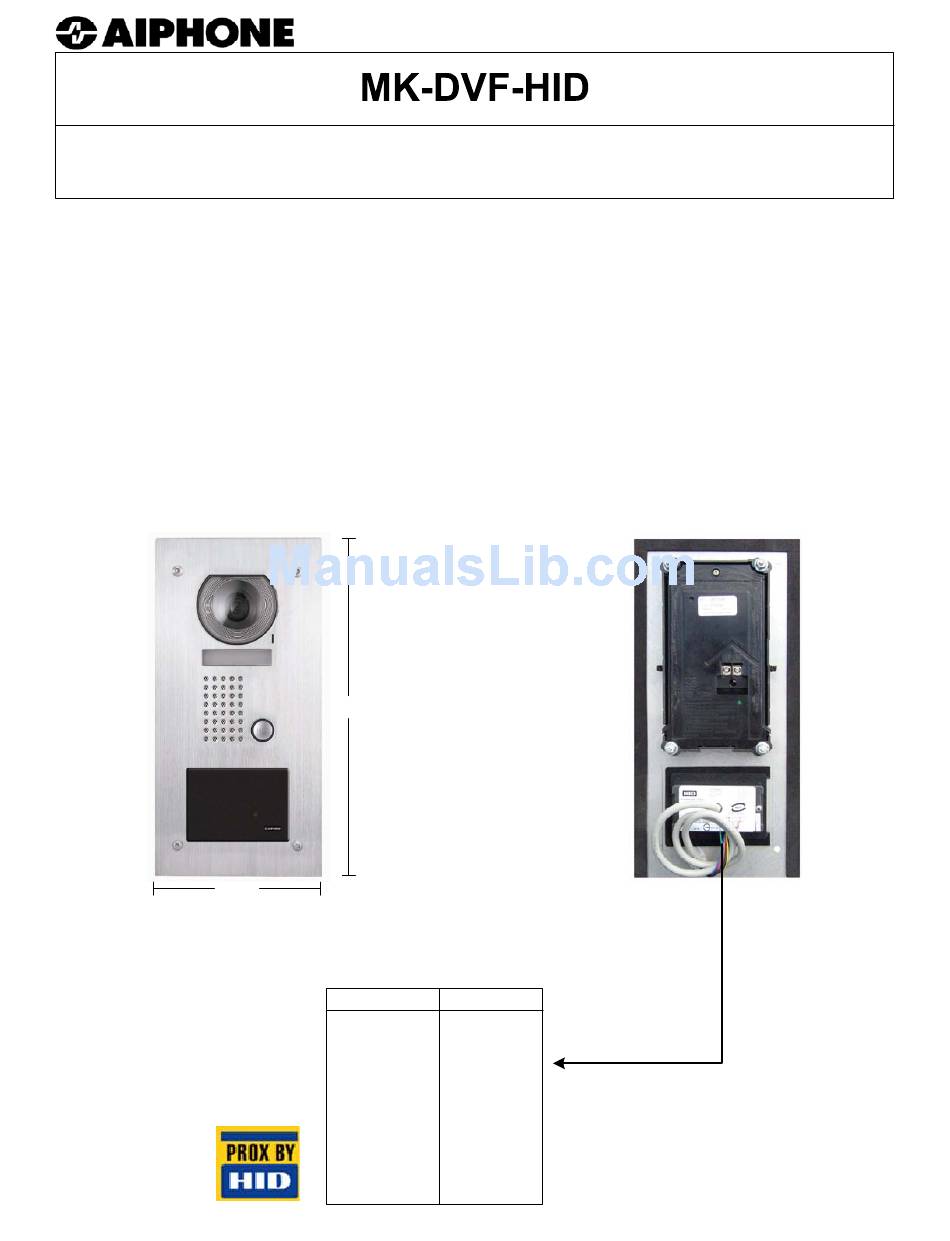

Aiphone MK-DVF-HID Instructions

Vandal Resistant Black & White Video Door Station
The MK-DVF-HID is an MK-series Black & White video door station and an HID ProxPoint Plus
Card Reader, built onto the same stainless steel faceplate. The card reader provides electronic
access to a building through a separate Access Control System, which is not supplied by
Aiphone.
INSTALLATION:
1. For flush mounting, cut hole in wall and use supplied back box.
Box dimensions are 4-½"W x 10-⅜"H x 1-¾"D.
2. For surface mounting, use the SBX-DVF-P surface mount box.
This box can mount to a standard 1- gang box or to any flat surface.

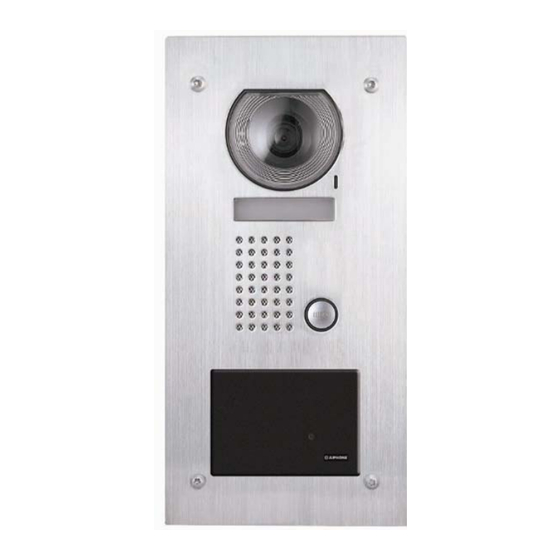

MK-DVF-HID
(front view)
5-¾"
With Built in Proximity Card Reader
- INSTRUCTIONS-
11-⅝"
Connecting the Reader to the Host:
Connect the reader to the host according to the
wiring table below and the host installation guide.
Wiegand Wire Color
+ DC (5-16V) Red
Ground Black
Data0 Green
Data1 White
Shield Ground Drain
Green LED Orange
Red LED Brown
Beeper Yellow
Hold Blue
Card Present Violet
MK-DVF-HID
(back view)
20" pigtail cable
Pg. 1
