TANDBERG PrecisionHD 1080p/720p camera
Contents
Contents
Introduction
Introduction

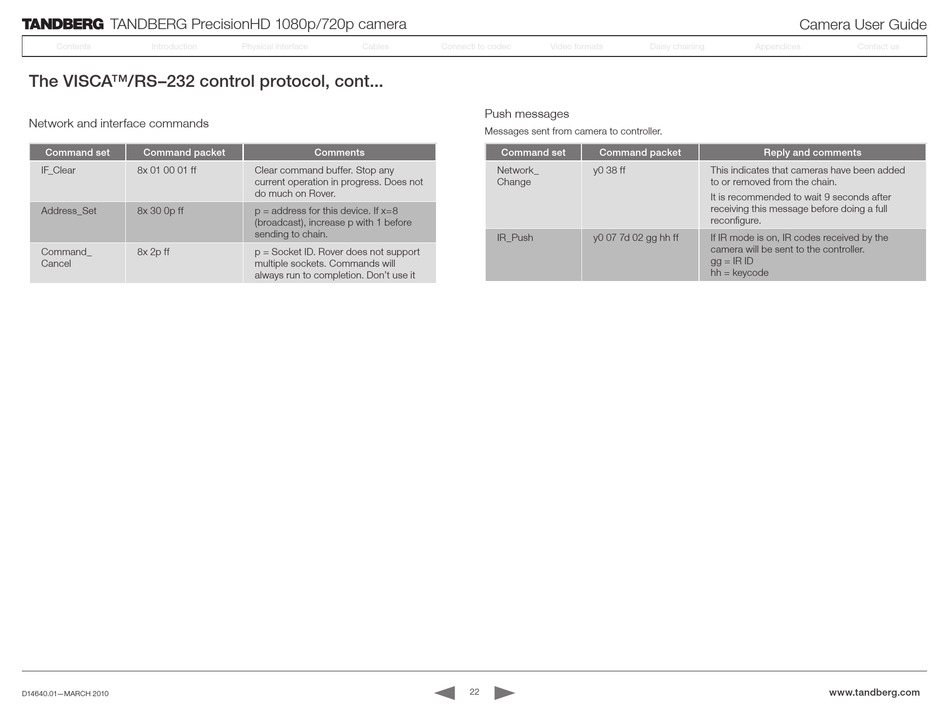

The VISCA™/RS–232 control protocol, cont...

Network and interface commands

Command set
Command packet
IF_Clear
8x 01 00 01 ff
Address_Set
8x 30 0p ff
Command_
8x 2p ff
Cancel
D14640.01—MARCH 2010
Physical interface
Physical interface
Cables
Cables
Comments
Clear command buffer. Stop any
current operation in progress. Does not
do much on Rover.
p = address for this device. If x=8
(broadcast), increase p with 1 before
sending to chain.
p = Socket ID. Rover does not support
multiple sockets. Commands will
always run to completion. Don't use it
Connecti to codec
Connect to codec
Video formats
Video formats

Push messages

Messages sent from camera to controller.
Command set
Command packet
Network_
y0 38 ff
Change
IR_Push
y0 07 7d 02 gg hh ff
22
Camera User Guide
Daisy chaining
Daisy chaining
Appendices
Appendices
Appendices
Reply and comments
This indicates that cameras have been added
to or removed from the chain.
It is recommended to wait 9 seconds after
receiving this message before doing a full
reconfigure.
If IR mode is on, IR codes received by the
camera will be sent to the controller.
gg = IR ID
hh = keycode
Contact us
Contact us
www.tandberg.com
