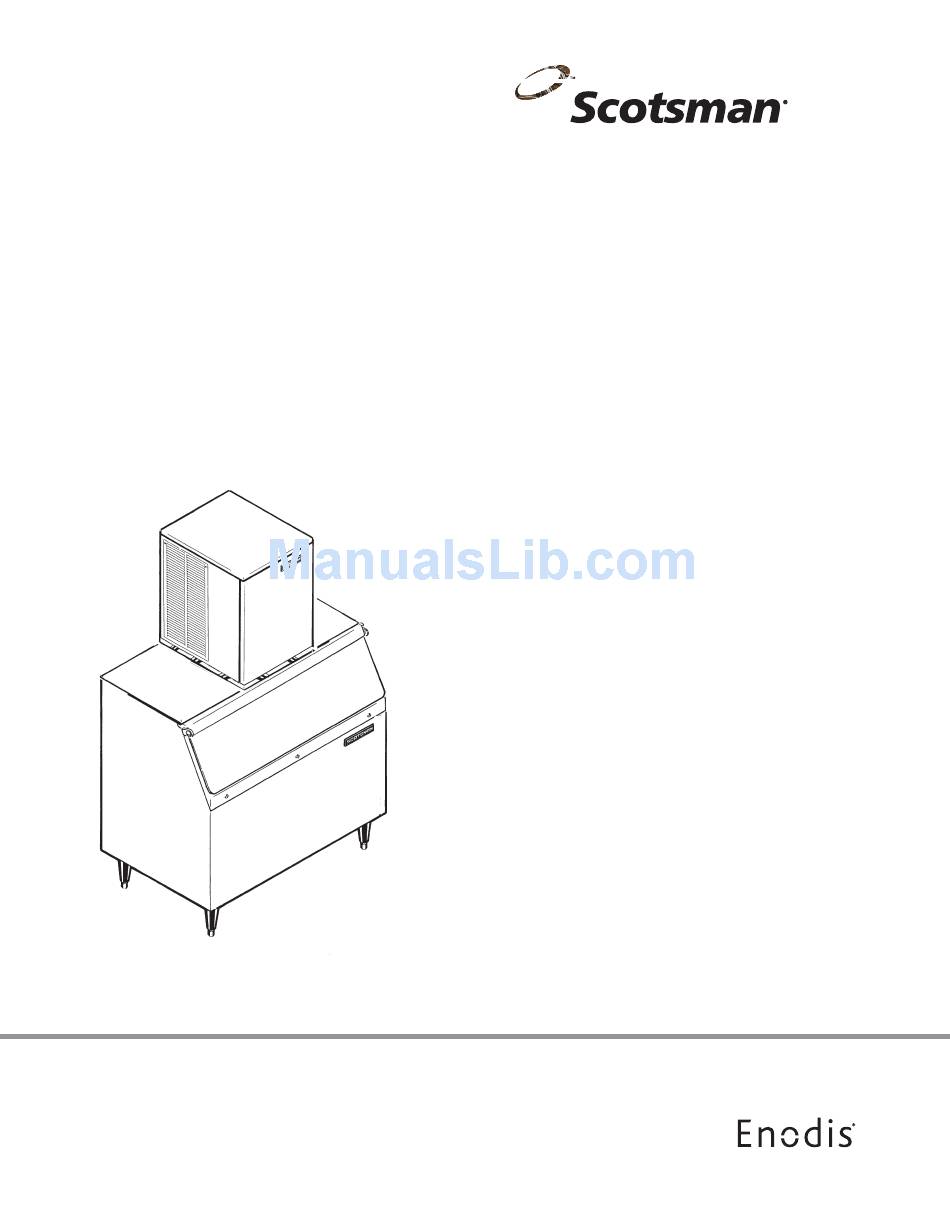

- Page 1 Installation and User's Manual for Flake and Nugget Ice Machine Models FME504, FME804, NME454, NME654...
-
Page 2: Table Of Contents
NME454, 654 & FME504, 804 INTRODUCTION To the owner or user: This manual is intended to provide you with the information needed to install, Note this symbol when it appears. start up, clean, and maintain this ice system. This is a modular ice system that fits a variety of Scotsman ice storage bins. -
Page 3: For The Installer
NME454, 654 & FME504, 804 FOR THE INSTALLER These machines fit the following Scotsman Installation Limitations: products, check sales literature for other possible This ice system is designed to be installed indoors, combinations: in a controlled environment: · SB480 and extensions (with bin top KBT18) Min. -
Page 4: Sample Bin And Machine Combinations
NME454, 654 & FME504, 804 SAMPLE BIN AND MACHINE COMBINATIONS FME804 ON BH550* NME654 ON BH801* The Nameplate is located on the back of the machine. FME804 ON BH900* A Serial Number Plate is located inside the cabinet, behind the front panel. -
Page 5: For The Installer
2. Remove the 2 service panels that will face each other. 3. Add a strip of gasket, such as Scotsman part number 19-0503-04, to the 2 base edges that will face each other and around service panel space on the 2 panels that will face each other. - Page 6 NME454, 654 & FME504, 804 FOR THE INSTALLER: Location ALLOW AIR SPACE ON BOTH SIDES TWO UNITS ON ONE BIN ALLOW ROOM FOR AIR CIRCULATION AND SERVICE ACCESS Airflow Notice: Air flow is in the sides and out the back.
-
Page 7: For The Plumber
NME454, 654 & FME504, 804 FOR THE PLUMBER CONFORM TO ALL APPLICABLE CODES Water Inlet Drains Air Cooled Models: Use " O.D. copper tubing to Air Cooled Models: Connect a drain tube to the connect cold potable water to the "... -
Page 8: For The Electrician
NME454, 654 & FME504, 804 FOR THE ELECTRICIAN CONFORM TO ALL APPLICABLE FOR THE INSTALLER CODES Connect the electrical power to the machine to the wires in the junction box at the rear of the machine. Final Check List Check the nameplate (located on the back panel) for the voltage requirements, and for the minimum circuit ampacity. -
Page 9: Initial Start Up
NME454, 654 & FME504, 804 INITIAL START UP Pre-Start Inspection 1. Remove the front and side service panels. are rubbing each other. Check that the fan blade turns freely (air cooled). 2. Check that any shipping blocks have been removed. -
Page 10: Cleaning & Sanitizing
NME454, 654 & FME504, 804 CLEANING & SANITIZING A Scotsman Ice System represents a sizable investment of time and money in any company’s business. In order to receive the best return for that investment, it MUST receive periodic maintenance. It is the USER’S RESPONSIBILITY to see that the unit is properly maintained. It is always preferable, and less costly in the long run, to avoid possible down time by keeping it clean;... -
Page 11: Sensor Maintenance
NME454, 654 & FME504, 804 SENSOR MAINTENANCE 1. The bin control is a device that senses light, 2. The ice machine senses water level by a probe therefore it must be kept clean so it can “see”. At located in the water reservoir. At least twice a year,... -
Page 12: Air Cooled Maintenance
NME454, 654 & FME504, 804 AIR COOLED MAINTENANCE Hazardous Moving Parts. Moving fan blade can cause personal injury. Disconnect electrical power before beginning. Clean the air cooled condenser. The air flow on this model is from front to back, so the inside of the machine will have to be available to clean the air cooled condenser. -
Page 13: Bearing Maintenance
If the bearing only needs grease, inject grease into Ice Sweep the bearing using Scotsman grease needle pn 02-3559-01 and Scotsman bearing grease cartridge, pn A36808-001. Be sure to inject grease evenly and thoroughly. -
Page 14: Auger Maintenance
NME454, 654 & FME504, 804 AUGER MAINTENANCE In some areas, the water supply to the ice maker 4. Remove 4 allen screws holding breaker to will contain a high concentration of minerals, and evaporator. that will result in an evaporator and auger 5. -
Page 15: Removal And Replacement: Bin Controls
NME454, 654 & FME504, 804 REMOVAL AND REPLACEMENT: Bin Controls BIN CONTROLS (Ice Level Sensors) 1. Disconnect electrical power. CHUTE 2. Remove front panel. 3. Remove control box cover. 4. Locate ice chute, at the base of the chute, in front of and behind it are two plastic bin control mounts. - Page 16 SCOTSMAN ICE SYSTEMS 775 Corporate Woods Parkway, Vernon Hills, IL 60061 800-533-6006 www.scotsman-ice.com 17-3154-01...
