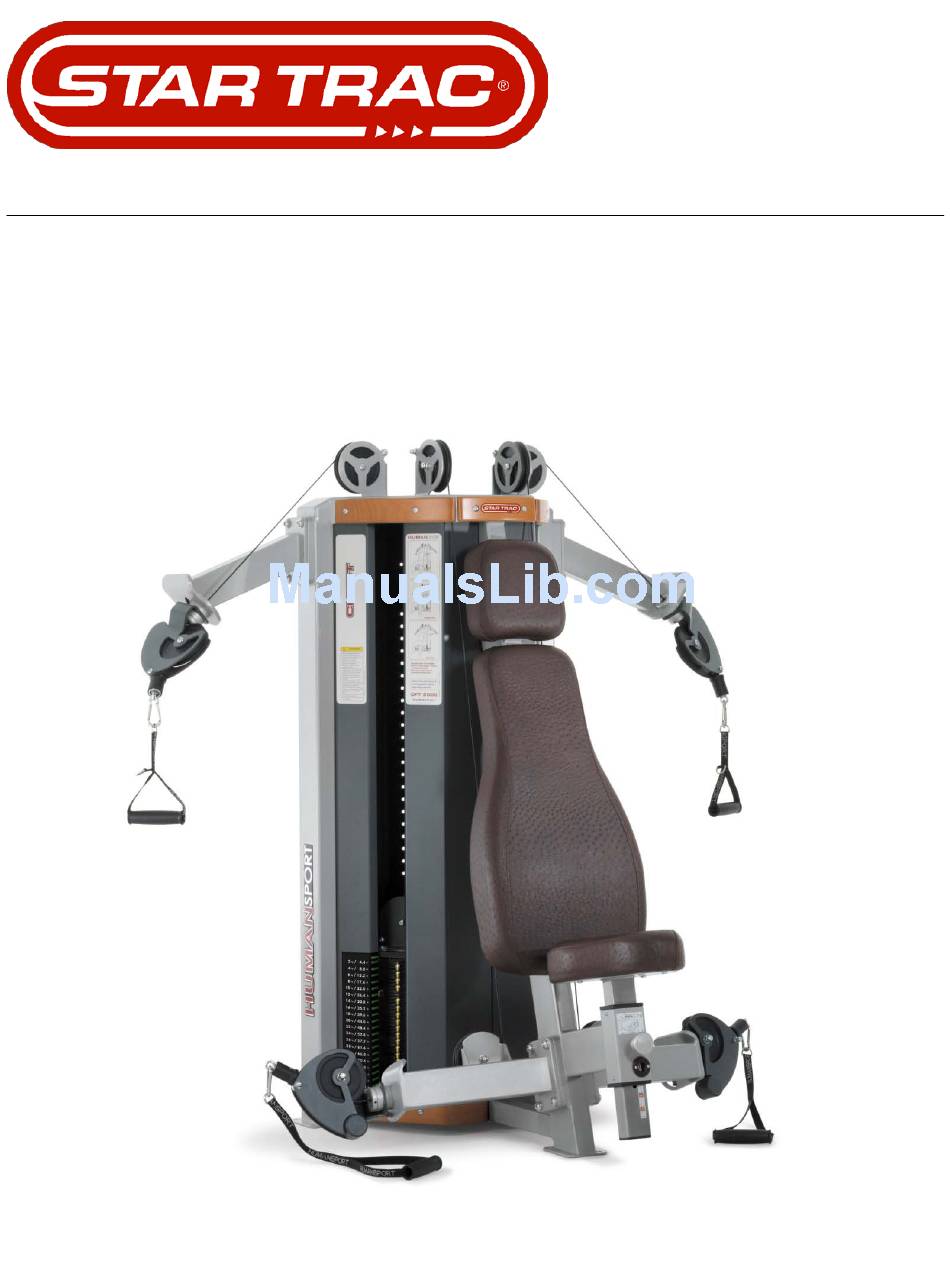

- Page 1 STAR TRAC ® Human Sport Owner’s Manual...
- Page 3 All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining the written permission from Star Trac. Every effort has been made to keep this information current; however, periodically, changes are made to the information herein, and these changes will be incorporated into new editions of this publication.
-
Page 4: Table Of Contents
T able of Contents S E C T I O N 1 Safety and warning information Warranty information Product features and benefits S E C T I O N 2 Assembly Shoulder Chest Pulley Lat AB Crunch Arm Curl Lift Pull Total Delts Total Legs S E C T I O N 3... -
Page 5: Safety And Warning Information
It is recommended that all users of Star Trac Human Sport exercise equipment be informed of the following information prior to its use. - Page 6 4. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so. Star Trac will provide service and maintenance training at our corporate facility upon request or in the field if proper arrangements are made.
-
Page 7: Warranty Information
Who pays for transportation and insurance for service If the Product or any covered part must be returned to a service facility for repairs, We, Star Trac, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charges during the second and third years (if applicable). -
Page 8: Product Features And Benefits
• ® LockNLoad Weight Selection System – Exclusive to Star Trac and not available on competitive ® products the patented LockNLoad selection system eliminates the frustration caused by bent, broken or missing weight stack pins and lanyards. -
Page 9: Assembly
Sport manufactured by Star Trac The assembly and packaging of the Human Sport line is done in order to make it faster and easier to be installed in a facility. For safety, two people are strongly recommended when removing the machines from the shipping pallet and during the assembly of the machine components. -
Page 10: Shoulder Chest
Shoulder Chest INSTRUCTIONS NOTE: Take special care when unwrapping unit, DO NOT use knifes to cut open packaging damage may occur. STEPS: 1. Take main body off the pallet and place it on the floor. 2. Attach the (2) lower arms to their respective sides of the main body. (Note: cables are attached;... -
Page 11: Pulley Lat
PULLEY LAT INSTALLATION NOTE: take special care when unwrapping unit, DO NOT use knifes to cut open packaging damage may occur. STEPS: 1. Take main body off the pallet and place it on the floor. 2. Attach the upper arms to the main body. (note: cables are attached, take special care not to pinch, twist, or damage cables. -
Page 12: Ab Crunch Arm Curl
AB CRUNCH ARM CURL INSTALLATION Note: take special care when unwrapping unit, DO NOT use knifes to cut open packaging damage may occur. STEPS: 1. Take main body off the pallet and place it on the floor. 2. Attach the lower arms to the main body. (NOTE: cables are attached;... -
Page 13: Lift Pull
LIFT PULL INSTALLATION Note: take special care when unwrapping unit, DO NOT use knifes to cut open packaging damage may occur. STEPS: Take main body off the pallet and place it on the floor. Attach the platform to the main body. Use (2) M12 washers, (2) M12 x 30 button head screws, and (2) M12 locking nuts to mount platform to the main body, tighten fasteners to (84 NM / 62 ft-lb) torque. -
Page 14: Total Delts
TOTAL DELTS INSTALLATION NOTE: take special care when unwrapping unit, do not use knifes to cut open packaging damage may occur. STEPS: Take main body off the pallet and place it on the floor. Attach the seat pad frame to the main body. (Note: cables are attached to this assembly, take special care to not pinch, twist or damage cables. -
Page 15: Total Legs
TOTAL LEGS INSTALLATION NOTE: take special care when unwrapping unit, do not use knifes to cut open packaging damage may occur. STEPS: Take main body off the pallet and place it on the floor. Attach the front handles to the main body. Use (4) M12 washers and (4) M12 x 30 button head screws to handles to the main body;... -
Page 16: Strength Product Use
Each Human Sport machine is delivered with its own unique installation manual included. It is the sole responsibility of the purchaser of Star Trac Human Sport products to read the owner’s manual, review the following pages and instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. -
Page 23: Preventative Maintenance Program
Section Preventative maintenance program Action Daily Weekly Monthly Bi-annually Cleaning Upholstery Handgrips Main frame Guide rod Internal tower Inspect Cables Fasteners Handgrips Upholstery Labels Pulleys Main Frame Lubricate Guide Rods... -
Page 24: Cleaning
NOTE – do not use cleaners that contain solvents, alcohol or abrasives. Inspection Visual inspection of your Human Sport units will insure a safe environment for your clients and alert you to any issues that may require maintenance prior to equipment failure. Proper, timely visual inspection is a critical component to the long term care of your product. - Page 26 STAR TRAC 4400 NE 77 Avenue, Suite 300 Vancouver, WA 98662 Telephone: (800) 228-6635, (714) 669-1660 Fax: (714) 508-3303 http://www.startrac.com Document # 620-8253ntumber 620-8212,...
