INSTRUCTIONS

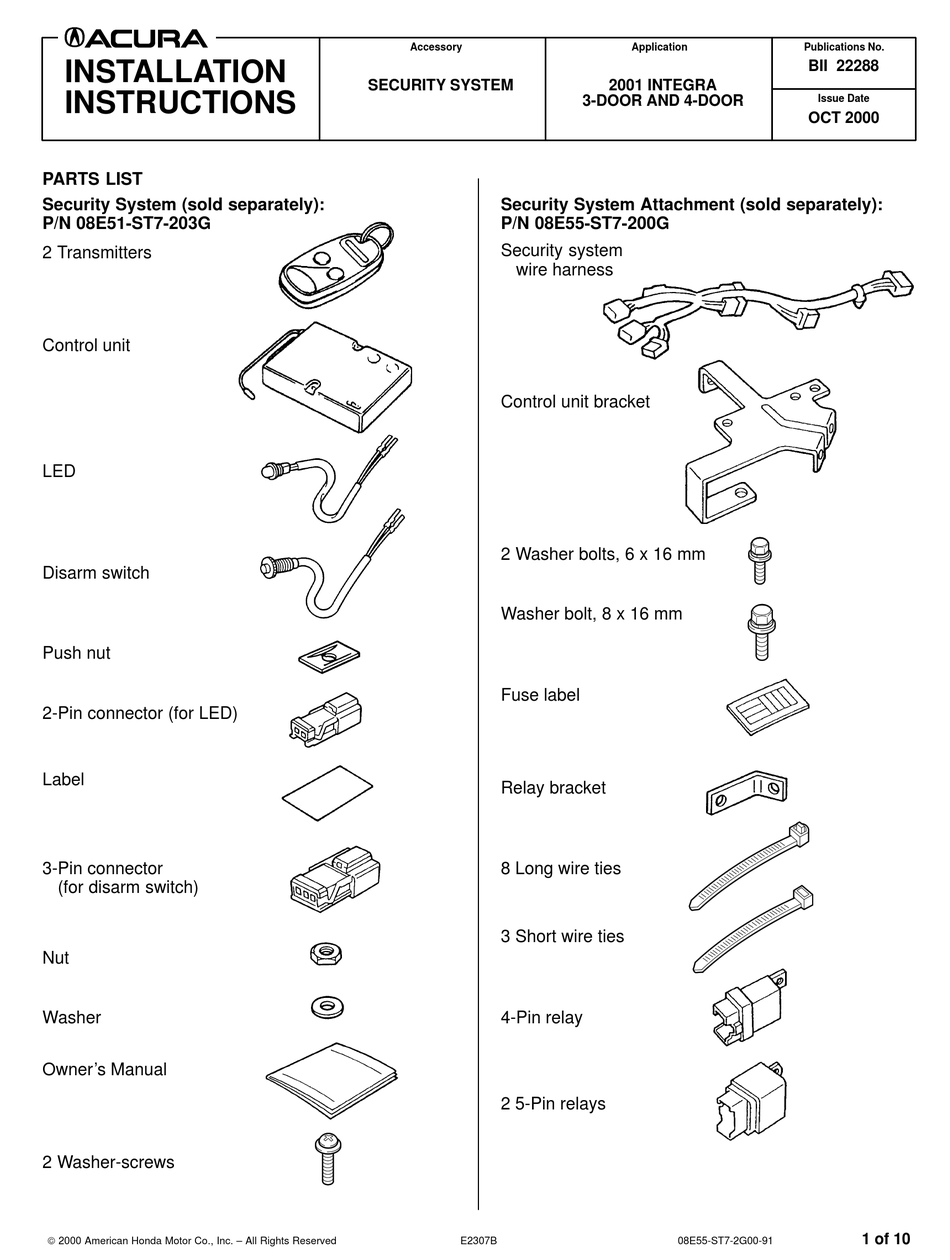

PARTS LIST
Security System (sold separately):
P/N 08E51-ST7-203G
2 Transmitters
Control unit
LED
Disarm switch
Push nut
2-Pin connector (for LED)
Label
3-Pin connector
(for disarm switch)
Nut
Washer
Owner's Manual
2 Washer-screws
2000 American Honda Motor Co., Inc. – All Rights Reserved
Accessory
SECURITY SYSTEM
Security System Attachment (sold separately):
P/N 08E55-ST7-200G
Security system
wire harness
Control unit bracket
2 Washer bolts, 6 x 16 mm
Washer bolt, 8 x 16 mm
Fuse label
Relay bracket
8 Long wire ties
3 Short wire ties
4-Pin relay
2 5-Pin relays
E2307B
Application
2001 INTEGRA
3-DOOR AND 4-DOOR
08E55-ST7-2G00-91
Publications No.
BII 22288
Issue Date
OCT 2000
1 of 10
