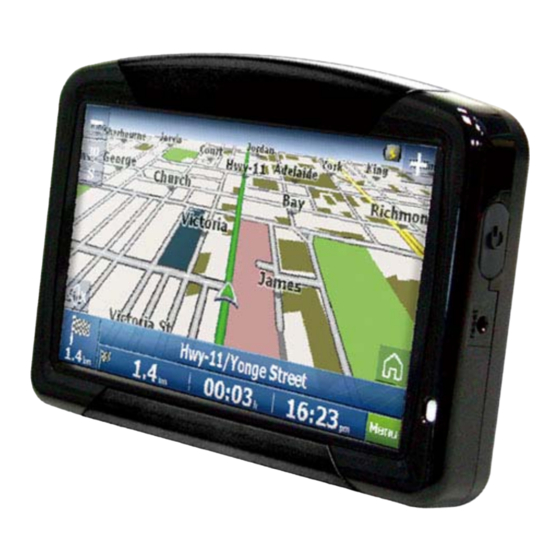

Page 1: Omnitech Gps User Manual
Omnitech GPS User Manual Model Number: 16877-CA Model Number: 16878-US V.1.0... - Page 2 Map database may not cover one hundred percent of all areas and/or addresses listed. This GPS PND may not be used for any purpose in which failure could lead to personal injury, physical, or environmental damage. Software version and user manual contents are subject to change without notices. Omnitech GPS User Manual...
- Page 3 FCC Statement Omnitech GPS Model Number 16877-CA and 16878-US: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4 & FCC Part 15 regulations for the evaluation of electromagnetic compatibility. This device complies with Part 15 of the FCC rules; operation is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Table Of Contents
Saving a Location………………………………………………..14 Traveling to a Favorite Location……………………………..15 Creating Groups for Favorite Locations…………………………16 Traveling To Options………………………………………………16 9. Additional Destinator Features Driving Directions……………………………………………………...17 Showing Entire Route and Next Turn Maps…………………….18 Road Type and Route Mode………………………………………… 19 Detours………………………………………………………………... 20 Omnitech GPS User Manual... -
Page 5: Package Contents
1. Package Contents ITEM NAME GPS with 4.3” LCD screen Car mount Car charger User Manual CD Quick Start Guide Warranty Card Omnitech GPS User Manual... -
Page 6: Controls And Indicators
Press for 1 second to switch the device into/back from Standby Mode. The GPS still draws a small amount of power while in Standby Mode. Press the reset switch to restore the system default setting and to shut down the device. Pressing the reset switch will not delete any records in the software. Omnitech GPS User Manual... -
Page 7: Mounting Hardware
The car mount keeps your GPS unit secured to the windshield giving you an optimal satellite signal reception. Use the push buttons to adjust viewing angles; up/down and left/right. IMPORTANT: The car mount should be mounted at least 6” from the vehicle’s airbag system. Omnitech GPS User Manual... -
Page 8: Installation Instructions
3. Once the car mount is secured to the windshield, attach the car mount attach the GPS device to the device holder slots. You will hear a “click” when the GPS device is securely attached to its holder. 4. To release the car mount from the windshield, simply pull the suction cup lever up to it’s off position. Omnitech GPS User Manual... -
Page 9: Powering The Gps
2. Plug the other end of the car charger into your vehicle's DC Power receptacle. 6. Introduction Welcome to the world of mobile navigation! Simple operation, clear maps in 2D or 3D mode as well as numerous innovative features and functions have made Destinator the essential guide for every traveler. Omnitech GPS User Manual... -
Page 10: Menus
Displayed below are Destinator’s main menus. Go – Lets you select a location to travel to. Map – Displays route and map options. Settings – Lets you choose setting options. Manage Route – Additional features that determine the route. Omnitech GPS User Manual... -
Page 11: Creating A Route
3. Select an address entry mode: Town/City First displays cities first and is most commonly-used. Intersections or Road Junctions lets you travel to a designated cross-street location. Change State lets you change the map to another state. Omnitech GPS User Manual... - Page 12 4. Enter City. 5. Enter Street. 6. Enter Address Number or Street Midpoint. 7. Tap Go. Omnitech GPS User Manual...
-
Page 13: Selecting Address Intersection
You can instruct Destinator to create a route to a selected intersection. 1. Tap Intersections. 2. Select city and tap OK. 3. Select a street and tap OK. 4. Select a cross street and tap OK. 5. Tap Go. Omnitech GPS User Manual... -
Page 14: Changing State Or In Other Countries
You can select from the following options: • Save – Store address to a selected folder. • Start Point – Designate address as the starting point. • Demo Route – Run simulated route to selected address. Omnitech GPS User Manual... -
Page 15: Poi
4. Tap a category. 3. Tap a Search Around option (My Current Location is selected by 2. Tap default) and the Category button. 5. Tap a subcategory. 6. Tap the location and OK. 7. Tap Go. Omnitech GPS User Manual... -
Page 16: Searching By Poi Name
Sort by Distance – Shows locations by distance from your current location, and not alphabetically. Show on Map – Tap to show the stations on the Show on Map screen. The Result Number buttons correspond to the screen results. Omnitech GPS User Manual... -
Page 17: Browsing The Entire Poi List
You can display the entire POI Category list. 1. Tap 2. Select a POI category and tap OK. 3. Select a POI location and tap OK. 4. Tap Go. Traveling To Options For information, see the Traveling to Options on page 10. Omnitech GPS User Manual... -
Page 18: Recent Locations
From the Save Location screen, you can tap the right and left arrow keys to select a group to where you want to save your location. To create a group, see Creating Groups for Favorite Locations on page 16. Omnitech GPS User Manual... -
Page 19: Traveling To A Favorite Location
2. Enter a name for the location, select a group (optional), and tap OK. The location is automatically saved in My Favorites if a group is not selected. Traveling to a Favorite Location 1. Tap 2. Tap 3. Select the location and tap OK. 4. Tap Go. Omnitech GPS User Manual... -
Page 20: Creating Groups For Favorite Locations
1. Tap 2. Tap 4. The group appears. 5. Save favorites in group. 3. Enter a group name and tap OK. Traveling To Options For information, see the Traveling to Options on page 10. Omnitech GPS User Manual... -
Page 21: Additional Destinator Features
9. Additional Destinator Features Driving Directions The Driving Directions screen displays travel instructions as you navigate the route. 1. Tap 3. Tap (on map) 2. Tap 4. Displays travel instructions from starting point to ending point. Omnitech GPS User Manual... -
Page 22: Showing Entire Route And Next Turn Maps
Showing Entire Route and Next Turn Maps Displays the entire route. Display the selected turn. Removes the turn and recalculates the route. Tap Prior to show the previous turn. Tap Next to show the next turn. Omnitech GPS User Manual... -
Page 23: Road Type And Route Mode
Destinator avoids highways or other roads 4. Select the road types to avoid. 5. Select one of the following: Quickest where pedestrians would not travel. Voice (default), Shortest, or Pedestrian (on prompts are deactivated in this mode. foot or bike). Omnitech GPS User Manual... -
Page 24: Detours
Destinator calculate a detour that takes you off your current route and then returns you back to that route after a distance of three miles. 1. Tap 2. Tap 3. Tap 4. Tap a button to set the detour distance. Omnitech GPS User Manual... -
Page 25: Maps
Maps Zoom Out Zoom In Compass Volume QuickNav Directions Bar Turn Information Menu button GPS Bar Omnitech GPS User Manual... -
Page 26: Map Icons
2D – 2D map view with the forward direction at the top. 2D N – 2D map view with North at the top. Use the Volume bar to adjust or mute the volume. Next turn information. Tap for turn-by-turn directions. Omnitech GPS User Manual... -
Page 27: Travel By Tapping The Map
When you tap on the Map screen (enable the “Allow screen tap” option in Map Settings), the pop-up box is displayed, providing options to: • Navigate to the selected map location. • Save the map location. • Start from the selected map location. Omnitech GPS User Manual... -
Page 28: Night Map View
You can disconnect the GPS receiver, so that you can search for a location on the Map screen without Destinator centering the map to your current location. 1. Tap 2. Tap 3. Tap, hold, and drag the map. Omnitech GPS User Manual... -
Page 29: Map Display
Increases the size of street names to make the map easier to read. Automatic map zoom When selected, the zoom is speed dependent. The map zooms out at higher speeds, displaying a larger map area, and zooms in at slower speeds, displaying a smaller map area. Omnitech GPS User Manual... -
Page 30: Map Selection
3. Select map and tap OK. From the Select Map screen, you can also choose from the following options: • Refresh – Tap to update the map list. • Delete – Tap to remove a map. Omnitech GPS User Manual... -
Page 31: Settings
2. Review the map license agreement. 1. Set your language preference. 3. Select time and daylight savings. 5. Review driver warning. 4. Select your units of measure. Note: You can also change these configurations from the Setting menus. Omnitech GPS User Manual... -
Page 32: Poi Display
3. Select the POI categories to display on the Map screen and tap OK. Voice Prompts Select from the list of voice prompts. 1. Tap 2. Tap 3. Select the voice prompts to be used and tap OK. Omnitech GPS User Manual... - Page 33 Warns that no GPS signal was found. Unreliable GPS Signal Warns that the GPS signal is too low and unreliable for navigation. Button Click Lets you here a click when tapping a button or a point on the map. Omnitech GPS User Manual...
-
Page 34: Units Of Measure
2. Tap 3. Select the units of measure and tap OK. Language Select the language for the user interface and voice prompts. 1. Tap 2. Tap 3. Select and the text display and voice languages. Tap OK. Omnitech GPS User Manual... -
Page 35: Time Display
You can set a location so that every time you tap the icon on the Map screen, Destinator calculates the route to this location. 1. Tap 2. Tap 3. Set an Address or POI Category and tap Make sure that the icon appears on the Map screen by selecting it from Map Settings. Omnitech GPS User Manual... -
Page 36: Look & Feel
You can get the feel of how Destinator navigates a route by launching a navigation demo. Tap the Start Demo button to start the navigation demo. Tap the Stop Demo button to end the navigation demo. 1. Tap 2. Tap 3. Destinator runs the navigation demo. Omnitech GPS User Manual... -
Page 37: Gps Signal
1. Tap 2. Tap 3. Displays GPS Signal information. The GPS receiver may take a few minutes to find your initial location. For best results, ensure that the GPS receiver has a clear view of the sky. Omnitech GPS User Manual... -
Page 38: Help
Tap this button to display technical support information. 1. Tap 2. Tap 3. Technical support information is displayed. About You can display version and copyright information. 1. Tap 2. Tap 3. Destinator copyright and version information is displayed. Omnitech GPS User Manual... -
Page 39: Index
• 27 delete map • 26 delete map • 26 icons • 22 demo route • 10 map bars • 25 detours • 20 night view • 24 display map buttons and bars • 25 Omnitech GPS User Manual... - Page 40 • 34 Recent Locations • 14 voice prompts • 28 travel to • 14 volume • 22 refresh • 26 remove turn • 18 route menu • 6 zoom • 25 route recalculation • 29 Route Types Omnitech GPS User Manual...
- Page 41 " Staples the Office Superstore, LLC (“Staples”) warrants to the original purchaser that this Omnitech Portable GPS Navigation System shall be free of defects in design, assembly, material, or workmanship for 1 year from the date of purchase. In the event of a defect in the design, assembly, materials or workmanship of this product within 1 year from the date of purchase, Staples will either replace any such product with the same or equivalent product free of charge or refund 100% of the purchase price at Staples’...
