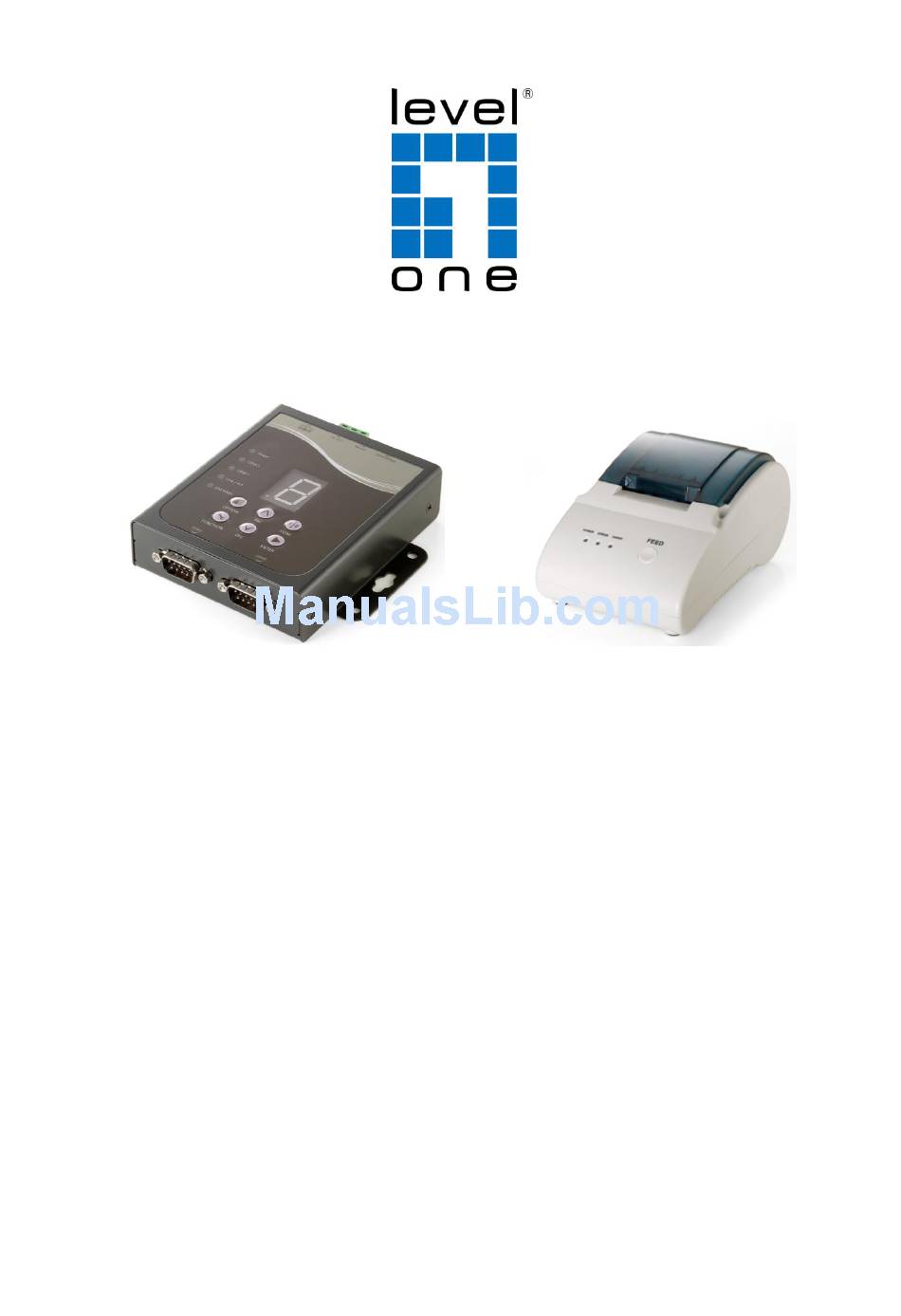

- Page 1 LevelOne DSA-1000 / PRT-1000 Device Server / Thermal Printer User Manual V1.0...
- Page 2 ABLE OF ONTENTS 1. INTRODUCTION ..................................- 3 - 2. DEVICE OVERVIEW ................................- 7 - 3. HARDWARE SETUP ................................- 10 - 4. SYSTEM CONFIGURATION ............................... - 12 - All trademarks and trade names are the properties of their respective owners.
-
Page 3: Introduction
DSA-1000 and hand out the account ticket printed out by Thermal Printer. A corporate has several sites. Deployed at the reception area of each site are with a DSA-1000 and a Thermal Printer. Guests who need wireless connection to the internet simply need to request the receptionist and obtain a slip with account information. - Page 4 Below are two network diagrams examples using Network Ticket Generator combo set. 1) One Gateway with one Network Ticket Generator set Ethernet Cable WHG-1000 DSA-1000 RS232 Cable PRT-1000 2) One Gateway with multiple Network Ticket-Generator sets - 4 -...
- Page 5 Ethernet Cable WHG-1000 Ethernet Cable DSA-1000 RS232 Cable DSA-1000 RS232 Cable PRT-1000 PRT-1000 - 5 -...
- Page 6 If you will be deploying DSA-1000 independently to manage other serial devices, please carefully set the Serial Settings in DSA-1000 to match the operating needs of your serial device. If you connect other serial device to DSA-1000 and are unable to re-...
-
Page 7: Device Overview
(12V/1A) the package. The power socket for connecting to an external Socket power source through a DC power supply. (DC12V) Restart Press to restart DSA-1000. Button Ethernet Ethernet port for connecting to a Control- Port ler/Gateway. - 7 -... -
Page 8: Bottom Panel
Bottom Panel Serial Port for connection with a Thermal Printer. Serial Port for connection with a Thermal Printer. Used for back up when COM 1 malfunctions. Main Panel LED indicators Power Turned on when properly connect to power supply. COM 1 Turned on when output is switched to COM1. - Page 9 FUNTION + 1 + ENTER: Print out the IP address of DSA-1000. FUNTION + 8 + ENTER: Enter panel test mode. FUNTION + 9 + ENTER: Reset DSA-1000 to factory default. FUNTION + 0 + ENTER: Lock the panel of DSA- 1000.
-
Page 10: Hardware Setup
3. Connect Thermal Printer to the COM1 port of DSA-1000 by a RS-232 cable provided within Thermal Printer package. 4. Connect DSA-1000 to the LAN port of your Gateway/Controller by an Ethernet cable. Note: You need to connect to the correct LAN port if your Gateway/Controller is operating in Port-based mode. - Page 11 If you are unable to get a reply from pinging DSA-1000, please refer to Sys- Note: tem Configuration and check that the network settings of DSA-1000 and Gateway/Controller interface connected to are under the same subnet. - 11 -...
-
Page 12: System Configuration
4. System Configuration DSA-1000 is designed specifically to operate in conjunction with all Gateways/Controllers. If you are not using default settings, before connecting DSA-1000 to your Gateway/Controller, some configurations steps are required. The configuration instructions for Gateways/Controllers and DSA-1000 are covered in the following sections. - Page 13 Attach DSA-1000 to a power supply using the adapter provided in the package. Connect the administrator PC to the Ethernet Port of DSA-1000 via an Ethernet cable. Launch a web browser and type in the default IP address of DSA-1000 in the address field (http://192.168.1.10), the web interface of DSA-1000 should appear.
- Page 14 4.2 Gateway/Controller Configuration procedures are similar on all Gateway/Controller models, the following instruction steps uses WHG-1000 as illustration. Note: the screenshots may be slightly different for your Gateway/Controller model. Step1: Connect administrator PC to your Gateway/Controller and access the WMI (web management interface). - 14 -...
- Page 15 Step2: Enter the configuration page of the Service Zone which DSA-1000 will be connected to. Check to make sure that the network settings of DSA-1000 are under the same subnet as this service zone. Step3: Go to the configuration page for On-demand authentication; click Configure to edit Terminal Server set- tings.
- Page 16 Step4: Edit and enable desired billing plans. - 16 -...
-
Page 17: Operation Instructions
After completing the Hardware Setup and the devices are physically connected, the system is ready for operation. This section will describe how to operate DSA-1000 to printout tickets for enabled billing plans. 1. Select an enabled billing plan number on DSA-1000 by button. - Page 18 Appendix A. DSA-1000 Web Interface Summary The attribute setting in this web interface is for COM 1 only. COM 2 uses default settings that are unchan- geable. (corresponding to Thermal Printer) Serial Settings Data Baud Select the desired baud rate. (The number...
- Page 19 Mask Static Default The default gateway of DSA-1000. Gateway Static DNS Set the DNS server used by DSA-1000. Server Transmit Ti- TCP transmit timer, set the desired value or use default value. When the timer expires for a sent packet, sender will retransmit the packet.
- Page 20 Note: http://tftpd32.jounin.net/tftpd32.html Step1: Place the new firmware of DSA-1000 on a local location (for example desktop) in the PC that is accessing DSA-1000’s web interface and performing the upgrade. Step2: Configure the TCP/IP settings of your PC with an IP address under the same subnet mask as DSA- 1000.
- Page 21 Appendix E - Command Line Interface Step4: Click Apply of Firmware Upgrade in DSA-1000’s web interface. DSA-1000 will automatically res- tart and connect to tftpd32 server set in Step3 as a DHCP client, download the firmware and perform the upgrade. Progress can be observed on tftpd32.
