QBB Color Code

Figure 3–7 and Figure 3–8 show the center bar color code for module
placement in the QBB. Note that CPU and memory slots are color-
coded to ensure the correct placement of each module.

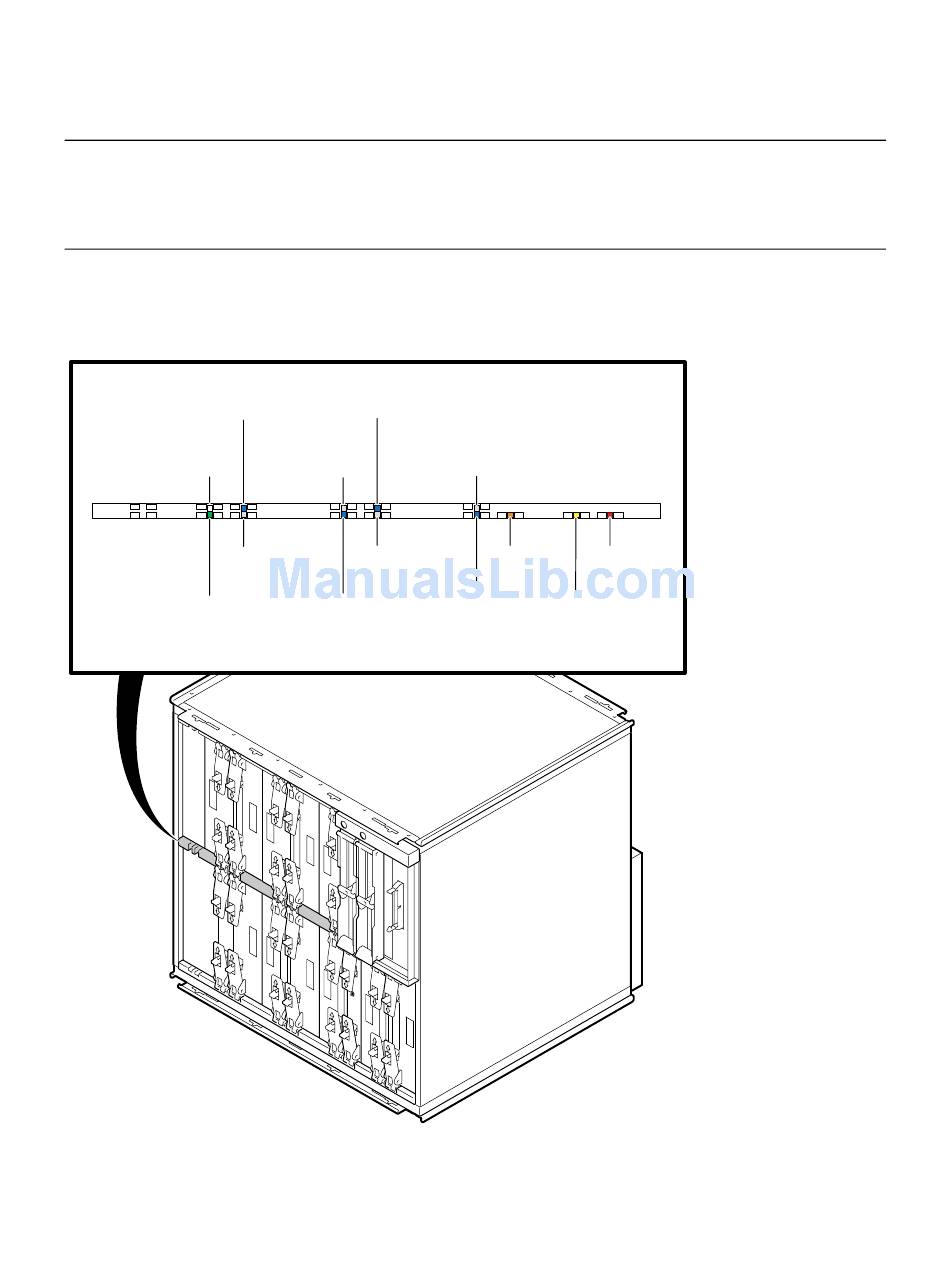

Figure 3–7 QBB Center Bar Color Code (Cabinet Front)
CPU 3
(Blue)
Directory
(White)
Memory 3
(Gray)
Clock
Splitter
(Green)
3-12
AlphaServer GS80/160/320 User's Guide
CPU 1
(Blue)
Memory 2 Memory 0
(Gray) (Gray)
Memory 1
(Gray)
(Orange)
CPU 2 CPU 0
(Blue) (Blue)
Auxiliary
PSM
Power
(Red)
Main
Power
(Yellow)
PK0628
