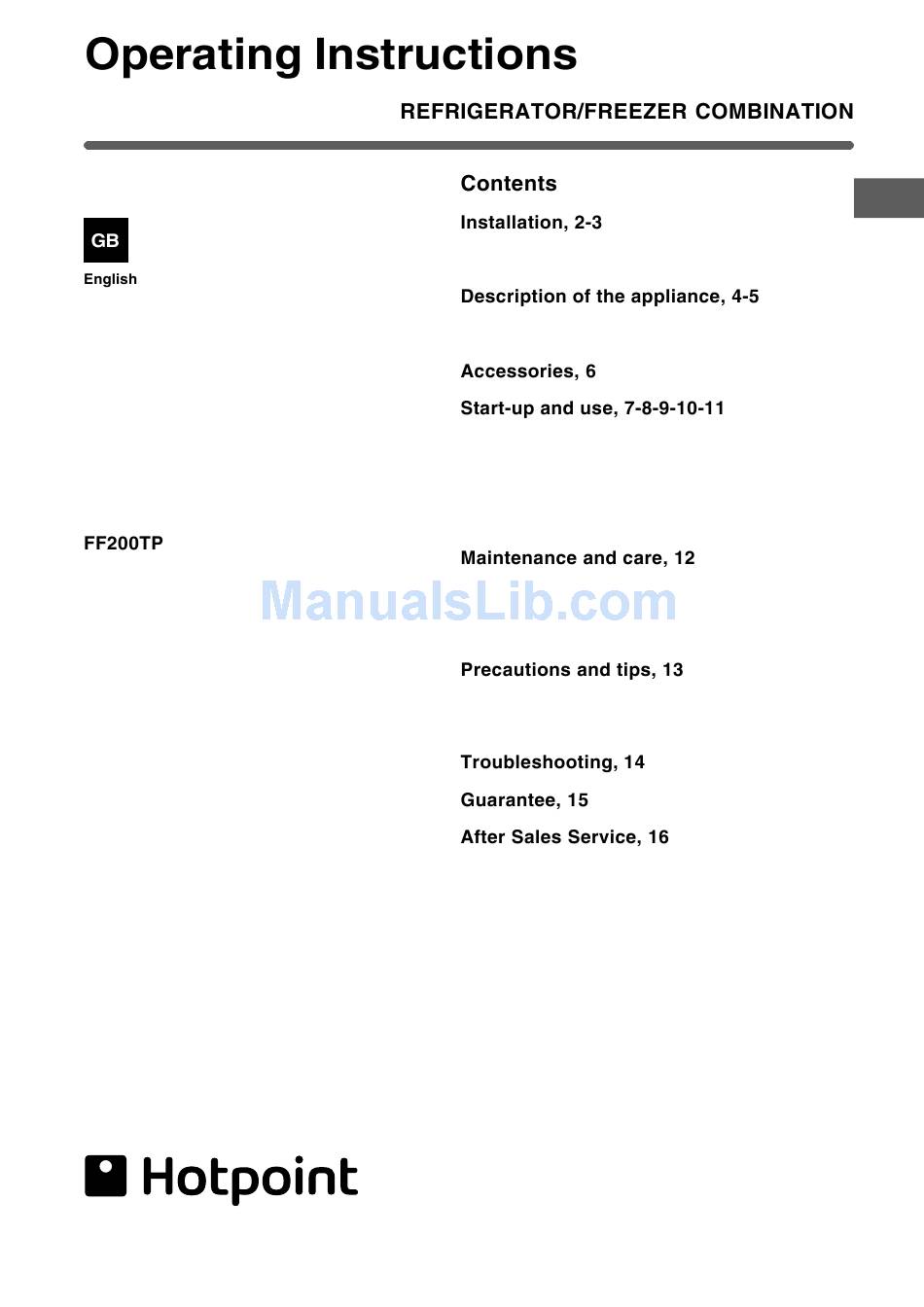

- Page 1 Overall view Starting the appliance Navigating the display Chiller system Evwer Fresh Using the refrigerator to its full potential Using the freezer to its full potential Switching the appliance off Cleaning the appliance Avoiding mould and unpleasant odours Replacing the light bulb...
-
Page 2: Installation
! Before operating your new appliance, please read these operating instructions carefully. They contain important information for safe use, installation and care of the appliance. ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. - Page 3 Fitting a new plug IMPORTANT WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE... Green and Yellow - Earth Blue - Neutral Brown - Live As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: Connect Green and Yellow wire to terminal marked...
- Page 4 To enable the Child Lock function, the ALARM button must be pressed for 2 seconds. Enable the temperature setting of the refrigerator to be modified, with the relative confirmation of the temperature selected shown on the display. It is also possible to use these buttons to deactivate the refrigerator compartment only (the display shows “- -”).
- Page 5 The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages. ( see Maintenance ) • SHELVES • EVER FRESH FRUIT and compartment •...
- Page 6 Due to the special guides the shelves are removable and the height is adjustable ( see diagram ), allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf. : This is the ideal container for the storage of foods consumed at breakfast.
- Page 7 To deactivate the function, press the ALARM button or 2 seconds; deactivation will be confirmed by a short beep and the text “CH” “LO” will appear on the refrigerator and freezer displays for 1 second. compartment using the corresponding...
- Page 8 1. Fill the container. Make sure that the food inside leaves room for the container to be closed properly.
- Page 9 Ever Fresh LED switches off automatically. 8. Unlock the container from its position by pressing the button on the shelf. 9. Take it out of the refrigerator and turn the knob clockwise to the CLOSE position to avoid accidental opening (see figure A) .
- Page 10 • The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4). Do not open the door during freezing.
- Page 11 The fact that they are situated on the top part of the freezer drawers ensures greater cleanliness: the ice no longer comes into contact with the food placed inside the freezer compartment; furthermore, the dripping of the water during filling is avoided (a lid to cover up the hole after filling with water is also provided).
- Page 12 • The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly. • If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.
- Page 13 If circulation is impeded, the compressor will work continuously. • Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
- Page 14 • The appliance comes with a motor protection control ( see Start-up and use ). • Pull out and reverse the plug before putting it back in the socket. • The refrigerator door has been open for more than two minutes. The buzzer stops when the door is closed or when the RESET ALARM button is pressed.
- Page 15 THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL OR NON-DOMESTIC PREMISES. Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you registering your appliance with us and the parts being fitted by one of our authorised engineers. There will be a charge for our engineer's time.
-
Page 16: After Sales Service
No one is better placed to care for your Hotpoint appliance during the course of its working life than us - We are the largest service team in Europe offering you access to 400 skilled telephone advisors and 1100 fully qualified engineers on call to ensure you receive fast, reliable, local service.
