Hyundai H- CDM8039 Instruction Manual

Cd/mp3/wma – receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

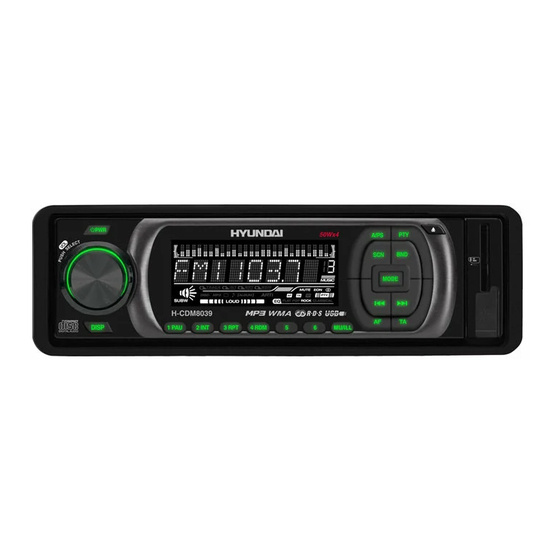

H- CDM8039
CD/MP3/WMA – RECEIVER
CD/MP3/WMA -
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H- CDM8039

Summary of Contents for Hyundai H- CDM8039

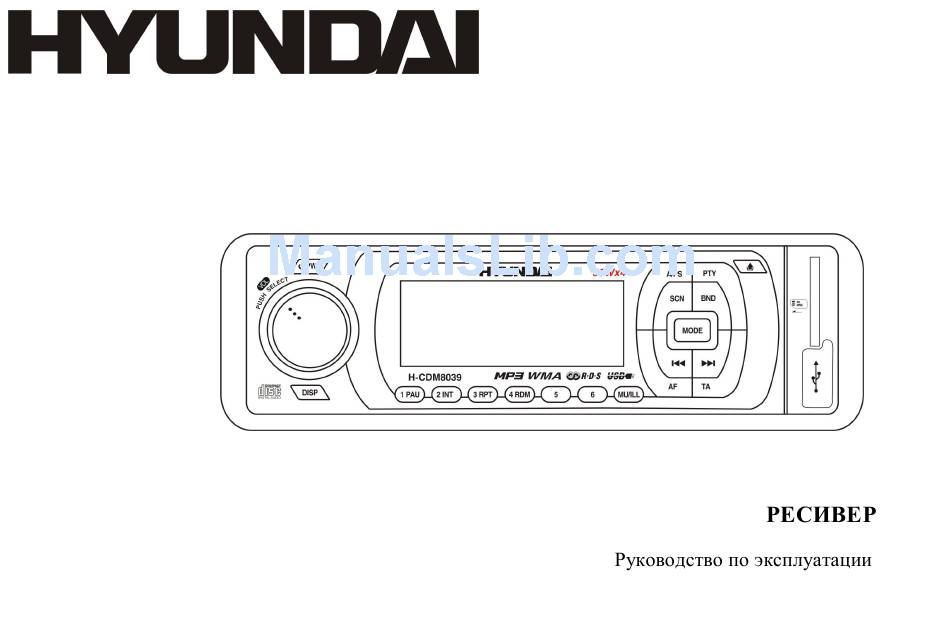

  • Page 1 H- CDM8039 CD/MP3/WMA – RECEIVER CD/MP3/WMA - Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ................................2 Important safeguards................................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Accessories

    Accessories Mounting parts Receiver 1 pc Front panel 1 pc Front panel case 1 pc Customer information 1 pc Warranty card 1 pc Instruction manual 1 pc...

  • Page 5: Installation/Connections

    Installation/Connections Use only the supplied mounting hardware for a safe and secure installation. Be sure to remove the front panel before installing the unit. Mounting angle adjustment Adjust the mounting angle to less than 20°. Installation in the dashboard Note: Keep the release key in a safe place as you may need it in the future to remove the unit from the car.
  • Page 6 1. Unit 2. Release case 3. Dash board 4. Hex nut 5. Lock washer 6. Plain washer 7. Car body 8. Rear support strap 9. Tapping screw 10. Hex bolt...
  • Page 7 Electrical connections...
  • Page 8 ISO connector Location Function Connector A Connector B Rear Right(+)---Violet Rear Right(-)---Violet/Black stripe Front Right(+)---Grey Battery 12V (+)/yellow Front Right(-)---Grey/Black Stripe Power Antenna/blue Front Left(+)---White Front Left((-)---White/Black Stripe ACC+/red Rear Left(+)---Green Ground/black Rear Left(-)---Green/Black Stripe...

  • Page 9: Panel Controls

    Panel controls Front panel POWER button SEL button VOL knob Preset stations (1,2,3,4,5,6) AF button TA button PTY button DISP button MODE button 10. BND button 11. PREVIOUS/NEXT button 12. A/PS button 13. SCN button 14. MUTE/DUAL ILLUMINATION button 15. LCD display 16.
  • Page 10 25. USB jack 26. SD/MMC slot 27. RESET button 28. Status indicator light Note: Pressing the RESET button will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down; flashes when you remove the panel.

  • Page 11: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button on the panel to open the panel and press the RESET button with thin hard object to restore the unit to the original factory settings.
  • Page 12 Mute Press this button to mute the sound at once. Press again to return to the previous volume level. Dual illumination When press the MUTE button for more than 2 seconds, it is activated as selecting Green or Red buttons illumination. Volume control/select Rotating this knob, you can adjust VOL/BASS/TREB/BAL/FAD.
  • Page 13 During MASK DPI mode, the unit will mask only the AF which has different PI, this is the default mode; during MASK ALL mode, the unit will mask the AF which has different PI and no RDS signal with high field strength. RETUNE S/L - SHORT/LONG “RETUNE”...
  • Page 14 SUBWOOFER MODE Choose the Subwoofer On or OFF. ESP (Electronic Shock Protection) MODE Note: 10 sec./40 sec. for CD, 120 sec. for MP3 automatically works. MULTI CD SELECTION Choose CD MULTI ON or OFF. CD MULTI ON: Read multi section CD. CD MULTI OFF: Read first section only. BEEP MODE...
  • Page 15 BEEP ON: BEEP sound can be heard from speaker when the buttons are pressed. SEEK MODE SEEK 1: When SEEK 1 mode is activated, AUTO SEEK SCAN is stopped when station is detected even user still push SEEK button. SEEK 2: Auto SEEK SCAN is not stopped even station is detected if user pushes SEEK button. When releases SEEK button, then stop when station is detected.

  • Page 16: Digital Tuner Operations

    Digital tuner operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. MODE Press MODE button to turn on tuner mode. BAND (BND) Press BND button.
  • Page 17 TA (TRAFFIC ALARM) FUNCTION Briefly press the TA button to turn on or turn off the TA function. When TA is enabled (on), the tuner starts searching the traffic announcement. AF (ALTERNATIVE FREQUENCIES) FUNCTION Briefly press the AF button to turn on or turn off the AF function. The RDS program will be automatically searched and received.

  • Page 18: Cd/Sd/Mmc/Usb Operations

    CD/SD/MMC/USB operations Discs for playback This unit can play disc types: CD/CD-R/-RW. Compatible with formats: CDDA/MP3/WMA. Loading and ejecting a disc 1. Turn the power on. 2. Press the OPEN button on the panel. 3. Insert the disc with the printed side facing upward into the slot. 4.
  • Page 19 4. Tag (id3tag ver2.0) - Title/ Artist/ Album: 32 byte support. 5. Multi card reader not support. 6. USB 2.0 support. Note: USB format supports 2.0. Capacity: up to 2 GB. SD cards brands: Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: up to 2 GB.
  • Page 20 INTRO (Preview all Tracks) When this button is pressed, “INT ON” indication is displayed and the first several seconds of each track of the disc is played. Press again to stop intro and listen to track. REPEAT When RPT button is pressed, “RPT ON” indication is displayed and playback of the selected track will be continually repeated until the track repeat mode is cancelled by pressing RPT button again.
  • Page 21 Searching File Name: Press A/PS twice, then file search is activated. Press VOL knob, then the first directory is displayed. Turn VOL knob to right or left, you can select the directory you want. Press VOL knob again, then the directory is fixed and the first file name is displayed. Turn VOL knob to right or left, you can select the file you want.

  • Page 22: Mp3/Wma Overview

    MP3/WMA overview MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 23 Notes on creating your own CD-R or CD-RW containing MP3 files: To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate o f 128 kbps. DO NOT store more than 256 MP3 files per disc. For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

  • Page 24: Anti-Theft System

    Anti-theft system Remove the panel 1. Press and hold POWER button to switch off the power of the unit. 2. Press OPEN button to flip down the panel. 3. Push the panel to the left and then pull it towards you. 4.

  • Page 25: Cleaning

    Cleaning Cleaning the cabinet Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean. Cleaning discs Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles.

  • Page 26: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution The car ignition is not on. If the power supply is properly connected to the No power car accessory switch the ignition key to “ACC”. Replace the fuse. The fuse is blown. Disc cannot be loaded. Presence of disc inside the player.

  • Page 27: Specification

    Specification General Power supply 12 V DC Current consumption max. 10A Maximum power output 50 W x 4 channels Dimensions (L x W x H) 178 x 165 x 50 mm Working temperature range -10º - +60º 40 sec. ESP for Audio-CD, 120 sec ESP for MP3, 300 sec ESP for WMA FM Stereo Radio Frequency range 65 –...
  • Page 28 ..................................28 ..............................29 ................................. 30 ..............................31 ................................. 35 ................................ 37 ................................42 CD/SD/MMC/USB......................44 3 WMA................................. 48 ..............................50 ..............................50 .................................. 51 ........................ 52 ............................53...
  • Page 31 20°.
  • Page 34 (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- (+12 )/ (+)--- (-)---...
  • Page 35 POWER (1,2,3,4,5,6) DISP MODE PREVIOUS/NEXT A/PS MUTE/DUAL ILLUMINATION 15. LCD OPEN EJECT PAUSE...
  • Page 36 23. 24. + 10/ -10 TRACK SEARCH DOWN/UP MMC/SD RESET RESET...
  • Page 37 RESET ( OPEN. RESET. DISP DISP DISP DISP MODE : AUX/TUNER/S-CDP(CD-MP3)/USB MMC/SD.
  • Page 38 MUTE, MUTE VOL, : VOL ( )/BASS ( )/TREB ( )/BAL ( )/FAD ( SEL, SEL 2 TA SEEK/TA ALARM TA SEEK TA ALARM...
  • Page 39 MASK DPI/MASK ALL MASK DPI, MASK ALL RDS. RETUNE S/L - SHORT/LONG «RETUNE» . «S» , «L» AUDIO DSP ( : POP M => ROCK M => CLASS M=> FLAT M =>DSP OFF. LOUDNESS ( LOUD ON ( OFF (...
  • Page 40 SUBWOOFER ( (ON) (OFF) ESP (Electronic Shock Protection – : 10 ./40 . CD, 120 . MP3. MULTI CD ( (ON) (OFF) BEEP (...
  • Page 41 BEEP ON ( SEEK ( SEEK 1: SEEK. SEEK 2: SEEK SEEK, STEREO/MONO ( LOCAL/DX ( LOCAL DISTANT (DX) (...
  • Page 42 RDS ( MODE, - TUNER. BND, : FM1--FM2--FM3--FM(OIRT)--MW1(AM1)--MW2(AM2). NEXT, PREVIOUS, SCN. (A/PS) A/PS, TA (...
  • Page 43 AF ( PTY, : PTY — PTY — 1. POPM, ROCK M NEWS, AFFAIRS, INFO 2. EASY M, LIGHT M SPORT, EDUCATE, DRAMA 3. CLASSICS, OTHER M CULTURE, SCIENCE, VARIED 4. JAZZ, COUNTRY WEATHER, FINANCE, CHILDREN 5. NATION M, OLDIES SOCIAL, RELIGION, PHONE IN 6.
  • Page 44 CD/SD/MMC/USB : CD/CD-R/-RW. : CDDA/MP3/WMA. OPEN EJECT, SD/MMC SD/MMC USB/ SD/ MMC SD/ MMC. FAT 12/ FAT 16/ FAT 32 - FAT 12/ 16 ( , 500 - FAT 32 ( , 500...
  • Page 45 : 32 : 32 (id3tag ver 2.0) USB 2.0. USB: USB 2.0. : Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, MMC: : Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, 2.0. MP3/WMA ID3, . ID3 NEXT/PREVIOUS, MP3/WMA...
  • Page 46 PAUSE, INTRO, “INT ON”). RPT, “RPT ON” RDM, “RDM ON” MP3/WMA A/PS, SEL, VOL, SEL, VOL, SEL,...
  • Page 47 A/PS SEL, VOL, VOL, SEL, A/PS 3 SEL, “A”. VOL, VOL, SEL,...
  • Page 48 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, ” “ ” 256. VBR, . VBR: WMA (Windows Media Audio) – Microsoft Corporation. , 64...
  • Page 49 CD-R CD-RW, 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 50 POWER, OPEN,...
  • Page 52 “ ”. RESET.
  • Page 53 178 165 50 -10º - +60º 40 CD, 120 c MP3, 300 WMA 65 – 74 / 87.5 - 108.0 2.8 µ - 1620 RMS (+/-3 – 20 (A-vtd) Classic, Rock, Pop, Flat RCA- (2 )
