SD Studio Key features and user benefits
The GY-HD250U w/KA-HD250U can be used to construct an economical SD studio system that produces stunning 16:9
or 4:3 SD images. or 4:3 SD images
Investment is future proofed. Upgrading from an SD to an HD system will require changing the video interface only.
When replacing a GY-DV550U, the original CCU the RM-P210U; the 26pin control cable and the studio viewfinder VF-
P400U can continue to be used.
When needed, the GY-HD250U can be used as an ENG camera by detaching it from the KA-HD250U.
GY-HD250U/KA-HD250U
SD Composite
SD Component
Genlock, VBS
Return Video
Audio(L,R)
Intercom(2 wire or 4 wire)
Call/Tally
Control Control
Power

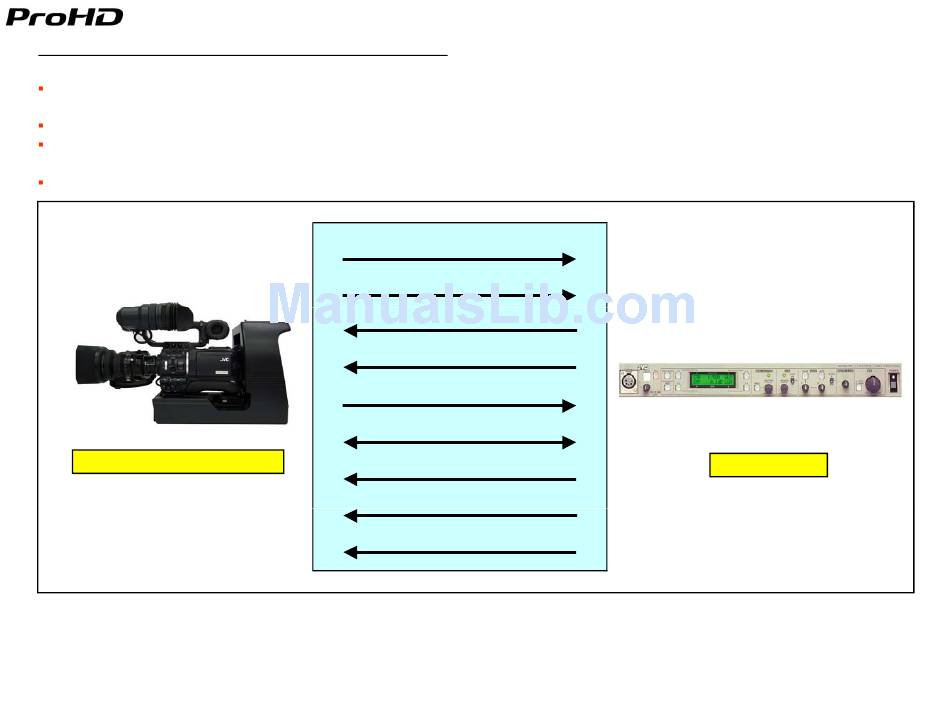

Fig. 1 Signal Flow between CCU and Camera
Version 1.10
RM-P210U
5
