Onkyo TX-NR636 Specifications

2014 NEW PRODUCT RELEASE

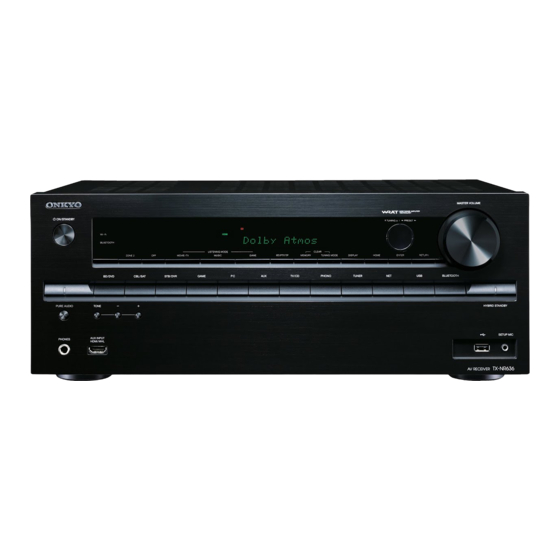

TX-NR636
Bringing Next-Generation Entertainment to Your Home
The TX-NR636 wins prime position on your gear rack for three reasons. Firstly, it's one of the only A/V receivers to support future Ultra
HD movie streaming as well as 4K gaming at 60 fps with 4K/60 Hz-compatible HDMI
Qdeo upscaling technology also converts low-res DVDs and games into pin-sharp Full HD or 4K (if you have an Ultra HD display).
™
Secondly, it sounds incredible, with Three-Stage Inverted Darlington Circuitry on the front and center channels for all-enveloping surround
sound and musical two-channel audio. Thirdly, it's extremely easy to use, with inbuilt Wi-Fi
smartphone. You can select from a wild variety of music streaming services and locate your network-attached libraries using the remote app,
or stream almost any audio via Bluetooth. Overlaid menus with InstaPrevue
MM phono stage, room equalization, and powered Zone 2 and you've got a value-packed 7.2-channel powerhouse ready for the next wave
of high-resolution entertainment.
ADVANCED FEATURES
• 4K/60 Hz-Capable HDMI Terminals for Ultra HD
®
Entertainment
*1
• Supports HDCP 2.2 for Future 4K/Full HD Video
Streaming and Broadcast
*2
• Built-in Wi-Fi Certified Wireless LAN Capability
®
• Bluetooth Version 2.1 + EDR Capability (Compatible
Profile: A2DP v1.2, AVRCP v1.3) with Advanced Music
Optimizer DSP Technology
• Three-Stage Inverted Darlington Circuitry for Front
and Center Channels
• HDMI Video Upscaling to 4K with Qdeo
® ™
Technology by Marvell
• Internet Radio and Music Streaming Subscription Services
Included (TuneIn Radio, Pandora , Slacker , SIRIUS XM
® ™
Internet Radio , Spotify, AUPEO!, and Deezer)
®
• Playback Compressed, Lossless, and Hi-res Audio via
Local Network (MP3, WMA, WMA Lossless, FLAC,
WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz,
LPCM , and Dolby TrueHD)
*4 ®
• Proprietary AccuEQ Room Calibration with Mic Included
• Dolby Pro Logic IIz Upmixing for Seven-Channel
® ®
Surround Sound
• Advanced Music Optimizer to Improve Compressed
Digital Audio Quality (Bluetooth Included)
• Control and Stream with Free Onkyo Remote
Streaming Apps for iPod touch ® /iPhone ®*5 and
Android Devices
*6
• Frontside MHL ™ for 1080p Video and Stills from
Smartphone and Tablet
• Input Source Preview with InstaPrevue Technology
™
• PM Bass Boost for Deep Bass and Clear Mid-Range
• Powered Zone 2 and Zone 2 Line-Out for
Distributed Audio Playback in Another Room
7.2-Channel Network A/V Receiver
• Bi-Amping Capability for Front Channels
*1 4K/60 Hz video is supported on HDMI inputs 1/2/3/4, the frontside input,
Main Out, and Sub Out. *2 HDCP 2.2 is supported on HDMI Input 3 and
Main Out only. *3 Availability of services depends on region. Some services may
require a paid subscription and firmware update. Availability of third-party services
advertised here is accurate at the time of publication, but may be subject to
change without notice. *4 LPCM is supported via DLNA only. *5 Compatible with
iPod touch (3rd generation or later) and iPhone 3GS or later. All models require iOS
4.2 or later. *6 Requires Android OS 2.1 or later.
AMPLIFIER FEATURES
• 95 Watts per Channel (8 Ohms, 20 Hz–20 kHz, 0.08%
THD, 2 Channels Driven); 115 Watts per Channel (6
Ohms, 1 kHz, 0.7% THD, 2 Channels Driven)
Processing • WRAT (Wide Range Amplifier Technology)
• H.C.P.S. (High Current Power Supply) Massive High
Power Transformer
• Discrete Output Stage Circuitry
*3
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit
Technology for S/PDIF Audio
PROCESSING FEATURES
• HDMI Support for 4K/60 Hz, 3D, Audio Return
Channel, DeepColor , x.v.Color
™
TrueHD, DTS-HD Master Audio
Audio CD, Multichannel PCM, and CEC
• Dolby TrueHD and DTS-HD Master Audio
®
• TI Burr-Brown 192 kHz/24-Bit DAC (8 Channels x 1)
• Dual 32-Bit Digital Signal Processing Engines
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
• CinemaFILTER
™
• Direct Mode
• Double Bass Function
• Non-Scaling Configuration
inputs and HDCP 2.2 copy-protection compatibility.
®
for universal hi-res streaming from PC, NAS, and
®
technology make loading content fast and simple. Throw in an
™
• A-Form Listening Mode Memory
CONNECTION FEATURES
• 7 HDMI Inputs (1 Front/6 Rear) and 2 Outputs
• USB Port (Front)
• Mass Storage Class USB Memory Playback Capability
• HDTV-Capable (720p/1080i) Component Video
Switching (1 Input and 1 Output)
• 3 Composite Video Inputs and 1 Output
• 3 Digital Audio Inputs (1 Optical and 2 Coaxial)
• 6 Analog Audio Inputs
• Phono Input for Turntable Connection
• 2 Parallel Subwoofer Pre-Outs
• Color-Coded, Banana Plug-Compatible Speaker Posts
OTHER FEATURES
• Crossover Adjustment for Each Channel (40/50/60/
70/80/90/100/120/150/200 Hz)
• A/V Sync Control (Up to 400 ms in 10 ms Steps at 48 kHz)
• Graphical Overlaid On-Screen Display (OSD) via
HDMI with Quick Set-Up and Home Menu
, LipSync, Dolby
™ ®
• Hybrid Standby Function with HDMI Passthrough
, DVD-Audio, Super
™
• Smart Grid-Ready
• Tone Control (Bass/Treble) for Front L/R Channels
Decoding
™
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• 40 FM/AM Random Presets
• Certified with DLNA Version 1.5
• Firmware Updates via Ethernet and USB
• RIHD (Remote Interactive Over HDMI) for System Control
• Compatible with RI Dock for iPod/iPhone and AirPlay
(DS-A5)
• Preprogrammed RI (Remote Interactive) Remote Control
BLACK
Microphone for
AccuEQ
