PowerBass ABA-1 User Manual

Autosound bass accelerator
Hide thumbs Also See for ABA-1:
Table of Contents

Advertisement

Quick Links

Download this manual

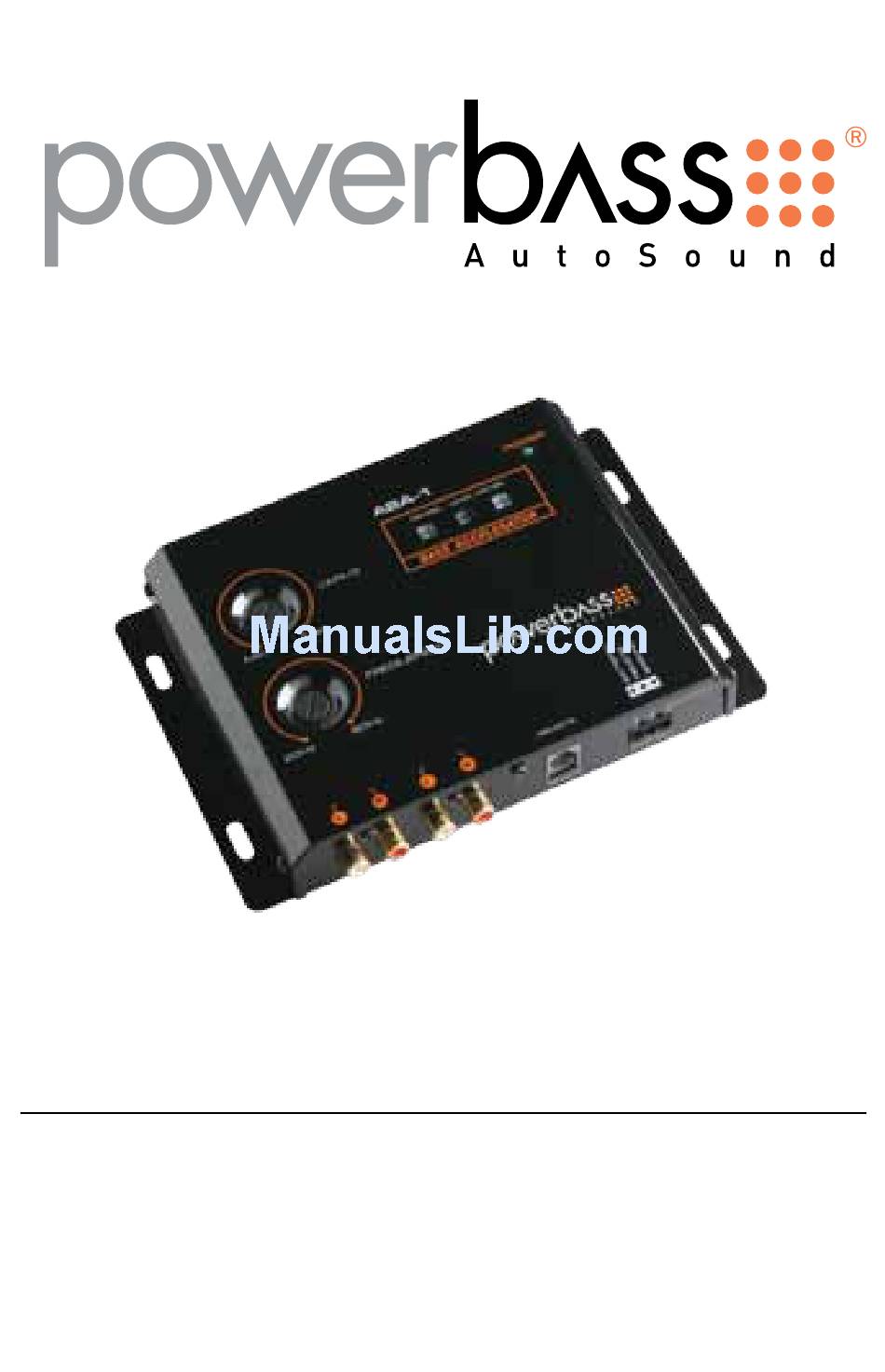

ABA-1
AUTOSOUND BASS ACCELERATOR
User's Manual
Please read through this manual to familiarize yourself with your new signal processor. Should your PowerBass AutoSound bass
accelerator ever require service, you will need to have the original dated receipt.

Advertisement

Table of Contents
loading

Related Manuals for PowerBass ABA-1

Summary of Contents for PowerBass ABA-1

  • Page 1 ABA-1 AUTOSOUND BASS ACCELERATOR User's Manual Please read through this manual to familiarize yourself with your new signal processor. Should your PowerBass AutoSound bass accelerator ever require service, you will need to have the original dated receipt.
  • Page 3 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the...
  • Page 4 FEATURES Bass Driver: Contains a proprietary Bass Driver circuit that accurately recreates and injects low fre- quency information back into the signal path. Bass Equalization Circuit: This unique equalization circuit contours restored bass to your speaker system. Decibel Level Meter: The three (3) L.E.D. indicators flash when the bass equalization circuit is activated and SPL (Sound Pressure Level) is increased.
  • Page 5 CONTROL PANEL LAYOUT POWER ABA-1 DECIBEL LEVEL METER VARI-Q BASS ACCELERATOR FREQUENCY 20Hz 80Hz INPUT OUTPUT REMOTE 1. VARI Q Control Fine tunes the bandwidth of the frequencies being amplified. 2. FREQUENCY Control Selects the center frequency for the bass restoration effect.
  • Page 6 MOUNTING THE PROCESSOR Fig.1 To keep your PowerBass Bass Accelerator running at top performance, choosing the proper location is of utmost importance. The processor should also be protected from exposure to moisture and direct sunlight. The best place to mount your processor is a location which will allow access to the inputs and other variable controls.

  • Page 7: Power Connection

    Choose the correct length and style of RCA interconnects for your needs (not included). Run the RCA cables from the bass amplifier to the location of the PowerBass ABA-1. Make sure all the RCA cables are run on the opposite side of the vehicle from where you ran the power cables to the amplifier(s). Hiss, engine noise, and fan noise can easily be picked up through the RCA cables if run incorrectly.
  • Page 8 SIDE PANEL HOOK UP Headunit Equalizer Crossover subwoofer front Amplifier Amplifier input output Remote Level Amplifier Fig.4...
  • Page 9 Before you begin, be sure that your loudness setting is turned OFF and the bass boost setting you your ampli- fier is turned OFF. The ABA-1 will replace these settings. Leaving these setting on will cause audible distortion and lead to damage or destruction of your subwoofer and amplifier.
  • Page 10 This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its inten- tions is strictly prohibited without the express consent of PowerBass USA, Inc. © Copyright 2009 PowerBass USA, Inc.
  • Page 11 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
  • Page 12 PowerBass Autosound – A division of PowerBass USA, Inc. 13936 Mountain Avenue – Chino, CA 91710 Tel. (909) 993-5399 – Fax (909) 993-5393 www.powerbassusa.com...
