D-Link DGS-1024D Technical Specifications

High-Performance Wire-Speed
Architecture:
+ 48Gbps Switching Capacity
+ Non-blocking Architecture
+ 8K MAC Address Table
+ 802.1p Priority Queuing
+ Jumbo Frame Support (Up to 9600 Bytes)
Operational Simplicity
+ True Plug-and-Play
+ Auto-negotiation
+ Auto Cable Detection (MDI/MDI-X)
+ Cable Diagnostics Function
+ At-a-Glance Port LED Indicators
+ Desktop/Rackmountable

Investment Protection

+ Support for Industry Standards
+ Limited Lifetime Warranty
3
D-Link Green
™
+ Automatically Powers Down Ports
That Have No Link
+ Budgets Power Output for Different
Ethernet Cable Lengths

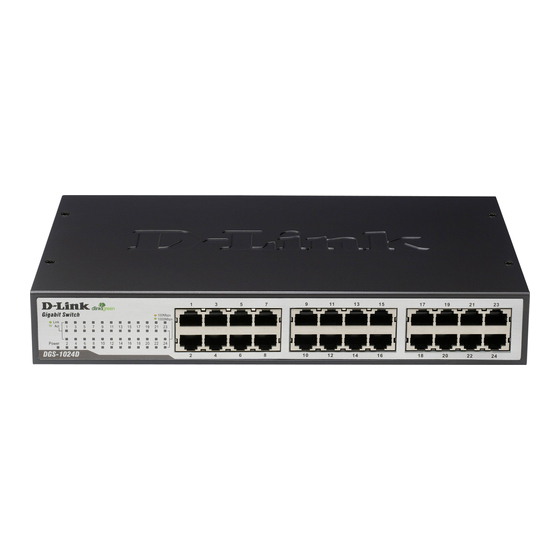

DGS-1024D
24-Port Gigabit Desktop/Rackmountable Switch
Overview
Get the blazing speed of Gigabit Ethernet with the
D-Link DGS-1024D, a 24-Port Gigabit Switch that
®
delivers power, performance, and reliability in one
cost-effective, space-saving design. Increase the speed
of your network server and backbone connection, or
2
make Gigabit to the desktop a reality. Users in the office,
workgroup, or creative production environment can now
move large, bandwidth-intensive files faster. Transfer
graphics, CGI, CAD, or multimedia files across the
network without hesitation. The versatile and compact
1RU height design of the DGS-1024D enables the device
to be rackmounted in a standard 19-inch rack while
conserving valuable rack space.
Power Packed
Featuring non-blocking switching architecture, the
DGS-1024D filters and forwards packets at wirespeed
for maximum throughput. An 8K MAC address table
provides scalability for even the largest networks,
while address learning, 802.3x flow control for full-duplex
mode, and back pressure flow control for half-duplex
mode alleviate traffic congestion and ensure reliable
data transmission. Designed using industry standards,
the DGS-1024D is compatible with virtually all 10,
100, and 1000Mbps Ethernet devices. It protects your
existing network investments while providing you with
a straightforward migration path for faster Gigabit
speeds.
Easy to Install and Maintain
This switch was designed for Plug-and-Play and
hassle-free installation. Auto-MDI/MDI-X crossover on
all ports eliminates the need for crossover cables when
connecting to another switch or hub. Auto-negotiation
on each port senses the link speed of a network device
(either 10, 100, or 1000Mbps) and intelligently adjusts for
compatibility and optimal performance. It also features
diagnostic LEDs that display status and activity, allowing
you to quickly detect and correct problems on the
network. Every port also supports a cable diagnostic
feature that helps to detect cable-related problems.
802.1p Quality of Service
The DGS-1024D supports 802.1p Quality of Service (QoS).
When the switch receives a frame tagged with an 802.1p
priority, it automatically places it into one of four priority
queues. Priority queuing is especially beneficial when
streaming voice and video on your network.
Think Green
D-Link Green™ technology implements power-saving
features to help make your network environmentally
friendly without compromising performance. The
DGS-1024D automatically powers down ports that have no
link and budgets power output for different Ethernet cable
lengths. It also complies with the EU's RoHS directive,
restricting the use of certain hazardous materials.
Hardware Version D1
