JBL MRX525 Technical Manual

Technical Manual
JBL MRX525

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 4 Ohms
• Power Capacity: 800W / 1600W / 3200W, 2 hrs.
(Cont/ Prog/Peak): 700W / 1400W / 2800W, 100 hrs
• Frequency Range: 40 Hz - 20 kHz (-10 dB)
• Frequency Response: 57 Hz – 20 kHz (±3 dB)
• Maximum SPL: 129 dB SPL continuous (135 dB SPL peak)
• System Sensitivity: 100 dB SPL (1 watt @ 1 meter)
• Crossover Frequency: 1.8 kHz
SYSTEM COMPONENTS:
• Cabinet: Enclosure (Not for Sale)
• Grille: 362524-001
• Low Frequency 265H-1, 380 mm (15 in) Differential
Transducer: Drive woofer
• DC Resistance: 5.0 ohm ±10%
• High Frequency 2408H, 37.5 mm (1.5 in) annular
Transducer: polymer diaphragm, neodymium compression
driver
• DC Resistance: 4.8 ohm +/- 0.2 ohm
PACKAGE
NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.
A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.
JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

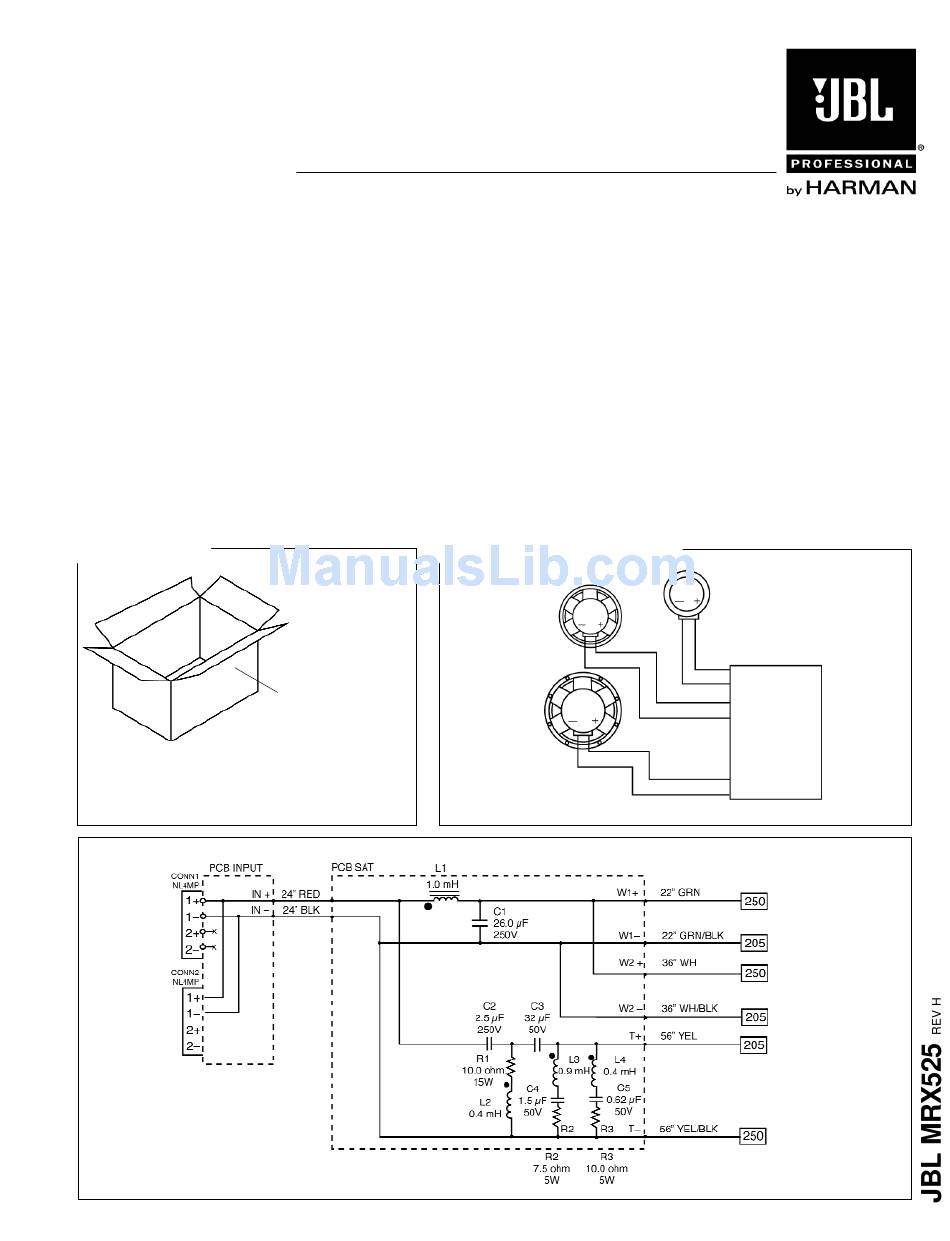

WIRING DIAGRAM

Warranty 59660
Driver,
Low Freq (2)
265H
Manual
(362048-001X)
362053-001
Cone Repl
C8R265
Carton
362293-001
265H-1 (2)
Fillers (2)
(363837-003X)
362294-002
Cone Repl
Pkg, Microfoam (8)
C8R265-1
49790P
Pop Sticker
362896-001
SYSTEM COMPONENTS: (CONT'D)
• Crossover Network:
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test:
B. L.F. Aural Sweep Test:
C. H.F. Aural Sweep Test:
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions:
(H x W x D)
• Net Weight (ea):
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
YEL/BLK
NETWORK SCHEMATIC - (364969-001)
364969-001
7.0V Input, 50 Hz to 20 kHz
7.0V Input, 10 Hz to 300 Hz
0.75V Input, 200 Hz to 1.5 kHz
1240 x 535 x 460 mm D
(48.75 x 21.0 x 18.0 in D)
84.0 lb (38.2 kg)
Driver, High Freq
2408H
(361549-001X)
Driver Repl
D8R2408
YEL
WH
Network
Assembly
WH/BLK
364969-001
GRN
GRN/BLK
03-12
