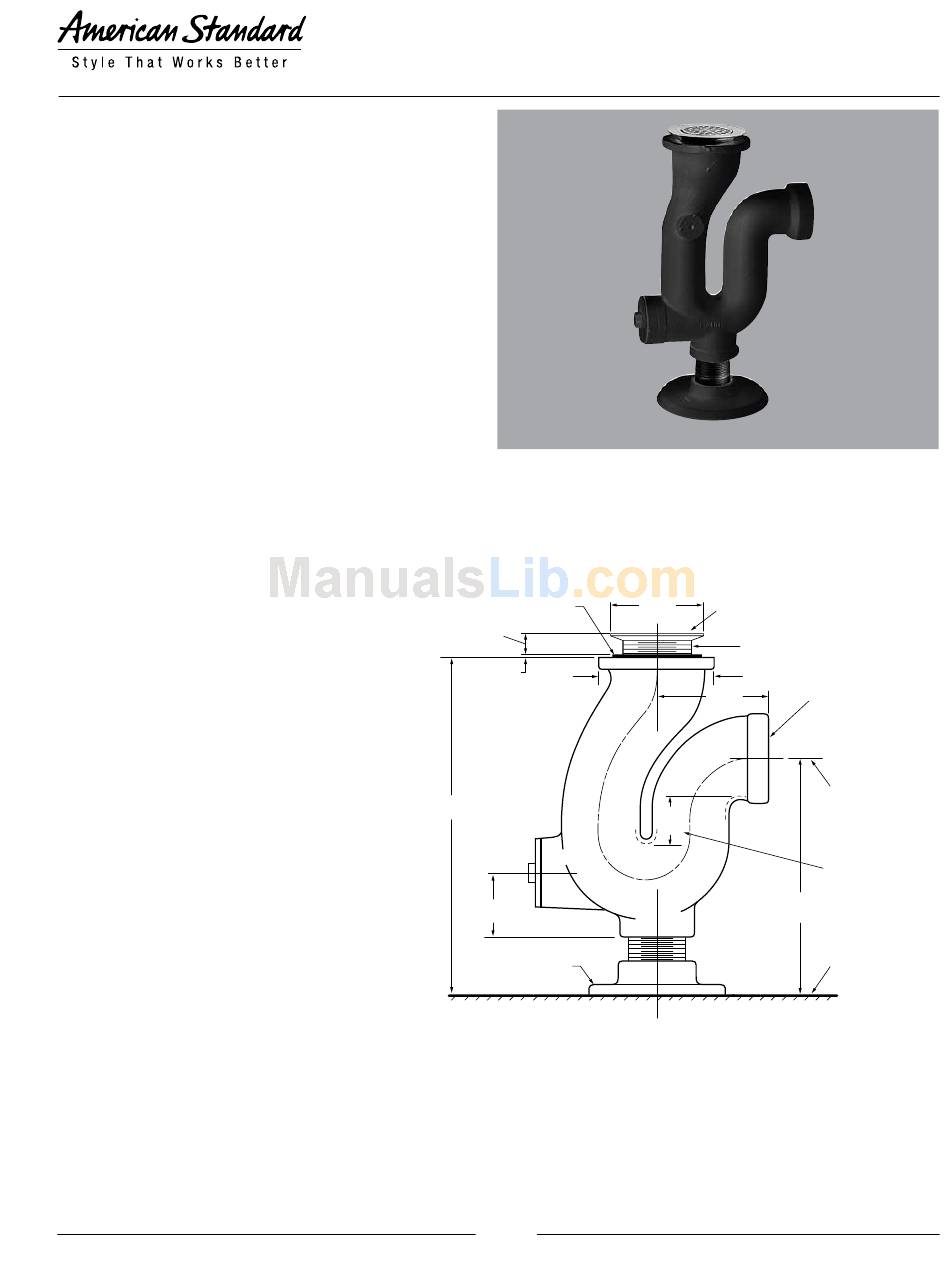

American Standard Trap Standards 7798.020 Specification Sheet

TRAP STANDARDS
❏ 7798.020 2" iron pipe with cleanout plug
and strainer
❏ 7798.030 3" iron pipe with cleanout plug
and strainer
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.1 for Cast Iron Plumbing Fixture
© 2008 AS America Inc.
7798.020 / .030 IS FOR ENAMELED IRON SERVICE SINK
WASHER
MAX. 25mm (1)
MIN. 8mm (5/16)
3mm
117mm
(4-5/8)
(1/8)
DIA.
381mm
(15)
108mm
(4-1/4)
152mm
(6)
DIA.
IMPORTANT: Dimensions of fixtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
M37
TRAP STANDARDS
ENAMELED CAST IRON
102mm
REMOVABLE PERFORATED GRID
(4)
2.882 X 11-1/2
3 N.P.T. INSIDE THREADS
FOR 7798.030
127mm
(5)
2 N.P.T. INSIDE THREADS
FOR 7798.020
51mm
(2)
SEAL
267mm
(10-1/2)
C/L OF OUTLET
67mm(2-5/8) SEAL
WHEN OUTLET
THREADED 51mm(2)
FINISHED
FLOOR
Revised 12/03
