Summary of Contents for NATIVE UNION MM03i

  • Page 1 English Français Deutsch Español Italiano MM03i Bluetooth Wireless ® Handset + Base Instruction Manual Manuel d’utilisation Bediengungsanleitung Manual de instrucciones ‫ﺍﻟﻌﺮﺑﻴﺔ‬ Manuale di istruzioni Pусский ‫ﺩﻟﻴﻞ ﺍﻟﺘﻌﻠﻴﻤﺎﺕ‬ Руководство по эксплуатации...
  • Page 2 Thank you for buying the MM03i handset, you will love this new experience. For the most updated information, be sure to check our website at www.nativeunion.com 1. MM03i Bluetooth wireless handset ® 2. MM03i base 3. One Multi-country AC adaptor with wire and micro USB with 4 exchangeable adaptor plugs for Europe, UK, North America, Asia and Australia.

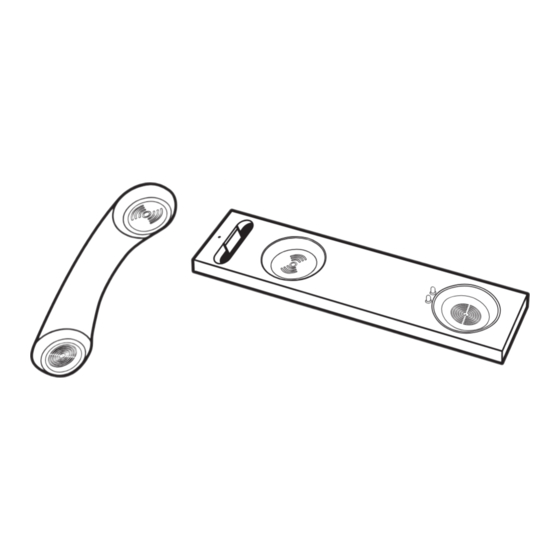

  • Page 3 Micro USB Port ® iPhone Dock Earpiece Multi-Function Button (MFB) Volume MM03i Handset Button Charging Pin Base Microphone PLEASE READ THESE INSTRUCTIONS CAREFULLY before using your new handset IMPORTANT SAFETY INSTRUCTIONS READ BEFORE OPERATING EQUIPMENT This product was designed and manufactured to meet strict quality and safety standards.
  • Page 4 7. Do not install near any heat sources such as radiators, heat registers, stoves, or other Please check the “Location of controls” section to locate and identify functional buttons. ® ® BLUETOOTH STEP 1 CHARGE YOUR MM03i HANDSET a. Connect the AC adaptor provided to the MM03i base.
  • Page 5 Finally, place the MM03i handset in the charging base to charge the battery* * The MM03i comes with a build-in rechargeable battery. It takes two or three hours to fully recharge the battery. The white LED on the base is a charging indicator.
  • Page 6 NOTE : You can also use the Micro-USB/USB cable provided to connect your MM03i base directly to the USB port of your computer to recharge the handset. quences below : - If your computer supply enough power : the iPhone ®...
  • Page 7 : Please note that your MM03i must be powered off before starting the pairing process. a) To pair your MM03i handset with your mobile phone, you must press and hold the MFB button for 5 seconds, until you hear a sound and see the blue alternately.
  • Page 8 1 meter c) Place your MM03i handset within 1 meter away from your mobile phone. d) Your mobile phone should search for all Bluetooth devices ® and the name “MM03i” should appear on the Bluetooth ® device list. e) Select “MM03i” and enter “0000” if a password is required.
  • Page 9: Charging Your Iphone

    : The Bluetooth Wireless technology signal reception works up to a 10m range ® (open area). If your mobile phone moves out of range, the MM03i will be automatically disconnected. The white LED on the handset will turn off to indicate disconnection.
  • Page 10: Making A Call

    BLUETOOTH MAKING A CALL To make a call with your MM03i, simply dial the number on your mobile phone keypad as you normally would. When the call connects, you will now speak and listen through the last active call device, whether it is the MM03i or your mobile phone.
  • Page 11 MM03i ® handset or the mobile phone is switched off and on again. Please also note that MM03i can memorize up to 4 devices. This feature allows Bluetooth re-connection when either one of the ®...
  • Page 12: Rejecting Incoming Calls

    To redial the last number called on your MM03i, double press the MFB button. END ACTIVE CALL AND ACCEPT WAITING CALL During a call, to end the active call and accept the waiting incoming call on your MM03i, press the MFB button once.
  • Page 13 To clear the list of all paired devices, you will need to perform Factory Reset. To do so, switch off the MM03i place it on the charging base, then press and hold MFB button for 5 seconds while in charging state until you hear an alert tone.
  • Page 14: Automatic Reconnection

    If you experience problem such as hearing the sound coming out from the computer instead of your MM03i, please check that your MM03i has been selected on the “Audio Preferences” of your computer or VOIP software. AUTOMATIC RECONNECTION Out of range The MM03i is designed to reconnect automatically to the last 2 connected devices in its memory.
  • Page 15 PAIRING AN ADDITIONAL DEVICE You only need to pair your phone with the MM03i once. Once you have paired your phone with the MM03i they will reconnect to each other in future without you having to repeat the pairing process.
  • Page 16 As explained below, this is determined by a combination of connection order and active calls. Which phone is the primary phone? The primary phone is either the phone that is connected to the MM03i most recently or the phone that had the last active call: phone.
  • Page 17 Multiple Calls in a multipoint connection scenario The MM03i does not allow you to call from 2 phones simultaneously. If you receive a call from Bluetooth Device “B” while you are already on an ongoing call on Bluetooth Device “A”, you will hear...
  • Page 18: Troubleshooting

    TROUBLESHOOTING No connection between your MM03i and your Mobile Phone? other and are properly paired together. The next thing to check is if the MM03i and your mobile phone are within a 10m range maximum (open area) Your iPhone ®...
  • Page 19: Specifications

    AC100V-240V, 50/60Hz, 5v/1A Operating Temperature 0 – 45°C If you are having any problem getting your MM03i to work, please go to www.nativeunion.com further information or consult your retailer. If neither of those solves the problem, please feel free to e-mail us at support@nativeunion.com, and we will do our best to help you.
  • Page 20 Regulations According to R&TTE Declaration of Conformity Native Union declares that MM03i is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, in conformity with the following standards: EN300 328, EN301 489-1, EN301 489-17 and EN60950-1...
  • Page 21: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. void the user’s authority to operate the equipment.
  • Page 22 Designed in France by David Turpin www.nativeunion.com Spec. is subject to change without prior notice. © Native Union and Native Union Logo are registered trademarks of Design Pool Ltd All other trademarks and registered trademarks are the property of their respected owners. ®...
  • Page 23 www.nativeunion.com Assembled in China...
