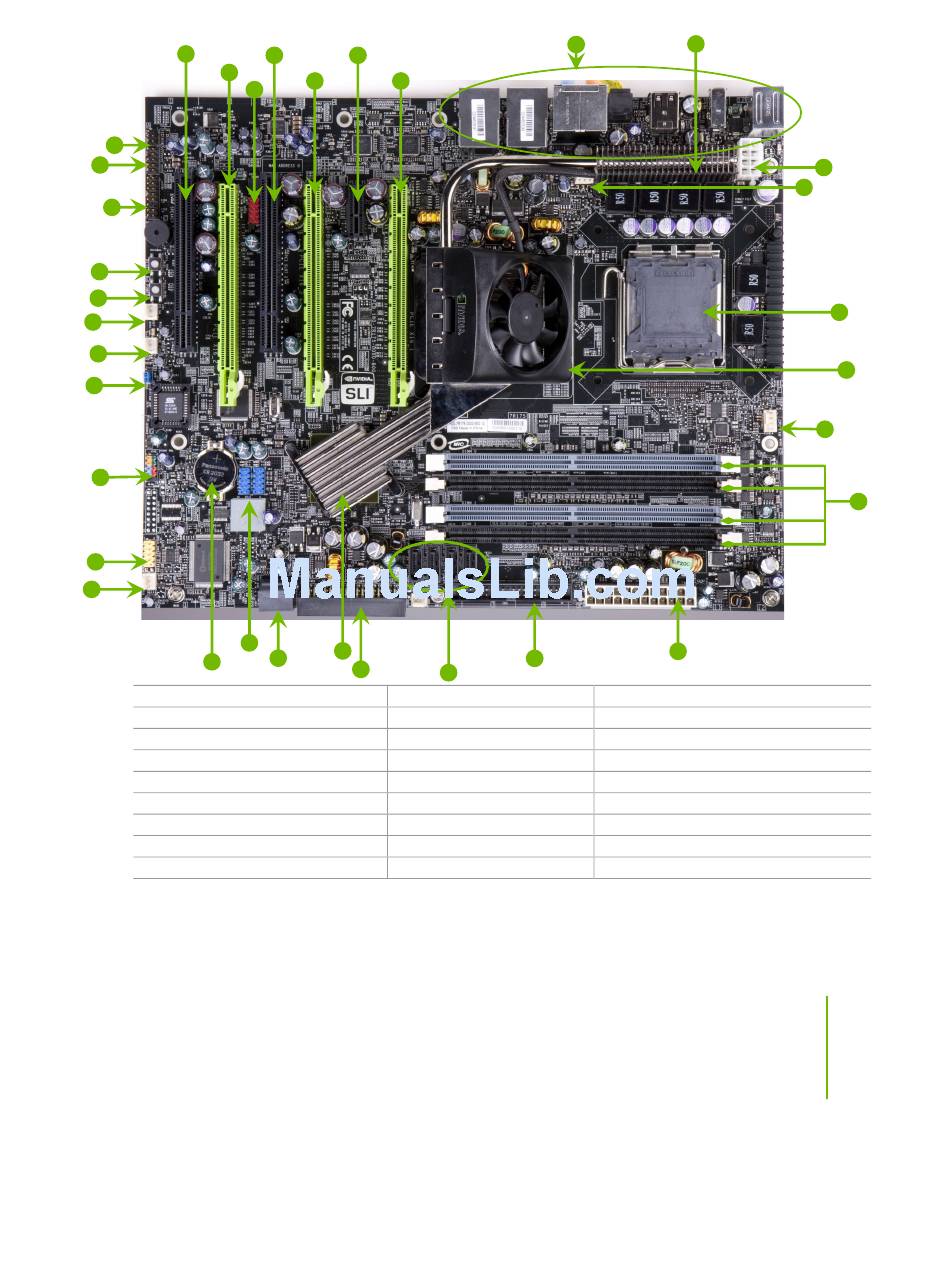

Figure 1. Xfx Nforce 780I Sli Motherboard Layout - XFX nForce 780i 3-Way SLI User Manual

22
23
24
21
20
19
18
17
13
13
16
15
14
13
11
12
1. CPU Socket
2. NVIDIA SPP with Active fan
3. CPU fan connector
4. DDR DIMM Slots 0 - 3
5. 24-pin ATX Power Connector
6. IDE Connector
7. Serial-ATA (SATA) connectors
8. FDD connector
9. NVIDIA MCP (passive heat sink)
10. Serial-ATA (SATA) connectors
Figure 1.
22 25
23 23
9
10
8
7
11. USB headers
12. Motherboard battery
13. Fan connector
14. Serial connector
15. Front panel connector
16. Jumper
17. Power button
18. Reset Button
19. Azalia HD Audio Header
20. FP Audio connector
XFX nForce 780i SLI Motherboard Layout
XFX nForce 780i 3-Way SLI Motherboard
26 27
5
6
21. SPDIF connector
22. PCI slots
23. PCI Express x16 slots (SLI)
24. 1394a connector
25. PCI Express x1 slot
26. Backpanel connectors (Figure 2)
27. Heat dissipater
28. 8-pin ATX_12V power connector
29 MCP/SPP fan connector
