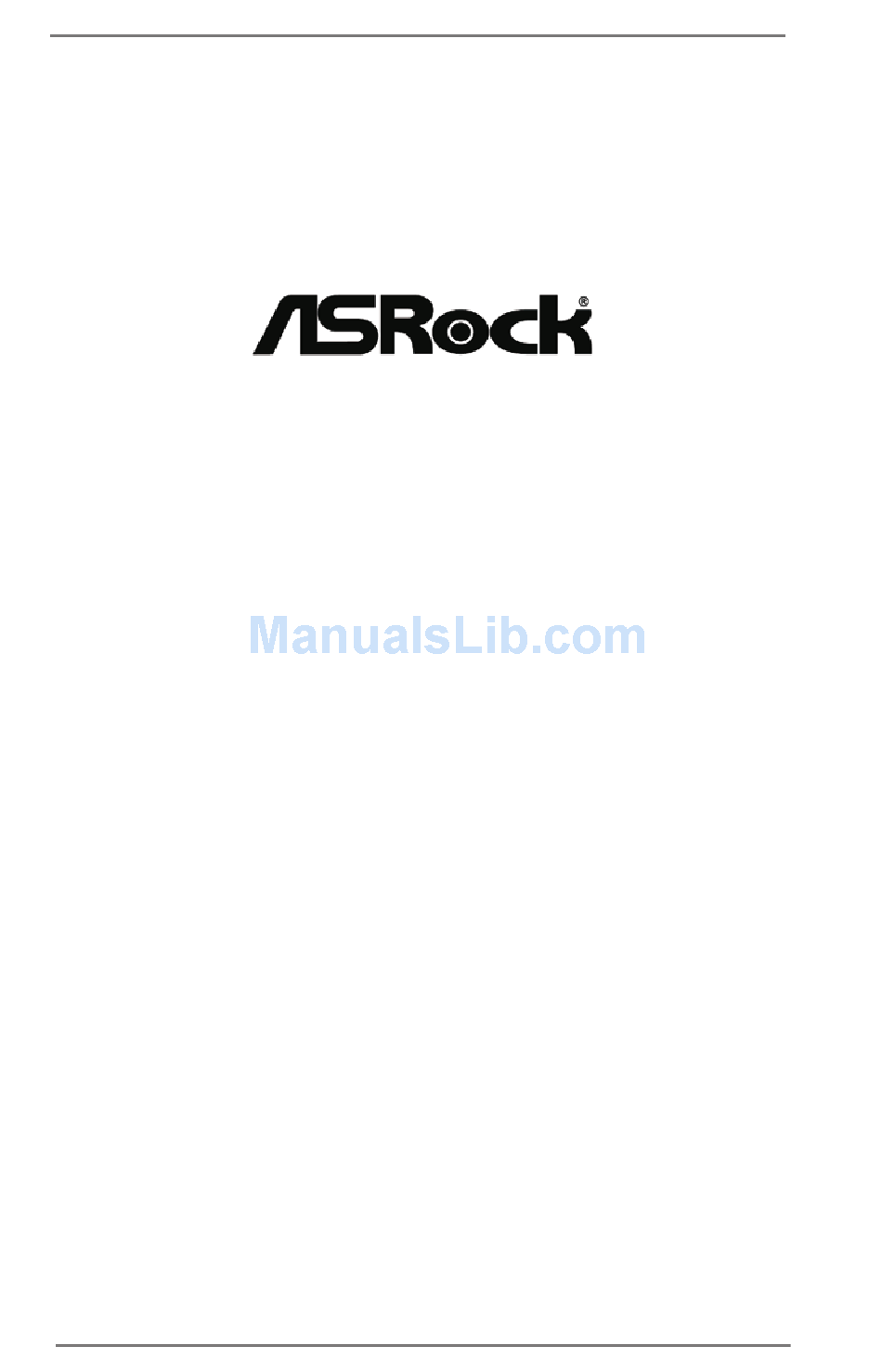

Page 1: User Manual
IMB-184-PY IMB-184 User Manual Version 1.1 Published March 2014 Copyright©2014 ASRock INC. All rights reserved. -
Page 2: Copyright Notice
(including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product. -
Page 3: Table Of Contents
Contents 1 Introduction ............5 1.1 Package Contents ............5 1.2 Specifications ..............6 1.3 Motherboard Layout ............8 1.4 I/O Panel ................ 10 2 Installation ............11 2.1 Screw Holes ..............11 2.2 Pre-installation Precautions ........... 11 2.3 Installation of Memory Modules (SO-DIMM) ....12 2.4 Expansion Slots ............ - Page 4 4 Software Support ..........43 4.1 Install Operating System ..........43 4.2 Support CD Information ..........43 4.2.1 Running Support CD ..........43 4.2.2 Drivers Menu ............43 4.2.3 Utilities Menu............43 4.2.4 Contact Information ..........43...
-
Page 5: Introduction
In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. -
Page 6: Specifications
1.2 Specifications Form Dimensions Mini-ITX (6.7-in x 6.7-in) Factor ® Socket LGA1150 for Intel Core i7/i5/i3/Celeron (Haswell) Core (By CPU, Max 4) Processor Number System Max Speed (By CPU) L3 Cache (By CPU) Chipset BIOS UEFI Mini-PCIe 1 (PCIe+USB) Expansion mSATA 1 (SATA+USB) Slot... - Page 7 Header Watchdog Output Output from super I/O to drag RESETCON# Timer Interval 256 Segments, 0,1,2…255 Sec/Min DC 24V input (IMB-184-PY) Input PWR DC 12-19V input (IMB-184) Power AT/ATX Supported Requirements AT : Directly PWR on as power input ready Power On...
-
Page 8: Motherboard Layout
1.3 Motherboard Layout 6 7 8 SATA3_1 USB4_5 USB8_9 SATA_PWR1 PANEL1 DC_JACK1 SATA3_2 COM1 COM2 COM3 COM4 UPS_IN1 JGPIO_PWR1 VCCM_SEL1 USB 3.0 INT_DC1 T: USB0 JGPIO1 PS2_KB_MS1 CHA_FAN1 B: USB1 AMP_CTL1 PWR_JP1 BIOS Chip LAN1 USB 2.0 T: USB2 B: USB3 TPM1 AUDIO Mic In... - Page 9 1 : 2-pin UPS Module Power Input Connector 2 : PS2 Keyboard/Mouse Header 3 : 4-pin ATX Power Input/Output Connector 4 : USB2.0 Headers (USB4_5, USB8_9) 5 : SATA3 Connectors (SATA3_1, SATA3_2) 6 : Digital Input / Output Pin Header 7 : SATA Power Output Connector 8 : VCCM Power Selection 9 : Digital Input / Output Power Selection...
-
Page 10: I/O Panel
1.4 I/O Panel DC Jack (DC_JACK1) LAN RJ-45 Port* USB 3.0 Ports (USB3_01) USB 2.0 Ports (USB23) DVI-I Port (DVI1) Microphone (Pink) HDMI Port (HDMI1) Line out (Lime) eSATA Port (ESATA1) * There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications. -
Page 11: Installation
Chapter 2: Installation This is a Mini-ITX form factor (6.7” x 6.7”, 17.0 x 17.0 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard. -
Page 12: Installation Of Memory Modules (So-Dimm)
2.3 Installation of Memory Modules (SO-DIMM) IMB-184-PY / IMB-184 provides two 204-pin DDR3 (Double Data Rate 3) SO-DIMM slots. Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM matches the break on the slot. -
Page 13: Expansion Slots
2.4 Expansion Slots (mini-PCIe, mini-SATA and PCI Express Slots) There is 1 mini-PCIe slot, 1 mini-SATA slot and 1 PCI Express slot on this mother- board. mini-PCIe slot: MINI_PCIE1 (mini-PCIe slot; half size) is used for PCI Express mini cards. mini-SATA slot: MINI_SATA1 (mini-SATA slot;... -
Page 14: Jumpers Setup
2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”... - Page 15 Speaker Control Signal Name (3-pin AMP_CTL1) GPIO_VOL_DW (see p.8, No. 29) GPIO_VOL_UP Backlight Control Level (CON_LBKLT_CTL) 1-2 : +3.3V 2-3 : +5V (3-pin BLT_PWM1) (see p.8, No. 19) Panel Power Selection Signal Signal Name Name (4-pin PNL_PWR1) (see p.8, No. 16) +12V LCD_VCC +3.3V...
-
Page 16: Onboard Headers And Connectors
2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! CPU Fan Connectors Please connect the CPU fan cable to the connector and FAN_SPEED_CONTROL... - Page 17 COM Port Headers (9-pin COM1: see p.8, No. 10) (9-pin COM2: see p.8, No. 11) (9-pin COM3: see p.8, No. 12) (9-pin COM4: see p.8, No. 13) Signal Signal Signal Signal Signal Name Name Name Name Name +12V CCTS# DDSR# DDTR# RRXD RRTS#...
- Page 18 PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys- tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
-
Page 19: Tpm Header
SMB_CLK_MAIN FRAME PCICLK protects digital identities, and ensures platform integrity. ATX Power Input/Output Connector Please connect a DC 24V (IMB-184-PY) / DC 12V (4-pin INT_DC1) (IMB-184) power supply to this (see p.8 No. 3) connector. PS2 Keyboard/Mouse Header Signal Signal... - Page 20 LVDS Connector Signal Name Signal Name LCD_VCC LCD_VCC (40-pin LVDS1) LDDC_CLK +3.3V (see p.8 No. 15) LVDS_A_DATA0# LDDC_DATA LVDS_A_DATA0 LVDS_A_DATA1 LVDS_A_DATA1# LVDS_A_DATA2# LVDS_A_DATA2 LVDS_A_DATA3 LVDS_A_DATA3# LVDS_A_CLK# LVDS_A_CLK LVDS_B_DATA0 LVDS_B_DATA0# LVDS_B_DATA1# LVDS_B_DATA1 LVDS_B_DATA2 LVDS_B_DATA2# LVDS_B_DATA3# DPLVDD_EN LVDS_B_DATA3 LVDS_B_CLK LVDS_B_CLK# CON_LBKLT_EN LCD_BLT_VCC CON_LBKLT_CTL LCD_BLT_VCC LCD_BLT_VCC...
-
Page 21: Dmic Header
DMIC Header (5-pin DMIC1) (see p.8, No. 23) Signal Signal Signal Signal Signal Signal Name Name Name Name Name Name DMIC_ DMIC_ +3.3V DATA Customer Solution Header Signal Name Signal Name (9-pin CS1) +5V STANDBY (see p.8, No. 20) CIRRX PWRBT# SMB_DATA_RESUME +3.3V STANDBY... -
Page 22: Uefi Setup Utility
Chapter 3: UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>... -
Page 23: Navigation Keys
3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Enter>... -
Page 24: Advanced Screen
3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configu- ration, Chipset Configuration, Storage Configuration, Intel(R) Rapid Start Technolo- gy, Intel(R) Smart Connect Technology, AMT Configuration, Super IO Configuration, ACPI Configuration, USB Configuration and Voltage Configuration. Setting wrong values in this section may cause the system to malfunction. -
Page 25: Cpu Configuration
3.3.1 CPU Configuration Intel Hyper Threading Technology To enable this feature, a computer system with an Intel processor that sup- ports Hyper-Threading technology and an operating system that includes ® ® optimization for this technology, such as Microsoft Windows 7 / 8 is re- ®... - Page 26 ® [Enabled] and [Disabled]. If you install Windows 7 / 8 and want to enable this function, please set this item to [Enabled]. This item will be hidden if the current CPU does not support Intel SpeedStep technology. Please note that enabling this function may reduce CPU voltage and lead to system stability or compatibility issues with some power supplies.
-
Page 27: Chipset Configuration
3.3.2 Chipset Configuration DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign the appropriate frequency automatically. Primary Graphics Adapter This allows you to select [Onboard] or [PCI Express] as the boot graphic adapter priority. The default value is [PCI Express]. VT-d ®... - Page 28 Front Panel Select [Auto] or [Disabled] for the onboard HD Audio Front Panel. Onboard HDMI HD Audio This allows you to enable or disable the Onboard HDMI HD Audio feature. Onboard LAN1 This allows you to enable or disable the Onboard LAN1 feature. Deep Sleep Mobile platforms support Deep S4/S5 in DC only and desktop platforms support Deep S4/S5 in AC only.
-
Page 29: Storage Configuration
3.3.3 Storage Configuration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. Configuration options: [IDE Mode], [AHCI Mode] and [RAID Mode]. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages. -
Page 30: Intel(R) Rapid Start Technology
3.3.4 Intel(R) Rapid Start Technology Intel(R) Rapid Start Technology Use this item to enable or disable Intel(R) Rapid Start Technology. Intel(R) Rapid Start Technology is a new zero power hibernation mode which al- lows users to resume in just 5-6 seconds. The default is [Disabled]. -
Page 31: Intel(R) Smart Connect Technology
3.3.5 Intel(R) Smart Connect Technology Intel(R) Smart Connect Technology Use this item to enable or disable Intel(R) Smart Connect Technology. Intel(R) Smart Connect Technology keeps your e-mail and social networks, such as Twitter, Facebook, etc. updated automatically while the computer is in sleep mode. -
Page 32: Amt Configuration
3.3.6 AMT Technology Intel AMT Use this to enable or disable Intel(R) Active Management Technology BIOS Extension. The default is [Enabled]. BIOS Hotkey Pressed Use this to enable or disable BIOS hotkey press. The default is [Disabled]. MEBx Selection Screen Use this to enable or disable MEBx Selection Screen. - Page 33 PET Progress User can enable or disable PET Events progress to receive PET events or not. The default is [Enabled].
-
Page 34: Super Io Configuration
3.3.7 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. Select COM1 port type: [RS232], [RS422] or [RS485]. COM2 Configuration Use this to set parameters of COM2. COM3 Configuration Use this to set parameters of COM3. COM4 Configuration Use this to set parameters of COM4. -
Page 35: Acpi Configuration
3.3.8 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. Check Ready Bit Use this item to enable or disable the feature Check Ready Bit. ACPI HPET Table Use this item to enable or disable ACPI HPET Table. -
Page 36: Usb Configuration
USB Mouse Power On Use this item to enable or disable USB Mouse to power on the system. 3.3.9 USB Configuration USB Controller Use this item to enable or disable the use of USB controller. Intel USB 3.0 Mode Use this item to enable or disable the use of Intel USB 3.0 mode. Legacy USB Support Use this option to select legacy support for USB devices. -
Page 37: Voltage Configuration
3.3.10 Voltage Configuration DRAM Voltage Use this to select DRAM Voltage. The default value is [Auto]. -
Page 38: Hardware Health Event Monitoring Screen
3.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU_FAN1 Setting This allows you to set CPU fan 1’s speed. -
Page 39: Boot Screen
3.5 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. Boot From Onboard LAN Use this item to enable or disable the Boot From Onboard LAN feature. Setup Prompt Timeout This shows the number of seconds to wait for setup activation key. - Page 40 CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable ® unless you’re running a WHCK test. If you are using Windows 8 64-bit and all of your devices support UEFI, you may also disable CSM for faster boot speed.
-
Page 41: Security Screen
3.6 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Supervisor Password Set or change the password for the administrator account. Only the ad- ministrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password. -
Page 42: Exit Screen
3.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”... -
Page 43: Software Support
Click on a specific item then follow the installation wizard to install it. 4.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may con-...
