Cybex Eagle
Row

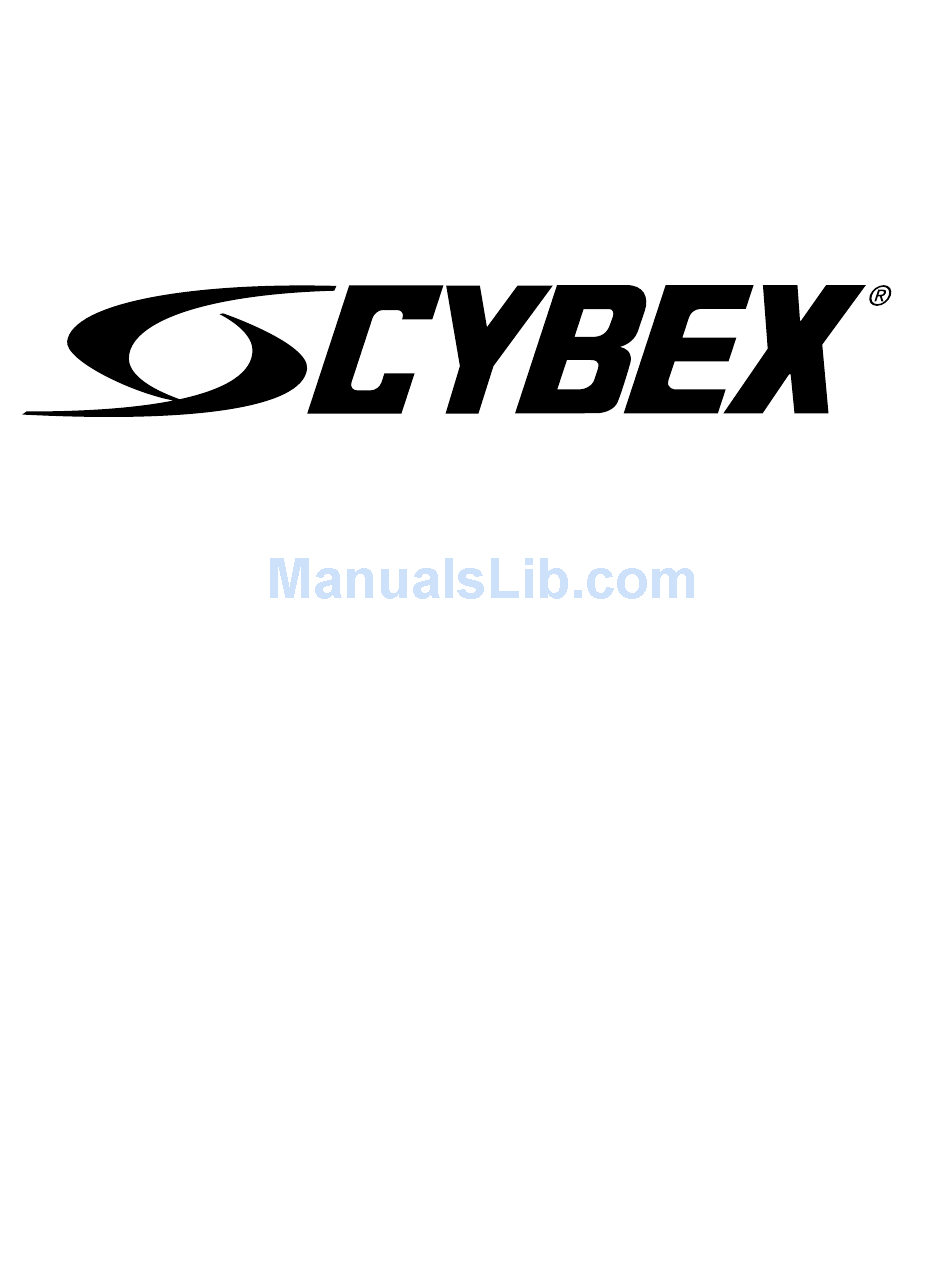

Owner's and Service Manual
Strength Systems
Part Number 11030-999 J
www.cybexinternational.com

Advertisement

Table of Contents
loading

Related Manuals for CYBEX Eagle Row

Summary of Contents for CYBEX Eagle Row

  • Page 1 ® Cybex Eagle Owner’s and Service Manual Strength Systems Part Number 11030-999 J www.cybexinternational.com...
  • Page 3 Cybex International, Inc. DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.

  • Page 5: Table Of Contents

    Table of Contents 1 Safety Safety......1-1 Warning/Caution Decals ... 1-2 Regular Maintenance Activities .

  • Page 7: Safety

    • Securely anchor each machine to the fl oor using the anchor holes provided in each machine. NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional contractor. NOTE: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8” grade 2 bolts or better).
  • Page 8 SECURING EQUIPMENT: The machine has holes in the feet, which allow for ease in anchoring to the fl oor. Cybex strongly recommends that, to eliminate rocking, tipping or falling over due to incorrect usage and misuse, equipment be secured to a solid, level surface.

  • Page 9: Warning/Caution Decals

    Preventative maintenance allows proper equipment operation and reduces the risk of injury. Perform the maintenance requirements as specifi ed in the manual. STANDARD COMPLIANCE: Cybex products meet or exceed applicable ASTM and EN Standards. Warning/Caution Decals Warning decals indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
  • Page 10 Cybex Eagle 11030 Row Owner’s Manual CAUTION Personal injury may occur. Keep away from moving parts to avoid injury. 4000Y316-4 CAUTION Seat may fall if improperly engaged. Verify seat is secure before exercising to avoid injury. 4520-362-4 4605-381-4 A Safety...
  • Page 11 Cybex Eagle 11030 Row Owner’s Manual Row - 11030 DESCRIPTION PART NO. Warning Decal ....4605-381-4 Caution Decal ....4000Y316-4 Caution Decal ....4520-362-4 Safety Page 1-5...

  • Page 12: Regular Maintenance Activities

    Cybex Eagle 11030 Row Owner’s Manual Regular Maintenance Activities Preventative maintenance activities must be performed to maintain normal operation of your equipment. Keeping a log sheet of all maintenance actions will assist you in staying current with all preventative maintenance activities. The preventative maintenance actions are described in detail in Chapter 5.

  • Page 13: Exercises

    Cybex Eagle 11030 Row Owner’s Manual 2 - Exercise MUSCLES USED Intended Use The intended use of this equipment is to aid or improve general physical fi tness and exercise. For Commercial use. Instructions Read and understand all instructions and warnings prior to using this machine.
  • Page 14 Cybex Eagle 11030 Row Owner’s Manual Set Up 1. Adjust chest pad to allow comfortable reach of handles. 2. Grasp handles with hands in front of and level with the shoulders. Movement 1. Pull the handles towards you until your elbows are at your sides.

  • Page 15: Customer Service

    Follow the following procedures carefully. Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label.

  • Page 16: Damaged Parts

    3. Provide the model and serial number of your Cybex equipment. 4. At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label.

  • Page 17: Assembly

    Verify that you received the correct color machine that you ordered. Verify you received weight plates and weight plate decals. Verify you received the Cybex Eagle Row Owner’s Manual. Verify you received the warranty sheet. 3. Move to desired location.
  • Page 18 Cybex Eagle 11030 Row Owner’s Manual Cut shipping tie securing top weight. Rotate cam and disconnect weight stack belt from cam (by loosening the two set screws on the belt clamp with a 7/32” Allen wrench). See Figure 1. Screws Locate the pulley bracket that is located near the cam.
  • Page 19 Cybex Eagle 11030 Row Owner’s Manual With an assistant, carefully remove the six BHSCS BHSCS (qty 6) securing the two halves of the frame. See Figure 6. Carefully lay the taller half of the frame down on the fl oor until you are ready to move it.
  • Page 20 Cybex Eagle 11030 Row Owner’s Manual 6. Install the weight stack. Frame Upper snap ring Note how the increment weights are installed. With an assistant holding the increment weights, move the adjusting knob to 0 lbs. and remove all six Wave washer increment weights (three each side).
  • Page 21 Cybex Eagle 11030 Row Owner’s Manual 7. Belt Routing. Insert and Set Screws (not shown) are on this side. Belt Verify belt is routed through top of pulley bracket and then route end of belt down to the top weight.
  • Page 22 9 .0 holes provided in each machine. 1 8 .0 3 6 .0 4 5 .0 NOTE: Cybex is not responsible for the actual anchoring of 1 0 0 Weight Stack 5 4 .0 1 2 0 6 3 .0 equipment.

  • Page 23: Maintenance

    Cybex Eagle 11030 Row Owner’s Manual Chapter 5 - Maintenance All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength Systems equipment. NOTE: Cybex is not responsible for performing regular inspection and maintenance actions for your machines.
  • Page 24 Do not inhale or swallow any cleaning product. Protect surrounding area/clothing from exposure. Use in a well ventilated area. Follow all product manufacturer’s warnings. CYBEX and its vendors cannot be held responsible for damage or injuries resulting from the use or misuse of cleaning products.
  • Page 25 Cybex Eagle 11030 Row Owner’s Manual 4. Guidelines for cleaning front panel: • Use clean soft cloths or sponges for application of cleaners and again for washing and rinsing. • Follow up the application with warm water rinse. • Don’t use abrasives or high alkaline cleaners.

  • Page 26: Weekly Procedures

    Cybex Eagle 11030 Row Owner’s Manual Weekly Procedures 1. Check all nuts and bolts for looseness. Tighten as required. 2. Inspect all belts (entire length) for any non-uniformity and wear. Immediately replace belt if any of the following conditions are present:...
  • Page 27 Cybex Eagle 11030 Row Owner’s Manual 3. Some machines use cables in addition to belts. Inspect all cables for wear or damage and proper tension. When inspecting cables, run your fingers on the cable, paying particular attention to bends in the cable and attachment points.

  • Page 28: Yearly Procedures

    Cybex Eagle 11030 Row Owner’s Manual 4. Inspect bars and handles for wear, paying particular attention to tab area connecting points. Replace all worn handles immediately. 5. Inspect snap links for proper latching (indicates wear). Replace all worn snap links immediately.

  • Page 29: Environment

    Cybex Eagle 11030 Row Owner’s Manual Environment Static Electricity - Depending upon where you live, you may experience dry air, causing a common experience of static electricity. This may be especially true in the winter time. You may notice a static build-up just by walking across a carpet and then touching a metal object.
  • Page 30 Cybex Eagle 11030 Row Owner’s Manual Maintenance Page 5-8...

  • Page 31: Service

    Cybex Eagle 11030 Row Owner’s Manual 6 - Service Please refer to the next several pages for parts lists, exploded-view diagrams. NOTE: All inspections and repairs must be performed by trained service personnel only. Cybex will void warranty if non-Cybex replacement parts are used.
  • Page 32 Cybex Eagle 11030 Row Owner’s Manual This page intentionally left blank Service Page 6-2...

  • Page 33: Exploded-View Diagram

    Cybex Eagle 11030 Row Owner’s Manual PRODUCT NO. 11030 NOTE: See exploded-view diagram for location of J (serial number decal), K (belt) and O (Cybex Decal). DESCRIPTION PART NO. DESCRIPTION PART NO. A. Caution Decal ....4000Y316 I. Non-slip 4.75 x 11.50 ..4710-321 B.
  • Page 34 Cybex Eagle 11030 Row Owner’s Manual ITEM PART NO. DESCRIPTION PART NO. DESCRIPTION 08014 PULLEY ASSEMBLY - 4.50 FB030242 BRG W/SNAP RING, 30mm OD X 08229 PIN,DETENT 10mm ID 11000-212 FLOATING PULLEY FB130207 BRG FLG 17mm X 19mm X 25mm 99.50”...
  • Page 35 Cybex Eagle 11030 Row Owner’s Manual Service Page 6-5...
  • Page 36 Cybex Eagle 11030 Row Owner’s Manual Service Page 6-6...
  • Page 37 Cybex Eagle 11030 Row Owner’s Manual Service Page 6-7...
  • Page 38 Cybex Eagle Row Owner’s Manual EAGLE ROW FRAME ASSEMBLY DETAIL SERIAL NUMBER Service Page 6-8...
  • Page 39 Cybex Eagle Row Owner’s Manual Service Page 6-9...
  • Page 40 Cybex Eagle Row Owner’s Manual BELT AND CABLE ROUTING DETAIL Service Page 6-10...
  • Page 41 Cybex Eagle Row Owner’s Manual ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 11040-366 Top Weight Assembly, Molded HT562715 Tap SC NO 10 x .750 F Phil 11040-367 Hub, Molded HT582510 Tap SC NO 10 x .375 PN HD Phil...
  • Page 44 10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 www.cybexinternational.com • Techhelp@cybexintl.com...
