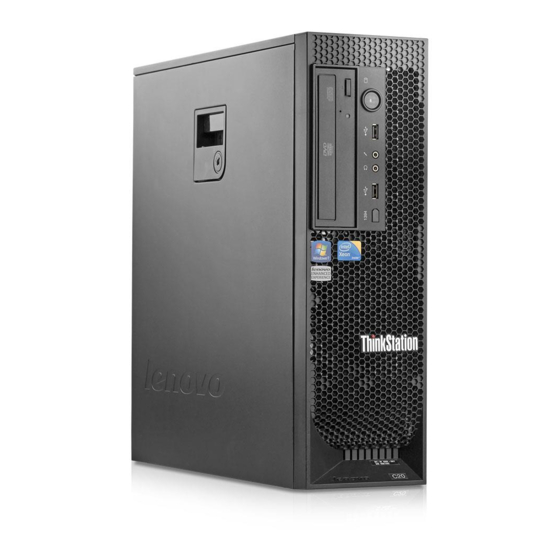

ThinkStation
Hardware Maintenance Manual
Machine Types: 4262, 4263, 4264, 4265, 4266, 4269, 4271, and 4272

Advertisement

Table of Contents
loading

Related Manuals for Lenovo ThinkStation

Summary of Contents for Lenovo ThinkStation

  • Page 1 ThinkStation Hardware Maintenance Manual Machine Types: 4262, 4263, 4264, 4265, 4266, 4269, 4271, and 4272...
  • Page 3 ThinkStation Hardware Maintenance Manual Machine Types: 4262, 4263, 4264, 4265, 4266, 4269, 4271, and 4272...
  • Page 4 © Copyright Lenovo 2010, 2011. LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure.

  • Page 5: Table Of Contents

    ..SATA or SAS RAID ... Lenovo Welcome....Configuring the Marvell BIOS Setup to enable Additional information resources .
  • Page 6 Windows Vista Business 64 Recovery CD . . Windows 7 Professional 64 Recovery CD . . Windows 7 Professional 64 with office starter 2010 Recovery CD ... ThinkStation Hardware Maintenance Manual...

  • Page 7: Chapter 1. About This Manual

    This manual contains service and reference information for ThinkStation™ computers listed on the front cover. It is intended only for trained servicers who are familiar with Lenovo® computer products. Before servicing a Lenovo product, be sure to read the Safety Information in Chapter 2 “Safety information” on page 3.
  • Page 8 Lenovo plans to transition to RoHS compliance well before the implementation date and expects its suppliers to be ready to support Lenovo's requirements and schedule in the EU. Products sold in 2005 will contain some RoHS compliant FRUs. The following statement pertains to these products and any product Lenovo produces containing RoHS compliant parts.

  • Page 9: Chapter 2. Safety Information

    Observe the following rules when working on electrical equipment. © Copyright Lenovo 2010, 2011...
  • Page 10 (This practice ensures correct grounding of the units.) • If an electrical accident occurs: – Use caution; do not become a victim yourself. – Switch off power. – Send another person to get medical aid. ThinkStation Hardware Maintenance Manual...

  • Page 11: Voltage-Selection Switch

    Voltage-selection switch Some computers are equipped with a voltage-selection switch located near the power-cord connection point on the computer. If your computer has a voltage-selection switch, ensure that you set the switch to match the voltage available at your electrical outlet. Setting the voltage-selection switch incorrectly can cause permanent damage to the computer.

  • Page 12: Handling Electrostatic Discharge-Sensitive Devices

    Safety notices (multi-lingual translations) The caution and danger safety notices in this section are provided in the following languages: • English • Arabic • Brazilian/Portuguese • Chinese (simplified) • Chinese (traditional) ThinkStation Hardware Maintenance Manual...
  • Page 13 • French • German • Hebrew • Italian • Korean • Spanish DANGER Electrical current from power, telephone and communication cables is hazardous. To avoid a shock hazard: • Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration of this product during an electrical storm.
  • Page 14 The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source. ThinkStation Hardware Maintenance Manual...
  • Page 15 Chapter 2 Safety information...
  • Page 16 ≥18 kg (37 lbs) ≥32 kg (70.5 lbs) ≥55 kg (121.2 lbs) PERIGO ThinkStation Hardware Maintenance Manual...
  • Page 17 A corrente elétrica proveniente de cabos de alimentação, de telefone e de comunicações é perigosa. Para evitar risco de choque elétrico: • Não conecte nem desconecte nenhum cabo ou execute instalação, manutenção ou reconfiguração deste produto durante uma tempestade com raios. •...
  • Page 18 O dispositivo também pode ter mais de um cabo de alimentação. Para remover toda a corrente elétrica do dispositivo, assegure que todos os cabos de alimentação estejam desconectados da fonte de alimentação. ThinkStation Hardware Maintenance Manual...
  • Page 19 Chapter 2 Safety information...
  • Page 20 ThinkStation Hardware Maintenance Manual...
  • Page 21 Chapter 2 Safety information...
  • Page 22 (sauf instruction contraire mentionnée dans les procédures d'installation et de configuration). • Lorsque vous installez, que vous déplacez, ou que vous manipulez le présent produit ou des périphériques qui lui sont raccordés, reportez-vous aux instructions ci-dessous pour connecter et déconnecter les différents cordons. ThinkStation Hardware Maintenance Manual...
  • Page 23 Connexion Déconnexion 1. Mettez les unités HORS TENSION. 1. Mettez les unités HORS TENSION. 2. Commencez par brancher tous les cordons sur les 2. Débranchez les cordons d'alimentation des prises. unités. 3. Débranchez les câbles d'interface des connecteurs. 3. Branchez les câbles d'interface sur des connecteurs. 4.
  • Page 24 Schutzkontakt anschließen. • Die Signalkabel nach Möglichkeit einhändig anschließen oder lösen, um einen Stromschlag durch Berühren von Oberflächen mit unterschiedlichem elektrischem Potenzial zu vermeiden. • Geräte niemals einschalten, wenn Hinweise auf Feuer, Wasser oder Gebäudeschäden vorliegen. ThinkStation Hardware Maintenance Manual...
  • Page 25 • Die Verbindung zu den angeschlossenen Netzkabeln, Telekommunikationssystemen, Netzwerken und Modems ist vor dem Öffnen des Gehäuses zu unterbrechen, sofern in den Installations- und Konfigurationsprozeduren keine anders lautenden Anweisungen enthalten sind. • Zum Installieren, Transportieren und Öffnen der Abdeckungen des Computers oder der angeschlossenen Einheiten die Kabel gemäß...
  • Page 26 Mit dem Netzschalter an der Einheit und am Netzteil wird die Stromversorgung für die Einheit nicht unterbrochen. Die Einheit kann auch mit mehreren Netzkabeln ausgestattet sein. Um die Stromversorgung für die Einheit vollständig zu unterbrechen, müssen alle zum Gerät führenden Netzkabel vom Netz getrennt werden. ThinkStation Hardware Maintenance Manual...
  • Page 27 Chapter 2 Safety information...
  • Page 28 • Collegare tutti i fili elettrici a una presa di alimentazione correttamente cablata e dotata di messa a terra. • Collegare alle prese elettriche appropriate tutte le apparecchiature che verranno utilizzate per questo prodotto. ThinkStation Hardware Maintenance Manual...
  • Page 29 • Se possibile, utilizzare solo una mano per collegare o scollegare i cavi di segnale. • Non accendere assolutamente apparecchiature in presenza di incendi, perdite d'acqua o danno strutturale. • Scollegare i cavi di alimentazione, i sistemi di telecomunicazione, le reti e il modem prima di aprire i coperchi del dispositivo, salvo istruzioni contrarie relative alle procedure di installazione e configurazione.
  • Page 30 Il pulsante di controllo dell'alimentazione presente sull'unità e l'interruttore dell'alimentatore non disattivano l'alimentazione corrente fornita all'unità. E' possibile che l'unità disponga di più cavi di alimentazione. Per disattivare l'alimentazione dall'unità, accertarsi che tutti i cavi di alimentazione siano scollegati dalla fonte di alimentazione. ThinkStation Hardware Maintenance Manual...
  • Page 31 Chapter 2 Safety information...
  • Page 32 • Cualquier equipo que se conecte a este producto también debe conectarse a tomas de corriente debidamente cableadas. • Siempre que sea posible, utilice una sola mano para conectar o desconectar los cables de señal. • No encienda nunca un equipo cuando hay señales de fuego, agua o daños estructurales. ThinkStation Hardware Maintenance Manual...
  • Page 33 • Desconecte los cables de alimentación, los sistemas de telecomunicaciones, las redes y los módems conectados antes de abrir las cubiertas de los dispositivos, a menos que se indique lo contrario en los procedimientos de instalación y configuración. • Conecte y desconecte los cables, como se describe en la tabla siguiente, cuando instale, mueva o abra las cubiertas de este producto o de los dispositivos conectados.
  • Page 34 Además, el dispositivo podría tener más de un cable de alimentación. Para suprimir toda la corriente eléctrica del dispositivo, asegúrese de que todos los cables de alimentación estén desconectados de la toma de corriente. ThinkStation Hardware Maintenance Manual...

  • Page 35: Chapter 3. General Information

    This chapter provides general information that applies to all machine types supported by this publication. Lenovo ThinkVantage Tools Note: The Lenovo ThinkVantage Tools program is only available on computers with the Windows 7 operating system from Lenovo. The Lenovo ThinkVantage Tools program helps you work more easily and securely by providing easy access to various tools, such as: •...
  • Page 36 – Low range: Minimum: 100 V ac Maximum: 127 V ac Input frequency range: 50 to 60 Hz – High range: Minimum: 200 V ac Maximum: 240 V ac Input frequency range: 50 to 60 Hz ThinkStation Hardware Maintenance Manual...

  • Page 37: Chapter 4. General Checkout

    Service Support and Engineering functions. • Machine type and model • Processor or hard disk drive upgrades • Failure symptom – Do diagnostics indicate a failure? – What, when, where, single, or multiple systems? – Is the failure repeatable? © Copyright Lenovo 2010, 2011...
  • Page 38 6. Have the same diagnostic diskettes (version) 7. Have the same configuration options set in the system 8. Have the same setup for operating-system-controlled files Comparing the configuration and software set-up between “working and non-working” systems will often lead to problem resolution. ThinkStation Hardware Maintenance Manual...

  • Page 39: Chapter 5. Diagnostics

    2. If you are unable to isolate and repair the problem yourself after running the programs, save and print the log files created by the programs. You will need the log files when you speak to a Lenovo technical support representative.

  • Page 40: Pc-Doctor For Dos

    You can also download the latest version of the PC-Doctor for DOS diagnostic program from http://www.lenovo.com/support. The PC-Doctor for DOS diagnostic program runs independently of the Windows operating system. Use the PC-Doctor for DOS diagnostic program if you are unable to start the Windows operating system.
  • Page 41 Run Normal Test runs a more extensive set of tests than Run Quick Test does and takes longer to complete. • Press F5 to automatically run all selected tests in all categories. • From within a test category, press Ctrl+Enter to automatically run only the selected tests in that category. •...
  • Page 42 To view details of a failure or to view a list of test results, use the following procedure from any test category screen: 1. Press F3 to activate the log file. 2. Press F3 again to save the file to diskette or press F2 to print the file. ThinkStation Hardware Maintenance Manual...

  • Page 43: Chapter 6. Using The Setup Utility Program

    • Set Administrator Password • Set User Password You do not have to set a password to use your computer. However, using a password improves computing security. If you decide to set a password, read the following sections. © Copyright Lenovo 2010, 2011...

  • Page 44: Password Considerations

    Note: A password can be any combination of up to 12 (1 to 12) alphabetic and numeric characters. For more information, see “Password considerations” on page 38. Enabling or disabling a device This section provides instructions on how to enable or disable user access to a device. ThinkStation Hardware Maintenance Manual...

  • Page 45: Selecting A Startup Device

    USB Support Use this option to enable or disable USB connectors. ICH SATA When this feature is set to Disabled, any optical drives or eSATA devices are disabled and will not be displayed in the system configuration. Marvell SATA/SAS controller When this feature is set to Disabled, all internal hard disk drives are disabled and will not be displayed in the system configuration.

  • Page 46: Advanced Settings

    • If you do not want to save the new settings, select Exit ® Exit the Setup Utility without saving. • If you want to return to the default settings, press F9 or select Exit ® Load Default Settings. ThinkStation Hardware Maintenance Manual...

  • Page 47: Chapter 7. Configuring Raid

    2. From the Setup Utility program main menu, select Devices ® IDE Drives Setup and press Enter. 3. Select SATA RAID Enable and press Enter. 4. Select Enabled and press Enter. 5. Press F10 to save the new settings and exit the Setup Utility program. © Copyright Lenovo 2010, 2011...

  • Page 48: Creating Raid Volumes

    Note: Your computer must have either all SATA hard disk drives or all SAS hard disk drives installed. However, be sure that you do not install both the SATA and SAS hard disk drives into the same computer. ThinkStation Hardware Maintenance Manual...

  • Page 49: Installing Sata Or Sas Hard Disk Drives

    Installing SATA or SAS hard disk drives Your computer must have the minimum number of SATA or SAS hard disk drives installed for the supported level of RAID below: • RAID Level 0 – Striped disk array – Two hard disk drives minimum –...

  • Page 50: Configuring The Marvell Bios Setup To Set An Optional Hot Spare Hard Disk Drive

    4. Use the arrow keys and the Enter key to select the array you want to delete from the list. 5. Use the arrow keys to select Next and press Enter. 6. Press Y when prompted to complete the deletion. ThinkStation Hardware Maintenance Manual...

  • Page 51: Chapter 8. Symptom-To-Fru Index

    • On/Off switch connector • On/Off switch power supply connector • System board power supply connectors • Microprocessor(s) connection Check the power cord for continuity. Power cord Check the turn on switch for continuity. Turn on switch © Copyright Lenovo 2010, 2011...

  • Page 52: Diagnostic Error Codes

    Information only Restart the test, if necessary 000-195-XXX BIOS Test aborted by user 000-196-XXX BIOS test halt, error threshold exceeded 1. Press F3 to review the log file. 2. Restart the test to reset the log file. ThinkStation Hardware Maintenance Manual...
  • Page 53 Diagnostic Error Code FRU/Action 1. Make sure the component that is called out is 000-197-XXX BIOS test warning connected and/or enabled. See Chapter 6 “Using the Setup Utility program” on page 37. 2. Re-run test. 3. Replace the component that is called out in warning statement 4.
  • Page 54 2. System board 001-270-XXX System IRQ3 failure 1. Device on IRQ3 2. System board 001-271-XXX System IRQ4 failure 1. Device on IRQ4 2. System board 001-272-XXX System IRQ5 failure 1. Device on IRQ5 2. System board ThinkStation Hardware Maintenance Manual...
  • Page 55 Diagnostic Error Code FRU/Action 001-273-XXX System IRQ6 (diskette drive) failure 1. Diskette Cable 2. Diskette drive 3. System board 001-274-XXX System IRQ7 failure 1. Device on IRQ7 2. System board 001-275-XXX System IRQ8 failure 1. Device on IRQ8 2. System board 001-276-XXX System IRQ9 failure 1.
  • Page 56 3. Go to “Undetermined problems” on page 67. 005-199-XXX Video test failed, cause unknown 1. Go to “Undetermined problems” on page 67. 2. Flash the system and re-test. See “Updating (flashing) the BIOS” on page 231. 3. Replace component under function test. ThinkStation Hardware Maintenance Manual...
  • Page 57 Diagnostic Error Code FRU/Action 005-2XX-XXX 005-3XX-XXX Video subsystem error 1. Video card, if installed 2. System board 006-000-XXX Diskette interface Test Passed No action 006-0XX-XXX Diskette interface error 1. Diskette drive Cable 2. Diskette drive 3. System board 006-195-XXX Diskette interface Test aborted by user Information only Restart the test, if necessary 006-196-XXX Diskette interface test halt, error threshold 1.
  • Page 58 014-195-XXX Parallel port Test aborted by user Information only Restart the test, if necessary. 014-196-XXX Parallel port test halt, error threshold 1. Press F3 to review the log file. exceeded 2. Restart the test to reset the log file. ThinkStation Hardware Maintenance Manual...
  • Page 59 Diagnostic Error Code FRU/Action 014-197-XXX Parallel port test warning 1. Make sure the component that is called out is connected and/or enabled. See Chapter 6 “Using the Setup Utility program” on page 37. 2. Re-run test. 3. Replace the component that is called out in warning statement.
  • Page 60 3. Go to “Undetermined problems” on page 67. 018-199-XXX PCI Card test failed, cause unknown 1. Go to “Undetermined problems” on page 67. 2. Flash the system and re-test. See “Updating (flashing) the BIOS” on page 231. 3. Replace component under function test. ThinkStation Hardware Maintenance Manual...
  • Page 61 Diagnostic Error Code FRU/Action 018-250-XXX PCI Card Services error 1. PCI card 2. Riser card, if installed. 3. System board 020-000-XXX PCI Interface Test Passed No action 020-0XX-XXX PCI Interface error 1. PCI card 2. Riser card, if installed. 3. System board 020-195-XXX PCI Test aborted by user Information only Restart the test, if necessary 020-196-XXX PCI test halt, error threshold exceeded...
  • Page 62 030-03X-XXX 030-04X-XXX SCSI interface error 1. SCSI signal cable 2. Check power supply 3. SCSI device 4. SCSI adapter card, if installed. 5. System board 030-195-XXX SCSI interface Test aborted by user Information only Restart the test, if necessary. ThinkStation Hardware Maintenance Manual...
  • Page 63 Diagnostic Error Code FRU/Action 030-196-XXX SCSI interface test halt, error threshold 1. Press F3 to review the log file. exceeded 2. Restart the test to reset the log file. 030-197-XXX SCSI interface test warning 1. Make sure the component that is called out is connected and/or enabled.
  • Page 64 080-195-XXX Game Port interface Test aborted by user Information only Restart the test, if necessary. 1. Press F3 to review the log file. 080-196-XXX Game Port interface test halt, error threshold exceeded 2. Restart the test to reset the log file. ThinkStation Hardware Maintenance Manual...
  • Page 65 Diagnostic Error Code FRU/Action 1. Make sure the component that is called out is 080-197-XXX Game Port interface test warning connected and/or enabled. See Chapter 6 “Using the Setup Utility program” on page 37. 2. Re-run test. 3. Replace the component that is called out in warning statement.
  • Page 66 See Chapter 6 “Using the Setup Utility program” on page 37. 2. Flash the system and re-test. See “Updating (flashing) the BIOS” on page 231. 3. Go to “Undetermined problems” on page 67. ThinkStation Hardware Maintenance Manual...
  • Page 67 Diagnostic Error Code FRU/Action 170-199-XXX Voltage Sensor(s) test failed, cause unknown 1. See “Undetermined problems” on page 67. 2. Flash the system and re-test. See “Updating (flashing) the BIOS” on page 231. 3. Replace component under function test. 1. Power supply 170-250-XXX 170-251-XXX Voltage Sensor(s) Voltage limit error 2.
  • Page 68 No action 302-000-XXX Mouse Test Passed No action 302-XXX-XXX Mouse error 1. Mouse 2. Check and test Keyboard. 3. System board 303-000-XXX Joystick Test Passed No action 303-XXX-XXX Joystick error Remove the Joystick and re-test the system. ThinkStation Hardware Maintenance Manual...

  • Page 69: Beep Symptoms

    Diagnostic Error Code FRU/Action No action 305-000-XXX Monitor DDC Test Passed 305-250-XXX Monitor DDC self test failure 1. Run the Setup Utility program to enable DDC. 2. Cable 3. Monitor 4. Video card 5. System board 415-000-XXXModem Test Passed No action 415-XXX-XXX Modem error Remove the Modem and re-test the system.

  • Page 70: Post Error Codes

    Setup to HALT ON ALL, BUT KEYBOARD. The BIOS then ignores the missing keyboard during POST. Memory Test: This message displays during a full memory test, counting down the memory areas being tested. ThinkStation Hardware Maintenance Manual...

  • Page 71: Miscellaneous Error Messages

    POST Error Message Description/Action Memory test fail If POST detects an error during memory testing, additional information appears. This information gives specifics about the type and location of the memory error. Press TAB to show POST screen Pressing the TAB key permits the user to toggle between the default POST display screen and a custom POST display screen.
  • Page 72 RPL computer does not RPL from server 1. Check startup sequence. 2. Check the network adapter LED status. Serial or parallel port device failure (system board port) 1. External Device Self-Test OK? 2. External Device 3. Cable 4. System Board ThinkStation Hardware Maintenance Manual...

  • Page 73: Undetermined Problems

    Message/Symptom FRU/Action Serial or parallel port device failure (adapter port) 1. External Device Self-Test OK? 2. External Device 3. Cable 4. Alternate Adapter 5. System Board 1. Keyboard Some or all keys on the keyboard do not work 2. Keyboard Cable 3.
  • Page 74 ThinkStation Hardware Maintenance Manual...

  • Page 75: Chapter 9. Replacing Frus

    Figure 1. Front control and connector locations Hard disk drive activity indicator Headphone connector Power switch and power indicator USB connector USB connector IEEE 1394 connector (available on some models) Microphone connector Optical drive eject button © Copyright Lenovo 2010, 2011...

  • Page 76: Locating Connectors On The Rear Of Your Computer

    Figure 3 “Component locations” on page 71 shows the locations of the various components in your computer. To remove the computer cover and access the inside of the computer, see “Removing the computer cover” on page 74. ThinkStation Hardware Maintenance Manual...

  • Page 77: Locating Parts And Connectors On The System Board

    Figure 3. Component locations Microprocessor 1 Hard disk drive bay Memory modules Hard disk drives (3) Heat sink and fan assembly 2 System board Microprocessor 2 Power supply assembly Optical drive bracket PCI card Optical drive Heat sink and fan assembly 1 Internal Speaker Rear fan assemblies (2) Front fan assembly bracket...
  • Page 78 Auxiliary 12 V power connector Front USB connector Left rear fan connector Front IEEE 1394 connector CPU 1 12 V power connector Hard disk drive connectors (5) CPU 1 fan connector Microprocessor 1 Optical drive connectors (3) Battery ThinkStation Hardware Maintenance Manual...
  • Page 79 Figure 5 “System board part and connector locations” on page 73 shows the locations of the parts and connectors on the other type of system board. Figure 5. System board part and connector locations CPU 1 memory slots (3) Clear CMOS (Complementary Metal Oxide Semiconductor) /Recovery jumper CPU 1 memory fan connector Thermal sensor connector...

  • Page 80: Removing The Computer Cover

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support...

  • Page 81: Removing And Reinstalling The Front Bezel

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support...

  • Page 82: Removing And Reinstalling The Pci Card Holder

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support...

  • Page 83: Installing Or Replacing A Memory Module

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support...
  • Page 84 , pivot the fan duct, and then disengage the rear of the fan duct. Note: Not all computer models have the memory fan duct and blue shipping clip. ThinkStation Hardware Maintenance Manual...
  • Page 85 Figure 11. Removing the memory fan duct 7. Open the retaining clips as shown. Figure 12. Opening the retaining clips If you are replacing an old memory module, open the retaining clips and gently pull the memory module out of the memory slot. Figure 13.
  • Page 86 8. Position the new memory module over the memory slot. Make sure that the notch on the memory module aligns correctly with the key in the memory slot. Push the memory module straight down into the slot until the retaining clips close. ThinkStation Hardware Maintenance Manual...

  • Page 87: Installing Or Replacing A Pci Card

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support...
  • Page 88 5. Remove the new PCI card from its static-protective package. 6. Install the new PCI card into the appropriate slot on the system board. See “Locating parts and connectors on the system board” on page 71. ThinkStation Hardware Maintenance Manual...

  • Page 89: Installing A New Hard Disk Drive

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support...
  • Page 90 Figure 20. Connecting the signal cable to a SAS hard disk drive 8. Slide the new hard disk drive with the bracket and the signal cable into the hard disk drive bay until it snaps into position. ThinkStation Hardware Maintenance Manual...
  • Page 91 Figure 21. Installing a new hard disk drive 9. Locate one of the extra five-wire power cables and connect it to the new hard disk drive. Note: You might need to disconnect power cables for other hard disk drives installed in your computer and then rotate the air flow wall outward for easier access to the rear of the new hard disk drive.

  • Page 92: Replacing A Hard Disk Drive

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support...

  • Page 93: Replacing The Optical Drive

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support...
  • Page 94 Connect the signal cable to the rear of the new optical drive. Note: If you want to replace the signal cable, remove the PCI card holder. See “Removing and reinstalling the PCI card holder” on page 76. Then, disconnect the old signal cable from the system ThinkStation Hardware Maintenance Manual...

  • Page 95: Replacing The Heat Sink And Fan Assembly

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support...
  • Page 96 , and then fully remove screw Note: Carefully remove the four screws from the system board to avoid any possible damage to the system board. The four screws cannot be removed from the heat sink and fan assembly. ThinkStation Hardware Maintenance Manual...
  • Page 97 Figure 28. Removing the heat sink and fan assembly 8. Carefully lift the heat sink and fan assembly off the system board. Notes: a. You might have to gently twist the heat sink and fan assembly to free it from the microprocessor. b.

  • Page 98: Replacing The Microprocessor

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support...
  • Page 99 Notes: a. Note the orientation of the notches on the microprocessor. This is important when reinstalling the microprocessor on the new system board. b. Do not drop anything onto the microprocessor socket while it is exposed. The socket pins must be kept as clean as possible.

  • Page 100: Replacing The System Board

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support...
  • Page 101 14. Remove the six screws that secure the system board to the chassis. Figure 29. Removing the six screws that secure the system board to the chassis 15. Carefully lift the failing system board out of the chassis. Chapter 9 Replacing FRUs...
  • Page 102 3. Align the notches of the microprocessor socket cover with the alignment keys of the microprocessor socket. Lower the socket cover straight down into the microprocessor socket on the system board. ThinkStation Hardware Maintenance Manual...

  • Page 103: Replacing The Battery

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support.

  • Page 104: Replacing The Power Supply Assembly

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support.
  • Page 105 This document provides instructions on how to replace the power supply assembly. CAUTION: Never remove the cover on a power supply or any part that has the following label attached. Hazardous voltage, current, and energy levels are present inside any component that has this label attached.
  • Page 106 9. Remove the three screws that secure the side cover as shown in the following illustration. Figure 31. Removing the side cover screws 10. Remove the other six screws that secure the side cover as shown in the following illustration. Then, lift the side cover and remove it from the computer. ThinkStation Hardware Maintenance Manual...
  • Page 107 Figure 32. Removing the side cover 11. Disconnect the power supply assembly cables from the system board and the drives. In some models, you might need to disconnect the power supply assembly cables from the Peripheral Component Interconnect (PCI) cards. 12.
  • Page 108 16. Route the three power supply assembly cables through the two clips on the bottom of the hard disk drive cage following the inverse numerical sequence. Then, route the cables through the other two clips on the side of the hard disk drive cage following the numerical sequence. ThinkStation Hardware Maintenance Manual...

  • Page 109: Replacing The Front Fan Assembly

    Replacing the front fan assembly Attention Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy Chapter 9 Replacing FRUs...
  • Page 110 ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the front fan assembly. Note: Not all computers have the front fan assembly. To replace the front fan assembly, do the following: 1.

  • Page 111: Replacing The Rear Fan Assembly

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support...
  • Page 112 Note: The new rear fan assembly you received will have four new rubber mounts attached. 9. Pull on the tips of the rubber mounts until the rear fan assembly is secured in place. ThinkStation Hardware Maintenance Manual...

  • Page 113: Replacing The Internal Speaker

    Do not open your computer or attempt any repair before reading and understanding the “Important safety information” in the ThinkStation Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkStation Safety and Warranty Guide, go to: http://www.lenovo.com/support.
  • Page 114 8. Gently pull the internal speaker a little bit outward to release its bottom from the chassis. Then, slide the internal speaker towards the top of the chassis to completely remove it. Figure 39. Removing the internal speaker 9. Slide the new internal speaker into the metal internal speaker slot. ThinkStation Hardware Maintenance Manual...

  • Page 115: Completing The Parts Replacement

    Figure 40. Installing the new internal speaker 10. Connect the new internal speaker cable to the system board. See “Locating parts and connectors on the system board” on page 71. 11. Go to “Completing the parts replacement” on page 109. Completing the parts replacement After completing the installation or replacement for all parts, you need to reinstall the computer cover and reconnect cables.
  • Page 116 Setup Utility program. Refer to Chapter 6 “Using the Setup Utility program” on page 37. Note: In most areas of the world, Lenovo requires the return of the defective Customer Replaceable Unit (CRU). Information about this will come with the CRU or will come a few days after the CRU arrives.

  • Page 117: Chapter 10. Fru Lists

    • MT 4266: all models • MT 4269: all models • MT 4272: all models Heat sink For CPU1 - workstation CPUs (130W) • MT 4266: all models 41R5730 • MT 4269: all models • MT 4272: all models © Copyright Lenovo 2010, 2011...
  • Page 118 DDR3-800, 80W • MT 4262: CTO • MT 4263: 58G 27A CTO • MT 4264: CTO 46R6632 • MT 4265: 48G 23H CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: 22V 29V CTO ThinkStation Hardware Maintenance Manual...
  • Page 119 Item # FRUs FRU # Microprocessor, Intel Xeon E5507 - Quad Core - 2.26GHz - 4.8 QPI DDR3-800-4MB 80W • MT 4262: CTO • MT 4263: 12G 17G 18G 25G 59G 53C 54C 12U 12F 12S 12L 12D 12Y 12M 12A 12Q 12T 12C 12B 12H 12V 12K 12R 12E 12J 79U 79F 79S CTO 83C A1U A1F A1S A1P A1L A1D A1Y A1M A1A A1Q A1T A1C A1B A1H A1V A1K A1R A1E A1J...
  • Page 120 • MT 4269: 11U 11F 11S 45M 22U 22F 22S 22L 22D 22Y 22G 22M 22A 22Q 22T 22C 22B 22H 22V 22K 22R 22E 22J 37A CTO 55M 56M 54J 65A 68U 68F • MT 4272: 12J 15G 19G 25V CTO 38J ThinkStation Hardware Maintenance Manual...
  • Page 121 Item # FRUs FRU # Microprocessor, Intel Xeon X5550 - 2.66GHz, Quad Core - 6.4 QPI, 8MB L2, DDR3-1333, Turbo, SMT, 95W • MT 4262: CTO • MT 4263: 16G CTO • MT 4264: CTO 46R6638 • MT 4265: CTO •...
  • Page 122 • MT 4269: 18G 33G 34G 35G 42C 44A CTO 66A 67C • MT 4272: 28V CTO Microprocessor, Intel Xeon W5580 - 3.20GHz, Quad Core 6.4 QPI, 8MB L2, DDR3-1333, Turbo, SMT, 130W • MT 4266: CTO 46R6641 • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 123 Item # FRUs FRU # Microprocessor, Intel Xeon W5590 - Quad Core - 3.33GHZ - 6.4 QPI, 8MB Cache, DDR3 - 1333, Turbo, HT, 130W • MT 4266: CTO 64Y9831 • MT 4269: CTO • MT 4272: CTO Microprocessor, Intel Xeon X5680 - 6 Cores - 3.33GHz - 6.4 QPI, 12MB Cache, DDR3-1333,Turbo, HT, 130W •...
  • Page 124 Microprocessor, Intel Xeon X5672 - Quad Core - 3.2Ghz - 6.4 QPI, 12MB Cache, DDR3 - 1333, Turbo, HT, 95W • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 03T8026 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 125 Item # FRUs FRU # Microprocessor, Intel Xeon X5675 - 6 Core - 3.06Ghz - 6.4 QPI, 12MB Cache, DDR3 - 1333, Turbo, HT, 95W • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 03T8025 • MT 4265: CTO 1DJ •...
  • Page 126 Memory module, 1GB DDR3 1RX8 RDIMM PC3-8500 (1066MHz) • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 46R6022 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO 45J • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 127 Item # FRUs FRU # Memory module, 2GB DDR3 2RX8 RDIMM PC3-8500 (1066MHz) • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 46R6023 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Memory module, 4GB DDR3 2RX4 RDIMM PC3-8500 (1066MHz) •...
  • Page 128 • MT 4263: 63U 63F 63S 63L 63L 63D 63Y 63M 63A 63Q 63T 63C 63B 63H 63V 63K 63R 63E 63J CTO • MT 4264: CTO 89Y1292 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 129 Item # FRUs FRU # Memory module, 16GB DDR3 4RX4 RDIMM PC3-8500R (1066MHz) • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 03T8037 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Heat sink for CPU2 - performance CPUs (80W/95W) •...
  • Page 130 Optical drive, Blu-Ray DVD Burner (SATA) - DOS/Linux/XP/Vista/ Windows 7 • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 71Y7266 • MT 4265: CTO • MT 4266: CTO • MT 4269: 42C 43C CTO 67C • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 131 Item # FRUs FRU # Optical drive, DVD Burner/CD-RW Rambo 8 (SATA) - XP/Vista • MT 4262: CTO • MT 4263: CTO 92A 93A 94A 95A 96C 97U 97F 97S 97P 97L 97D 97Y 97M 97A 97Q 97T 97C 97B 97H 97V 97K 97R 97E 97J 98U 98F 98S 98P 98L 98D 98Y 98M 98A 98Q 98T 98C 98B 98H 98V 98K 98R 98E 98J 99U 99F 99S 99P 99L 99D 99Y 99M 99A 99Q 99T 99C 99B 99H 99V 99K 99R 99E 99J A1U A1F A1S A1P A1L A1D A1Y A1M A1A A1Q A1T A1C A1B A1H A1V A1K A1R A1E A1J...
  • Page 132 63L 63L 63D 63Y 63M 63A 63Q 63T 63C 63B 63H 63V 63K 63R 63E 63J CTO 46R6400 • MT 4264: 11A CTO • MT 4265: 52G 32V 34Q CTO • MT 4266: CTO • MT 4269: 27G 31G 34G CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 133 Item # FRUs FRU # Hard disk drive, 300GB SATA - 10000 rpm, 3 Gb/s, 16MB cache, 2.5" • MT 4262: CTO • MT 4263: 21G 22G 22U 22F 22S 22L 22D 22Y 22M 22A 22Q 22T 22C 22B 22H 22V 22K 22R 22E 22J 74C CTO 89M 91M 85J •...
  • Page 134 Hard disk drive, 128GB SATA solid state drive (SSD) - MLC, 1.8" • MT 4262: 14F CTO • MT 4263: 19G CTO • MT 4264: CTO 45N8203 • MT 4265: CTO • MT 4266: 11U 11F CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 135 Item # FRUs FRU # Hard disk drive, 256GB SATA solid state drive (SSD) - MLC, 1.8" • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 45N7959 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO •...
  • Page 136 Hard disk drive, 1TB SATA - 7200 rpm, 3 Gb/s, 32MB cache, 3.5" • MT 4262: CTO • MT 4263: • MT 4264: 45K0412 • MT 4265: 1BM 1CM 1EJ 1FJ • MT 4266: • MT 4269: • MT 4272: ThinkStation Hardware Maintenance Manual...
  • Page 137 Item # FRUs FRU # Hard disk drive, 250GB SATA - 7200 rpm, 3 Gb/s, 8MB cache, 3.5" • MT 4262: CTO • MT 4263: 92A 93A • MT 4264: 45K0408 • MT 4265: • MT 4266: • MT 4269: 62A 63A •...
  • Page 138 System board, Ibiza - 2P Intel LGA 1366, Tylersburg 36D, ICH10 (GA Level v1.5, TPM disabled) • MT 4266: CTO 71Y8828 • MT 4269: 23G 24G 25G 26G 27G 28G 29G 31G 32G 33G 34G 35G CTO • MT 4272: 14G 15G 16G 17G 18G 19G CTO ThinkStation Hardware Maintenance Manual...
  • Page 139 Item # FRUs FRU # System board, Ibiza - 2P Intel LGA 1366, Tylersburg 36D, ICH10 (GA Level v1.7, TPM Enabled) • MT 4266: CTO 03T8416 • MT 4269: CTO • MT 4272: CTO System board, Ibiza - 2P Intel LGA 1366, Tylersburg 36D, ICH10 (GA Level v1.7, TPM Disabled) •...
  • Page 140 24V 25V 26V 27V 28V 29V 31H 32H 33H 34Q CTO 37J 38J 36C 39J 41U 41F 41S 41P 41L 41D 41Y 41M 41A 41Q 41T 41C 41B 41H 41V 41K 41R 41E 41J 42U 42F 43U 43F 44J 45J 46J ThinkStation Hardware Maintenance Manual...
  • Page 141 Item # FRUs FRU # Power supply, 800 Watt power supply • MT 4262: 11Q 12Q 14F 13J CTO • MT 4263: 39M 41J 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 67U 67F 67S 46C 47C 48C 49C 52C 53C 54C 55C 56C 26A 27A 28A 29A 31T 32A 34A 35A 36Q 64K 64R 65K 65R 66K 66R 78J 68J 69J 71U 71F 71S 71L 71D 71Y 71G 71M 71A 71Q 71T 71C 71B 71H 71V 71K 71R 71E 71J 72U 72F 72S 72L 72D 72Y 72G 72M 72A 72Q 72T 72C 72B 72H 72V 72K 72R...

  • Page 142: Mechanical Frus

    • MT 4262: all models • MT 4263: all models • MT 4264: all models 43N9012 • MT 4265: all models • MT 4266: all models • MT 4269: all models • MT 4272: all models ThinkStation Hardware Maintenance Manual...
  • Page 143 FRUs FRU # FRU, cover detect switch cable - Camus • MT 4262: all models • MT 4263: all models • MT 4264: all models 41R5534 • MT 4265: all models • MT 4266: all models • MT 4269: all models •...
  • Page 144 • MT 4262: all models • MT 4263: all models • MT 4264: all models 41R5739 • MT 4265: all models • MT 4266: all models • MT 4269: all models • MT 4272: all models ThinkStation Hardware Maintenance Manual...
  • Page 145 FRUs FRU # FRU, bezel kit assembly • MT 4262: all models • MT 4263: all models • MT 4264: all models 41R5741 • MT 4265: all models • MT 4266: all models • MT 4269: all models • MT 4272: all models FRU, speaker cable assembly •...
  • Page 146 • MT 4262: all models • MT 4263: all models • MT 4264: all models 41R5737 • MT 4265: all models • MT 4266: all models • MT 4269: all models • MT 4272: all models ThinkStation Hardware Maintenance Manual...
  • Page 147 FRUs FRU # FRU, SAS HDD cable • MT 4262: all models • MT 4263: all models • MT 4264: all models 41R5513 • MT 4265: all models • MT 4266: all models • MT 4269: all models • MT 4272: all models FRU, cable, SATA •...

  • Page 148: Keyboard And Mouse

    Keyboard and Mouse Keyboard - USB Preferred Pro FRU # Lenovo Productivity USB US English • MT 4262: 11Q 12Q CTO • MT 4263: 39M 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 67U...
  • Page 149 Keyboard - USB Preferred Pro FRU # Lenovo Productivity USB Belgian/French • MT 4262: CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 71G 72G CTO 97G 98G 99G A1G •...
  • Page 150 Keyboard - USB Preferred Pro FRU # Lenovo Productivity USB Hong Kong/Taiwan • MT 4262: CTO • MT 4263: 71B 71V 72B 72V 12B 12V 22B 22V 23B 23V 61B 61V 63B 63V CTO 97B 97V 98B 98V 99B 99V A1V •...
  • Page 151 35G CTO • MT 4272: 14G 15G 16G 17G 18G 19G CTO 41G Lenovo Productivity USB French Canadian • MT 4262: 14F CTO • MT 4263: 67F 71F 72F 12F 22F 23F 79F 81F 82F 61F 63F CTO 97F 98F 99F A1F A2F A3F A4F •...
  • Page 152 • MT 4266: CTO • MT 4269: 17G 18G 19G 21G 22G 23G 24G 25G 26G 27G 28G 29G 31G 32G 33G 34G 35G CTO • MT 4272: 14G 15G 16G 17G 18G 19G CTO 41G ThinkStation Hardware Maintenance Manual...
  • Page 153 Keyboard - USB Preferred Pro FRU # Lenovo Productivity USB Iceland • MT 4262: CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 71G 72G CTO 97G 98G 99G A1G •...
  • Page 154 Keyboard - USB Preferred Pro FRU # Lenovo Productivity USB LA Spanish • MT 4262: CTO • MT 4263: 67S 71S 71D 71Y 72S 72D 72Y 12S 12D 12Y 22S 22D 22Y 23S 23D 23Y 79S 81S 82S 61S 61D 61Y 63S 63D 63Y CTO 97S 97D 97Y 98S 98D 98Y 99S 99D...
  • Page 155 Keyboard - USB Preferred Pro FRU # Lenovo Productivity USB Romanian • MT 4262: CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 71G 72G CTO 97G 98G 99G A1G •...
  • Page 156 35G CTO • MT 4272: 14G 15G 16G 17G 18G 19G CTO 41G Lenovo Productivity USB Swiss French/German • MT 4262: CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 71G 72G CTO 97G 98G 99G A1G •...
  • Page 157 35G CTO • MT 4272: 14G 15G 16G 17G 18G 19G CTO 41G Lenovo Productivity USB UK English • MT 4262: CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 71G 72G CTO 97G 98G 99G A1G •...
  • Page 158 Keyboard - USB Preferred Pro FRU # Lenovo Productivity USB US European • MT 4262: CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 71G 72G CTO 97G 98G 99G A1G •...
  • Page 159 Keyboard - USB Preferred Pro Fingerprint Reader Keyboard FRU # Arabic/French • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 41R0040 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Belgium French •...
  • Page 160 • MT 4269: CTO • MT 4272: CTO French • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 41R0049 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 161 Keyboard - USB Preferred Pro Fingerprint Reader Keyboard FRU # French Canadian • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 41R0050 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO French Canadian •...
  • Page 162 • MT 4269: CTO • MT 4272: CTO Japanese • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 41R0059 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 163 Keyboard - USB Preferred Pro Fingerprint Reader Keyboard FRU # Korean • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 41R0060 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO LA Spanish •...
  • Page 164 • MT 4269: CTO • MT 4272: CTO Slovak • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 41R0069 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 165 Keyboard - USB Preferred Pro Fingerprint Reader Keyboard FRU # Spanish • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 41R0070 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Swedish/Finnish •...
  • Page 166 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Keyboard - Full Size PS/2 FRU # Lenovo Productivity PS/2 US English • MT 4262: • MT 4263: • MT 4264: 41A5039 • MT 4265: •...
  • Page 167 Keyboard - Full Size PS/2 FRU # Lenovo Productivity PS/2 Arabic • MT 4262: • MT 4263: • MT 4264: 41A5040 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Lenovo Productivity PS/2 Arabic/French • MT 4262: •...
  • Page 168 • MT 4263: • MT 4264: 41A5045 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Lenovo Productivity PS/2 Hong Kong/Taiwan • MT 4262: • MT 4263: • MT 4264: 41A5046 • MT 4265: • MT 4266: •...
  • Page 169 • MT 4263: • MT 4264: 41A5050 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Lenovo Productivity PS/2 French Canadian • MT 4262: • MT 4263: • MT 4264: 41A5051 • MT 4265: • MT 4266: •...
  • Page 170 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Lenovo Productivity PS/2 Italy • MT 4262: • MT 4263: • MT 4264: 41A5058 • MT 4265: • MT 4266: • MT 4269: • MT 4272: ThinkStation Hardware Maintenance Manual...
  • Page 171 • MT 4263: • MT 4264: 41A5060 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Lenovo Productivity PS/2 LA Spanish • MT 4262: • MT 4263: • MT 4264: 41A5061 • MT 4265: • MT 4266: •...
  • Page 172 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Lenovo Productivity PS/2 Slovak • MT 4262: • MT 4263: • MT 4264: 41A5068 • MT 4265: • MT 4266: • MT 4269: • MT 4272: ThinkStation Hardware Maintenance Manual...
  • Page 173 • MT 4263: • MT 4264: 41A5070 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Lenovo Productivity PS/2 Swiss French/German • MT 4262: • MT 4263: • MT 4264: 41A5071 • MT 4265: • MT 4266: •...
  • Page 174 • MT 4263: • MT 4264: 41A5074 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Lenovo Productivity PS/2 UK English • MT 4262: • MT 4263: • MT 4264: 41A5075 • MT 4265: • MT 4266: •...
  • Page 175 Keyboard - Enhanced Performance FRU # Arabic • MT 4262: • MT 4263: • MT 4264: 41A4962 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Arabic/French • MT 4262: • MT 4263: • MT 4264: 41A4963 •...
  • Page 176 41A4970 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Dutch • MT 4262: • MT 4263: • MT 4264: 41A4971 • MT 4265: • MT 4266: • MT 4269: • MT 4272: ThinkStation Hardware Maintenance Manual...
  • Page 177 Keyboard - Enhanced Performance FRU # French • MT 4262: • MT 4263: • MT 4264: 41A4972 • MT 4265: • MT 4266: • MT 4269: • MT 4272: French Canadian • MT 4262: • MT 4263: • MT 4264: 41A4973 •...
  • Page 178 41A4979 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Italy • MT 4262: • MT 4263: • MT 4264: 41A4980 • MT 4265: • MT 4266: • MT 4269: • MT 4272: ThinkStation Hardware Maintenance Manual...
  • Page 179 Keyboard - Enhanced Performance FRU # Japanese • MT 4262: • MT 4263: • MT 4264: 41A4981 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Korean • MT 4262: • MT 4263: • MT 4264: 41A4982 •...
  • Page 180 41A4989 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Slovak • MT 4262: • MT 4263: • MT 4264: 41A4990 • MT 4265: • MT 4266: • MT 4269: • MT 4272: ThinkStation Hardware Maintenance Manual...
  • Page 181 Keyboard - Enhanced Performance FRU # Spanish • MT 4262: • MT 4263: • MT 4264: 41A4991 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Swedish/Finnish • MT 4262: • MT 4263: • MT 4264: 41A4992 •...
  • Page 182 41A4998 • MT 4265: • MT 4266: • MT 4269: • MT 4272: Slovenian • MT 4262: • MT 4263: • MT 4264: 41A4999 • MT 4265: • MT 4266: • MT 4269: • MT 4272: ThinkStation Hardware Maintenance Manual...
  • Page 183 Mice FRU # Optical wheel USB mouse (400 DPI)- red wheel (primary) • MT 4262: 11Q 12Q 14F 13J CTO • MT 4263: 39M 41J 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 67U 67F 67S 57G 58G 59G 61G 62G 63G 46C 47C 48C 49C 52C 53C 54C 55C 56C 26A 27A 28A 29A 31T 32A 34A 35A 36Q 64K 64R 65K 65R 66K 66R 78J 68J 69J 71U 71F 71S 71L 71D 71Y 71G 71M 71A 71Q 71T 71C 71B 71H 71V 71K 71R 71E 71J 72U 72F 72S 72L 72D 72Y 72G 72M 72A 72Q 72T 72C 72B 72H 72V 72K 72R 72E 72J 12U 12F...

  • Page 184: Adapters And Miscellaneous Frus

    FRU # L1 IEEE 1394 PCI adapter • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 41D2781 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 185 Adapters and miscellaneous FRUs FRU # 256MB NVIDIA NVS290 (DMS59 connector) - Quasar • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 42Y6329 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO 256MB NVIDIA FX380 (DVI + DP) (hard from 46R2784) •...
  • Page 186 • MT 4272: 34Q CTO Dual FX5800 SLI enabled (2P) • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 46R2794 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 187 Adapters and miscellaneous FRUs FRU # 256MB ATI FirePro V3700 (dual DVI) • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 53Y8569 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO 512MB ATI FirePro V5700 (DP+DP+DVI) •...
  • Page 188 • MT 4272: CTO DP to DVI dongle 200 mm • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 43N9160 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 189 Adapters and miscellaneous FRUs FRU # 512MB NVIDIA Quadro NVS 450 GDDR3 (DP+DP+DP+DP) • MT 4262: 14F CTO • MT 4263: 14G 17G 19G 25G 22U 22F 22S 22L 22D 22Y 22M 22A 22Q 22T 22C 22B 22H 22V 22K 22R 22E 22J CTO 99U 99F 99S 99P 99L 99D 99Y 99M 99A 99Q 99T 99C 99B 99H 99V 99K 99R 99E 99J 64Y9895 •...
  • Page 190 512MB Nvidia NVS300 (DMS59 connector to dual DVI) • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 03T8038 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...

  • Page 191: Power Cords

    Adapters and miscellaneous FRUs FRU # 512MB Nvidia NVS300, PCIe x 1 (DMS59 connector to dual DVI) • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 03T8039 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO •...
  • Page 192 • MT 4263: 71D CTO 97Y 97L 98Y 98L 99Y 99L A1Y A1L • MT 4264: CTO 41R3176 • MT 4265: 13S CTO 94Y 94L • MT 4266: CTO • MT 4269: 17S 19S 21S 22S CTO • MT 4272: CTO 41Y 41L ThinkStation Hardware Maintenance Manual...
  • Page 193 Power Cords FRU # Line Cord - Australia , New Zealand • MT 4262: CTO • MT 4263: 39M 71M 72M 12M 22M 23M CTO 86M 87M 88M 89M 91M 97M 98M 99M • MT 4264: CTO 41R3196 • MT 4265: 37M 67M 68M 69M 13M CTO 79M 81M 82M 94M 1AM 1BM 1CM •...
  • Page 194 • MT 4266: CTO • MT 4269: 17G 18G 19G 21G 22G 23G 24G 25G 26G 27G 28G 29G 31G 32G 33G 34G 35G CTO • MT 4272: 14G 15G 16G 17G 18G 19G CTO 41G ThinkStation Hardware Maintenance Manual...
  • Page 195 Power Cords FRU # Line Cord - Israel • MT 4262: CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 71G 72G CTO 97G 98G 99G A1G •...
  • Page 196 • MT 4265: 29V 31V 32V 13V 65V CTO 94V • MT 4266: CTO • MT 4269: 17V 19V 21V 22V CTO • MT 4272: 21V 22V 23V 24V 25V 26V 27V 28V 29V CTO 41V ThinkStation Hardware Maintenance Manual...
  • Page 197 Power Cords FRU # Line Cord - US • MT 4262: 14F CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 67U 67F 67S 57G 58G 59G 61G 62G 63G 26T 27T 28T 29T 31T 32T 33T 34T 35T 26A 27A 28A 29A 32A 34A 35A 71U 71F 71S 71D 71L 71A 71T 72U 72F 72S 72D 72L 72A 72T 12U 12F 12S 12D 12L 12A 12T 22U 22F 22S 22D 22L 22A 22T 23U 23F 23S 23D 23L 23A 23T 79U 79F 79S 81U 81F 81S 82U 82F 82S 61U 61F 61S 61L 61D 61A 61T 63U 63F...
  • Page 198 • MT 4264: CTO 41R3261 • MT 4265: 33K 53K 13K 13R CTO 94K 94R • MT 4266: CTO • MT 4269: 17K 17R 19K 19R 21K 21R 22K 22R CTO • MT 4272: CTO 41K 41R ThinkStation Hardware Maintenance Manual...
  • Page 199 Power Cords FRU # Line Cord - Hong Kong, UK, Ireland, Singapore, Malaysia, Brunei, Hong Kong • MT 4262: CTO • MT 4263: 26A 27A 28A 29A 31A 32A 33A 34A 35A 71A 72A 12A 22A 23A 61B 61H 62B 62H CTO 92A 93A 94A 95A 97B 97H 97A 98B 98H 98A 99B 99H 99A A1B A1H A1A •...
  • Page 200 • MT 4266: CTO • MT 4269: 17G 18G 19G 21G 22G 23G 24G 25G 26G 27G 28G 29G 31G 32G 33G 34G 35G CTO • MT 4272: 14G 15G 16G 17G 18G 19G CTO 41G ThinkStation Hardware Maintenance Manual...
  • Page 201 Power Cords FRU # Line Cord - South Africa • MT 4262: CTO • MT 4263: 39M 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 26A 27A 28A 29A 31A 32A 33A 34A 35A 71M 72M 71G 72G CTO 86M 87M 88M 89M 91M 92A 93A 94A 95A 97G 97M 97A 98G 98M 98A 99G 99M 99A A1G A1M A1A •...

  • Page 202: Recovery Discs

    • MT 4269: CTO • MT 4272: CTO Italy • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 03T0394 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 203 Windows XP Professional FRU # Brazil • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 03T0393 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Spanish/LA Spanish • MT 4262: CTO •...
  • Page 204 • MT 4269: CTO • MT 4272: CTO Polish • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 03T0403 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 205 Windows XP Professional FRU # Portuguese • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 03T0410 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Russian • MT 4262: CTO •...
  • Page 206 • MT 4269: CTO • MT 4272: CTO Simplified Chinese • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 03T0412 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...

  • Page 207: Windows Xp Professional 64 Mono Recovery Cd

    Windows XP Professional FRU # Traditional Chinese • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 03T0413 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Traditional Chinese Hong Kong •...

  • Page 208: Windows Vista Business 32 Recovery Cd

    • MT 4269: CTO • MT 4272: CTO Spanish • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y3675 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 209 Windows Vista Business 32 FRU # Brazilian • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y3676 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Italian • MT 4262: CTO •...
  • Page 210 • MT 4269: CTO • MT 4272: CTO Polish • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y3679 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 211 Windows Vista Business 32 FRU # Russian • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y3680 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Turkish • MT 4262: CTO •...
  • Page 212 • MT 4269: CTO • MT 4272: CTO Romanian • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y3693 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 213 Windows Vista Business 32 FRU # Portuguese • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y3694 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Sebian-Latin • MT 4262: CTO •...
  • Page 214 • MT 4272: CTO English for India • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 71Y3620 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...

  • Page 215: Windows Vista Business 64 Recovery Cd

    Windows Vista Business 64 Recovery CD Windows Vista Business 64 FRU # English • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y5664 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Russian English •...
  • Page 216 • MT 4269: CTO • MT 4272: CTO Swedish • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y3797 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 217 Windows Vista Business 64 FRU # Danish • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y3794 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Dutch • MT 4262: CTO •...
  • Page 218 • MT 4269: CTO • MT 4272: CTO Simplified Chinese • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y5666 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...
  • Page 219 Windows Vista Business 64 FRU # Traditional Chinese -TC • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y3785 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Traditional Chinese -HK •...
  • Page 220 C&L 2 Switzerland (EN FR GR IT) • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y3799 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO ThinkStation Hardware Maintenance Manual...

  • Page 221: Windows 7 Professional 64 Recovery Cd

    Windows Vista Business 64 FRU # C&L3 Bel Lux (EN FR GR NL) • MT 4262: CTO • MT 4263: CTO • MT 4264: CTO 64Y3800 • MT 4265: CTO • MT 4266: CTO • MT 4269: CTO • MT 4272: CTO Windows 7 Professional 64 Recovery CD Windows 7 Professional 64 FRU #...
  • Page 222 • MT 4266: CTO • MT 4269: 17G 18G 19G 21G 22G 23G 24G 25G 26G 27G 28G 29G 31G 32G 33G 34G 35G CTO • MT 4272: 14G 15G 16G 17G 18G 19G CTO 41G ThinkStation Hardware Maintenance Manual...
  • Page 223 Windows 7 Professional 64 FRU # Greek • MT 4262: CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 71G 72G CTO 97G 98G 99G A1G •...
  • Page 224 CTO 83C 96C 97C 98C 99C A1C • MT 4264: CTO 03T0336 • MT 4265: 46C 47C 13C CTO 73C 94C • MT 4266: CTO • MT 4269: 17C 19C 21C 22C CTO 51C 67C • MT 4272: CTO 36C 41C ThinkStation Hardware Maintenance Manual...
  • Page 225 Windows 7 Professional 64 FRU # Traditional Chinese • MT 4262: CTO • MT 4263: 71V 72V 12V 22V 23V 61V CTO 97V 97B 98V 98B 99V 99B A1V A1B • MT 4264: CTO 03T0337 • MT 4265: 29V 31V 32V 13V 65V CTO 89B 91B 94B 94V 96B •...
  • Page 226 • MT 4266: CTO • MT 4269: 17G 18G 19G 21G 22G 23G 24G 25G 26G 27G 28G 29G 31G 32G 33G 34G 35G CTO • MT 4272: 14G 15G 16G 17G 18G 19G CTO 41G ThinkStation Hardware Maintenance Manual...
  • Page 227 Windows 7 Professional 64 FRU # C&L Switzerland (EN FR GR IT) • MT 4262: CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 71G 72G CTO 97G 98G 99G A1G •...

  • Page 228: Windows 7 Professional 64 With Office Starter 2010 Recovery Cd

    57M 58M 59M 61H 62A 63A 64A 65A 66A 68U 69U 71U 72U 73U 74U 75U • MT 4272: 14G 15G 35U 16G 17G 18G 19G 31H 32H 33H CTO 41U 41L 41M 41A 41Q 41H 41R 41E 42U 43U ThinkStation Hardware Maintenance Manual...
  • Page 229 Windows 7 Professional 64 with office starter 2010 FRU # French • MT 4262: 14F CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 67F 57G 58G 59G 61G 62G 63G 71F 71G 72F 72G 79F 81F 82F 61F 63F CTO 97F 97G 98F 98G 99F 99G A1F A1G A2F A3F A4F 03T0368 •...
  • Page 230 • MT 4266: CTO • MT 4269: 17G 18G 19G 21G 22G 23G 24G 25G 26G 27G 28G 29G 31G 32G 33G 34G 35G CTO • MT 4272: 14G 15G 16G 17G 18G 19G CTO 41G ThinkStation Hardware Maintenance Manual...
  • Page 231 Windows 7 Professional 64 with office starter 2010 FRU # Russian English • MT 4262: CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 71G 72G CTO 97G 98G 99G A1G •...
  • Page 232 • MT 4266: CTO • MT 4269: 17G 18G 19G 21G 22G 23G 24G 25G 26G 27G 28G 29G 31G 32G 33G 34G 35G CTO • MT 4272: 14G 15G 16G 17G 18G 19G CTO 41G ThinkStation Hardware Maintenance Manual...
  • Page 233 Windows 7 Professional 64 with office starter 2010 FRU # Russian • MT 4262: CTO • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 71G 72G CTO 97G 98G 99G A1G •...
  • Page 234 • MT 4265: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 48G 49G 51G 52G 61G 63G CTO 94G • MT 4266: • MT 4269: • MT 4272: 14G 15G 16G 17G 18G 19G CTO 41G ThinkStation Hardware Maintenance Manual...

  • Page 235: Windows 7 Ultimate 64 Recovery Cd

    Windows 7 Professional 64 with office starter 2010 FRU # Romanian • MT 4262: • MT 4263: 11G 12G 13G 14G 15G 16G 17G 18G 19G 21G 22G 23G 24G 25G 57G 58G 59G 61G 62G 63G 71G 72G CTO 97G 98G 99G A1G •...
  • Page 236 ThinkStation Hardware Maintenance Manual...

  • Page 237: Chapter 11. Additional Service Information

    • To determine the current Level of BIOS: – Start the Setup Utility program. • Sources for obtaining the latest level BIOS available 1. Lenovo support web site: http://www.lenovo.com/support 2. Lenovo Customer Support Center 3. Levels 1 and 2 Support To update (flash) the BIOS, see “Updating (flashing) the BIOS”...

  • Page 238: Updating (Flashing) The Bios From Your Operating System

    Updating (flashing) the BIOS from your operating system Note: Because Lenovo makes constant improvements to its Web sites, the Web page contents are subject to change without notice, including the contents referenced in the following procedure.

  • Page 239: Power Management

    (LAN). System memory speed The Intel Xeon microprocessor families compatible with this ThinkStation computer feature an integrated memory controller, which provides the microprocessor with direct access to the system memory. Because of this design, the system memory speed will be determined by a number of factors, including the microprocessor model and the type, speed, size (capacity), and number of DIMMs installed.
  • Page 240 Intel 1333 1066 1066 1333 1066 1066 1066 800 MHz Xeon X5550 Intel 1333 1066 1066 1333 1066 1066 1066 800 MHz Xeon X5560 Intel 1333 1066 1066 1333 1066 1066 1066 800 MHz Xeon X5570 ThinkStation Hardware Maintenance Manual...
  • Page 241 Table 2. System memory speed (continued) Intel 1333 1333 1066 1333 1333 1066 1066 800 MHz Xeon X5650 Intel 1333 1333 1066 1333 1333 1066 1066 800 MHz Xeon X5660 Intel 1333 1333 1066 1333 1333 1066 1066 800 MHz Xeon X5667 Intel...
  • Page 242 ThinkStation Hardware Maintenance Manual...

  • Page 243: Appendix A. Notices

    Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead.

  • Page 244: Television Output Notice

    Macrovision Corporation. Reverse engineering or disassembly is prohibited. European conformance CE mark The emission notices information is available in the ThinkStation Safety and Warranty Guide that came with your computer. Trademarks...

  • Page 245: Index

    Setup Utility program startup device sequence, changing temporary, selecting Lenovo ThinkVantage Toolbox system board Lenovo ThinkVantage Tools locating parts memory module memory module installing, replacing system board temporary startup device memory speed the BIOS, updating (flashing) 231–232 © Copyright Lenovo 2010, 2011...
  • Page 246 (flashing) the BIOS updating (flashing) the BIOS user, password using passwords Setup Utility program viewing and changing settings ThinkStation Hardware Maintenance Manual...
  • Page 248 Part Number: 89Y7336 Printed in USA (1P) P/N: 89Y7336 *89Y7336*...

This manual is also suitable for:

Thinkstation c20

Table of Contents
