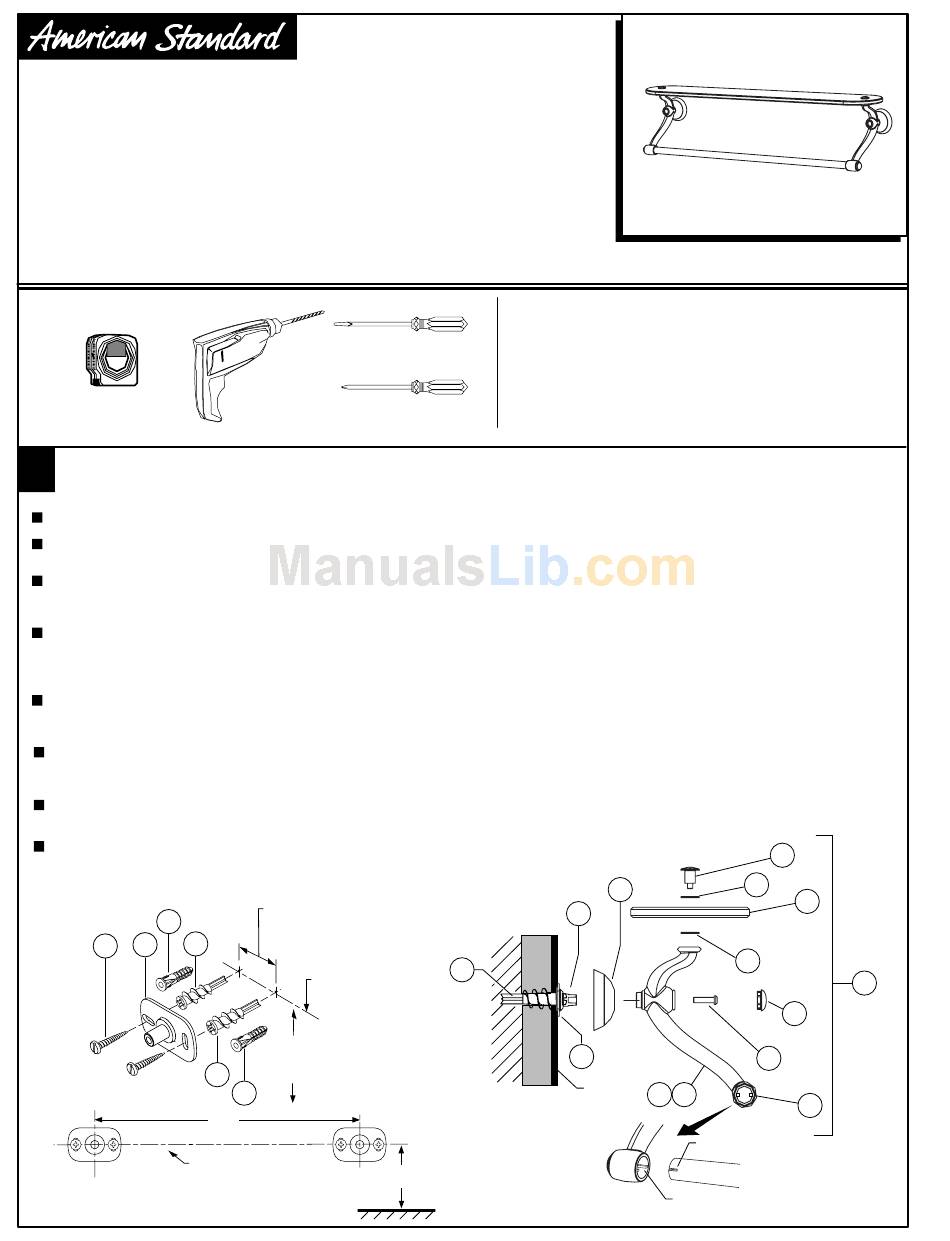

American Standard Towel Bar with Glass Shelf 6726 Installation Instructions

STANDARD
COLLECTION
24" TOWEL BAR & GLASS SHELF
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Recommended Tools
10'
Tape Measure
1
24" TOWEL BAR & GLASS SHELF
The 24" TOWEL BAR & GLASS SHELF (1) works best if secured to a wall stud or cross brace within the wall, using the SCREWS (3) supplied.
If the 24" TOWEL BAR & GLASS SHELF (1) is to be installed on a tile or plaster wall the TILE ANCHORS (4) or DRYWALL ANCHORS(6)
and SCREWS (3) should be used.
Determine desired height and location (optional) and mark a center line. For the 24" TOWEL BAR (2) mark a centerline 24" horizontally
from the first location. Using the MOUNTING PLATE (5) as a template mark the two spots for the mounting holes. Repeat for the other
MOUNTING PLATE (5). If MOUNTING PLATE (5) is secured to a stud or cross brace drill small pilot holes for SCREWS (4).
For installations on drywall, use DRYWALL ANCHORS (6) and SCREWS (3) for securing MOUNTING PLATE (5) to wall. Place #2 Phillips
screwdriver or cordless screwdriver into recess of anchor. Press into drywall while turning the anchor clockwise until it is seated flush with
the wall. Place MOUNTING PLATE (5) over DRYWALL ANCHORS (6) and insert SCREWS (3) with #2 Phillips screwdriver. See illustration
below. Secure MOUNTING PLATE (5) to wall with SCREWS (3).
For installations on tiled walls, If TILE ANCHORS (4) and SCREWS (3) are used for securing MOUNTING PLATE (5), then drill two
1/4" diameter holes a minimum of 1-1/4" deep. Insert the two TILE ANCHORS (4) flush with face of the finished wall. Secure
MOUNTING PLATE (5) to wall with SCREWS (3).
For the 24" TOWEL BAR & GLASS SHELF (1), Install TOWEL BAR (2) into bottom of SUPPORT POSTS (10, 10a). Align slot in towel bar
with notch in recess of support post (10, 10a) (see Figure A). Install the WASHER (11), GLASS SHELF (15), WASHER (11) onto SUPPORT
POSTS (10, 10a). Install and tighten SCREWS (13). See illustration.
Install the WALL ESCUTCHEON (7) on the MOUNTING PLATES (5). Place 24" TOWEL BAR & GLASS SHELF (1) onto MOUNTING
PLATES (5). Secure using SCREWS (14) and tighten.
Push INDEX BUTTONS (9) into the SUPPORT POSTS (10, 10a). See illustration.
4
6
5
3
CENTER LINE
Instructions
Regular Screwdriver
Drill
Phillips Screwdriver
USE MOUNTING PLATE
AS TEMPLATE
CENTER
LINE
48 TO 68
INCHES FROM
FLOOR
6
4
24"
48" TO 68"
(OPTIONAL)
Installation
6726
CARE INSTRUCTIONS:
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR
WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: CLEAN THE PRODUCT WITH SOAPS, ACID,
POLISH, ABRASIVES, HARSH CLEANERS, OR A CLOTH
WITH A COARSE SURFACE.
3
4
5
Figure A
Certified to comply with ANSI A112.18.1
U.S. Patent No. D403,750
11
7
11
14
FINISHED
10
10a
WALL
SLOT IN TOWEL BAR
NOTCH IN RECESS OF SUPPORT POST
M 9 6 8 2 1 8 B
13
12
1
9
2
