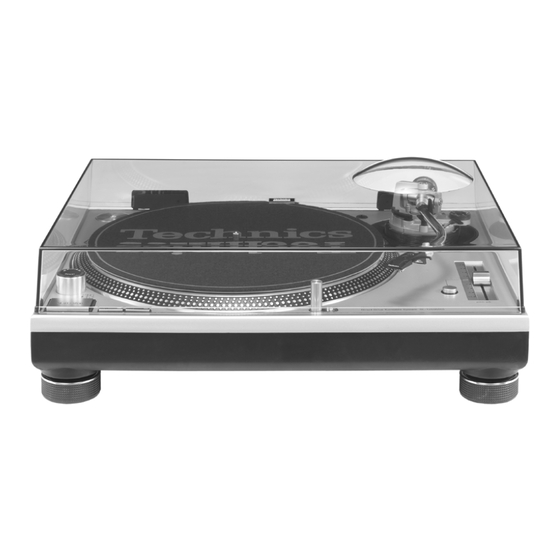

Technics SL-1200MK5GT Service Manual

Please use this manual together with the service manual for Model No.SL-1200MK5E, Order
No.AD0303064C0.

Specifications

TURNTABLE SECTION
Type:
Drive method:
Motor:
Turntable platter:
Turntable speeds:
Variable range pitch:
Starting torque:
Build-up characteristics:
Braking system:
Wow and flutter:
Rumble:
Quartz direct drive
Manual turntable
Direct drive
Brushless DC motor
Aluminum diecast
Diameter 33.2cm
Mass 1.7kg
33-1/3 r/min, 45 r/min
1.5kg-cm
0.7s, from standstill to 33-1/3 r/min
Electronic brake
0.01% WRMS*
0.025% WRMS (JIS C5521)
±0.035% peak(IEC 98A Weighted)
-56dB (IEC 98A Unweighted)
-78dB (IEC 98A Weighted)
SL-1200MK5GT
Colour
Silver Type: SL-1200MK5
*This rating refers to turntable assembly alone, excluding effects of
record, cartridge or tonearm, but including platter. Measured by
obtaining signal from built-in frequency generatorof motor assembly.
TONEARM SECTION
Type:
Effective length:
Arm height adjustment range:
Overhang:
±8%
Effective mass:
Offset angle:
Friction:
Tracking error angle:
Stylus pressure adjustment range:
© 2005 Matsushita Electric Industrial Co., Ltd. All
rights
distribution is a violation of law.
ORDER NO. AD0504018AE
Turntable System
12g (without cartridge)
Less than 7 mg (lateral, vertical)
Within 2°32' [at the outer groove
Within 0°32' [at the inner groove of
reserved. Unauthorized
Universal
230mm
0-6 mm
15mm
22°
of 30cm record]
30cm record]
0-4g
copying and
