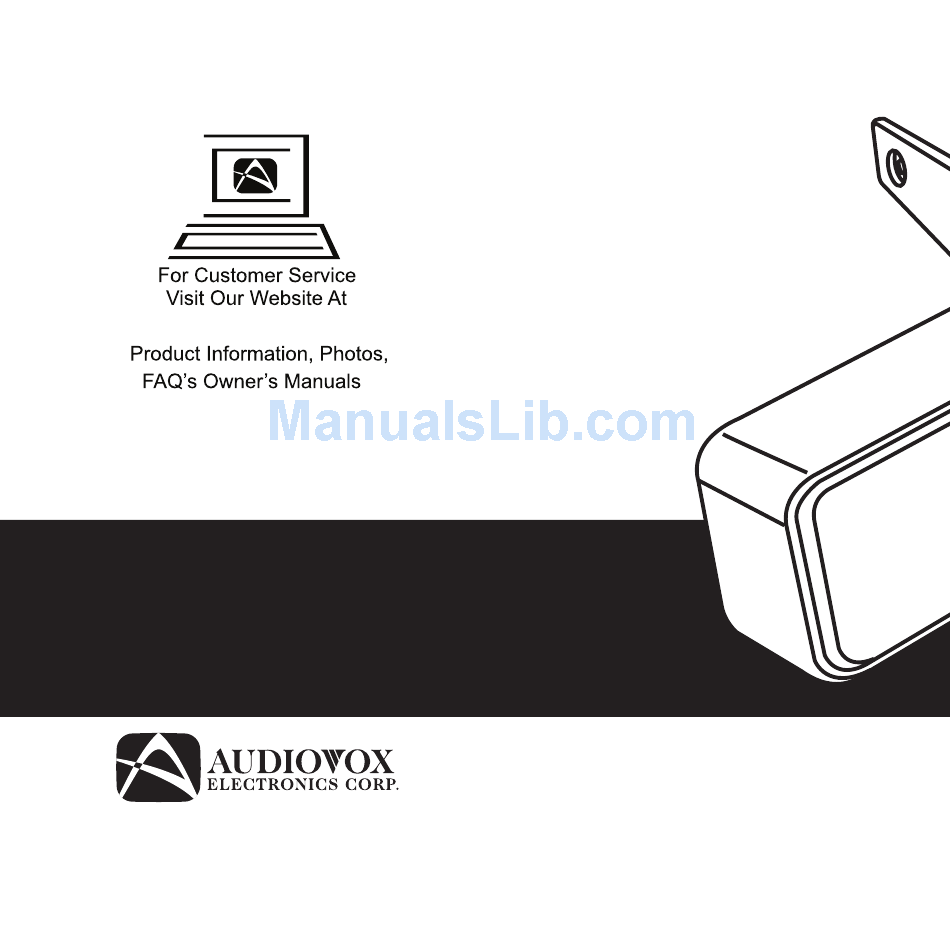

- Page 1 www.audiovoxproducts.com 128-9131...
- Page 2 IPD-SB OWNERS MANUAL...
- Page 3 INTRODUCTION Congratulations on your purchase of the IPD-SB Sound Bar. Please read the instruction manual for this product before using. The documentation provided will allow you to fully enjoy all the features this unit has to offer. Please save this manual for future reference.
-
Page 4: Controls And Indicators
Package Includes: Sound Bar IPD-SB Sound Bar Bracket Mini USB Charging Cable Owner’s Manual 3.5 mm AUX-IN Cable CONTROLS AND INDICATORS IPD-SB FRONT VIEW Yellow LED When the LED is ON the battery is being charged. When the LED is OFF the battery is fully charged. - Page 5 IPD-SB REAR VIEW Device Holder When the stand is in the open position, most tablet devices, MP3 players or cell phones can placed and held within the stand notches. STAND Opens to hold most tablet devices or cell phones placed within the stand notches.
-
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Power On/Off Use the rear panel slide switch to turn the Sound Bar ON and OFF. The LEDs on the front panel light or blink depending on the Sound Bar status. Battery Charging To charge the Sound Bar battery, connect the mini USB connector to the rear panel DC 5 V connector. - Page 7 Sound Bar Device Stand (may not work with all devices) Place the Sound Bar on a flat surface and open the rear panel stand as shown. Place the device in the Sound Bar holding slot which provide the best fit for your device.` The viewing angle of the device in the stand can be adjusted by moving the two stands as shown.
- Page 8 Sound Bar Vehicle Installation The Sound Bar can be attached to an optional Audiovox iPad protective case (IPD-1, IPD-2C, IPD-2HP, IPD-2FM, sold separately) for in-vehicle installations. Refer to the figure below. The included Sound Bar Bracket and optional Audiovox vehicle kit are required for vehicle installations.
- Page 9 Sound Bar Bracket Installation The Sound Bar can be attached to a protective case using the Sound Bar bracket for in vehicle installations. Refer to the figure below. NOTE: Before installing the Sound Bar set the Sound Bar volume to the maximum setting. The Sound Bar volume will be controlled through the volume control of the iPad, if the headphone audio out of the iPad is connected to the audio-in of the Sound Bar.
- Page 10 While holding the red switch on the protective case mounting arm in the unlock position, insert the mounting arm with the Sound Bar Bracket into the Headrest Mount and release the red switch to lock the unit into the headrest mount. Inserting the Sound Bar into the Sound Bar Bracket Align the two tabs on the Sound Bar Bracket with the two mounting holes on the rear panel of the Sound Bar.
- Page 11 Push the Sound Bar down and back into the Sound Bar Bracket. The Sound Bar will snap into place on the Sound Bar Bracket.
- Page 12 Removing the Sound Bar from the Sound Bar Bracket To remove the Sound Bar from the Sound Bar Bracket, press downward on the tab located on the bottom of the Sound Bar Bracket. Refer to the figure below. The Sound Bar will snap free of the Sound Bar Bracket.
- Page 13 Product Specifications Power Input 5V DC 500mA Battery Life About 8-10 hrs (Depending on output volume level) Loudspeaker 2W X 2 Output 85 dB @ 0.5m Dimensions 1.61 inch (H) X 9.44 inch (W) X 1.10 inch (D) (41mm (H) X 240mm (W) X 28mm (D) ) Weight 8 ounces (218 grams)
-
Page 14: 12 Month Limited Warranty
Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company’s option)
