Summary of Contents for Optoma EH7700

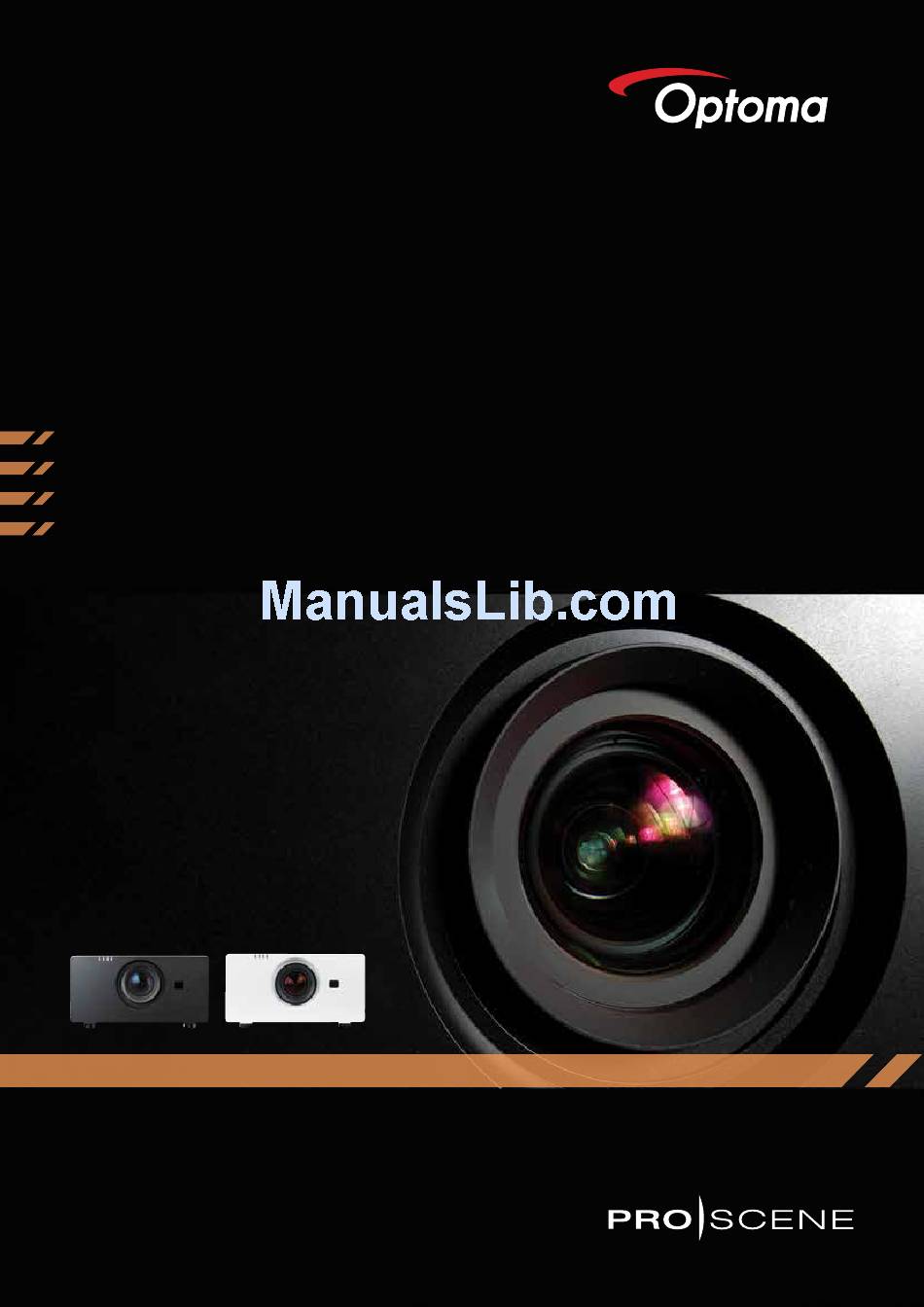

- Page 1 EH7700 WUXGA 7500 Lumens Lens shift Extensive lens options Spectacular image quality, outstanding Dual lamp brightness and ultimate reliability...
- Page 2 Introduction For more than ten years Optoma has been one of the world’s foremost projector designers and manufacturers - amongst the very few companies that focus exclusively on projectors. Today the Optoma ProScene range represents the evolution of projection expertise, honed and refined by manufacturing and supporting millions of projectors the world over.
- Page 3 Features EH7700 features 7500 Lumens, WUXGA Resolution, Dual Lamp Installation flexibility - 5x Motorised Lens options and 360˚ Operation 360º Live performance ready - Mechanical shutter, safety mounting points and flying frame options Ultimate Control - Full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands...
-
Page 4: Image Quality
1080p Amazing Colour WUXGA The EH7700 incorporates BrilliantColor™ technology to produce Where detail really matters, the full WUXGA (1920 x 1200) resolution stunningly bright images with perfectly balanced life-like colours. offers 15% more pixels than 1080p and 60% more than SXGA+. -
Page 5: Total Cost Of Ownership
– ensuring optimal image quality with minimal maintenance. ProScene customers can therefore be confident that, as one of the most reliable projector brands in the industry today, Optoma has a reputation for service excellence that is well deserved. Dual Lamps Technology ®... -
Page 6: Lens Options
To help meet the seemingly limitless challenges of ProAV installations Images can be projected over a full 360° range along the vertical the EH7700 provides 5 lens options with motorised zoom and focus axis, including reproduction on a ceiling or floor. -
Page 7: Mechanical Shutter
The EH7700 has a full 3-axis colour matching system, which However if your project calls for a higher level of customisation, the combined with accurate measurements can create seamless blends EH7700 is available in any colour from the RAL colour space system. every time. Brightness matching The brightness of a projector will vary throughout its life. -
Page 8: Projector Power
System Integration Control Multiple EH7700 can be monitored over LAN and also provide the user with an email message alert in case an error occurs or a lamp fails or needs to be replaced, using Crestron Roomview. While the web browser interface and full support for Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols, allow almost all aspects of the EH7700 to be controlled across a network, keeping you in control, wherever you are. -
Page 9: Throw Distance Chart
Projection Image Size 30” ~ 500” inches Motorized Lens Shift Fixed Horizontal: + / - 10% offset Vertical:- 20%~ + 60% offset Throw Distance Chart EH7700 Throw Distance Diagonal Image Size ST0 / ST1 Fixed (m) Min (m) Max (m) Min (m) -
Page 10: Eco Friendly
We know that improving our products is the best way to reduce our impact on the environment. That’s why at Optoma, we design our products to have a long usable life, use fewer materials, ship with the minimum packaging and be free of all possible toxic substances. - Page 11 Dimensions...
- Page 12 Labelling Easy to use remote control 1 Power On 2 Mechanical Shutter 3 Function 2 (user assigned) 4 Display Mode 5 Freeze 6 Lens Zoom +/- 7 Remote ID (All) 8 HDMI 2 9 HDMI 1 10 DVI (dependent on model) 11 Information Panel 12 Re-Sync 13 Video...
-
Page 13: Technical Specifications
Technical Specifications Projector DLP™ Technology by Texas Instruments Technology 0.67” WUXGA, DC3,Type A chip Resolution Native WUXGA (1920 x 1200) Brightness - Dual Lamp 7000 ANSI lumens / 7500 centre lumens using “Bright” colour wheel Aspect Ratio 16:10 native, 4:3 & 16:9 compatible Refresh Rate 15kHz to 100kHz / 25Hz to 85Hz Contrast... - Page 14 Maximum adjustment angle 20 degrees • Fixed length of 165 mm • Mounting pattern 90 x 90 mm suited for EH7700 and EX855/ EW865 projector mounts Long Ceiling Mount Part Nr: 390061b The universal ceiling mount 390061b is a rigid and strong ceiling mount suited for suspending EH7700 or EX855 and EW865 projectors from the ceiling.
- Page 15 Accessories Continued 17990 Flight Case EH7700 Heavy Duty flight case with wheels and handles and can also carry two extra lens plus space for cables and remote. • Part Number: 17990 • Weight 32Kg • Shipping dimensions 930 x 555 x 445mm...
- Page 16 Accessories Continued Optimised edge blending (Available direct from Optoma) Optoma have worked in partnership with Calibre to produce special versions of Calibre’s edge blending and warping products optimised for use with our ProScene projectors. This unique collaboration significantly reduces the complexity and...
- Page 17 Offices Worldwide technical and commercial support Optoma Europe Optoma Scandinavia China Shanghai Office Optoma Europe Ltd. Optoma Scandinavia 5F, No. 1205 Kaixuan Road, Changning 42 Caxton Way Lerpeveien 25 District , Shanghai The Watford Business Park Postboks 9515 Åskollen Tel: +86-21-6294-7376...
- Page 18 , BrilliantColor™ and the DLP logo are registered trademarks of Texas Instruments. All images of products are for representation purposes only. Whilst every care is taken to provide accurate images of our products, actual products may differ slightly. Some product images may have been digitally altered by us to add an Optoma logo to...
