Summary of Contents for Hoover LS

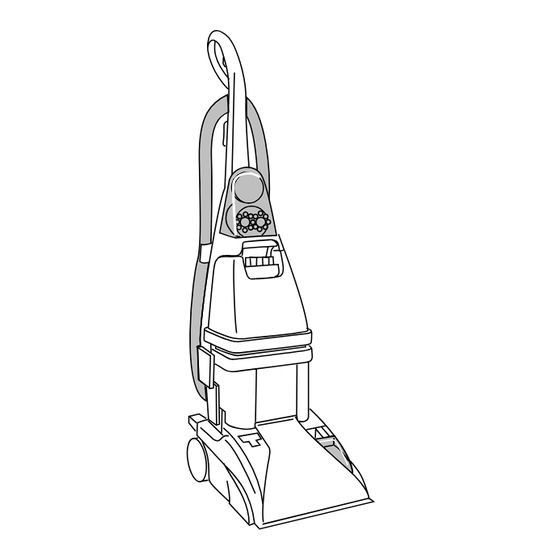

- Page 1 The Easy to Use Deep Cleaner with automatic tool conversion Congratulations on your purchase! SteamVac™ LS cleaners have 5 brushes that deep clean carpets and scrub bare floors! SteamVac™ Deep Cleaner cleans carpet fibers by applying hot tap water and cleaning solution.
-
Page 2: Table Of Contents
• Do not use with damaged cord or plug. If appliance Is not working as it should, has been dropped, damaged, left outdoors, or dropped Into water, take it to a Hoover Factory Service Center or Authorized Hoover Warranty Service Dealer. -
Page 3: Unpacking Deep Cleaner
Grounding Instructions This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resis- tance for electrical current to reduce the risk of electric shock. This appliance is equipped with a cord having an equip- ment-grounding conductor (C) and grounding plug (A). -
Page 4: Assembling Deep Cleaner
The assembled cleaner will look like this drawing. Attach hose holder Position hose holder (B) onto handle by matching tabs on rack with openings on back of handle. Make sure holes for bolts are aligned. Replace clean solution tank (upper tank) by positioning bottom first. -
Page 5: Powered Hand Tool
1-10 Slide rack down into place. Insert screw at (D) and tighten with a Phillips screw- driver. 1-13 Position tool in holder at base of cleaner and snap it into place as shown at arrow. 1-16 To remove powered hand tool (G), pull it down and outward. -
Page 6: How To Use
2. How to use Deep cleaner description Operate deep cleaner only at voltage specified on data plate on back of cleaner. Plug deep cleaner Into a properly grounded outlet. ON/OFF pedal & Handle release pedal Step on pedal (A) to turn deep cleaner on. -
Page 7: Agitator Speed Selector
The deep cleaner may also be lifted by placing a hand under the upper clean solution tank handle as shown. Brush indicator The brush indicator will spin (F) when the deep cleaner is turned ON and the brushes are rotating. If the indicator does not spin and the pattern is visible (G) when the deep cleaner is turned ON, the brushes are... -
Page 8: Filling The Clean Solution Tank . 7-8 Emptying The Recovery Tank
For heavy traffic areas: Pre-treat with HOOVER PreCleaner Spray*. If you do not have access to the PreCleaner Spray, double the amount of HOOVER Detergent (use 2 capfuls or 10 ounces per 1 gallon tank). 2-13 Pour detergent into tank. Fill tank to fill line (B) (1 gallon) with hot tap water. -
Page 9: How To Clean
‘SteamVac’ deep cleaner as a dry vac- uum cleaner. b. For upholstery, check cleaning code - Use your HOOVER ‘SteamVac’ deep cleaner only if the upholstery fabric is marked with a “W” (for “wet” clean) or “S/W” (for “solvent/dry” or “wet” clean). -
Page 10: Cleaning Carpet
ON. Picking up spills Your HOOVER SteamVac deep cleaner may also be used to pick up small liq- uid spills (1 gallon or less, never to exceed 1/4 inch in depth) on carpet, upholstery, or bare floors. -
Page 11: Using The Tools
9. Do not use the SteamVac deep clean- er on hardwood floors. 1. Fill clean solution tank with HOOVER Bare Floor Cleaner (available at additional cost if not included with your model) according to instructions for Figs. 2-10 to 2-16. -
Page 12: After Using Tool
1. Place handle in upright position. Agitator brushes will not rotate while handle Is in upright position. 2. Fill clean solution tank with HOOVER Carpet/Upholstery Detergent according to instructions for Figs. 2-10 to 2-16. 3. Attach tool to end of hose. -
Page 13: Cleaning Upholstery
1. Place handle in upright position. Agitator brushes will not rotate while handle Is In upright position. 2. Fill clean solution tank with HOOVER Carpet/Upholstery Detergent according to instructions for Figs. 2-10 to 2-16. 3. Attach tool to end of hose. -
Page 14: If You Have A Problem
The Hoover Company on-line at www.hoover.com This warranty does not cover pick up delivery, or house calls; however, if you mail your appliance to a Hoover Factory Service Center for warranty service, transportation will be paid one way. While this warranty gives you specific legal rights, you may also have other rights which vary from state to state.
