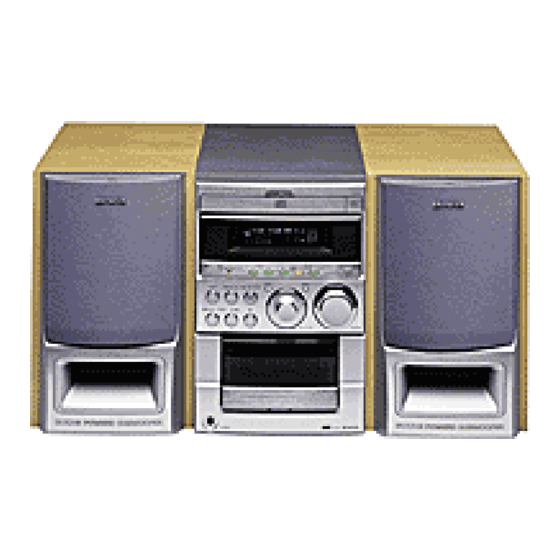

Aiwa XR-M55 Simplified Service Manual
Basic tape mechanism: 2zm–1 yr9nc basic cd mechanism: 3zg–3 e3nc
Hide thumbs
Also See for XR-M55:
- Operating instructions manual (35 pages) ,
- Service manual (18 pages) ,
- Service manual (69 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Aiwa XR-M55
Summary of Contents for Aiwa XR-M55
- Page 1 XR-M55 XR-M56 XR-M57 COMPACT DISC STEREO SYSTEM • • BASIC TAPE MECHANISM 2ZM–1 YR9NC TYPE HR,K<M55> EZ<M56/M57> • BASIC CD MECHANISM 3ZG–3 E3NC SIMPLE MANUAL • Replace this Service Manual with ”Revision Publishing” when it is issued. S/M Code No...
-
Page 2: Electrical Main Parts List
ELECTRICAL MAIN PARTS LIST - 1/8 NOTE: The characters in the suffix column indicate the part usage. 55HR ....XX........A....55K ....XX........B....56EZ ....XX........C....57EZ ....XX........D....KANRI REF.NO PARTS NO. DESCRIPTION SUFFIX 87-010-178-080 0E CHIP CAP 1000P ABCD....87-010-197-080 0E CAP, CHIP 0.01 DM ABCD.... - Page 3 ELECTRICAL MAIN PARTS LIST - 2/8 87-010-320-080 0E CHIP CAP 68P ABCD....87-010-320-080 0E CHIP CAP 68P ABCD....87-A90-095-080 0E SW,TACT EVQ11G04M ABCD....87-A90-095-080 0E SW,TACT EVQ11G04M ABCD....87-A90-095-080 0E SW,TACT EVQ11G04M ABCD....87-A90-095-080 0E SW,TACT EVQ11G04M ABCD....87-A90-095-080 0E SW,TACT EVQ11G04M ABCD....
- Page 4 ELECTRICAL MAIN PARTS LIST - 3/8 87-010-401-080 0E CAP, ELECT 1-50V ABCD....87-010-426-080 0E C-CAP,S 0.012-25 B ABCD....87-010-426-080 0E C-CAP,S 0.012-25 B ABCD....87-010-175-080 0E CAP 560P ABCD....87-010-178-080 0E CHIP CAP 1000P ABCD....87-010-183-080 0E C-CAP,S 2700P-50 B ABCD....
- Page 5 ELECTRICAL MAIN PARTS LIST - 4/8 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCD....87-010-401-080 0E CAP, ELECT 1-50V .BCD....87-012-170-080 0E C-CAP,U 8P-50 CH A....82-785-747-010 1A CF MS2 GHY R .BCD....87-008-261-010 1A FILTER, SFE10.7MA5-A A....87-008-261-010 1A FILTER, SFE10.7MA5-A A....87-008-423-010 1A CERAMIC FILTER, SFE10.7 .BCD....
- Page 6 ELECTRICAL MAIN PARTS LIST - 5/8 87-012-286-080 0E CAP, U 0.01-25 .BCD....87-012-286-080 0E CAP, U 0.01-25 ABCD....87-012-286-080 0E CAP, U 0.01-25 ABCD....87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCD....87-010-248-080 0E CAP, ELECT 220-10V ABCD....87-012-176-080 0E CAP 15P ABCD....87-012-176-080 0E CAP 15P ABCD....
- Page 7 ELECTRICAL MAIN PARTS LIST - 6/8 87-020-465-080 0E DIODE,1SS133 (110MA) ABCD....87-020-465-080 0E DIODE,1SS133 (110MA) ABCD....87-A60-217-010 1A TERMINAL,SPKR 4P ABCD....87-A60-926-010 1A JACK,PIN 4P R/W TC58-118 ABCD....87-005-366-010 1A COIL, 1UH ABCD....87-005-366-010 1A COIL, 1UH ABCD....87-A30-075-080 0E C-TR,2SA1235F ABCD....
- Page 8 ELECTRICAL MAIN PARTS LIST - 7/8 87-010-401-080 0E CAP, ELECT 1-50V ABCD....87-010-401-080 0E CAP, ELECT 1-50V ABCD....87-010-401-080 0E CAP, ELECT 1-50V ABCD....87-020-465-080 0E DIODE,1SS133 (110MA) ABCD....87-001-596-010 1B IC,NJM4580L ABCD....87-A60-420-010 1A JACK,3.5 ST (MSC) ABCD....87-005-366-010 1A COIL, 1UH ABCD....
- Page 9 ELECTRICAL MAIN PARTS LIST - 8/8 87-A11-006-080 0E CAP,M 0.033-50 J DE ABCD....87-010-263-080 0E CAP, ELECT 100-10V ABCD....87-010-316-080 0E C-CAP,S 33P-50 CH ABCD....87-010-316-080 0E C-CAP,S 33P-50 CH ABCD....87-012-140-080 0E CAP 470P ABCD....87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCD....
-
Page 10: Mechanical Parts List
8Z-CL6-063-010 KEY,DEMO ABCD....8Z-CL6-064-010 1C KEY,CON ABCD....8Z-CL6-076-010 KEY,FUNC ASSY ABCD....8Z-CL6-080-010 1B KNOB,RTRY VOL ABCD....8Z-CL6-081-010 1B KNOB,RTRY JOG ABCD....87-B00-002-010 0E BADGE,AIWA 30 ABS SIL ABCD....8Z-CL6-045-010 WINDOW,DISP AB....8Z-CL6-046-010 WINDOW,DISP EZ ..CD....8Z-CL6-050-010 WINDOW,CASS ABCD....8Z-CL6-085-010 LENS,STANDBY ABCD.... -
Page 11: Accessories / Package List
ACCESSORIES / PACKAGE LIST - 1/1 NOTE: The characters in the suffix column indicate the part usage. 55HR ....XX........A....55K ....XX........B....56EZ ....XX........C....57EZ ....XX........D....KANRI REF.NO PARTS NO. DESCRIPTION SUFFIX 8Z-CL6-901-010 IB,U (ESF)-C ....8Z-CL6-902-010 IB,H (ESC)-C A....8Z-CL6-903-010 IB,LH (ESP)-C .... - Page 12 SCHEMATIC DIAGRAM _ 1 (MAIN 1/3)
- Page 13 SCHEMATIC DIAGRAM _ 2 (MAIN 2/3)
- Page 14 SCHEMATIC DIAGRAM _ 3 (MAIN 3/3: TUNER SECTION) <HR>...
- Page 15 SCHEMATIC DIAGRAM _ 4 (MAIN 3/3: TUNER SECTION) <EZ>...
- Page 16 SCHEMATIC DIAGRAM _ 5 (MAIN 3/3: TUNER SECTION) <K>...
- Page 17 SCHEMATIC DIAGRAM _ 6 (FRONT)
- Page 18 SCHEMATIC DIAGRAM _ 7 (CD)
- Page 19 SCHEMATIC DIAGRAM _ 8 (PT) <HR>...
- Page 20 SCHEMATIC DIAGRAM _ 9 (PT) <EZ,K>...
- Page 21 9420025 Tokyo Japan Printed in Singapore...
