SHARP CORPORATION

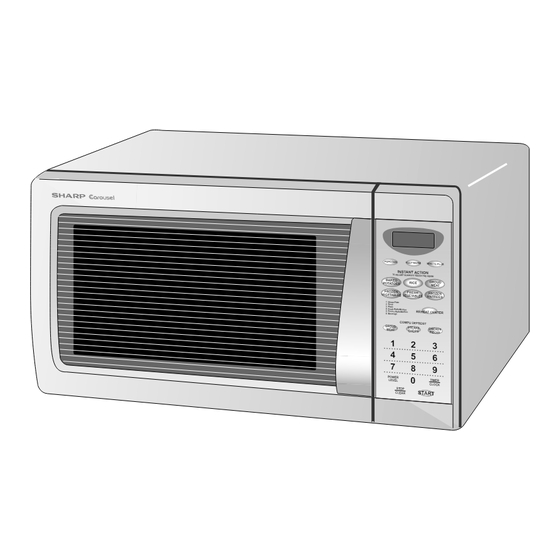

SERVICE MANUAL
MODELS
POPCORN
KEEP WARM
MINUTE PLUS
INSTANT ACTION
TO ADJUST QUANTITY TOUCH
PAD AGAIN
BAKED
GROUD
POTATOES
RICE
MEAT
FROZEN
FRESH
FROZEN
VEGETABLE S
VEGETABLE S
ENTREES
1 Dinner Plate
2 Soup
3 Pizza
4 Fresh Rolls/Muffins
5 Frozen Rolls/Muffins
REHEAT CENTER
6 Beverage
COMPU DEFROS T
GROUD
STEAKS
CHICKEN
MEAT
CHOPS
PIECES
1
2
3
4
5
6
7
8
9
POWER
0
LEVEL
TIMER
CLOCK
In the interest of user-safety the oven should be restored to its original
STOP
STA RT
CLEAR
condition and only parts identical to those specified should be used.
WARNING TO SERVICE PERSONNEL: Microwave ovens con-
tain circuitry capable of producing very high voltage and
current, contact with following parts may result in a severe,
possibly fatal, electrical shock. (High Voltage Capacitor, High
Voltage Power Transformer, Magnetron, High Voltage Recti-
fier Assembly, High Voltage Harness etc..)
TABLE OF CONTENTS
MICROWAVE OVEN
R-310EK
R-310EW
This document has been published to be used for after
sales service only.
The contents are subject to change without notice.
R - 310 E K
R-310EW
S2103R310EPW/
Page
Advertisement
Table of Contents
Related Manuals for Sharp R-310EK
Summary of Contents for Sharp R-310EK
-
Page 1: Table Of Contents
R - 310 E K R-310EW SERVICE MANUAL S2103R310EPW/ MICROWAVE OVEN R-310EK MODELS R-310EW POPCORN KEEP WARM MINUTE PLUS INSTANT ACTION TO ADJUST QUANTITY TOUCH PAD AGAIN BAKED GROUD POTATOES RICE MEAT FROZEN FRESH FROZEN VEGETABLE S VEGETABLE S ENTREES... -
Page 2: Precautions To Be Observed Before And During Servicing To Avoid Possible Exposure To Excessive Microwave Energy
Before servicing an operative unit, perform a microwave emission check as per the Microwave Measurement Procedure outlined in this service manual. If microwave emissions level is in excess of the specified limit, contact SHARP ELECTRONICS CORPORATION immediately @1-800-237-4277. If the unit operates with the door open, service person should 1) tell the user not to operate the oven and 2) contact SHARP ELECTRONICS CORPORATION and Food and Drug Administration's Center for Devices and Radiological Health immediately. -
Page 3: Warning To Service Personnel
R-310EK R-310EW WARNING TO SERVICE PERSONNEL Microwave ovens contain circuitry capable of pro- ducing very high voltage and current, contact with following parts may result in a severe, possibly fatal, electrical shock. (Example) High Voltage Capacitor, High Voltage Power Trans- former, Magnetron, High Voltage Rectifier Assem- bly, High Voltage Harness etc.. -
Page 4: Microwave Measurement Procedure
R- 310EK R-310EW MICROWAVE MEASUREMENT PROCEDURE A. Requirements: 1) Microwave leakage limit (Power density limit): The power density of microwave radiation emitted by a microwave oven should not exceed 1mW/cm at any point 5cm or more from the external surface of the oven, measured prior to acquisition by a purchaser, and thereafter (through the useful life of the oven), 5 mW/cm at any point 5cm or more from the external surface of the oven. -
Page 5: Foreword And Warning
MICROWAVE OVEN R-310EK/ R-310EW GENERAL INFORMATION FOREWORD This Manual has been prepared to provide Sharp Electronics Corp. Service Personnel with Operation and Service Information for the SHARP MICROWAVE OVEN,R-310EK, R-310EW. OPERATION It is recommended that service personnel carefully study the entire text of this manual so that they will be qualified to render satisfactory customer service. -
Page 6: Product Specifications
R- 310EK R-310EW SPECIFICATION ITEM DESCRIPTION Power Requirements 120 Volts / 14.2 Amperes 60 Hertz Single phase, 3 wire grounded Power Output 1200 watts (IEC TEST PROCEDURE) Operating frequency of 2450MHz Case Dimensions Width 20-1/2" Height 11-7/8" Depth 17-1/8" Cooking Cavity Dimensions Width 14-3/4"... -
Page 7: Oven Diagram
R-310EK R-310EW contact a qualified electrician and have it replaced with a properly Grounded 3-Pronged Plug grounded three-pronged wall receptacle or have a grounding adapter Receptacle Box properly grounded and polarized. If the extension cord must be used, it should be a 3-wire, 15 amp. or higher rated cord. Do not drape over a countertop or table where it can be pulled on by children or tripped over accidentally. -
Page 8: Operation
R- 310EK R-310EW OPERATION DESCRIPTION OF OPERATING SEQUENCE The following is a description of component functions during relay and is mechanically associated with the door so oven operation. that it will function in the following sequence. (1) When the door opens from the closed position, the OFF CONDITION primary interlock relay (RY2) and secondary interlock switch open their contacts. - Page 9 R-310EK R-310EW SCHEMATIC NOTE: CONDITION OF OVEN 1. DOOR CLOSED 2. CLOCK APPEARS ON DISPLAY THERMAL MONITOR THERMAL CUT-OUT (OVEN) FUSE 20A CUT-OUT (MG.) N.O. POWER N.O. TRANSFORMER (RY-1) (RY-2) PRIMARY INTERLOCK RELAY CONTROL UNIT COM. COM. SH-B SH-A 120V AC...
- Page 10 R- 310EK R-310EW DESCRIPTION AND FUNCTION OF COMPONENTS DOOR OPEN MECHANISM CAUTION: BEFORE REPLACING A BLOWN MONITOR FUSE TEST THE DOOR SENSING SWITCH, The door is opened by pulling the door. Refer to the Figure PRIMARY INTERLOCK RELAY (RY2), RELAY D-1.
-
Page 11: Troubleshooting Guide
R-310EK R-310EW TROUBLESHOOTING GUIDE Never touch any part in the circuit with your hand or an uninsulated tool while the power supply is connected. When troubleshooting the microwave oven, it is helpful to follow the Sequence of Operation in performing the checks. Many of the possible causes of trouble will require that a specific test be performed. -
Page 12: Test Procedure
R- 310EK R-310EW CK = Check / RE = Replace RE RE A B C D E F F G H RE RE CK I CK CK CK J K L M TEST PROCEDURE PROBLEM CONDITION Home fuse or circuit breaker blows when power cord is plugged into wall receptacle Monitor fuse blows when power cord... - Page 13 R-310EK R-310EW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER 4. To test for an open filament, isolate the magnetron from the high voltage circuit. A continuity check across the magnetron filament leads should indicate less than 1 ohm. 5. To test for a shorted magnetron, connect the ohmmeter leads between the magnetron filament leads and chassis ground.
- Page 14 R- 310EK R-310EW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER HIGH VOLTAGE RECTIFIER TEST 1. Disconnect the power supply cord, and then remove outer case. 2. Open the door and block it open. 3. Discharge high voltage capacitor. 4. Isolate the rectifier from the circuit. Using the highest ohm scale of the meter, read the resistance across the terminals and observe, reverse the leads to the rectifier terminals and observe meter reading.
- Page 15 R-310EK R-310EW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER CAUTION: IF THE THERMAL CUT-OUT INDICATES AN OPEN CIRCUIT AT ROOM TEMPERATURE, REPLACE THERMAL CUT-OUT. SECONDARY INTERLOCK SWITCH TEST 1. Disconnect the power supply cord, and then remove outer case. 2. Open the door and block it open.
- Page 16 R- 310EK R-310EW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER 5. Reconnect all leads removed from components during testing. 6. Reinstall the outer case (cabinet). 7. Reconnect the power supply cord after the outer case is installed. 8. Run the oven and check all functions.
- Page 17 R-310EK R-310EW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER c) When touching the pads, sometimes a pad produces no signal. If the Key unit is defective. 1) Disconnect the power supply cord, and then remove outer case. 2) Open the door and block it open.
- Page 18 R- 310EK R-310EW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER 8. Run the oven and check all functions. MINUTE CHICKEN PLUS PIECES FRESH STEAKS VEGETABLES CHOPS < > FROZEN POWER TIMER REHEAT GROUND RICE POPCORN START ENTREES LEVEL CENTER CLOCK MEAT STOP BAKED FROZEN...
- Page 19 R-310EK R-310EW TEST PROCEDURES PROCEDURE COMPONENT TEST LETTER FOIL PATTERN ON THE PRINTED WIRING BOARD TEST To protect the electronic circuits, this model is provided with a fine foil pattern added to the primary on the PWB, this foil pattern acts as a fuse.
-
Page 20: Touch Control Panel
R- 310EK R-310EW TOUCH CONTROL PANEL ASSEMBLY OUTLINE OF TOUCH CONTROL PANEL 3) Power Source Circuit The touch control section consists of the following units. This circuit generates voltages necessary in the control unit from the AC line voltage. (1) Key Unit In addition, the synchronizing signal is available in order (2) Control Unit (The Control Unit consists of Power Unit and to compose a basic standard time in the clock circuit. - Page 21 R-310EK R-310EW Pin No. Signal Description Back light circuit (Light emitting diodes) driving signal. 12-13 P56-P55 Terminal not used. 0.1 sec. CNTR0 Signal to sound buzzer (2.0 kHz). H : GND A: key touch sound. L : -5V 2.0 sec.
- Page 22 R- 310EK R-310EW Pin No. Signal Description Key strobe signal. Signal applied to touch-key section. A pulse signal is input to P41, P43, P44 and P45 terminal while one of G7 line keys on key matrix is touched. Key strobe signal. Signal applied to touch-key section.
- Page 23 R-310EK R-310EW TOUCH CONTROL PANEL SERVICING A. On some models, the power supply cord between the 1. Precautions for Handling Electronic Components touch control panel and the oven itself is so short that the This unit uses CMOS LSI in the integral part of the two can’t be separated.
-
Page 24: Component Replacement And Adjustment Procedure
WARNING FOR WIRING To prevent an electric shock, take the following pre- and Oven cavity. cautions. 3) Sharp edge: 1. Before wiring, Bottom plate, Oven cavity, Waveguide flange, 1) Disconnect the power supply cord. Chassis support and other metallic plate. - Page 25 R-310EK R-310EW CAUTION: 1. DISCONNECT OVEN FROM POWER SUP NOTE: When replacing the outer case, the 2 special PLY BEFORE REMOVING OUTER CASE. Torx screws must be reinstalled in the same 2. DISCHARGE THE HIGH VOLTAGE CA- locations. PACITOR BEFORE TOUCHING ANY OVEN COMPONENTS OR WIRING.
-
Page 26: Control Panel Assembly Removal
R- 310EK R-310EW 9. Now, the magnetron is free. 4. Reconnect the wire leads to the magnetron and thermal Reinstallation cut-out (MG). Refer to "PICTORIAL DIAGRAM" on page 1. Re-install the magnetron to waveguide flange with the four (4) screws. 5. -
Page 27: Turntable Motor Removal
4. Where the corners have been snipped off bend corner 7. Now the turntable motor is free. areas flat. No sharp edges must be evident after removal 8. After replacement use the one (1) screw to fit the of the turntable motor cover. - Page 28 R- 310EK R-310EW DOOR SENSING SWITCH/SECONDARY INTERLOCK SWITCH AND MONITOR SWITCH REMOVAL Reinstallation 1. Disconnect the power supply cord and remove outer case. 1. Re-install each switch in its place. The secondary 2. Open the door and block it open. interlock/monitor switches are in the lower position and 3.
- Page 29 R-310EK R-310EW 11.Now, door panel with sealer film is free. 12.Tear sealer film from door panel. 13.Now, door panel is free. Upper Oven 14.Slide latch head upward and remove it from door frame Upper Hinge Oven Hinge with releasing latch spring from door frame and latch head.
-
Page 30: Pictorial Diagram
R- 310EK R-310EW RECTIFIER H.V. -
Page 31: Power Unit Circuit
R-310EK R-310EW CN-C CN-A 9PIN LEAD WIRE HARNESS S1NB10 – OVEN LAMP TURNTABLE BUZZER MOTOR FAN MOTOR OVEN LAMP TURNTABLE MOTOR FAN MOTOR MICRO MICRO SH-A DOOR DOOR SH-B SENSING SENSING SWITCH SWITCH... -
Page 32: Cpu Unit Circuit
R- 310EK R-310EW COM1 COM2 COM3 SEG22 SEG21 SEG20 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 SEG12 SEG11 SEG10 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 SEG0 VREF XOUT AVSS COM3 COM2 COM1 RESET COM0 4.7k 4.7k 4.7k /25v 0.01 UDZ4.3B 270k 270k... -
Page 33: Printed Wiring Board
R-310EK R-310EW SH - B CN - C (D2) (D3) CN - A Figure S-4. Printed Wiring Board of Power Unit... -
Page 34: Parts List
Transformer VRS1 RH-VZA032DRE0 Varistor (10G471K) 3- 2 DPWBFC163WRKZ CPU unit 3- 3 FPNLCB556WRKZ Control panel frame with key unit [R-310EK] 3- 3 FPNLCB557WRKZ Control panel frame with key unit [R-310EW] 3- 3-1 FUNTKB047WREZ Key unit [R-310EK] 3- 3-1 FUNTKB048WREZ Key unit [R-310EW]... - Page 35 To have your order filled promptly and correctly, please furnish the following information. 1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION Order Parts from the authorized SHARP parts Distributor for your area. Defective parts requiring return should be returned as indicated in the Service Policy.
-
Page 36: Oven And Cabinet Parts
R - 310 E K R-310EW OVEN AND CABINET PARTS 4-22 7-10 1-10 1-11 4-17 4-20 4-13 4-11 4-10 4-21 4-19 4-22 4-12 4-21 4-15 1-13 4-14 4-18 1-12 1-14 4-16 4-15... - Page 37 R - 310 EK R-310EW CONTROL PANEL PARTS DOOR PARTS 5-11 3-3-1 5-10 5-10 MISCELLANEOUS (CAPACITOR) Actual wire harness may be different from illustration.
-
Page 38: Packing And Accessories
R - 310 E K R-310EW TOP PAD ASSEMBLY PACKING AND ACCESSORIES FPADBA416WRKZ DOOR PROTECTION SHEET CABINET COVER SPADPA204WRE0 SPAKHA011WRE0 (only for R-310EK) PLASTIC BAG SSAKHA034WRE0 FOAM SHEET SPAKHA012WREZ (only for R-310EK) 6- 8 INSTRUCTION BOOK & PRINTING MATTER BOTTOM PAD ASSEMBLY... - Page 39 R - 310 EK R-310EW...
- Page 40 No part of this publication may be repro- duced, stored in retrieval systems, or trans- mitted in any form or by any means, elec- tronic, mechanical, photocopying, record- ing, or otherwise, without prior written per- mission of the publisher. 2001 SHARP CORP. (2S2.530E) Printed in U.S.A...
