Page 1: Service Manual

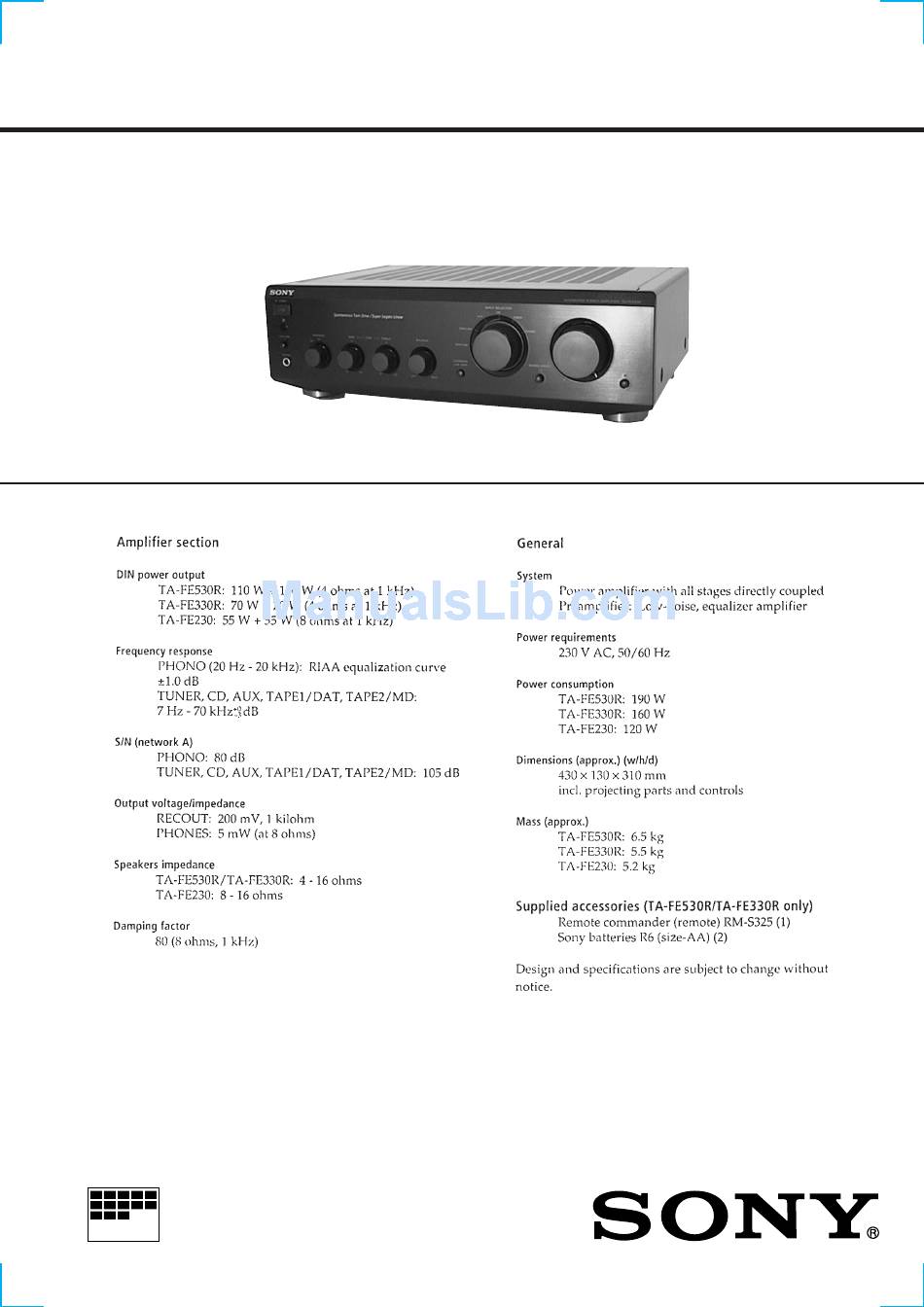

TA-FE230/FE330R/FE530R SERVICE MANUAL AEP Model UK Model Photo: TA-FE530R (BLACK) SPECIFICATIONS INTEGRATED STEREO AMPLIFIER MICROFILM http://cxema.ru... - Page 2 LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY.
- Page 3 SECTION 1 This section is extracted from instruction manual. GENERAL LOCATION OF CONTROLS • Front View • Rear View 5 6 7 8 9 !º !¡ !™ !£ 1 I/u button 2 Remote sensor (TA-FE330R/FE530R) 3 EON LINK button and indicator (TA-FE530R) 4 PHONES jack 5 SPEAKERS switch...
- Page 4 SECTION 2 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. CASE 1 screw (CASE) 1 two screws (CASE) 2 case 1 two screws (CASE) PANEL ASS’Y 2 connector (CN7) (FE230) 2 connector (CN903) 1 wire (flat type) (13 core) (FE330R/FE530R) (CN811) 3 two clamps...
- Page 5 MAIN BOARD 1 connector (CN951) 1 connector CN952: FE330R/FE530R CN952A: FE230 4 screw (BVTP3 × 8) 5 MAIN board 3 six screws (BVPT 3 × 8) (FE330R/FE530R) FE230 3 six screws (BVPT 3 × 8) (FE230) 2 six screws (BVPT 3 × 8) –...
- Page 6 http://cxema.ru...
- Page 7 http://cxema.ru...
- Page 8 http://cxema.ru...
- Page 9 http://cxema.ru...
- Page 10 http://cxema.ru...
- Page 11 http://cxema.ru...
- Page 12 http://cxema.ru...
- Page 13 http://cxema.ru...
-
Page 14: Exploded Views
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 4-996-698-41 EMBLEM, SONY 4-211-940-31 CASE (SILVER) 3-704-366-01 SCREW (CASE) (M3X8) (BLACK) 4-977-591-01 FOOT (F50150S) (BLACK) 3-704-366-71 SCREW (CASE) (SILVER) 4-977-591-31 FOOT (F50150S) (SILVER) 4-211-940-21 CASE (BLACK) 4-978-398-21 CUSHION –... - Page 15 (2) FRONT PANEL SECTION FE330R/FE530R FE230 supplied FE530R supplied with JK501 not supplied supplied with S205 FE530R supplied with RV201, supplied 203, 204 supplied supplied with S801 with RV202 supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark X-4950-306-1 KNOB ASSY, VOLUME (BLACK)
- Page 16 (3) CHASSIS SECTION not supplied FE530R not supplied supplied supplied FE330R: AEP/ FE530R: AEP FE330R/ FE530R supplied supplied FE330R: AEP/ FE530R: AEP not supplied The components identified by mark ! or dotted not supplied line with mark ! are critical for safety. Replace only with part number specified.
-
Page 17: Electrical Parts List
AC OUTLET AC-RY SECTION 5 AC-SW CONTROL ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the • Items marked “*” are not stocked since they The components identified by mark ! or dotted line with mark parts list may be different from the parts speci- are seldom required for routine service. - Page 18 CONTROL Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C811 1-126-964-11 ELECT 10uF R208 1-247-874-11 CARBON 1/4W (FE330R/FE530R) (FE330R/FE530R) R251 1-249-434-11 CARBON 1/4W < CONNECTOR > R252 1-247-839-11 CARBON 2.2K 1/4W * CN801 1-568-832-11 SOCKET, CONNECTOR 13P R253 1-249-427-11 CARBON 6.8K...
- Page 19 CONTROL DC-SUP FUN-SW FUSE MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < VARIABLE RESISTOR > 1-673-104-11 FUSE BOARD *********** RV201 1-223-396-11 RES, VAR, CARBON 100K/100K (BALANCE) RV202 1-241-426-11 RES, VAR, CARBON 100KX2 (VOLUME) 1-533-293-11 FUSE HOLDER (FE330R/FE530R) RV202 1-241-408-11 RES, VAR, CARBON 100K/100K (VOLUME)
- Page 20 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C307 1-126-965-11 ELECT 22uF C910 1-126-933-11 ELECT 100uF (FE230/FE330R) C911 1-126-933-11 ELECT 100uF C307 1-128-551-11 ELECT 22uF C915 1-126-933-11 ELECT 100uF (FE530R) C308 1-126-965-11 ELECT 22uF C916 1-126-963-11 ELECT 4.7uF (FE230/FE330R)
- Page 21 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < RESISTOR > R306 1-260-334-11 CARBON 3.3K 1/2W (FE230) ! R307 R101 1-249-418-11 CARBON 1.2K 1/4W 1-212-881-11 FUSIBLE 1/4W F R102 1-249-411-11 CARBON 1/4W R308 1-247-752-11 CARBON 1/2W R104 1-247-871-11 CARBON...
- Page 22 MAIN POWER SW TAPE MONITOR Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R904 1-247-751-11 CARBON 1/2W (FE530R) < SWITCH > R905 1-247-750-11 CARBON 1/2W (FE230/FE330R) 1-571-112-21 SWITCH, PUSH (1 KEY) (I/u) R905 1-247-751-11 CARBON 1/2W S803 1-571-112-21 SWITCH, PUSH (1 KEY) (EON LINK) (FE530R) (FE530R)
