Oven Schematic-Cooking Condition; Oven Schematic-Off Condition - Sharp R-360EG Service Manual

SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED
2. CLOCK APPEARS ON DISPLAY
OVEN THERMAL
MONITOR
CUT-OUT
FUSE 20A
GRN
120V AC
60 Hz
OVEN LAMP
RELAY
(RY1)
N.O.

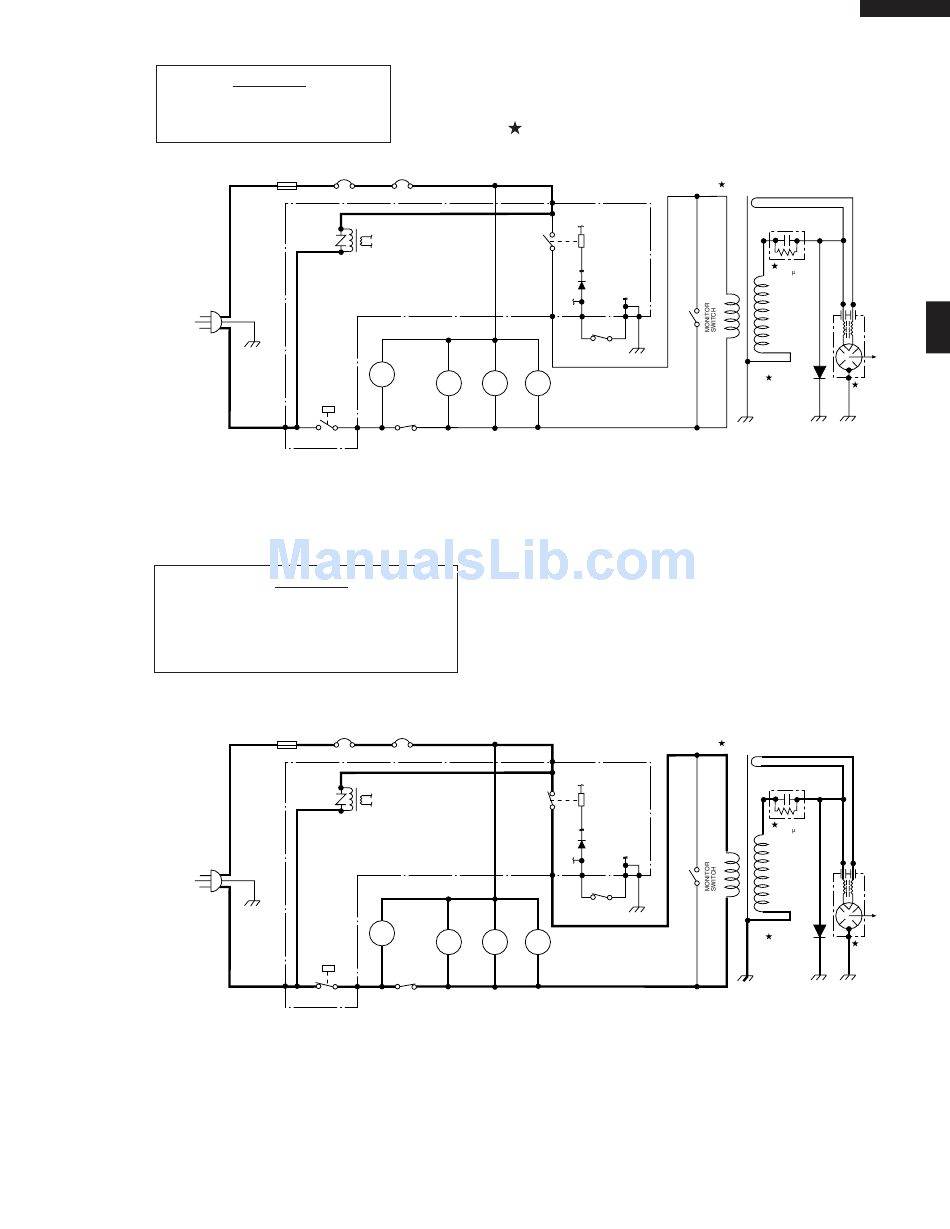

Figure O-1. Oven Schematic-Off Condition
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED
2. COOKING TIME PROGRAMMED
3. VARIABLE COOKING CONTROL "P-HI" (100%)
4. "START" PAD TOUCHED
OVEN THERMAL
MONITOR
CUT-OUT
FUSE 20A
GRN
120V AC
60 Hz
OVEN LAMP
RELAY
(RY1)
N.O.
Figure O-2. Oven Schematic-Cooking Condition
NOTE: " " indicates components with potential above 250V.
MG. THERMAL CUT-OUT
N.O.
CONTROL UNIT
COM.
OVEN
OL
LAMP
TTM
FM FM
TURN-
FAN
PRIMARY
TABLE
MOTOR
INTERLOCK
MOTOR
SWITCH
COM.
MG. THERMAL CUT-OUT
N.O.
CONTROL UNIT
COM.
OVEN
OL
LAMP
TTM
FM FM
TURN-
FAN
PRIMARY
TABLE
MOTOR
INTERLOCK
MOTOR
SWITCH
COM.
7
SECONDARY
INTERLOCK
RELAY
(RY2)
B2 B1
DOOR
SENSING
SWITCH
FAN
MOTOR
SECONDARY
INTERLOCK
RELAY
(RY2)
B2 B1
DOOR
SENSING
SWITCH
FAN
MOTOR
R-360EG
R-360ES
R-360EW
R- 360EZ
POWER
TRANSFORMER
CAPACITOR
0.94 F
AC 2200V
RECTIFIER
MAGNETRON
POWER
TRANSFORMER
CAPACITOR
0.94 F
AC 2200V
RECTIFIER
MAGNETRON
