Amana ASX14 Specifications

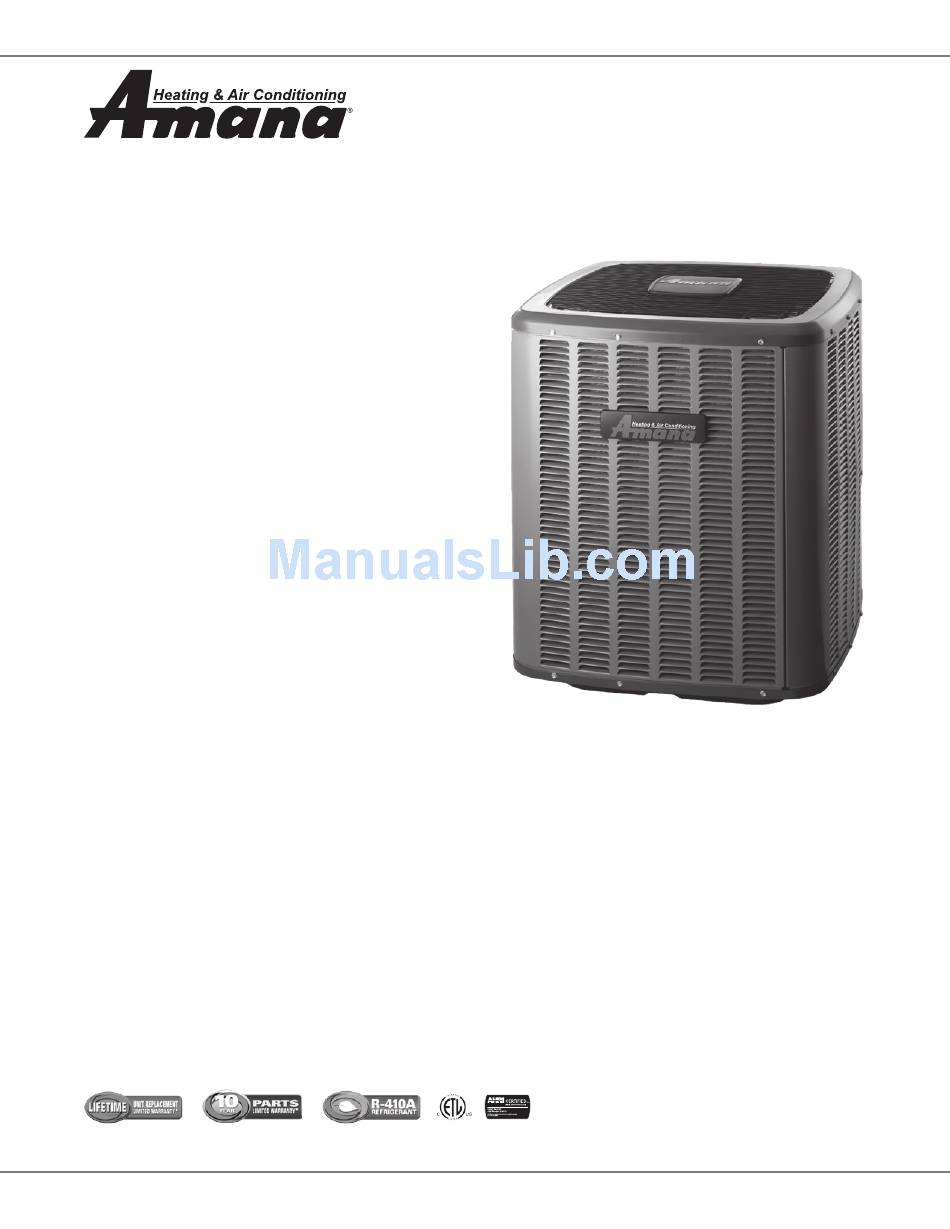

Split system air conditioner up to 16 seer cooling capacity: 18,000 - 54,000 btu/h
Hide thumbs

Advertisement

Quick Links

C
C
:
ooling
ApACity
18,000 - 54,000 BtU/
h
Standard Features
• R-410A chlorine-free refrigerant
• High-efficiency Copeland® scroll compressor
• High-density foam compressor sound blanket
• Copeland ComfortAlert™ diagnostics
• Fully charged for 15' of tubing length
• Factory-installed filter drier
• Copper tube/enhanced aluminum fin coil
• Sweat connection service valves
with easy access to gauge ports
• AHRI Certified; ETL Listed
Cabinet Features
• Amana® brand sound control top design
• Wire fan discharge grille
• Steel louver coil guard
• Baked-on powder-paint finish
• Rust-resistant coated screws
• Compact footprint
• Top and side maintenance access
• Single-panel access to controls with space
provided for field-installed accessories
• When properly anchored, meets the 2001 Florida Building
Code unit integrity requirements for hurricane-type winds
(Anchor bracket kits available.)
* Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the Lifetime Unit
Replacement Limited Warranty (good for as long as you own your home) and 10-Year Parts Limited Warranty, online
registration must be completed within 60 days of installation. Online registration is not required in California or Québec.
SS-ASX14
Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas.
Contents
Nomenclature ................................................. 2
Product Specifications . .................................... 3
Expanded Cooling Data ....................................... 4
AHRI Ratings . ...................................................... 20
Dimensions ................................................... 32
Wiring Diagrams ........................................... 33
Accessories .................................................... 36
www.amana-hac.com
ASX14
S
S
A
C
plit
yStem
ir
onditioner
U
16 Seer
p to
Supersedes 1/13
3/13

Advertisement

loading

Related Manuals for Amana ASX14

Summary of Contents for Amana ASX14

  • Page 1: Table Of Contents

    Replacement Limited Warranty (good for as long as you own your home) and 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Québec. SS-ASX14 www.amana-hac.com 3/13 Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas. Supersedes 1/13...

  • Page 2: Nomenclature

    Efficiency 13 SEER Nominal Capacity 14 SEER 1½ Tons 4 Tons 16 SEER 2 Tons 5 Tons 18 SEER 2½ Tons 7½ tons 3 Tons 10 Tons 3½ Tons * Neither used for order entry or inventory management. www.amana-hac.com SS-ASX14...

  • Page 3: Product Specifications

    ASX14 ASX14 ASX14 ASX14 ASX14 ASX14 ASX14 ASX14 0181D 0241C 0301C 0361C 0421D 0481B 0481C 0601B Cooling Capacity Nominal Cooling (BTU/h) 18,000 24,000 28,800 34,600 40,000 45,000 46,000 56,800 Decibels Compressor 13.5 12.8 14.1 16.7 19.8 19.9 26.4...

  • Page 4: Expanded Cooling Data

    — ASX140181d + CA*f3636*6C* XpAnded ooling www.amana-hac.com SS-ASX14...
  • Page 5 — ASX140181d + CA*f3636*6C* ( XpAnded ooling Cont SS-ASX14 www.amana-hac.com...
  • Page 6 — ASX140241C + CA*f3636*6C* XpAnded ooling www.amana-hac.com SS-ASX14...
  • Page 7 — ASX140241C + CA*f3636*6C* ( XpAnded ooling Cont SS-ASX14 www.amana-hac.com...
  • Page 8 — ASX140301C + CA*f3642*6C* XpAnded ooling www.amana-hac.com SS-ASX14...
  • Page 9 — ASX140301C + CA*f3642*6C* ( XpAnded ooling Cont SS-ASX14 www.amana-hac.com...
  • Page 10 — ASX140361C + CA*f3642*6C* XpAnded ooling www.amana-hac.com SS-ASX14...
  • Page 11 — ASX140361C + CA*f3642*6C* ( XpAnded ooling Cont SS-ASX14 www.amana-hac.com...
  • Page 12 — ASX140421d + CA*f4860*6B* XpAnded ooling www.amana-hac.com SS-ASX14...
  • Page 13 — ASX140421d + CA*f4860*6B* ( XpAnded ooling Cont SS-ASX14 www.amana-hac.com...
  • Page 14 — ASX140481B + CA*f4860d6A* / .079 o XpAnded ooling rifiCe www.amana-hac.com SS-ASX14...
  • Page 15 — ASX140481B + CA*f4860d6A* / .079 o XpAnded ooling rifiCe Cont SS-ASX14 www.amana-hac.com...
  • Page 16 — ASX140481C* / CA*f4860d6d* / .078 o XpAnded ooling rifiCe www.amana-hac.com SS-ASX14...
  • Page 17 — ASX140481C* / CA*f4860d6d* / .078 o XpAnded ooling rifiCe Cont SS-ASX14 www.amana-hac.com...
  • Page 18 — ASX140601B + CA*f4860d6A* / .088 o XpAnded ooling rifiCe www.amana-hac.com SS-ASX14...
  • Page 19 — ASX140601B + CA*f4860d6A* / .088 o XpAnded ooling rifiCe SS-ASX14 www.amana-hac.com...

  • Page 20: Ahri Ratings

    A*VC950453BXB* 18,400 13,300 15.0 12.5 5623492 CA*F3131*6D*+TXV G*VC80604B*B* 18,400 13,300 15.0 12.5 5188219 CA*F3131*6D*+TXV A*VM960604CXB* 18,400 13,300 15.0 12.5 5623510 ASX14 CA*F3131*6D*+TXV A*VM960603BXB* 18,400 13,300 15.0 12.5 5623506 0181D* CA*F3131*6D*+TXV ADVC80603B*B* 18,400 13,300 15.0 12.5 5188425 CA*F3131*6D*+TXV A*VC950714CXB* 18,400 13,300 15.0...
  • Page 21 CHPF2430B6C*+TXV A*VM960603BXB* 18,000 13,000 15.0 12.5 5623509 CHPF2430B6C*+TXV A*VM960604CXB* 18,000 13,000 15.0 12.5 5623513 CHPF3636B6C*+EEP+TXV 18,400 13,300 14.5 12.2 4704333 ASX14 0181D* CHPF3642C6C*+EEP+TXV 18,400 13,300 14.5 12.3 4704334 (cont.) CSCF3036N6D*+EEP+TXV 18,400 13,300 14.0 12.0 4767347 CSCF3036N6D*+TXV A*VC950453BXB* 18,400 13,300 15.0 12.5...
  • Page 22 A*VM960604CXB* 23,600 16,100 15.0 12.5 5623554 CHPF3636B6C* G*VM960604CXB* 23,600 16,100 15.0 12.5 5623555 CHPF3636B6C* A*VC950453BXB* 23,600 16,100 15.0 12.5 5623518 ASX14 0241C* CHPF3636B6C* G*VM960603BXB* 23,600 16,100 15.0 12.5 5623547 (cont.) CHPF3636B6C* G*VC950704CXB* 23,600 16,100 15.0 12.5 5623529 CHPF3636B6C* A*VM960603BXB* 23,600 16,100 15.0...
  • Page 23 14.5 12.3 1,000 5188233 CA*F3636*6D* GME950403BXA* 28,800 21,400 15.0 12.8 1,000 4705791 CA*F3636*6D* G*VM960604CXB* 28,800 21,400 14.5 12.3 1,000 5623597 ASX14 CA*F3636*6D* G*VC950714CXB* 28,800 21,400 14.5 12.3 1,000 5623574 0301C* CA*F3636*6D* A*VC950453BXB* 28,800 21,400 15.0 12.8 1,000 5623559 CA*F3636*6D* A*VC950714CXB*...
  • Page 24 15.0 13.0 1,000 5623591 CA*F4860*6D* A*VC950905CXB* 28,800 21,400 15.0 13.0 1,000 5623583 CA*F4860*6D* G*VC950915DXB* 28,800 21,400 15.0 13.0 1,000 5623592 ASX14 0301C* CA*F4860*6D* A*VM960805DXB* 28,800 21,400 15.0 13.0 1,000 5623611 (cont.) CAPT3743*4A* GME950603BXA* 28,600 21,200 15.0 12.5 1,000 5520618 CAPT3743*4A*...
  • Page 25 28,600 21,200 15.0 12.5 5188241 CHPF3642C6C* A*VC950704CXB* 28,800 21,400 15.0 12.5 1,000 5623569 CHPF3642C6C*+EEP 28,800 21,400 14.0 12.0 1,000 3839485 ASX14 CHPF3642C6C*+EEP+TXV 28,800 21,400 14.5 12.2 1,000 3839486 0301C* CHPF3642C6C*+TXV GME950603BXA* 28,600 21,200 15.0 12.5 1,000 4705801 (cont.) CHPF3642D6C*+TXV GME950603BXA*...
  • Page 26 14.0 12.0 1,200 3881159 CA*F4860*6D*+TXV G*VC80805C*B* 33,200 24,600 15.0 12.3 1,190 5188251 CA*F4860*6D*+TXV ADVC80805C*B* 33,200 24,600 15.0 12.3 1,190 5188382 ASX14 0361C* CA*F4860*6D*+TXV GME950603BXA* 34,200 25,400 14.5 12.0 1,200 4705817 (cont.) CA*F4860*6D*+TXV A*VC80805C*B* 33,200 24,600 15.0 12.3 1,190 5188250 CA*F4860*6D*+TXV...
  • Page 27 14.5 12.2 1,220 5188254 CHPF3642D6C* GME951005DXA* 34,600 25,600 15.0 12.2 1,150 4705820 CHPF3642D6C* A*VM961005DXB* 34,600 25,600 15.0 12.2 1,150 5623657 ASX14 CHPF3642D6C* G*VC80604B*B* 33,600 24,800 14.5 12.2 1,220 5188255 0361C* (cont.) CHPF3642D6C* A*VM960805DXB* 34,400 25,400 14.5 12.2 1,200 5623652 CHPF3642D6C*...
  • Page 28 15.0 12.5 1,500 5623722 CHPF4860D6D* A*VC950905DXB* 40,000 30,200 15.0 12.5 1,500 5623683 CHPF4860D6D* A*VC951155DXB* 40,000 30,200 15.0 12.5 1,500 5623693 ASX14 0421D* CHPF4860D6D* A*VM960604CXB* 40,000 30,200 14.0 12.0 1,500 5623699 (cont.) CHPF4860D6D* G*VM960604CXB* 40,000 30,200 14.0 12.0 1,500 5623700 CHPF4860D6D*...
  • Page 29 15.0 13.0 1,400 5623732 CA*F4860*6D*+TXV G*E80805C*B* 45,000 33,800 14.5 12.0 1,480 5533137 CA*F4860*6D*+TXV A*VM961005DXB* 45,500 34,200 15.0 13.0 1,400 5623740 ASX14 0481C* CA*F4860*6D*+TXV A*VM961155DXB* 45,500 34,200 15.0 13.0 1,400 5623742 CA*F4961*6D*+EEP+TXV 46,000 34,600 14.5 12.0 1,550 4431402 CAPT4961*4A*+EEP 46,000 34,600 14.5...
  • Page 30 13.5 11.5 1,800 5623757 CA*F4860*6D* G*VC950905DXB* 56,000 45,500 13.5 11.5 1,800 5623751 CA*F4860*6D* A*VM960805CXB* 56,000 45,500 13.5 11.5 1,800 5623761 ASX14 CA*F4860*6D* A*VM960805DXB* 56,000 45,500 13.5 11.5 1,800 5623765 0601B* CA*F4860*6D* A*VC950905CXB* 56,000 45,500 13.5 11.5 1,800 5623744 CA*F4860*6D*+EEP 56,000 45,500 14.0...
  • Page 31 55,000 44,500 14.5 12.0 1,550 5328669 CHPF4860D6D*+MBR2000**-1 56,000 45,500 14.0 12.0 1,800 3839698 CHPF4860D6D*+MBVC2000**-1A* 56,000 45,500 15.0 12.5 1,800 3839699 ASX14 CHPF4860D6D*+TXV A*VC81005C*B* 0601B* 57,000 46,500 14.5 12.2 1,800 5188264 (cont.) CHPF4860D6D*+TXV G*VC81005C*B* 57,000 46,500 14.5 12.2 1,800 5188265 CSCF4860N6D*...

  • Page 32: Dimensions

    Dimensions Model W" D" H" ASX140181** 27½ ASX140241** 32½ ASX140301** 32½ ASX140361** 32½ ASX140421** 36¼ ASX140481B* 35½ 35½ 38¼ ASX140481C* 35½ 35½ 36¼ ASX140601** 35½ 35½ 38¼ www.amana-hac.com SS-ASX14...

  • Page 33: Wiring Diagrams

    ASX14018-0361B / 0421C / 0481A/B-0601A — iring iAgrAm ONLY CONTACTOR POLE DOUBLE ALTERNATE SS-ASX14 www.amana-hac.com...
  • Page 34 ASX140181dA — iring iAgrAm ONLY ONLY CONTACTOR CONTACTOR POLE POLE DOUBLE DOUBLE ALTERNATE ALTERNATE www.amana-hac.com SS-ASX14...
  • Page 35 ASX14018-0361C / 0421d / 481C-0601B — iring iAgrAm ONLY CONTACTOR POLE DOUBLE ALTERNATE SS-ASX14 www.amana-hac.com...

  • Page 36: Accessories

    The TXV should always be sized based on the tonnage of the outdoor unit. Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P. All rights reserved. Our continuing commitment to quality products may mean a change in specifications without notice.
