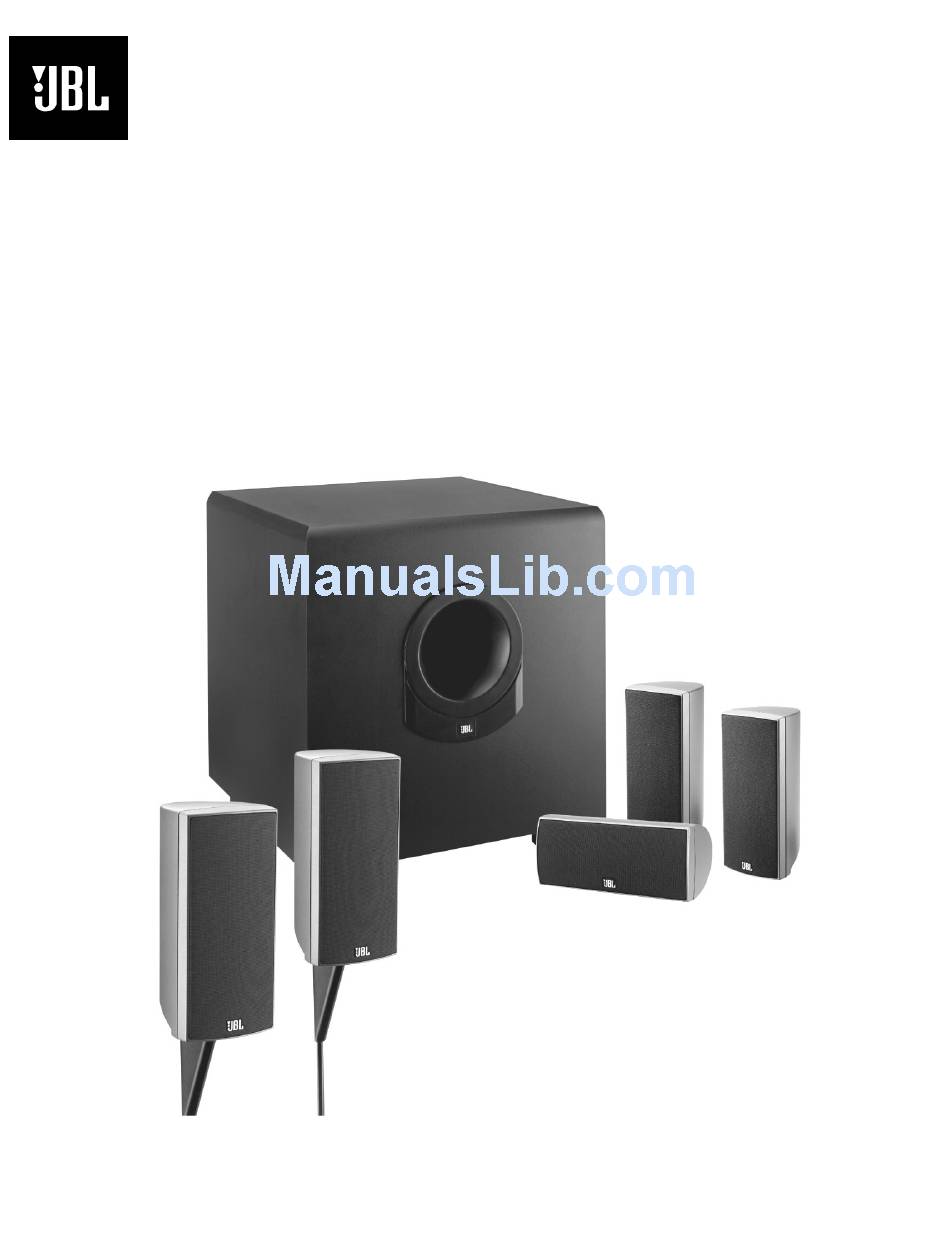

- Page 1 Simply Cinema Series SCS150SI Surround Cinema Speakers SERVICE MANUAL JBL Consumer Products 250 Crossways Park Dr. Woodbury, New York 11797 Rev0 11/2001...
-
Page 2: Table Of Contents
- CONTENTS - BASIC SPECIFICATIONS……………….……….……………….1 DETAILED SPECIFICATIONS ……..…………………………..2 CONNECTIONS…………… …..……………...…………..……...3 OPERATION...………….…………………………….…………….6 BASIC TROUBLESHOOTING……..……….…………………….7 SUB150 EXPLODED VIEW……..……….……………………….8 SUB150 PCB DRAWINGS…………… ……..…………….……..9 SCS150SI PACKING/SATELLITE PARTS LIST……..….…….15 SUB150 ELECTRICAL PARTS LIST ……………..…….…….16 SUB150 SCHEMATICS …………………………………….…21 SCS150SI System Frequency Response 30Hz – 20kHz (–6dB) Center... -
Page 3: Detailed Specifications
SUB150 150W Powered Sub/ Plate Amp LINE VOLTAGE Yes/No Hi/Lo Line Unit Notes US 120vac/60Hz 108-132 Vrms Normal Operation Asia 100vac/50Hz 90-110 Vrms Normal Operation Parameter Specification Unit QA Test Limits Conditions Notes Amp Section Type (Class AB, D, other) Load Impedance (speaker) 4 Ohms Nominal... -
Page 4: Connections
S P E A K E R C O N N E C T I O N S Connection Tips To use the binding-post speaker terminals on the subwoofer, unscrew the colored collar until the pass through hole in the center post is visible under the collar. -
Page 5: Speaker Level
Dolby Pro Logic (Non-Digital) – Speaker Level Use this installation method for Dolby Pro Logic appli- – – – cations (not Dolby Digital, ® or other digital processing), where the receiver/processor does not have a subwoofer output, or Subwoofer a volume-controlled preamp (line-) level output: HIGH LEVEL Connect your receiver or... - Page 6 Dolby Pro Logic (Non-Digital) – Line Level Use this installation method Use RCA-type patch cords Pro Logic processors. Note: If for Dolby Pro Logic appli- to connect the line-level your receiver or amplifier only cations (not Dolby Digital, DTS subwoofer outputs on your has one subwoofer output or other digital processing), receiver or amplifier to the...
-
Page 7: Operation
SAME TYPE 3.15A, 250 VOLT FUSE AVERTISSEMENT: UTILISEZ UN FUSIBLE DE RECHANGE DE MEME TYPE 3.15A, 250V SUB 150 POWER JBL, Incorporated A Harman International Company ¡ This area is designed to become quite warm during normal operation AC 120V~60Hz... -
Page 8: Basic Troubleshooting
• Check all wires and con- Web site at www.jbl.com for nections between receiver/ further information. If there is low (or no) bass amplifier and speakers. Make output: sure all wires are connected. -
Page 9: Sub150 Exploded View
SUB150 EXPLODED VIEW NOT FOR SALE SUB150 CABINET WI5447 FOOT – MAIN PLASTIC BODY WI5448 FOOT – RUBBER BOTTOM 06-T43005 FOOT SCREW T4*30L 25MF12DZB-DW02 10” WOOFER 06-T4205012 AMPLIFIER/WOOFER SCREWS T4*20L NOT FOR SALE SUB150 AMPLIFIER... -
Page 16: Scs150Si Packing/Satellite Parts List
SCS150SI PACKING/SATELLITE PARTS LIST Part# Description SATELLITES SCS150SI/SAT-1 Complete satellite 32PF55JE-LW02 3" Woofer 29DM15NA-FT03 13MM Dome Tweeter wi5213-g Foot wi0408 Wall bracket for sats wi0409 Support mural for sats CENTER CHANNEL SCS150SI/CENTER-1 Complete Center Channel xr5138-1 Crossover network wi5213-g Foot... -
Page 17: Sub150 Electrical Parts List
SUB150 Electrical parts List Part# Reference Designator Description Input/Power Amp PCB Semiconductors 197131n4148 D102,103,104,105,143,201-208, Diode 1N4148 211,212,214,215,216,301,302 19915000335 D213 Zener 3.3V 1/2W 52mm TAP 19915000625 D101 Zener 6.2V 1/2W 52mm TAP 19915001605 D502 Zener 16V 1/2W 52mm TAP 192027c1815gr Q108,109,113,201,206-208,301,302 Trans NPN 60V .15A 2SC1815GR 192027c2235y Q111 Trans NPN 120V 0.8A 2SC2235... - Page 18 Part# Reference Designator Description 11016221j26 R144 RES, 220 ohms 1/6W ±5% CF 11016222j26 R102 RES, 2.2K 1/6W ±5% CF 11016223j26 R238,247,255,256,263,316 RES, 22K 1/6W ±5% CF 11016273j26 R223,237 RES, 27K 1/6W ±5% CF 11016333j26 R310 RES, 33K 1/6W ±5% CF 11016393j26 R151 RES, 39K 1/6W ±5% CF...
- Page 19 Part# Reference Designator Description 1353106m50 C201,202,206,213,219,231,241,243, CAP, E 10U 50V ±20% TAP 251,253,319,321 1353107m10 C114,115 CAP, E 100U 10V ±20% TAP 1353107m16 C234 CAP, E 100uF 16V ±20% TAP 1353107m35 C507,508 CAP, E 100U 35V ±20% TAP 1353225m50 C509 CAP, E 2.2U 50V ±20% TAP 1353226m16 C304 CAP, E 22U 16V ±20% TAP20% TAP...
- Page 20 Part# Reference Designator Description 19209210376qs Q7,9 TRANS, PNP 50V 0.15A 2SA1037K 19209215146rs Q3,6 TRANS, PNP 120V 0.05A 2SA1514K 19703rls4148s D1,2,3,4,5,6 Diode RLS4148 19915000563s Z1,2 ZENER 5.6V 5% PHILIPS BZX84-C5 V6 19915001203s Z5,6 ZENER 12V 5% PHILIPS BZX84-C12 19915001503s Z3,4 ZENER 15V 5% PHILIPS BZX84-C15 192232irf9640 FET IRF9640 IR P-CH TO220 192233irf640...
