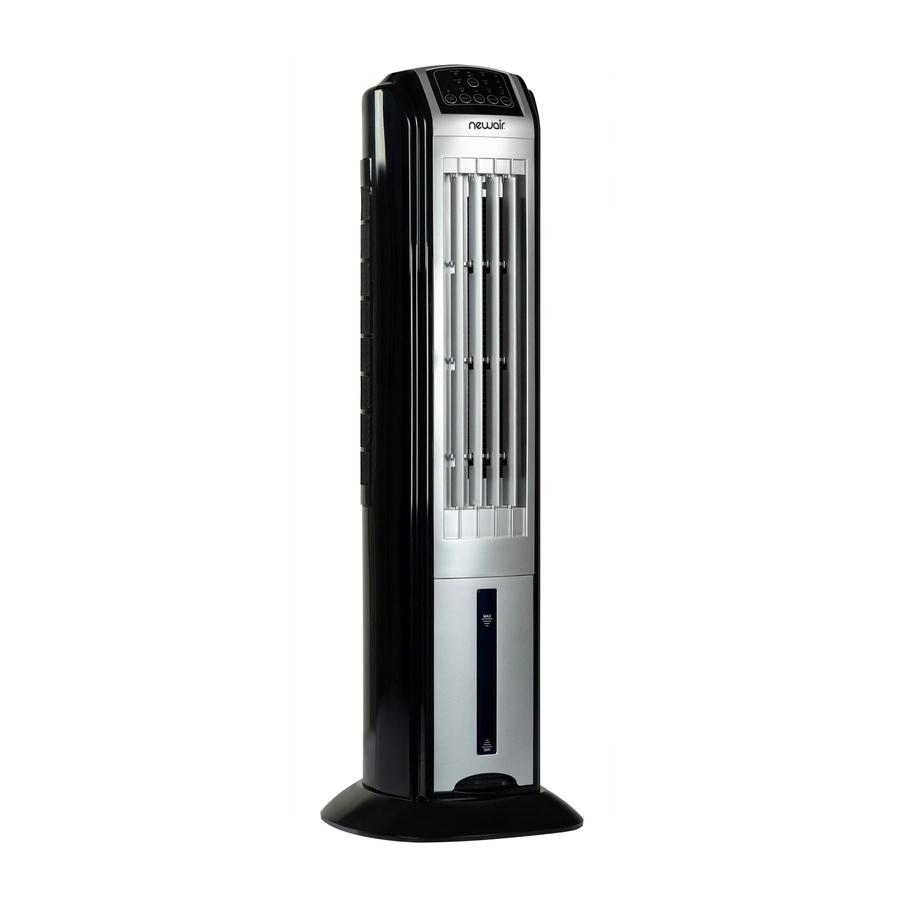

- Page 1 AF-310 Evaporative Cooling Fan With Remote Control *Please read and save these instructions.
-
Page 2: General Safety Information
General Safety Information Read and save these instructions for future reference. Carefully read these instructions before attempting to assemble, install, operate, or maintain this unit. Protect yourself and others by observing all safety precautions. Failure to comply with these instructions could result in personal injury and/or property damage. -
Page 3: List Of Parts
Change the water frequently in order to keep it clean. This unit must be operated in an upright position and on a flat, level surface. Do not operate the unit in wet or damp locations. Do not install the unit in a small, confined space such as a closet or cabinet. DISPOSAL: Do not dispose of this product as unsorted municipal waste. - Page 4 Using the Remote Control: Use the remote control within 19 feet (6 meters) from the unit. If the remote control does not work from a short distance away, try replacing the batteries. Do not allow children to play with the remote control. Figure 2 Before Operating the Unit Pull out the water tank and fill it with water before operating the fan (see Figure 3).
- Page 5 Operating Instructions Figure5 POWER Button: Connect the plug into the power outlet. A beeping sound will be heard once the plug is plugged in. Press the POWER button. The FAN indicator and HIGH speed indicator will turn on and beep. The unit will operate on the strongest air setting in normal mode.
- Page 6 For MED Speed + SLEEP Mode: Press the SLEEP button when the SPEED mode is set to MED. This will program the unit to work in SLEEP mode with MED wind speed. At this time, both the MED and SLEEP indicators will turn on.
- Page 7 Press the NATURE button when the SPEED mode is set to LOW wind speed. This will program the unit to work in NATURE mode with LOW wind speed. At this time, both the LOW and NATURE indicators will turn on. The wind speed will automatically change according to this schedule: à...
-
Page 8: Cleaning And Maintenance
fan. If this is desired, make sure the COOL button is in OFF mode. ION Button Press the ION button. The ION indicator will turn on and the ionizer will start to work. A stream of ions will be produced with the cool air. Air Direction Lever Adjust the direction of the inside wind bar by turning the lever. -
Page 9: Troubleshooting
Remove the back cover and dust filter from the unit. Remove the cooling pad from the unit; Rinse the filter net and cooling pad with water, and then dry them in direct sunlight. Replace the filter and cooling pad. Troubleshooting Problem Possible Reasons Solutions...
