SPECIFICATIONS
Conditions:
1. 0 dBu = 0.775 V rms
2. Dual-mode ratings are for each channel
3. Both channels operating at rated output
power unless noted
4. 120-volt ac line input voltage maintained
for all tests unless noted
Continuous Rated Output Power
(20-20,000 Hz at less than 0.1% THD,
both channels driven per EIA RS-490),
Dual Mode, 4 Ohms:
200 watts
Bridge Mode, 8 Ohms:
400 watts
Dual Mode, 8 Ohms:
125 watts
Bridge Mode, 16 Ohms:
250 watts
Continuous Rated Output Power to
Subwoofer (20-20,000 Hz at less than
0.1% THD, both channels driven per
EIA RS-490),),
Dual Mode, 4 Ohms:
215 watts
Bridge Mode, 8 Ohms:
435 watts
Dual Mode, 8 Ohms:
130 watts
Bridge Mode, 16 Ohms:
265 watts
Continuous Rated Output Power
(1 kHz, 1% THD, both channels driven per
EIA RS-490),
120 volts ac Line Voltage,
Dual Mode, 4 Ohms: > 230 watts
Bridge Mode, 8 Ohms: > 465 watts
Dual Mode, 8 Ohms: > 140 watts
Bridge Mode, 16 Ohms: > 285 watts
108 volts ac (10% sag),
Dual Mode, 4 Ohms: > 185 watts
Bridge Mode, 8 Ohms: > 370 watts
Dual Mode, 8 Ohms: > 110 watts
Bridge Mode, 16 Ohms: > 220 watts
100 volts ac (17% sag),
Dual Mode, 4 Ohms: > 155 watts
Bridge Mode, 8 Ohms: > 310 watts
Dual Mode, 8 Ohms: > 95 watts
Bridge Mode, 16 Ohms: > 190 watts
Headroom, Single Channel Mode
(before clip, at 1 kHz, 1% THD):
> 1 dB
Power Bandwidth (at 1 kHz, +0/–1 dBr,
where dBr equals rated output power in
any mode):
20-20,000 Hz
Frequency Response (at 1 kHz, 1 watt
output, +0/–3 dB):
10-50,000 Hz
Voltage Gain (at 1 kHz),
Dual Mode, 4 Ohms:
31 dB
Dual Mode, 8 Ohms:
32 dB
Bridge Mode, 8 Ohms:
37 dB
Bridge Mode, 16 Ohms:
38 dB
Input Sensitivity for Rated Output Power
(at 1 kHz, ±0.5 dB),
Dual Mode, 4 Ohms:
0 dBu (0.78 V rms)
Bridge Mode, 8 Ohms:
–0.25 dBu (0.78 V rms)
Dual Mode, 8 Ohms:
+0.5 dBu (0.89 V rms)
Bridge Mode, 16 Ohms:
+0.5 dBu (0.89 V rms)
Maximum Input Level (reference 1 kHz):
+20 dBu (7.75 V rms)

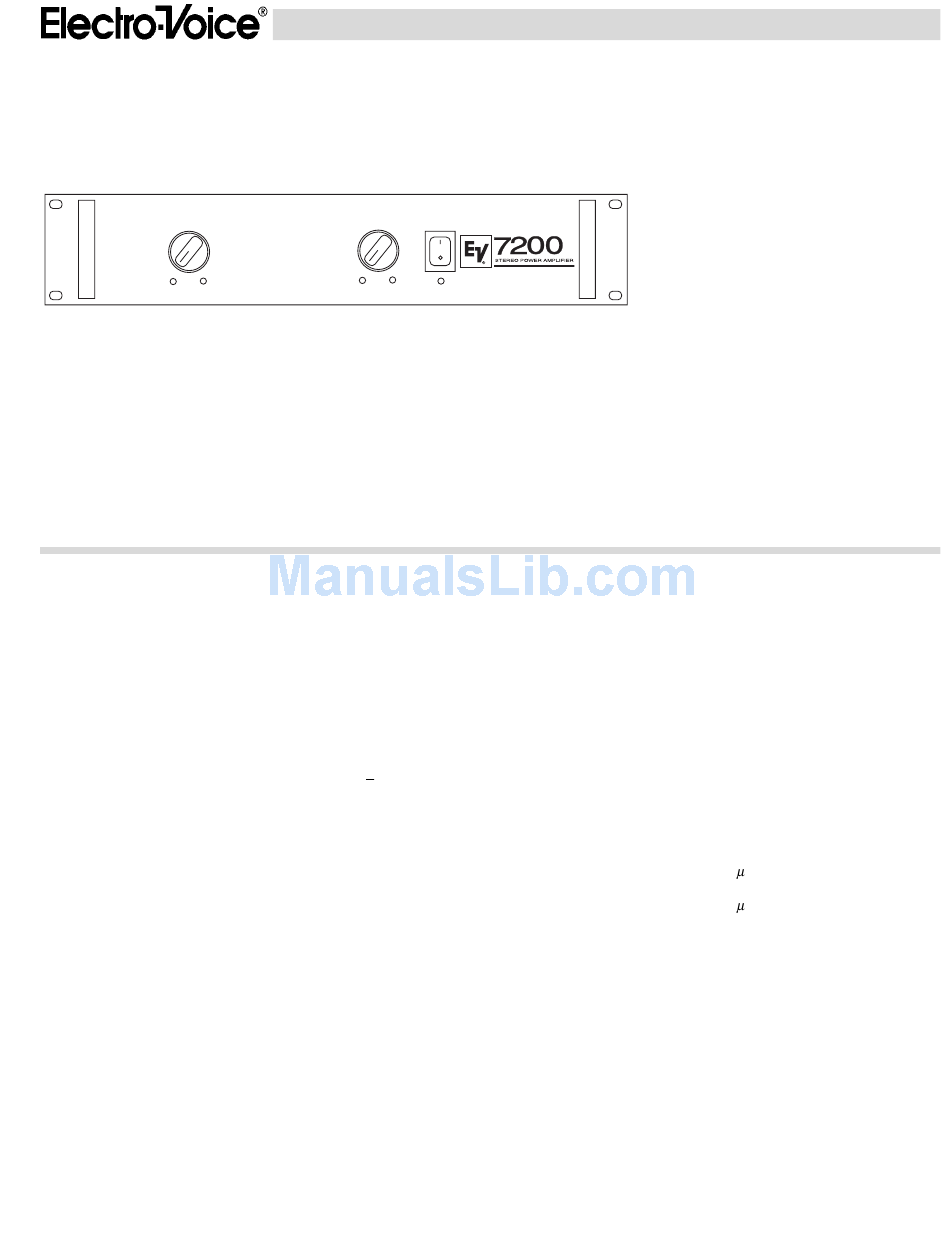

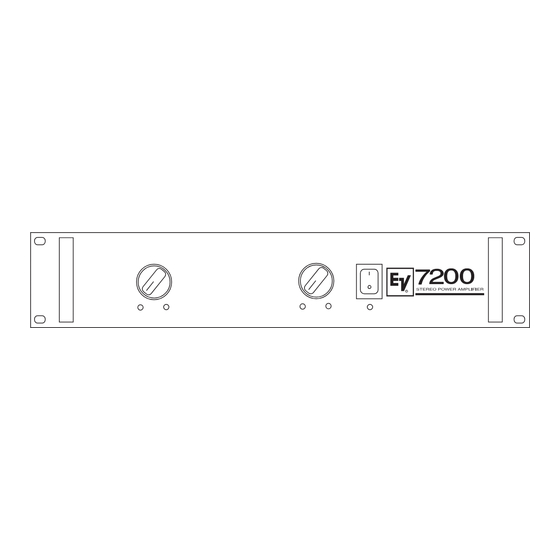

7200
Two-Channel
Power Amplifier
• Low-profile, two-rack-space
chassis (3.5-in. chassis
height)
• Convection cooled for zero
fan noise
• Front-mounted gain
controls, clip and protect
LEDs and rack handles for
easy access
• Octal sockets accept EV
crossover and equalizer
modules for easy system
expansion
•

3-year warranty

Input Impedance (reference 1 kHz),
Balanced:
> 30 kilohms
Unbalanced:
> 15 kilohms
Phase Response (at rated output power,
any mode),
at 20 Hz:
< +30°
at 20,000 Hz:
> –30°
THD (any mode, 30 kHz measurement
bandwidth):
< 0.1% (Typ. < 0.05%)
IMD [SMPTE 4:1] (Any mode):
< 0.1% (Typ. < 0.01%)
Slew Rate (at rated output power),
Dual Mode, 4 or 8 Ohms:
> 20 V/ sec
Bridge Mode, 8 or 16 Ohms:
> 25 V/ sec
Damping Factor, Dual Mode, 8 Ohms,
1 kHz:
> 100
Noise (below rated output power,
A-weighting filter, any mode,
50/60-Hz ac line frequency):
> 100 dB
Amplifier Protection:
Shortened output terminals
Over temperature
rf inteference
Load Protection:
Startup/shutdown transients
DC faults
Infrasonic signals
Cooling:
Convection (thermally equalized
black anodized aluminum heatsink)
Output Topology:
True complementary symmetry
3
/ -inch
16
