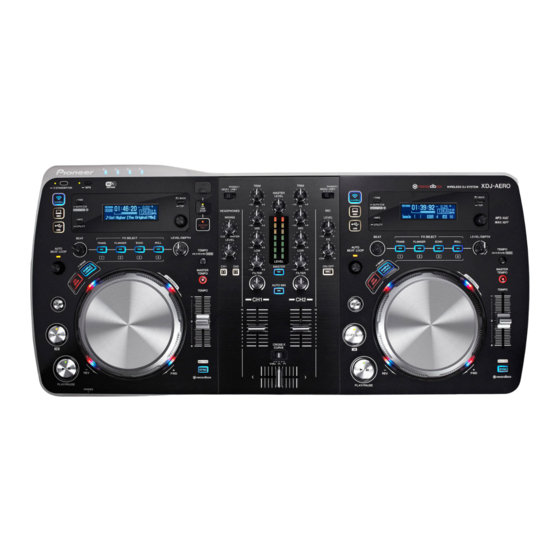

Pioneer XDJ-AERO Connection Manual

Dj system, traktor pro 2 software
Hide thumbs Also See for XDJ-AERO:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

See also: Use and Care Manual
DJ SYSTEM
XDJ-AERO
TRAKTOR PRO2
Connection Guide

Advertisement

loading

Related Manuals for Pioneer XDJ-AERO

Summary of Contents for Pioneer XDJ-AERO

  • Page 1 DJ SYSTEM XDJ-AERO TRAKTOR PRO2 Connection Guide...
  • Page 2 Introduction The XDJ-AERO is equipped with a computer control mode, allowing commercially available DJ software to be controlled when the XDJ-AERO is connected with a computer by USB cable. Pioneer provides a MIDI mapping file specifically for the Native Instruments TRAKTOR PRO 2 DJ software. When this file is used, TRAKTOR PRO 2 can be controlled with the XDJ-AERO * .
  • Page 3 Connections Connect the XDJ-AERO and computer using a USB cable. One USB cable is required. Connections with TRAKTOR PRO 2 To power outlet Computer Power cord (included) TRAKTOR PRO 2 USB cable AC adapter (included) SIGNAL LINE PHONO LINE PHONO DC IN MASTER OUT2 MASTER OUT1(TRS) PHONO2 / LINE2 PHONO1 / LINE1 MIC ATT.

  • Page 4: Downloading The Midi Mapping File

    [INFO (UTILITY)] button Set the XDJ-AERO to the mixer mode. 1 Press the XDJ-AERO’s [INFO (UTILITY)] button for over 1 second to open the [UTILITY] screen. 2 Turn the rotary selector to select [MIXER MODE], then press the rotary selector. 3 To use the XDJ-AERO’s mixer section to mix the sound: Turn the rotary selector to select [XDJ-AERO], then press the rotary selector.
  • Page 5 Set the XDJ-AERO to the control mode. 1 Press the DECK 1’s [ MIDI] button. 2 Press the DECK 1’s rotary selector. [MIDI CONTROL CONNECTED] appears on the DECK 1 display. 3 Press the DECK 2’s [ MIDI] button. 4 Press the DECK 2’s rotary selector.

  • Page 6: Output Monitor

    Make the output routing setting. Click [Output Routing]. To use the XDJ-AERO’s mixer section to mix the sound: Select [External] for [Mixing Mode]. Select the channels to which the sound of the respective decks is to be output from the pull- down menu, as shown below.
  • Page 7 For instructions on changing to a layout suited for when [Internal] is selected for [Mixing Mode], see page 9 *2. 4 Click the [OK] button. 5 Check the settings at [Device Setup]. Check that the following are selected: Device [PIONEER XDJ-AERO] In-Port [PIONEER XDJ-AERO] Out-Port [PIONEER XDJ-AERO] Device Target [Focus] (If not, select them manually from the pull-down menu.)
  • Page 8 The SAMPLE LAUNCH indicator lights dimly when in the effect mode, brightly when in the hot cue mode. 2-1. Effect (FX Group Mode) Track Decks (Decks A and B) Remix Decks (Decks C and D) * SAMPLE LAUNCH No XDJ-AERO buttons When SHIFT button When SHIFT button indicator status Function...
  • Page 9 DECK Change B D *2 Operates when the XDJ-AERO’s mixer mode is set to “PC”. When the mixer mode is set to “PC”, deck switching is possible with the INFO/UTILITY button and the four decks can be operated. To display TRAKTOR decks C and D, check “Show C&D” at “Preferences”...
