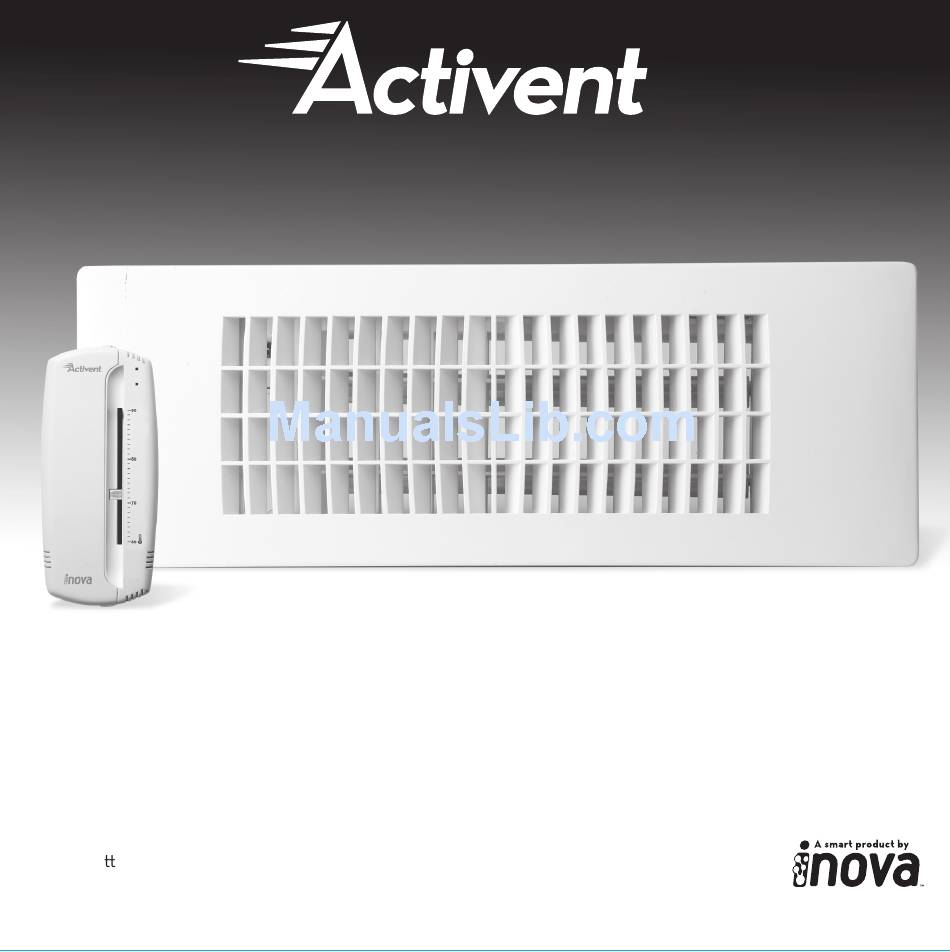

- Page 1 Electronic Room Temperature Regulator User Manual and Installation Guide Caution: Do not a empt to install or operate this product without reading this manual. For additional information, please visit www.theactivent.com.
- Page 2 This louver system is controlled by a temperature controller (RTC) that is mounted on the wall or simply placed in the room. The homeowner sets the desired temperature for the room and the RTC will open or close the louver system in the Activent unit to maintain the desired tempera- ture.
- Page 3 Installation: Step 1 – Unpack The Activent package contains 3 items; (1) The Activent louver system, (2) Activent louver cover and (3) a Remote Temperature Control (RTC). Activent Louver System Activent Louver Cover Remote Temperature Control...
- Page 4 Installation: Step2 – Matching the Activent and RTC combination codes Locate the combination code switch on the Activent louver system (fig. 1) and the RTC (fig. 2). The combination code is set by aligning a series of 5 micro switches. Slide the micro switches with the tip of a ball point pen to match that of the RTC.**...
- Page 5 Remove old grill and register from the air inlet. Place the Activent unit into the air inlet and secure with provided screws. Once the Activent unit is secured place the Activent grill cover over the unit. The grill cover has four strong magnets which a ach to the metal mounting plate of the Activent unit.
- Page 6 Auto Mode When the Mode switch (fig. 7) is in the “Auto” position, the opening and closing of the Activent louvers is controlled by the RTC. = Closed = Auto Auto = Open (fig. 7) Mode switch Manual Mode The Activent may be opened or closed manually.
- Page 7 Limited Warranty Inova Products, Inc warrants, to the consumer of this product, that it is free from defect in material and workmanship for one year from the date of purchase. Inova Products shall not be liable for incidental, indirect or consequential damages, due to improper installation and/or abuse. Inova Products obligation is limited to repair or replacement of the purchased products.
