Chapter 5—Base Frame
ON/OFF Switch
Schematics
38

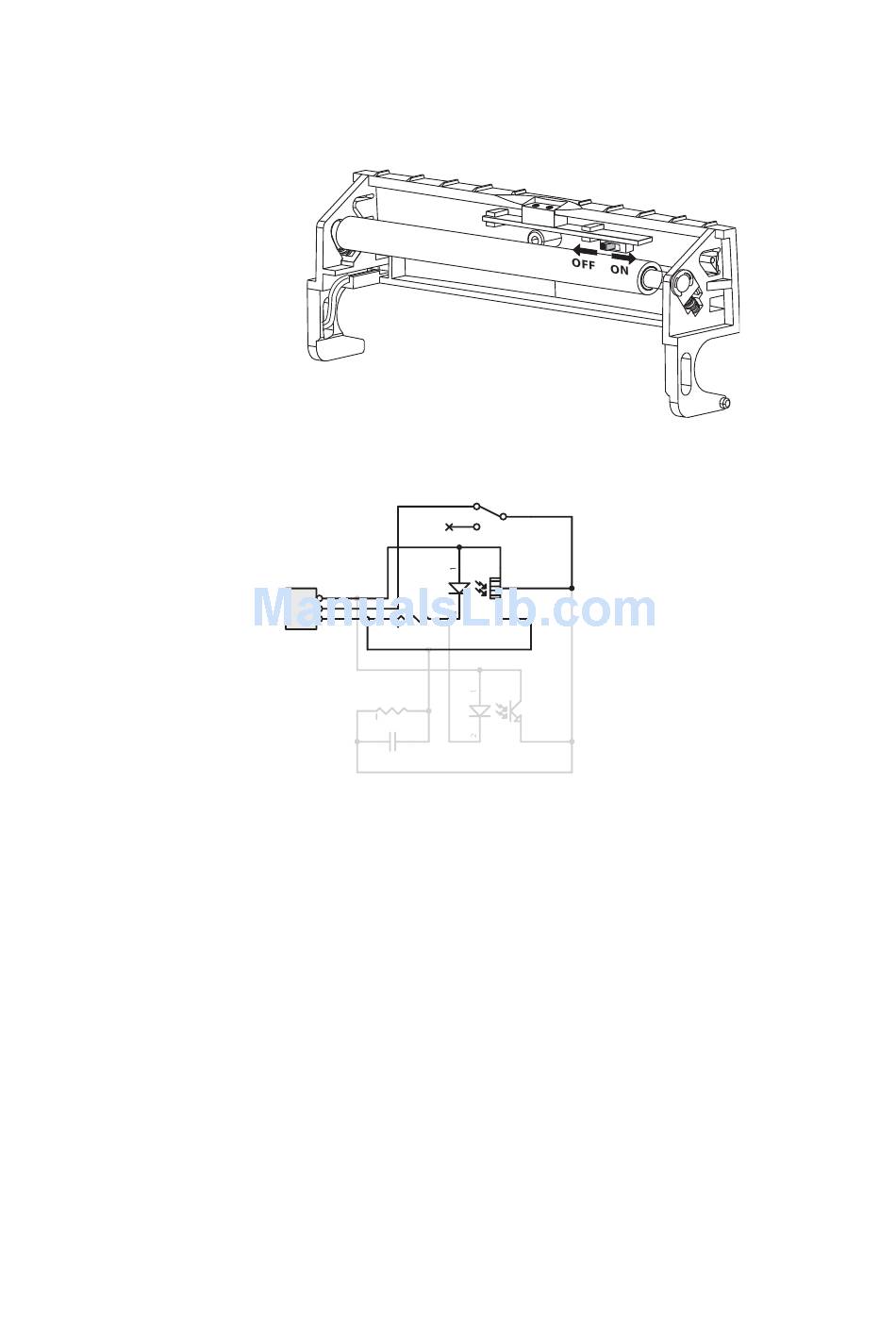

The On/Off switch makes it possible for the operator to enable/disable the
label taken sensor without having to issue an ESim command.
JP1
3
2
1
R3
C1
ON
SW1
OFF
5
4
3
R2
S02
3
4
S01
Intermec EasyCoder PC4—Service Manual
S01 S02
ON: ENABLE
STRIPPER YES
OFF: DISABLE
RIBBON YES
SW1 R2 R3
300
150 100K
