Axis Q7414 User Manual

Video encoder
Hide thumbs Also See for Q7414:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
USER MANUAL

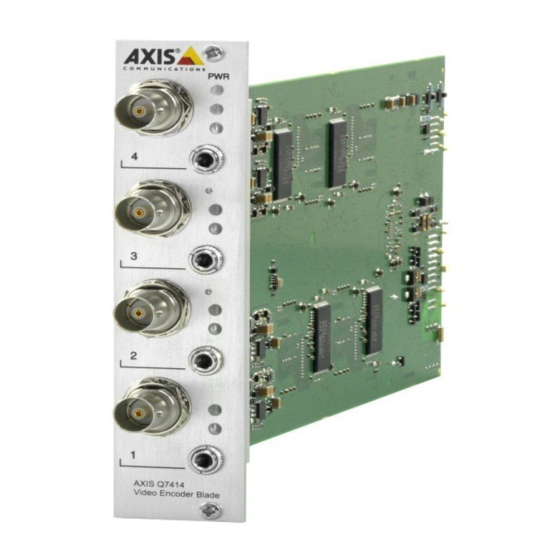

AXIS Q7414 Video Encoder

Advertisement

Table of Contents
loading

Related Manuals for Axis Q7414

Summary of Contents for Axis Q7414

  • Page 1 USER MANUAL AXIS Q7414 Video Encoder...
  • Page 2 A copy of the original declaration of conformity may be obtained from Axis Communications AB. See Contact Information, on page 3 . This manual is intended for administrators and users of the AXIS Q7414 Video Encoder, and is applicable to firmware 5.50 and later. It includes Electromagnetic Compatibility (EMC) instructions for using and managing the product on your network.
  • Page 3 • find answers to resolved problems in the FAQ database. Search by product, category, or phrase • report problems to Axis support staff by logging in to your private support area • chat with Axis support staff (selected countries only) •...

  • Page 4: Table Of Contents

    AXIS Media Control (AMC) ........
  • Page 5 AXIS Q7414 Video Encoder Table of Contents Advanced ............

  • Page 6: Hardware Overview

    Audio Connector The Axis product is equipped with 3.5 mm audio input and output connectors combined. The connectors are compatible with M6 x 0.5 threaded locking collars.

  • Page 7: Pin Assignments For I/O Connector - Axis 291 1U Video Server Rack

    Resetting the product to factory default settings. See page 52. • Connecting to an AXIS Video Hosting System service. See page 45. To connect, press and hold the button for about 1 second until the Status LED flashes green. •...

  • Page 8: Pin Assignments For Rs485 Connector - Axis Q7900 And Axis Q7920 Chassis

    AXIS Q7414 Video Encoder Hardware Overview Channel 5, Configurable I/O 2 Channel 6, Configurable I/O 2 Pin Assignments for RS485 Connector - AXIS Q7900 and AXIS Q7920 Chassis Function Description Channel 1, RS485A A half-duplex RS485 interface for controlling auxiliary equipment such as PTZ devices.

  • Page 9: Accessing The Product

    Macintosh computer (Mac OS X), click on the Bonjour tab and select the product from the drop-down list. If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For information about how to discover and assign an IP address, see the Installation and Management Software CD or the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup...

  • Page 10: Access From The Internet

    Set the Root Password To access the Axis product, you must set the password for the default administrator user root. This is done in the Configure Root Password dialog, which opens when the product is accessed for the first time.

  • Page 11: The Live View Page

    Click Snapshot to save a snapshot of the video image. Right-click the video image to save it in JPEG format on your computer. This button is primarily intended for use when the AXIS Media Control viewer toolbar is not available.
  • Page 12 2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC), on page 14 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.
  • Page 13 AXIS Q7414 Video Encoder Accessing the Product Click the Emulate joystick mode button and click in the image to move the camera view in the direction of the mouse pointer. Click the Center mode button and click in the image to center the camera view on that position. The center mode button could also be used to zoom in on a specific area.

  • Page 14: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 20 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 15: Alternative Methods Of Accessing The Video Stream

    AXIS Q7414 Video Encoder Media Streams The AMC Control Panel can be used to configure various video and audio settings. Please see the AXIS Media Control User’s Manual for more information. The AMC Control Panel is automatically installed on first use, after which it can be configured. Open the AMC Control Panel from: •...

  • Page 16: Accessing Audio Streams

    • The Axis product supports QuickTime 6.5.1 and later. • QuickTime adds latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Page 17: Setting Up The Product

    Setting Up the Product Setting Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Page 18: Video And Audio

    AXIS Q7414 Video Encoder Video and Audio Video and Audio The video and audio settings can be used to optimize video and audio quality. You can configure the following: • Video stream settings. See page 18. • Stream profiles. See page 20.
  • Page 19 Use the mouse to move and resize the rectangle, or enter the number of pixels in the Width and Height fields and click Apply. • The Live View page in Internet Explorer with AXIS Media Control (AMC) in Windows. Right-click in the image and select Pixel counter. Use the mouse to move and resize the rectangle. Image The default image settings can be configured under Video &...

  • Page 20: Stream Profiles

    To select a default stream profile for the Live View page, go to Setup > Live View Config. Camera Settings The Video & Audio > Camera Settings page provides access to advanced image settings for the Axis product. Image Appearance Increasing the Color level increases the color saturation.
  • Page 21 To set up a dynamic mask, which will always mask the specified part of monitored area, see Privacy Mask, on page 22 To use an overlay image, the image must first be uploaded to the Axis product: 1. Go to Video & Audio > Overlay Image.

  • Page 22: Privacy Mask

    Half-duplex - Audio can be transmitted to and from the Axis product but only in one direction at a time. To transmit audio using the Live View page, use the Talk and Listen buttons, see AMC Audio Controls, on page 12.

  • Page 23: Audio Clips

    Select the microphone sensitivity level (High/Low) depending on the sound level in the monitored area. For example, if the Axis product is installed in a noisy environment, try setting the input sensitivity to Low.
  • Page 24 To add, download, modify or remove audio clips, go to Video & Audio > Audio Clips. For more information see the online help To configure the Axis product to play audio clips when an event occurs, an action rule must be set up. For more information, see Events, on page 36.

  • Page 25: Live View Config

    AXIS Q7414 Video Encoder Live View Config Live View Config You can customize the Live View page and alter it to suit your requirements. It is possible to define the following features of the Live View page. • Stream Profile. See page 20.
  • Page 26 Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...
  • Page 27 AXIS Q7414 Video Encoder Live View Config Pulse activates the output for a defined period of time. The pulse time can be set from 1/100 second to 60 seconds. Active/Inactive displays two buttons, one or each action. To configure the active and inactive states, go to System Options > Ports & Devices > I/O Ports and set the port’s Normal state.

  • Page 28: Ptz (Pan Tilt Zoom)

    AXIS Q7414 Video Encoder PTZ (Pan Tilt Zoom) PTZ (Pan Tilt Zoom) The PTZ menu is available if a PTZ driver has been uploaded. See Installing a PTZ driver, on page 30. Preset Positions A preset position is a predefined view that can be used to quickly steer the camera to a specific location. Preset positions can be accessed in several ways: •...

  • Page 29: Guard Tour

    • Extended Driver Specific Settings for Video Source For download and installation information about PTZ drivers for your Axis product please visit www.axis.com/techsup/ Controls Panel Shortcut Command Buttons can be configured to provide direct access to commands issued via the VAPIX® Application Programming Interface.

  • Page 30: Installing A Ptz Driver

    60 seconds after the last PTZ control command. 2. Event — The Axis product can be configured to go to a preset position when triggered by an alarm (see Events, on page 36). The event will immediately be placed first in the queue except when an administrator is in control.

  • Page 31: Detectors

    Motion Detection Parameters, on page 32. Once motion detection windows are configured, the Axis product can be configured to perform actions when motion is detected. Possible actions include uploading images and start recording. For more information, see Setting Up an Action Rule, on page 37.

  • Page 32: Motion Detection

    AXIS Q7414 Video Encoder Detectors Note • Using the motion detection feature may decrease the product’s overall performance. • The position of the Motion Detection Window is relative to the orientation of the Camera. Changing the orientation of the camera will also change the position of the Motion Detection Window.

  • Page 33: Audio Detection

    Audio Detection The Axis product can be configured to generate an alarm when audio rises above or falls below the threshold value. The threshold value can be set in the range 0–100 where 0 is the most sensitive and 100 the least sensitive.

  • Page 34: Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...
  • Page 35 AXIS Q7414 Video Encoder Applications If the Axis product is reset to factory default, installed applications and their settings are removed. For information about factory default, see Reset to Factory Default Settings.

  • Page 36: Events

    Events The Axis product can be configured to perform actions when different events occur, for example, start a recording when motion is detected. The set of conditions that defines how and when the action is triggered is called an Action Rule.

  • Page 37: Setting Up An Action Rule

    AXIS Q7414 Video Encoder Events • Time Recurrence – Trigger the rule periodically. SeeRecurrences, on page 39. This can for example be used to upload an image every 5 minutes. Use Schedule – Trigger the rule according to the selected schedule. See Schedules, on page 39.

  • Page 38: Recipients

    AXIS Q7414 Video Encoder Events To add additional criteria, select the Additional conditions option and add additional triggers. To prevent an action from being triggered repeatedly, a Wait at least time can be set. Enter the time in hours, minutes and seconds, during which the trigger should be ignored before the action rule can be activated again.

  • Page 39: Schedules

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see Certificates, on page 43.

  • Page 40: Recording List

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. See Storage, on page 49 for more information about storage devices. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Page 41: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Page 42: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Page 43 Axis product: Server/Client certificates - To authenticate the Axis product. CA certificates - To authenticate peer certificates, for example the certificate of an authentication server in case the Axis product is connected to an IEEE 802.1X protected network.

  • Page 44: Date & Time

    2. Click Install certificate and upload the certificate. Audio Support Select Enable audio support to allow clients to retrieve audio streams from the Axis product. For information on how to configure audio settings, see Audio Settings, on page 22. Note Deselecting this option will disable audio globally in the Axis product, for configured events and profiles with audio as well.

  • Page 45: Network

    IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.
  • Page 46 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 47 SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be sent to a destination outside the local network (for example the Internet).
  • Page 48 To use SNMP v3, HTTPS must be enabled, see HTTPS, on page 42. To enable SNMP v3, check the box and provide the initial user password. Note The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see Reset to Factory Default Settings, on page 52. UPnP The Axis product includes support for UPnP .

  • Page 49: Storage

    I/O Ports Configure the input and output ports supported by your Axis product from System Options > Ports & Devices > I/O Ports. Ports can be given descriptive names, and their Normal state can be configured. For more information about this see the online help .

  • Page 50: Maintenance

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 51: Advanced

    For more information, see www.axis.com/developer File Upload Files, for example web pages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Page 52: Reset To Factory Default Settings

    AXIS Q7414 Video Encoder System Options Reset to Factory Default Settings Important Reset to factory default should be used with caution. A reset to factory default will reset all settings, including the IP address, to the factory default values. Note The installation and management software tools are available on the CD supplied with the product and from the support pages on www.axis.com/techsup...

  • Page 53: Troubleshooting

    Always read the upgrade instructions and release notes available with each new release, before upgrading the firmware. To upgrade, follow these instructions: 1. Save the firmware file to your computer. The latest version of the firmware is available free of charge from Axis website at www.axis.com/techsup 2.

  • Page 54: Symptoms, Possible Causes And Remedial Actions

    Status indicator. 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/ Symptoms, Possible Causes and Remedial Actions Problems setting the IP address Try the installation again.
  • Page 55 Check with your network administrator to see if there is a firewall preventing viewing. Installation of additional Configure the Axis product to use a Java applet for updating video images in your browser. Go to ActiveX component Setup > Live View Config and select Java applet under Default viewer.
  • Page 56 AXIS Q7414 Video Encoder Troubleshooting Lower frame rate than See Performance Considerations, on page 59. expected Reduce the number of applications running on the client computer. Limit the number of simultaneous viewers. Check with the network administrator that there is enough bandwidth available.

  • Page 57: Technical Specifications

    AXIS Q7414 Video Encoder Technical Specifications Technical Specifications Item Specifications Function/group Video Encoder Model AXIS Q7414 Pan/Tilt/Zoom Wide range of analog PTZ cameras supported (drivers available for download at www.axis.com) 100 presets/camera, guard tour, PTZ control queue Supports Windows compatible joysticks...
  • Page 58 Integration Programming at www.axis.com Interface Includes the ONVIF Profile S; specification at www.onvif.org Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection Intelligent video Video motion detection, active tampering alarm, Support for AXIS Camera Application Platform enabling installation of additional applications...

  • Page 59: Connectors

    Technical Specifications Connectors Audio Connector The Axis product is equipped with 3.5 mm audio input and output connectors combined. The connectors are compatible with M6 x 0.5 threaded locking collars. • In: Balanced or unbalanced input for a mono microphone or line signal.
  • Page 60 AXIS Q7414 Video Encoder Technical Specifications • Heavy network utilization due to poor infrastructure. Bandwidth affected. • Viewing on poorly performing client computers lowers perceived performance. Frame rate affected.
  • Page 61 User Manual Ver. M1.3 AXIS Q7414 Video Encoder Date: November 2013 © Axis Communications AB, 2013 Part No. 54418...
