User Manual
IMPORTANT!
This Guide refers to the
following Products:
F1UP0002
TSG-UK-1-003
TSG-UK-1-001
Self Help Guide
Self Help Guide
®
®
All-In-One Print Server Setup
Please read the following carefully;
Synopsis:
The following guide is designed to assist you with
the installation and configuration of your Wireless

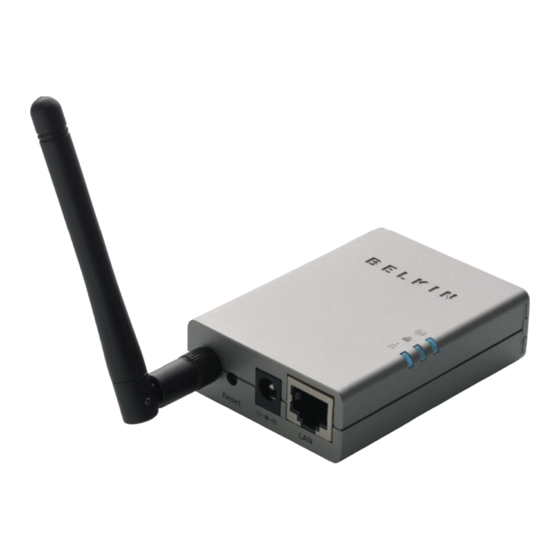

All-In-One Print Server (F1UP0002).
The Guide assumes that you already have all the
details of your existing Wireless Network, and that
this is working successfully.
Requirements:
To complete this Guide you will need to ensure
that you have the following equipment;
• Working Wireless Network
• Wireless All-In-One Print Server
• Printer (can be a Multifunction device)
• USB A-B (Device) cable
• Power Cables (as required)
• Computer running Min. Windows 2000 (SP4)
|
|
www.belkin.com
www.belkin.com
|
|
Page 1 of 10
Page 1 of 1
Advertisement
Related Manuals for Belkin F1UP0002
Summary of Contents for Belkin F1UP0002
- Page 1 Synopsis: The following guide is designed to assist you with the installation and configuration of your Wireless All-In-One Print Server (F1UP0002). The Guide assumes that you already have all the details of your existing Wireless Network, and that this is working successfully.
- Page 2 Insert the Print Server Software CD and install the Software. Click ‘Next’ to continue. A Window will then appear giving you the option to change where the installed files will be located on your Computer. Belkin recommends using the default option. Click ‘Next’ and the software will install.
- Page 3 You will then be required to name (Alias) the Print Server and give this a description. (This is particularly useful if you have more than one Print Server) TSG-UK-1-001 TSG-UK-1-003 www.belkin.com www.belkin.com Page 1 of 1 Page 3 of 10...
- Page 4 You will then see a list of the available wireless networks that the Print Server can connect to. Select the SSID (Wireless Name) of your Wireless Router and then click ‘Next’. TSG-UK-1-001 TSG-UK-1-003 www.belkin.com www.belkin.com Page 1 of 1 Page 4 of 10...
- Page 5 If these details are correct click ‘Next’. The Print Server will then be configured with the settings you entered. Click ‘Finish’. You will then be asked whether or not you wish the Belkin All-In-One Printer Manager to automatically start when Windows loads. Click ‘Yes’...
- Page 6 Install the Printer Software. If the Printer Software is already installed please see the section entitled ‘Printer Software Pre-Installed’. Once the Printer Software has been installed click the ‘+’ (plus sign) next to the heading ‘Print Server’. TSG-UK-1-001 TSG-UK-1-003 www.belkin.com www.belkin.com Page 1 of 1 Page 6 of 10...
- Page 7 Select your Print Server from the list. Select the appropriate Printer Queue (This is normally the name of the Printer). Once complete click ‘OK’. The Printer you selected will now be listed in the Auto Connect list. Close down the Belkin All-In-One Printer Manager Software. You will now be able to print automatically.
- Page 8 Windows starts. Click ‘Yes’. The All-In-One Printer Manager will now load. You will also see an icon for the All- In-One Printer Manager located by the System Clock. TSG-UK-1-001 TSG-UK-1-003 www.belkin.com www.belkin.com Page 1 of 1 Page 8 of 10...
- Page 9 Select your Print Server from the list. Select the appropriate Printer Queue (This is normally the name of the Printer). Once complete click ‘OK’. The Printer you selected will now be listed in the Auto Connect list. Close down the Belkin All-In-One Printer Manager Software. You will now be able to print automatically.
- Page 10 As a result of installing the Print Server in this manner you will see that there are multiple entries for the same Printer listed in ‘Printers and Faxes’. TSG-UK-1-001 TSG-UK-1-003 www.belkin.com www.belkin.com Page 1 of 1 Page 10 of 10...
