American DJ X-Treme/AS User Instructions

American DJ
Thank you for purchasing this American DJ
Please read the following instructions before installing or using your new unit.
X-Treme/AS™ Features
• New ZB-SC150 "Super Color" 150W, 4,000K 6,000Hr lamp
• 9 Dichroic Colors plus White
• 8 Gobos plus Spot on separate wheel
• 360 degree rotation of Gobo and Color Wheels
• DMX-512 Protocol
• Controlled by the X-Treme/19C™ or X-Treme/C™ Basic Controller

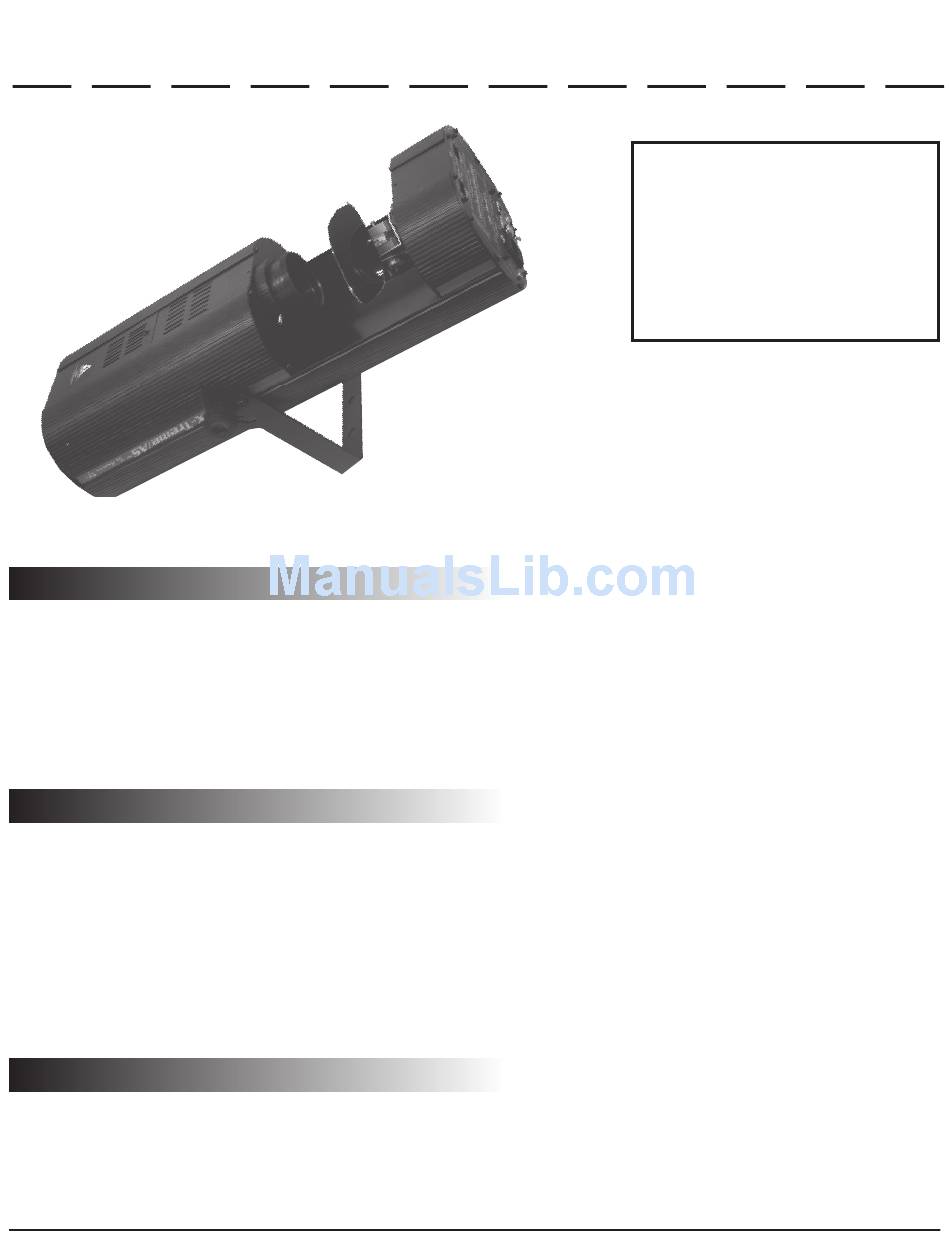

X-Treme/AS™ Description
The X-Treme/AS™ intelligent lighting fixture features a long life, extremely bright 150W arcstream lamp, 9 rich dichroic
colors plus white, 8 gobos plus spot, separate gobo/color wheels, and strobes in every color. 360 degree rotation of
gobo & color wheels with speed control provide a X-treme™ lighting show for club, concert, and mobile use. DMX-
512 protocol. Fan cooled. Also available in 220V operation. Controlled by the X-Treme/19C™ or X-Treme/C™. The
X-Treme/19C™: Programmable controller with 64 channel DMX-512 output; Ergonomic joystick control of pan/tilt motion;
56 professionally designed pan/tilt motions; 6 Show memories of 300 steps; Show memories can be chased for long
concerts; Instant manual override and control of all projectors and functions; Built-in gobo & color chases; and Quick,
intuitive modular programming. Control up to 16 heads. 120V or 220V operation. 3 space, 19 in. rack mount. The
X - Tr e m e / C ™ : A b a s i c c o n t r o l l e r t h a t o p e ra t e s bl a cko u t ; bu i l t - i n p r o gra m s ; g o b o / c o l o r c h a n g e ;
speed control of gobo/color wheels; and strobing. Control up to 8 heads. 120V or 220V operation.
X-Treme/AS™ Specifications
Voltage: 120V , 60 Hz
Dimensions: 22.75" x 9" x 6.5" / 740mm x 293mm x 212mm
Lamp: ZB-SC-150, 150W, 4,000K 6,000 hour lamp l
Weight: 27 lbs. / 12.3 kg.
Fuse: 5A
American DJ
©
®
product. Some assembly required.
®
Los Angeles Ca. 90058 - www.americandj.com - X-Treme/AS™ Page 1
®
User Instructions
X-Treme/AS
I N T E L L I G E N T L I G H T I N G F I X T U R E
HALOGEN LAMP WARNING!
This fixture is fitted with a halogen lamp
which is highly susceptible to damage if
improperly handled. Never touch lamp
with bare fingers as the oil from your
hands will shorten lamp life. Also, never
move fixture until lamp has had ample
time to cool. Remember, lamps are not
covered under warranty conditions.
™
