- Page 1 Underwater Pool Color-Changing LED Light Installation and User’s Guide IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS ® IntelliBrite 5g Pool LED Light Installation and User’s Guide...
-
Page 2: Table Of Contents
Installing the IntelliBrite 5g light Fixture (after electrical requirements are met) ............7 Replacing the IntelliBrite 5g Pool LED Light Assembly (in an existing pool) .. 9 Replacing the IntelliBrite 5g Pool LED light (after electrical requirements are met) ............10 Replacing the IntelliBrite 5g Pool LED Circuit Board (in an existing pool).. - Page 3 Important Safety Information for Light Installation • All Niche and Light installations must conform with all codes. If local codes mandate a cord seal, use Pentair Water Pool and Spa Inc., (“Pentair”) plastic niches (P/N 79206600 and P/N 79206700). •...
- Page 4 ® IntelliBrite 5g LED light fixture must only be used with Pentair Water Pool and Spa fixture housings (niches). If the IntelliBrite LED light fixture is installed into other niches, the installation will not carry U.L. approval and will void all warranties.
-
Page 5: Intellibrite 5G Underwater Pool Led Lights Overview

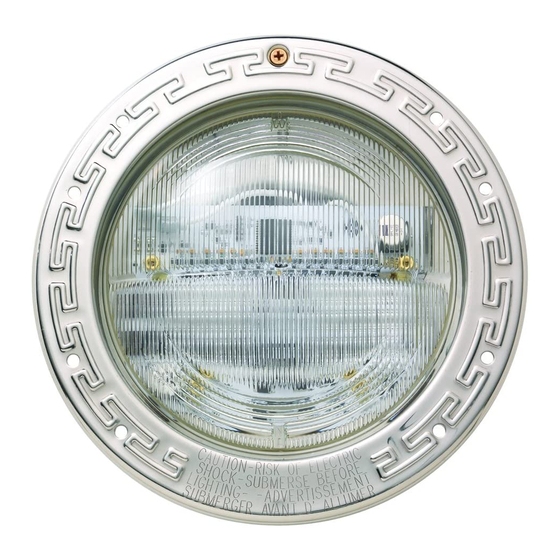

IntelliBrite 5g Pool LED Light; 12 VAC, (requires 120 VAC to 12 VAC transformer). P/N 60101x (UL certified), P/N 60201x (CSA certified) Note: Cord length vary from 30 ft. (9.14 m) to 250 ft. (76.2 m). For IntelliBrite 5g light replacement parts list, see page 18. -
Page 6: Operating Intellibrite 5G Led Lights Using A Wall Switch
Multiple IntelliBrite LED lights can be connected via a junction box to a single switch so that all lights can be switched on and off together. IntelliBrite 5g lights are controlled by cycling AC power from a standard wall switch. By turning the switch on and off a specific number of times, the light activates one of the seven light show modes, fixed colors, and enables the “Hold”... -
Page 7: Intellibrite Controller (Optional)
300 Watts maximum. The following example combination of IntelliBrite LED lights can be connected to the IntelliBrite Controller: • Two (2) IntelliBrite 5g pool LED lights (each light 50 Watt maximum) or two (2) IntelliBrite pool LED lights (each light 70 Watt maximum) •... -
Page 8: Saving A Color Mode Or Fixed Color
Operating IntelliBrite Pool Lights using a wall switch (Continued) Saving a color mode or fixed color When power is switched off to the IntelliBrite lights, the last color show mode or fixed color will be saved. The next time the light is powered on, the previously saved color show mode or fixed color will be displayed. -
Page 9: Powering On The Light / Troubleshooting
Powering on the light When the IntelliBrite LED light is powered on, a momentarily white light will illuminate, followed by the previously selected color. Note: If power to the light is off for more than five seconds, the last color show mode or fixed color that was saved will be displayed. -
Page 10: Intellibrite 5G Pool Led Light Fixture Installation (New Pool Construction)
INTELLIBRITE 5g POOL LED LIGHT FIXTURE INSTALLATION (NEW POOL CONSTRUCTION) The following describes how to install the IntelliBrite 5g pool LED light fixture. Read through pages 6 through 8 before starting the installation procedure. BEFORE STARTING: The following information describes the tasks that must be completed by the electrician before the IntelliBrite light fixture is installed in a new pool construction. -
Page 11: (After Electrical Requirements Are Met)
INSTALLING THE INTELLIBRITE 5G POOL LED LIGHT FIXTURE (AFTER ELECTRICAL REQUIREMENTS ARE MET) ® IntelliBrite 5g Pool LED Light Installation and User’s Guide... - Page 12 INSTALLING THE INTELLIBRITE 5G POOL LED LIGHT FIXTURE (AFTER ELECTRICAL REQUIREMENTS ARE MET) (CONTINUED) ite light (after electrical requirements are met) 1. Feed cord through conduit to Junction Box, leaving at least four (4) feet of cord at the light fixture to coil around the light; see Figure 1, on page 7.
-
Page 13: Replacing The Intellibrite 5G Pool Led Light Assembly (In An Existing Pool)
REPLACING THE INTELLIBRITE 5G POOL LED LIGHT ASSEMBLY (IN AN EXISTING POOL) Risk of Electrical Shock or Electrocution! This underwater light must be installed by a licensed or certified electrician or a qualified pool professional in accordance with the National Electrical Code and all applicable local codes and ordinances. -
Page 14: (After Electrical Requirements Are Met)
REPLACING THE INTELLIBRITE 5G POOL LED LIGHT FIXTURE (AFTER ELECTRICAL REQUIREMENTS ARE MET) The following installation instructions describe how to replace the IntelliBrite 5g Pool LED light fixture from an existing pool. Failure to bring the pool or spa’s electrical system up to code requirements... -
Page 15: Replacing The Intellibrite 5G Pool Led Circuit Board (In An Existing Pool)
(see Figure 1 on page 7). This four (4) feet of cord coiled around the light allows the light to be serviced. 10. Install the IntelliBrite 5g light assembly into the niche in the pool. 11. Install the special bronze pilot screw at the top of face ring to secure the light to the niche. - Page 16 REPLACING THE INTELLIBRITE 5G POOL LED LIGHT ASSEMBLY (IN AN EXISTING POOL) (Continued) REMOVING THE 5g INTELLIBRITE LED LIGHT: Remove the pilot screw at top of face ring, remove the light assembly from the niche. Place the assembly on the deck. Note: It is not necessary to drain down the pool.
-
Page 17: Installing Led Light With New Gasket
Light housing Circuit board stud (4x) INSTALLING THE INTELLIBRITE 5g POOL LED LIGHT ASSEMBLY WITH NEW GASKET (see illustration on next page) 10. Place the two thermal strips (provided) over the circuit board studs in the base of the light housing (see illustration on next page).. - Page 18 (see diagram on page 15 for brass nut location). Note: The IntelliBrite 5g light lens ships from the factory in the ‘WIDE’ (W) angle position. To use the “NARROW” angle light beam, rotate the lens/gasket to align the letter “N”...
- Page 19 PILOT SCREW (12 O’clock) “W” ON LENS BRASS NUT Align letter “W” (“WIDE” angle) on lens/gasket with pilot screw hole on face ring and brass nut For “NARROW” angle light beam, rotate “N” to 12 O’clock position 17. INSTALL UNI-TENSION CLAMP: With the hook ends of the circular uni-tension clamp pointing down, spread the clamp and place it in the “U”...
- Page 20 20. Install the special bronze pilot screw at the top of face ring to secure the light to the niche. Pilot screw (brass) 21. Final check for proper IntelliBrite light operation: Switch on the main switch or circuit breaker to the system, and the switch that operates the IntelliBrite underwater light itself.
-
Page 21: Wide And Narrow Angle Lens Adjustment
‘narrow’ (N) angle light beam position for increased underwater light intensity and distance. Note: The IntelliBrite 5g light lens ships from the factory in the ‘WIDE’ (W) angle position. NARROW ANGLE... -
Page 22: Intellibrite 5G Pool Led Light Assembly Replacement Kit Part Numbers
- Gasket, 8-3/8 in. diameter, off white. 79104800 Pilot screw, with captive gum washer. 79101600 Gasket, 8-3/8 in. diameter, off white. Note: The 120 VAC IntelliBrite 5g pool LED light has an integrated 12 VAC transformer. ® IntelliBrite 5g Pool LED Light Installation and User’s Guide... - Page 23 Notes ® IntelliBrite 5g Pool LED Light Installation and User’s Guide...
