Summary of Contents for Panarex Electronics Linkbox N-1000

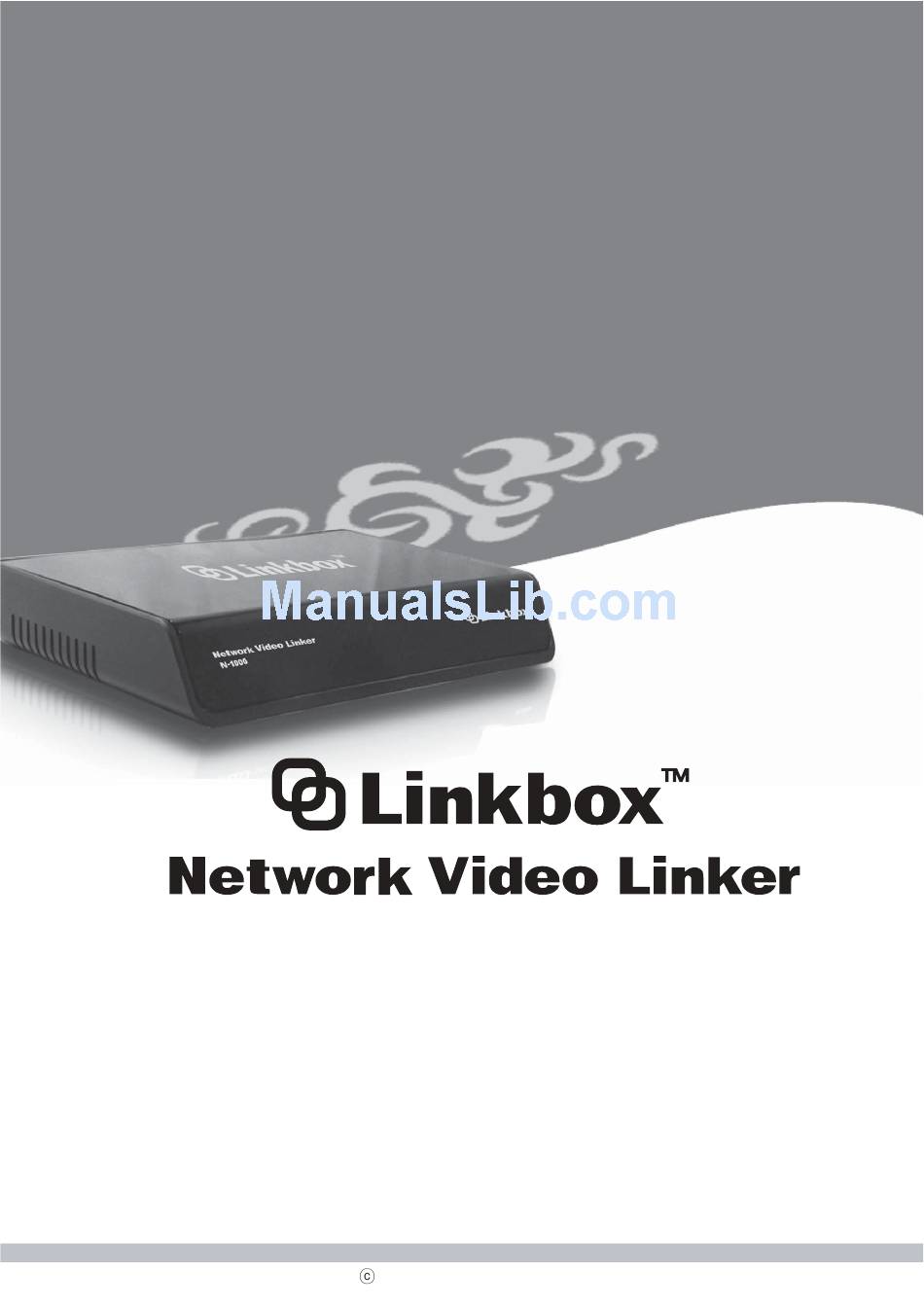

- Page 1 User’s Guide N-1000 Panarex Electronics, Sun Valley, CA. USA 2007 Panarex Electronics...
-
Page 2: Before Using The Product
Before using the product Introduction Welcome. is a set-top box that allows you to enjoy your own home entertain- ment contents from a remote location using the internet Take – Out the home contents With the , your home A/V media content is available to you from any location with internet access. - Page 3 Before using the product Accessories A/V Cable IR Contorl Cable Installation CD LAN Cable Instruction manual DC Adaptor (5V, 2A)
-
Page 4: Rear Panel
Front and Rear views of the Front Power Indicator : When the power cord is connected to the outlet and the switch is turned on, Green LED in front will blink in order and remain on while active * Description of LED lighting 1 blink indicates that the system is initializing 2 blinks indicate that the system is checking the connection between the and the Router... - Page 5 Connecting Connecting the remote control IR Cable and A/V Cable COAXIAL VIDEO OUT ANT IN DVI OUT AUDIO OUT COMPONENT AUDIO OUT Rear panel of External device A /V IN POWER EXT.IR DC 5V VIDEO - AUDIO - Front panel of the external A/V device POWER EXT.IR DC 5V...
- Page 6 Connecting Network Connection of requires a connection to the Internet in order to provide the services such as Take- Out and Home View DSL Modem Router A /V OUT A /V IN POWER EXT.IR DC 5V CAMERA VIDEO - AUDIO - VIDEO - AUDIO - Plug one end of the Ethernet cable into LAN port of the...
- Page 7 Connecting Powering-up the A /V OUT A /V IN POWER EXT.IR DC 5V CAMERA VIDEO - AUDIO - VIDEO - AUDIO - POWER DC 5V Connect the power adaptor into the and plug it into an electrical outlet. Turn ON the power switch at the rear panel of the .
- Page 8 Connecting A connection diagram of all the connection of the Connect the TV, External device, router and the as shown in the below picture External Device Router...
- Page 9 Linker Introduction Linker is the PC software that allows the user to view the media contents of an external device connected to the via the internet Main features of Linker (1) Take Out TV With Linker installed, any remote PC or labtop may be used to access live channel and media services of the external device (2) Home View ( optional feature ) The user can monitor their home through video streaming from Link Cam...
-
Page 10: Installation
Installation Linker Installation Language selection Select your language preference and click “ OK “. Starting Setup Click “ Next “ to continue License Agreement Read over the End user License Agree- ment and click “ I agree “ to continue... -
Page 11: Installation Location Selection
Installation Installation Location selection Select the destination folder and click “ Install “ to continue Installation processing Click “ Next “ to activate the Setup Wizard... -
Page 12: Setup Wizard
Installation Setup Wizard Setup Wizard is a useful program for the user to setup the change the network information. This program can only be used in the local network Starting the Setup Wizard Click “ I want to begin register my “... - Page 13 Installation Registration For product registration, enter User ID, Password and admin Password. Once you have entered your information, click “ Register “ to continue Tip : The admin Password will be used when you change the setting and firmware update via Setup Wizard. In addition, Admin Password can be used when you want to stop the streaming to the third person.
- Page 14 Installation Setup Wizard ( More settings ) Manual setting of the network information ( In the event that “ Find “ is failed ) Click “ Network Setup “ to invoke the Network Setup dialogue box And click “ Save to “...
- Page 15 Installation Manual setting for remote connection Check the radio button “ Testing for manual remote connection “ and click the Next button 1) Set up ‘ port mapping ‘ on the local router manually. Refer to the “ Setting Router “ if you would like to know how to setup the router.
- Page 16 Installation Changing the User ID and Password Check the radio button “ I want to set ID and password of my click the Next button to continue Click “ Find “ to find the network setting of . Then click the Next button to continue Enter the Administrator password to go to the next step...
- Page 17 Installation Uninstallation Click “Start” -> Go to PROGRAM -> go to Linker -> select Uninstall Click “ Next “ to continue Click “ Unintall “ Click “ Close “ to complete the uninstallation...
-
Page 18: Run The Setup Wizard
Linker In order to enjoy the services remotely via the internet, it is required that you register your first using the Setup Wizard. Registration while installing the Setup Wizard For product registration, enter the following information and click “ Register “ User ID and Password : choose the User ID and password you wish to use for access to your device... - Page 19 Using the Linker Linker Log - In To activate the Linker Log-in window, complete either of the following: Enter your User ID and Password, then Click “ Log in“ When Login is successful, the Log in window changes to LinkService window...
-
Page 20: Play Window
Using the Linker Play Window Menu Button : Use to check and Change the settings Title bar : Displays the channel number and buffers status Progressive bar : Displays the process status of the playing media Remote controller : Activates the PC remote controller Play / Stop / Next / Previous : Controls the playing file Network info : Displays the network speed Volume : Controls the volume ( Mute can be controlled using the PC remote... - Page 21 Using the Linker Menu Play Control :Uses to control the playing media file View : Changes the screen size into Full screen, Maximized screen and Minimized screen Configuration : The user can set the screen quality as the network speed allows as follows Low ( 256 Kbps ) Normal ( 350 Kbps ) High ( 650 Kbps )
-
Page 22: Login Window
Using the Linker Log - In Window ID : Enter the ID you created during registration Password: Enter the Password you created during registration Log in : Click here once you have entered your login information Remember me : Check this box if you would like the Linker to remember your login for future use. - Page 23 Using the Linker Link Service – External AV : Setting the External Device Click External AV configuration The External Device setting window will be displayed. Choose your External Device in the List box and click the OK button Device Mapping will start and the External Device will be displayed. Link Service - External AV : Setting window Device type : Choose the type of connected External A/V device in the list box...
- Page 24 Using the Linker Link Service : External A/V – Setting completed List Box : Choose External A/V device Mapped External Device : Displays the connected External Device External A/V configuration: Use to configure the External Device Play button : play the program of External Device Closes the LinkService window LinkService : Home View Click the list box and select Home View...
- Page 25 Using the Linker PC Remote Controller click Click the PC remote controller button to activate the PC remote controller PC Remote Controller description Power button : Powers on and off the External A/V device Close : closes the PC remote controller Channel Info : Displays the current channel number and the number entered Keypad : Used to enter the channel number...
-
Page 26: Favorite Channel List
Using the Linker Favorite Channel List Favorite Channel List : Adding a channel to the list click Enter a channel number using the Numeric keypad or go to a channel using Navigation keys Click the “ Add to Favorite list “ button The channel is then added to the Favorite Channel List... - Page 27 Using the Linker Favorite Channel List : playing a channel Select the desired channel and click the “ Play “ button or double-click the desired channel Play button Favorite Channel List : Deleting a channel Select a channel desired to be deleted from the list and click the “...
- Page 28 Using the Linker Additional Key List Click to toggle the PC remote controller and additional key list Additional Key List : control an external A/V Device Select a key which you desire to control Click the “ Enter “ key...
- Page 29 Using the Linker Log Out Method 1 Select “ log out “ in the list box of Service window The confirmation message will be displayed. Click “ Yes” to continue logging out of the Linker . Method 2 Close button Click “...
-
Page 30: Firmware Update
Firmware Update Firmware Update using Setup Wizard Click Check the radio button “ I want to Update the firmware of my “ and click the Next button to continue Click “ Find “ to find the network setting of . Then click the Next button to continue Enter the Administrator password to go to the next step... - Page 31 Firmware Update The information for a new firmware is displayed. If you want to update the with a new firmware, click “ Yes “ Check the radio button “ Local folder “ and click “ BROWSE” to search and select the firmware file.
-
Page 32: Troubleshooting
Troubleshooting The LED on the is blinking quickly Possible Solution : The did not get an IP address from your home router for some reasons. Try restarting both the Linker and your home router. Disconnect then reconnect the Ethernet cable between and your router. - Page 33 2007 Panarex Electronics...
