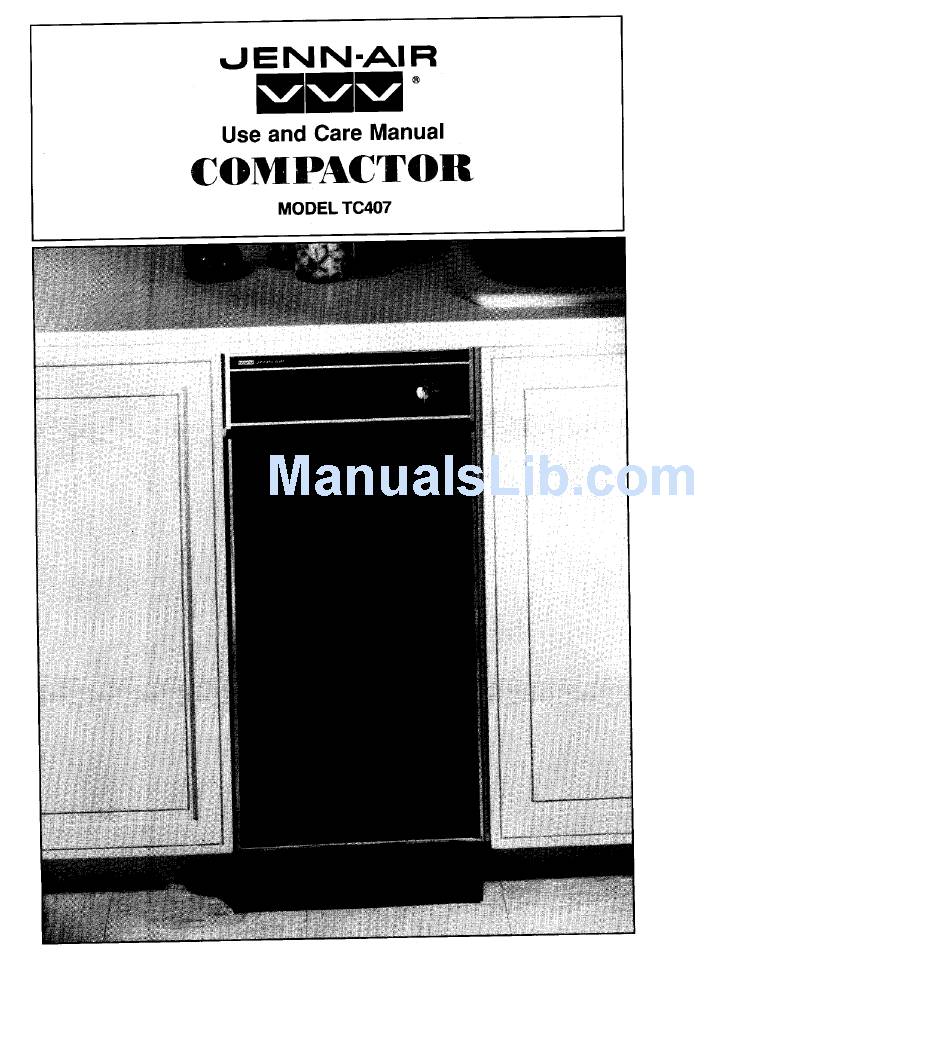

- Page 1 JENN-AIR ® Use and Care Manual COMPACTOR MODEL TC407...
-
Page 2: Grounding Instructions
Grounding Instructions The compactor is for use on a single phase, 120-volt, Polarized3-prong 60 Hz, AC only 15 or 20 ampere fused and properly groundingtype [ IIII_[H[[[1]]II[_[ grounded circuit and is equipped with a grounding outlet plug as shown above. Time delay fuse or circuit 3-Prong _.,_ breaker is recommended. - Page 3 Since this manual explains how you can obtain the best use of your compactor, it is essential that you follow the instructions carefully.This will enable you to more fully enjoy and properly maintain your appliance. Should you haveany questions about your Jenn-Air appliance, please write to us. Consumer Relations Department Jenn-Air Company...
- Page 4 Parts of the Compactor Air Freshener Key-Knob Compartment Start-Off Switch Model-Serial Number Plate Drawer Handle_ Color Front Panel Lever-Action Toe Release Bar Drawer Opener Adjustable Toe Plate...
- Page 5 Using Compactor To Start 1. Open the drawer by pressing the toe release bar or pull handle. 2. Drop in the trash, folding or crushing oversized items. Make sure trash does not fall behind container. Never fill container beyond rim. 3.
-
Page 6: Installing Removing
4. Press insideof bag against drawer bottom, sides and corners for a smooth fit. (See Fig. C) F..) NOTE:Additional bags (Model No. TCB 12) may be purchased from Jenn-Air dealers. For more information regarding Trash Compactor bags, call 1-800-JENN-AIR (1-800-536-6247). - Page 7 To Remove a Filled 1. Pullthe drawer completelyopen. 2. Removetop of bag from bag retainer buttons. Pull up all 4 bag cuffs. (See Fig. D) 3. Close bagswith twist ties provided. (See Fig. E) Fig. D Fig. E ® 4. Push Side-Lock Latch down and tilt drawer side open. (See Fig. F) 5.
- Page 8 Other Hints Caring for the Compactor Cleaning Compactor Exterior surfaces: Wipe with warm, sudsy water and a damp cloth. Rinse. Dry with a soft cloth. Inside of drawer: While cleaning inside of drawer, wear rubber gloves. There may be bits of glass in the drawer. Wash with a damp cloth using warm, sudsy water.
- Page 9 Freshener Using an air freshener will help control odors that might develop in the trash. Place a solid air freshener, such as a stick-on disc shaped freshener, into the air freshener compartment. There are many solid air fresheners available at supermarkets and department stores. The air freshener should last 4 to 6 weeks depending on room temperature and how dry room air is.
- Page 10 Changing Front Panels YourJenn-Air Model TC407B compactor comes equipped 2-TWO SIDED COLOR PANELS __.,__.,__<_,"_ with two reversible front panels painted Black/White and Almond/Harvest Gold. Tochange the color of your _--__'12 SPACERS com- pactor's front panel, follow the directions below. All (NOTE: Your Model TC407W compactor comes equipped with only one reversible front panel painted Black/White.) need is a medium sized...
-
Page 11: Before You Call For Service
If You Need Service • Call the dealer from whom your appliance was purchased or the authorized Jenn-Air Service Contractor listed in the Yellow Pages. Your Jenn-Air Service Contractor can provide better and faster service if you can accurately describe problems and give the model and serial number of your appliance.
