QuickSpecs
Overview
The next generation in switching technology. The Cisco Catalyst Blade Switch 3120 Series Switches are specifically designed to meet
the rigors of the blade server based application infrastructure and provides HP BladeSystem customers with the ability to stack up to
nine switches into a single virtual Switch. By emulating a redundant top-of-rack switch, HP BladeSystem c-Class users now have an
integrated switching solution from Cisco Systems that optimizes uplinks per rack, reduces the number of switches managed and
decreases network complexity. Both switches also provide Cisco resiliency, advanced security and enhanced manageability to the
server edge while dramatically reducing cabling requirements. The Cisco Catalyst Blade Switch 3120 comes in two versions. The 3120G
is a 1Gb switch with the flexibility to provide both copper and fiber uplinks. The 3120X has sixteen 1Gb downlinks and both 1Gb and
10Gb uplinks that can be used to aggregate bandwidth from multiple enclosures, or be used as a stand-alone switch in high bandwidth
applications. The Cisco CBS3120 offers operational consistency with the rest of the industry leading Cisco Catalyst series of switches,
using the familiar IOS Command Line Interface (CLI), consistent MIBs, and management tools like CiscoWorks. Furthermore, this
consistency with the rest of the Cisco Catalyst series ensures end-to-end network service like QoS are consistently implemented
across the network.
Both switches can be upgraded with additional firmware add-ons available at time of purchase or through web downloads.

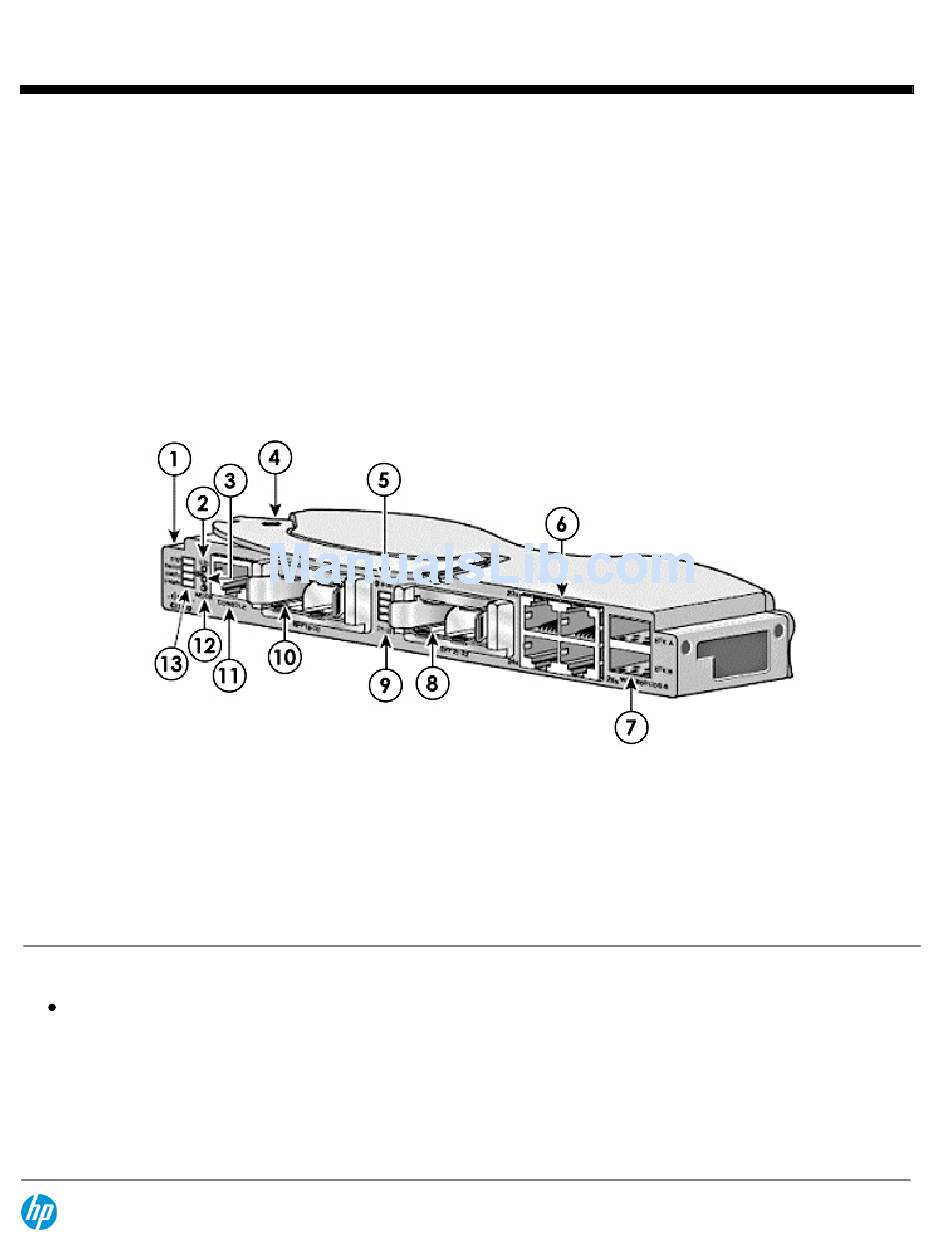

1. Switch Module
2. UID LED
3. Health LED
4. Release latch
5. LEDs for ports 19 -20
6. Gigabit Ethernet RJ-45 Ports 23 -26
7. StackWise Ports
What's New
Support for new HP ProLiant G7 server blades
Cisco Catalyst Blade Switch 3120 Series
DA - 13023 Worldwide — Version 14 — May 2, 2014
Cisco Catalyst Blade Switch 3120 for HP
8.
Slot for Cisco Twin Gigabit Module or X2 Transceiver module.
9.
LEDs for ports 21 -22
10
Slot for Cisco Twin Gigabit Module or X2 Transceiver module
11. Console Port
12. Mode Button
13. Switch System LED Panel
Page 1
Advertisement
Related Manuals for Cisco 3120 Series
Summary of Contents for Cisco 3120 Series
- Page 1 The next generation in switching technology. The Cisco Catalyst Blade Switch 3120 Series Switches are specifically designed to meet the rigors of the blade server based application infrastructure and provides HP BladeSystem customers with the ability to stack up to nine switches into a single virtual Switch.
-
Page 2: Models And Options
Cisco Ethernet RJ-45 C-SFP Module 378928-B21 Cisco Ethernet SX Fiber SFP Module 378929-B21 NOTE: The modules listed below support Cisco Catalyst Blade Switch 3120X for HP (p/n 451439-B21) only Cisco 10Gb Ethernet Base CX4 X2 Module 459005-B21 Cisco 10Gb Ethernet Base SR X2 Module... -
Page 3: Standard Features
IOS CLI support providing a common user interface and command set with all Cisco routers and Cisco Catalyst desktop switches The Catalyst Blade Switch 3120 series supports an embedded Remote Monitoring (RMON) software agent for enhanced traffic management, monitoring and analysis... - Page 4 HP ProLiant BL685 G5 HP ProLiant BL685c NOTE: Some servers listed above may be discontinued. HP Integrity Server Blade HP Integrity BL860c Server Blade HP Integrity BL860c i2 Server Blade HP Integrity BL860c i4 Server Blade HP Integrity BL870c Server Blade...
- Page 5 QuickSpecs Cisco Catalyst Blade Switch 3120 for HP Standard Features Required Network 10Base-T Categories 3, 4 or 5 UTP (100 meters) EIA/TIA-568 100-ohm STP (100 meters) Cabling 100Base-TX Category 5 UTP (100 meters) EIA/TIA-568 100-ohm STP (100 meters) 1000Base-T Category 5 UTP (100 meters)
-
Page 6: Service And Support
HP Foundation Care services offer scalable reactive support-packages for HP servers and software. You can choose the type and level of service that is most suitable for your IT and business needs. HP Proactive Care delivers high levels of system availability through proactive service management and advanced technical response. - Page 7 Additional HP Care Pack services can be found at: http://www.hp.com/go/cpc Insight Online/Insight HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. This comes at no additional cost with your HP solution. Learn more about Insight Remote Remote Support Support http://www.hp.com/go/insightremotesupport and Insight Online http://www.hp.com/go/insightonline...
- Page 8 Cisco Catalyst Blade Switch 3120 for HP Related Options Service and Support NOTE: H P Care Pack services for the c7000 enclosure provide HP coverage of the Cisco Offerings (HP Care Pack Catalyst Blade Switch 3120X for HP (451439-B21) and the Cisco Catalyst Blade Switch 3120G for HP (451438-B21).
-
Page 9: Technical Specifications
QuickSpecs Cisco Catalyst Blade Switch 3120 for HP Technical Specifications Shipping Dimensions Length 13.88 in (352.55mm) Width 10.63 in (270.00mm) Height 4.75 in (120.65mm) Shipping Weight 2.0kg (4.4lbs) Product Specifications Performance 128 Gbps switching fabric (Catalyst 3120X) 64 Gbps stacking fabric Hardware Forwarding rate based on 64-byte packets;... - Page 10 Indicators Total of 18 LEDs on the face place 12 LEDs for uplink port status 4 Switch status LEDs 2 HP specific LEDs to indicate Health and UID status System Unit Dimensions 10.5in x 7.5 in x 1.1 in 267.7mm x 92.79mm x 27.94mm...
- Page 11 QuickSpecs Cisco Catalyst Blade Switch 3120 for HP Technical Specifications extensions. This set of comprehensive features not only helps prevent external attacks, but defends the network against “man-in-the-middle” attacks, a primary concern in today’s business environment. The switch also supports the Network Admission Control (NAC) security framework.
- Page 12 QuickSpecs Cisco Catalyst Blade Switch 3120 for HP Technical Specifications Port-based ACLs for Layer 2 interfaces allow security policies to be applied on individual switch ports. Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) provide network security by encrypting administrator traffic during Telnet and SNMP sessions.
- Page 13 QuickSpecs Cisco Catalyst Blade Switch 3120 for HP Technical Specifications extra capacity inherent in a redundant design. Dynamic Trunking Protocol (DTP) enables dynamic trunk configuration across all switch ports. Port Aggregation Protocol (PAgP) automates the creation of Cisco Fast EtherChannel® groups or Gigabit EtherChannel® groups to link to the upstream...
- Page 14 QuickSpecs Cisco Catalyst Blade Switch 3120 for HP Technical Specifications Management Features Cisco IOS Software CLI support provides common user interface and command set with all Cisco routers and Cisco Catalyst desktop switches. Switching Database Manager Templates for access, routing, and VLAN deployment allow the administrator to easily maximize memory allocation to the desired features based on deployment-specific requirements.
- Page 15 QuickSpecs Cisco Catalyst Blade Switch 3120 for HP Technical Specifications Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location. Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches.
- Page 16 QuickSpecs Cisco Catalyst Blade Switch 3120 for HP Technical Specifications CISCO-IP-STAT-MIB CISCO-IPMROUTE-MIB CISCO-L2-TUNNEL-CONFIG-MIB CISCO-L2L3-INTERFACE-CONFIG-MIB CISCO-LAG-MIB CISCO-MAC-NOTIFICATION-MIB CISCO-MEMORY-POOL-MIB CISCO-NTP-MIB CISCO-PAE-MIB CISCO-PAGP-MIB CISCO-PIM-MIB CISCO-PING-MIB CISCO-PORT-QOS-MIB CISCO-PORT-SECURITY-MIB CISCO-PORT-STORM-CONTROL-MIB CISCO-PRIVATE-VLAN-MIB CISCO-PROCESS-MIB CISCO-PRODUCTS-MIB CISCO-RTTMON-MIB CISCO-SMI CISCO-STACK-MIB CISCO-STACKMAKER-MIB CISCO-STACKWISE-MIB CISCO-STP-EXTENSIONS-MIB CISCO-SYSLOG-MIB CISCO-TC CISCO-TCP-MIB CISCO-UDLDP-MIB CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB CISCO-VLAN-MEMBERSHIP-MIB...
- Page 17 QuickSpecs Cisco Catalyst Blade Switch 3120 for HP Technical Specifications RMON-MIB RMON2-MIB SMON-MIB SNMP-FRAMEWORK-MIB SNMP-NOTIFICATION-MIB SNMP-PROXY-MIB SNMP-TARGET-MIB SNMP-USM-MIB SNMP-VACM-MIB SNMPv2-MIB TCP-MIB UDP-MIB Additional MIBs Supported by IPServices ATM-MIB BGP4-MIB CISCO-AAL5-MIB CISCO-ATM-EXT-MIB CISCO-ATM-PVC-MIB CISCO-ATM-PVCTRAP-EXTN-MIB CISCO-ATM-QOS-MIB CISCO-BGP4-MIB CISCO-CLASS-BASED-QOS-MIB CISCO-FRAME-RELAY-MIB CISCO-IETF-ATM2-PVCTRAP-MIB CISCO-IETF-IP-MIB CISCO-IETF-ISIS-MIB...
- Page 18 To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.
- Page 19 Windows is a US registered trademark of Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
