- Page 1 Residential Gateway (RG) Battery Backup BU3DC000-12V User Manual...
-
Page 2: Table Of Contents
Table of Contents Page Introduction..................... 3 Safety Information..................3 System Requirements................3 Package Contents ..................4 Recycling ....................4 Product Layout and Function............... 5-6 Audible and Visual Alarms ................6 Installation ...................... 7 Operation ......................8 Wall-Mounting Instructions (Optional)............9 Battery-Replacement Procedure .............. -
Page 3: Introduction
Introduction Thank you for purchasing the Residential Gateway (RG) Battery Backup. Natural and man-made power disturbances can disrupt the power supplied to your home electronics. These power problems can disrupt the normal operation of important electrical equipment and related services. Battery Backups provide an uninterruptible power supply (UPS) to keep critical systems up and running in the event of a power loss. -
Page 4: Package Contents
1 – RG Battery Backup unit (12V sealed lead battery included) Recycling UNIT CONTAINS SEALED LEAD BATTERY. BATTERY SHOULD BE RECYCLED. Belkin International, Inc., advocates sound environmental management of used batteries. For battery-replacement and recycling information, please call us at 866-539-5791, or visit our website at www. -
Page 5: Product Layout And Function

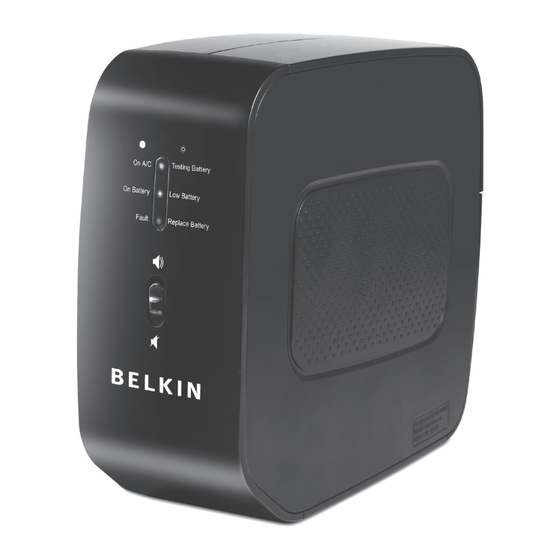

Product Layout and Function Controls and Status Indicators Shown below are the controls and indicator lights on the RG Battery Backup. Power on/off Power on/off switch is located on the back panel. Use this switch to turn the RG Battery Backup on/ off. - Page 6 4 Pioneer Avenue Tuggerah Business Park Tuggerah, NSW 2259, Australia +61 (0) 2 4350 4600 +61 (0) 2 4350 4700 fax © 2007 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. REV 082007 P75319-B...
-
Page 7: Audible And Visual Alarms
Product Layout and Function Audible and Visual Alarms The RG Battery Backup alarms to indicate certain events. Front-Panel Visual Audible Description Label Indicator Alarm ON A/C Green LED None The RG Battery Backup is lights operating on A/C. Testing Green LED None The RG Battery Backup is conduct- Battery... -
Page 8: Installation
Installation NOTE: Before installation, please inspect the RG Battery Backup. Make sure that nothing inside the package is damaged. The RG Battery Backup must be installed near the Residential Gateway and be easily accessible. STEP 1: Connect to AC Utility Power Make sure that the power switch on the RG Battery Backup is in the OFF position. -
Page 9: Operation
Operation • Turning off the RG Battery Backup Turn switch to OFF position. The “ON A/C” LED light should turn off. • To Silence Audible Alarm Turn mute switch to ON (down) position. • To Conduct a Self-Test Use the self-test to verify both the operation of the RG Battery Backup and the condition of the battery. -
Page 10: Wall-Mounting Instructions (Optional)
Wall-Mounting Instructions (Optional) NOTE: Required hardware not included. Refer to the wall-mount instructions for required tools and materials. STEP 1: Position the template on the wall where you want to mount the RG Battery Backup and tape in place. STEP 2: Make a mark on the wall in the 2 screw locations indicated on the template. -
Page 11: Battery-Replacement Procedure
Battery-Replacement Procedure The RG Battery Backup is designed with an easy-access battery door. Replacement of the battery requires removing the battery door on the rear of the device. No tools are needed. STEP 1: Turn off power switch. Disconnect the RG Battery Backup from power and any connected devices. -
Page 12: Technical Specifications
Typical Backup Time 4 hours—With a new, fully charged, CSB- or YUASA-branded battery or other battery recommended or supplied by Belkin, with one corded single-line, touchtone phone connected to the AT&T U-verse Residential Gateway directly or through your in-home wiring, and with no other equipment and no service other than AT&T U-verse...
