Jumper and Connector Information

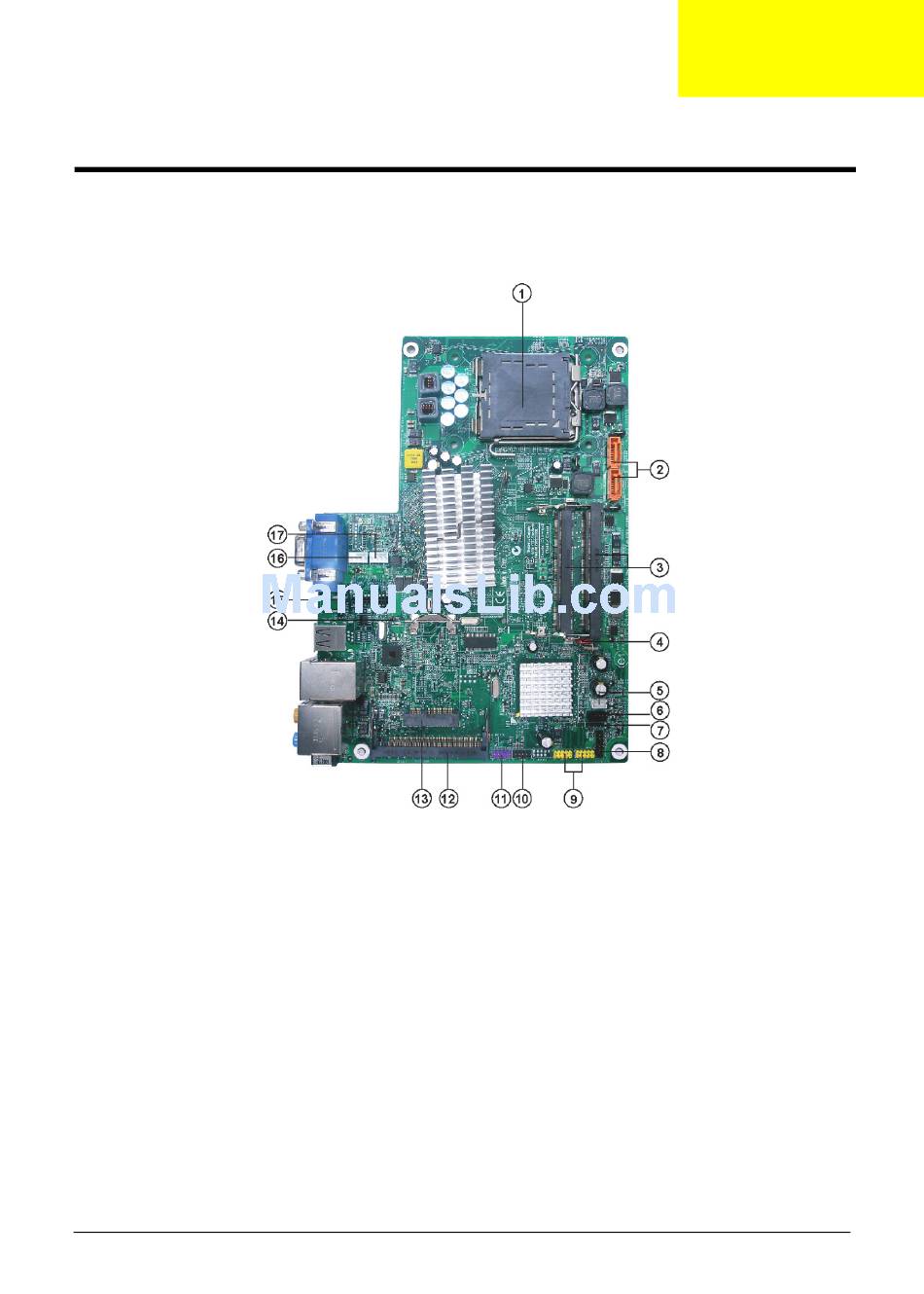

Main Board Layout

1 CPU Socket
2 SATA1~2
3 SCN2~3
4 JP2
5 J4
6 J3
7 CR1
Chapter 5
LGA775 socket for Intel
CoreTM 2 Duo with 65W
TDP CPUs
Serial ATA connectors
Two 200-pin DDR2
SDRAM SO-DIMMs
Clear CMOS jumper
3-pin ODD power
connector
SATA HDD power
connector
USB power header
10 SPI2
11 F_AUDIO2
12 MINI_PCI1
13 SCN1
14 JP5
15 JP6
16 SYS_FAN1
Chapter 5
Video input header
Front panel audio header
32-bit/33 MHz MINI PCI
slot
MINI PCI Express slot
Case open header
DVI-D header
System cooling fan
connector
