RocketFish RF-iCAP23 Quick Setup Manual

Capsule Keyboard Case
RF-iCAP23 I Quick Setup Guide
Package contents
• Capsule keyboard • Ear phone jack spare cover
• USB cable • Quick Setup Guide
Features
• 82-key design, 18 hot keys for iPad 3rd Generation
• Compatible with Apple iPad 2
• Protective hard shell construction - Enhanced durability and stability
• Smart power management - Auto turn off when closed.
• Bluetooth version 3.0

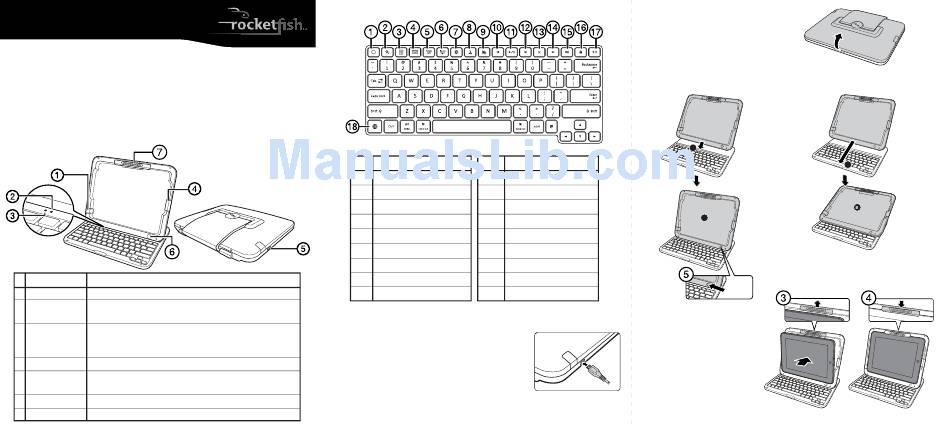

Capsule parts
# Component Description
1 Earphone jack Remove the rubber piece to connect an earphone to the iPad earphone jack.
2 Battery LED Orange OFF: Battery full; Orange ON: Battery charging;
Orange BLINKING: Battery low
3 Bluetooth Blue FAST BLINKING (10 seconds): Re-connecting
connection LED Blue BLINKING (5 minutes): Searching for devices (pairing)
Blue ON (2 seconds): Just connected
4 30-pin connect slot Slide out the rubber piece to connect the 30-pin connector.
5 Micro USB port Connect to a USB power supply (e.g. wall charger or computer) with a Micro
USB cable to charge Capsule battery.
6 Release button Push to release the top panel when in typing mode.
7 Latch lock Slide latch lock upward to install iPad. Release and the iPad will lock into place.
Keyboard
# Description #
1 Home button 10
2 Search button 11
3 Photo Slide Show button 12
4 Virtual Keyboard button 13
5 Select Left button 14
6 Select Right button 15
7 Copy button 16
8 Cut button 17
9 Paste button 18
First time use
When you unpack your Capsule keyboard, the internal battery is
only partially charged. You should charge it fully before using it.
Charge the battery
Connect your Capsule keyboard to a computer or the power adapter
using the USB cable (provided) to charge the internal battery.
Note: USB cable charging voltage is 4.4v ~ 6.0v. It is recommended
that you use iPad chargers or regular computers.
Setting up Capsule keyboard
1 Insert a finger into the gap,
then lift to open the top panel.
2a For typing mode, align and
place the top panel on the gap.
Description
Previous track button
Play/Pause button
Next track button
Mute button
Volume down button
A
Volume up button
Lock button
Pairing button
International keyboard button
3 Place the bottom edge of the iPad
into the bottom of the top panel, push
up on the latch, then move the top
edge of the iPad into the top panel.
4 Release the latch to lock the iPad
in place.
5 To change out of typing Mode,
push the release button and pull the
top panel forward towards the keyboard.
2b For stand mode, pull the top panel
forward towards the keyboard.
A
B
A
